6 m Extension Cable with Solar Connector Photovoltaic Cable 16 AWG with a Cross-Section of 1.5 mm² With Free End Red and Black For Panels
You already have the maximum available quantity in your cart.

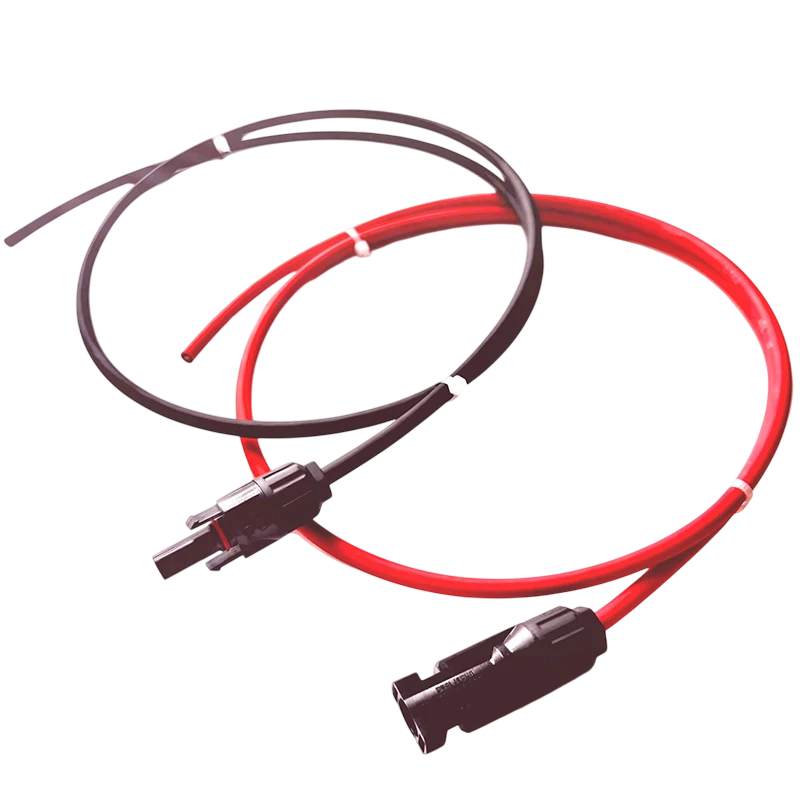

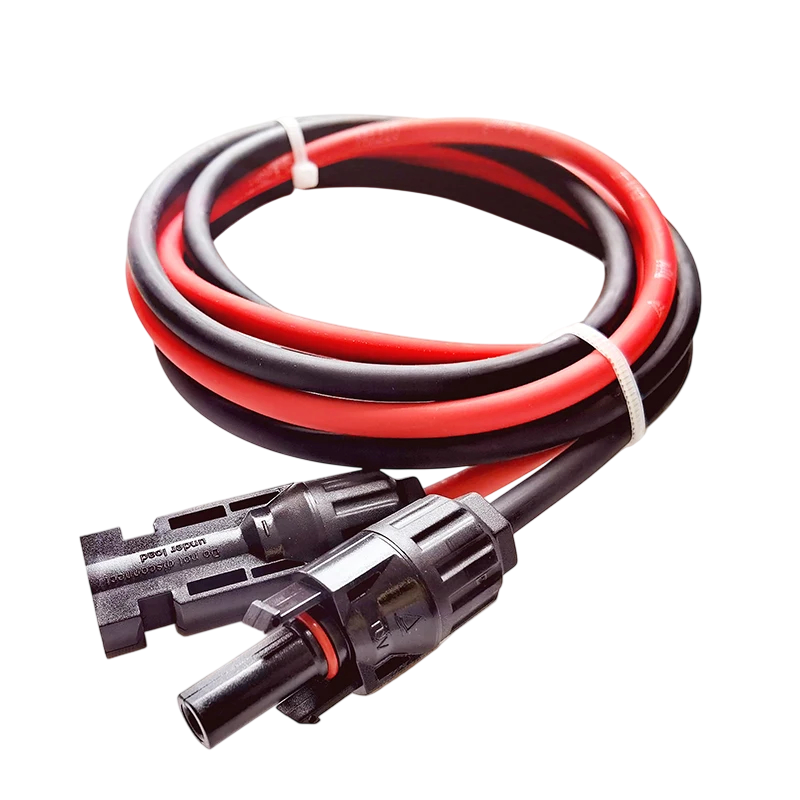

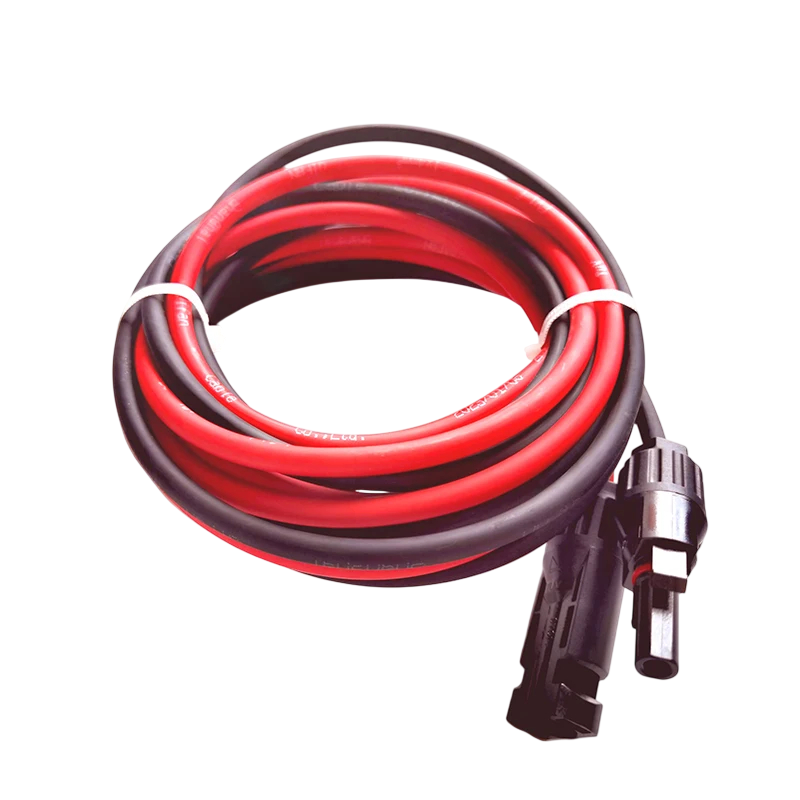

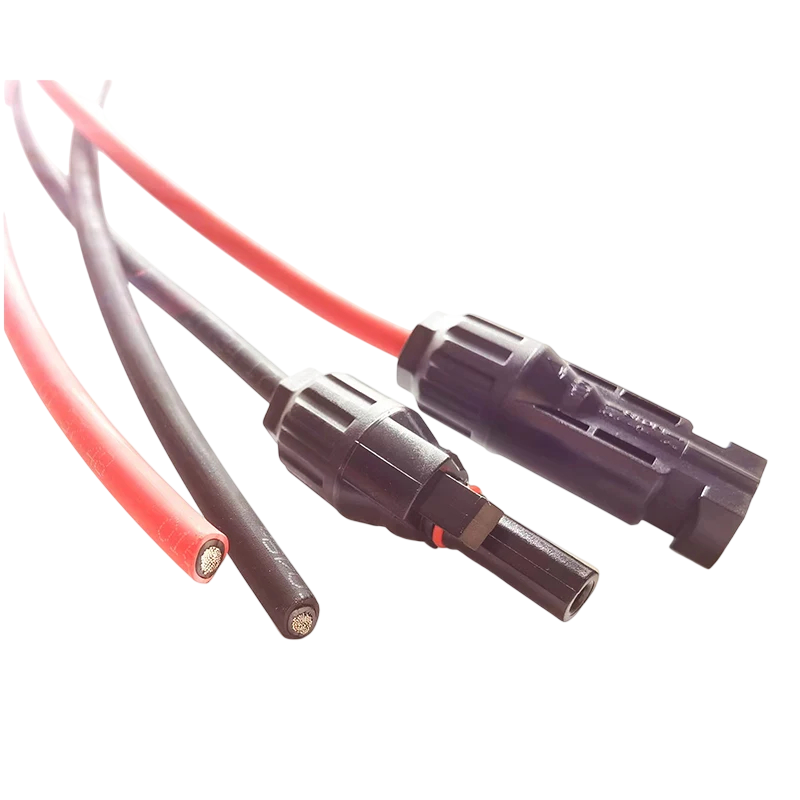

The 6 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black design, allowing for polarity to be distinguished by the colour of the insulation, ensuring no mistakes during installation. The wire has a cross-section of 1.5 mm² according to the designation 16 AWG, which is suitable for common domestic and mobile photovoltaic installations. One end is fitted with a solar connector from the factory, while the other end remains free for connection to a terminal block or for custom termination. The stranded core provides the cable with the flexibility needed when routing around a supporting structure.
- Length 6 m — reach to a panel located on a distant roof, fence, or standalone structure
- Cross-section 1.5 mm² — wire corresponding to the designation 16 AWG
- Solar connector on one end — snap-on connection with pull-out protection
- Free end on the other side — terminate according to the requirements of the connected device
- Stranded core — the cable bends well and routes even in tighter spaces
- Red and black insulation — colour coding for positive and negative wires
- Pair of cables in the package — one piece carries positive, the other negative
- Design for photovoltaics — cable intended for DC wiring of solar assemblies
Package contents:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — ferrule, cable eye, or direct connection to a terminal. Six metres in length covers the distance between a panel in the garden or on the roof and a controller located inside a building or caravan. When designing the wiring, consider that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checks during any subsequent modifications to the assembly.
