6 m Extension Cable with Solar Connector Photovoltaic Cable 12 AWG with Cross-Section of 4 mm² Load Capacity 55 A Red and Black For Panels

6 m Extension Cable with Solar Connector Photovoltaic Cable 12 AWG with Cross-Section of 4 mm² Load Capacity 55 A Red and Black For Panels

Set of two wires with a finished connector on one end and a free end on the other. The cross-section of 4 mm² can handle a current of up to 55 A and the outer diameter is 6.10 mm. Full description
In stock
Delivery €1.59
30-day return policy
€70.70
Safe shopping Safe shopping
Overview
6 m Extension Cable with Solar Connector Photovoltaic Cable 12 AWG with Cross-Section of 4 mm² Load Capacity 55 A Red and Black For Panels

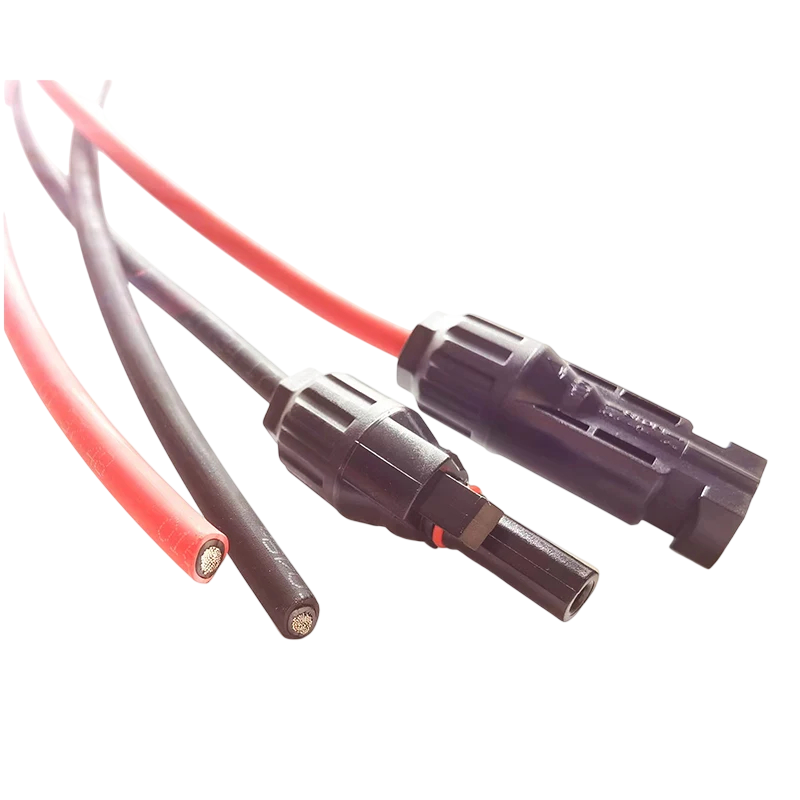

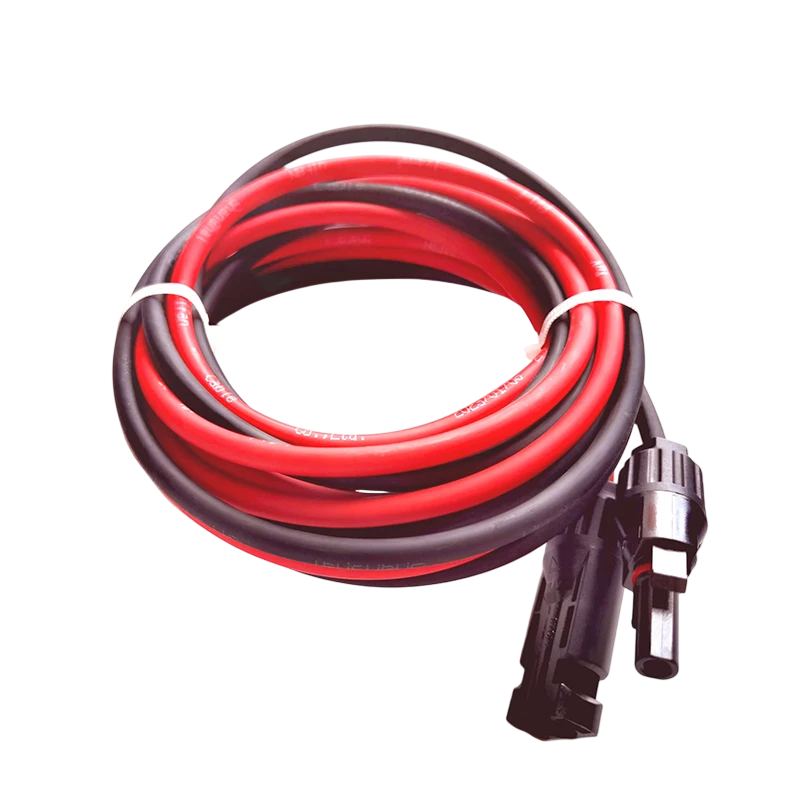

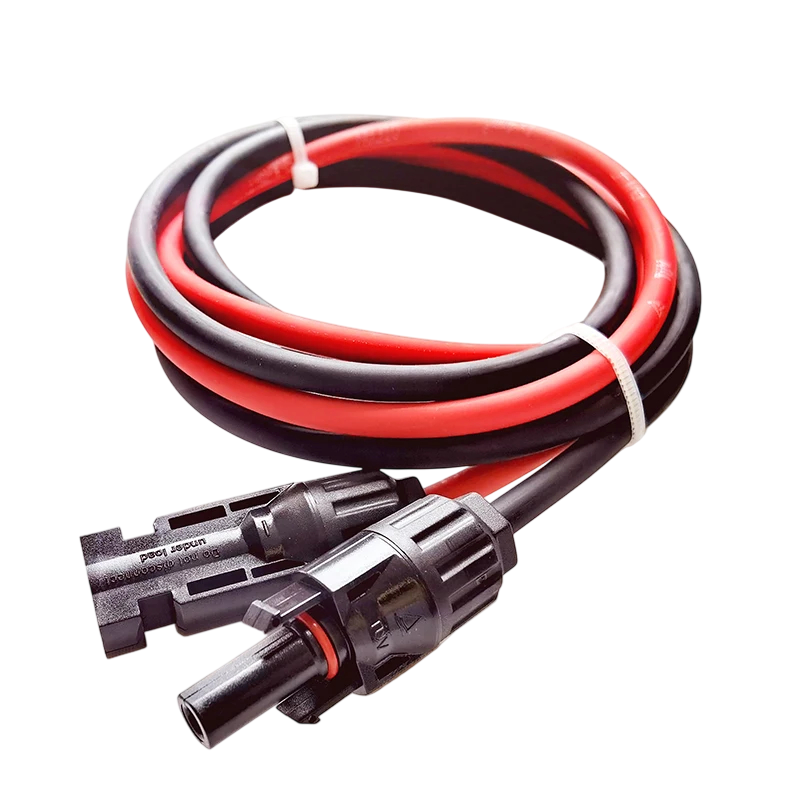

The photovoltaic extension cable, 6 m in length, is used to connect a solar panel to a charge controller, inverter, or other wiring in the setup. It is supplied as a pair of wires in red and black finishes, so the polarity is distinguished by the colour of the insulation, preventing confusion during installation. The wire has a cross-section of 4 mm² according to the designation 12 AWG and is composed of fifty-six strands with a diameter of 0.30 mm, which maintains flexibility even with a larger cross-section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 55 A at 60 °C.

  • Length 6 m — reach to a panel located on a more distant roof, fence, or standalone structure
  • Cross-section 4 mm² — wire corresponding to the designation 12 AWG for higher currents and longer runs
  • Construction of 56 strands of 0.30 mm — flexible core with a diameter of 2.60 mm
  • Load capacity 55 A — value stated at a temperature of 60 °C
  • Wire resistance max. 4.95 Ω/km — measured at 20 °C, thus lower losses than with thinner wires
  • Outer diameter of the cable 6.10 mm — insulation thickness 0.67 mm and sheath 0.73 mm
  • Solar connector on one end — snap-fit connection with pull-out protection
  • Red and black insulation — colour coding for positive and negative wires

Contents of the package:

  • 1x cable with red insulation and solar connector
  • 1x cable with black insulation and solar connector

The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — spade lug, cable eye, or direct connection to a terminal depending on what the connected device requires. The cross-section of 4 mm² with a load capacity of 55 A is suitable for more powerful panels and setups where current from multiple sources is combined. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checks during any subsequent adjustments to the setup.
