6 m Extension Cable with Solar Connector Photovoltaic Cable 10 AWG with Cross Section of 6 mm² Current Rating 70 A Red and Black For Panels
You already have the maximum available quantity in your cart.

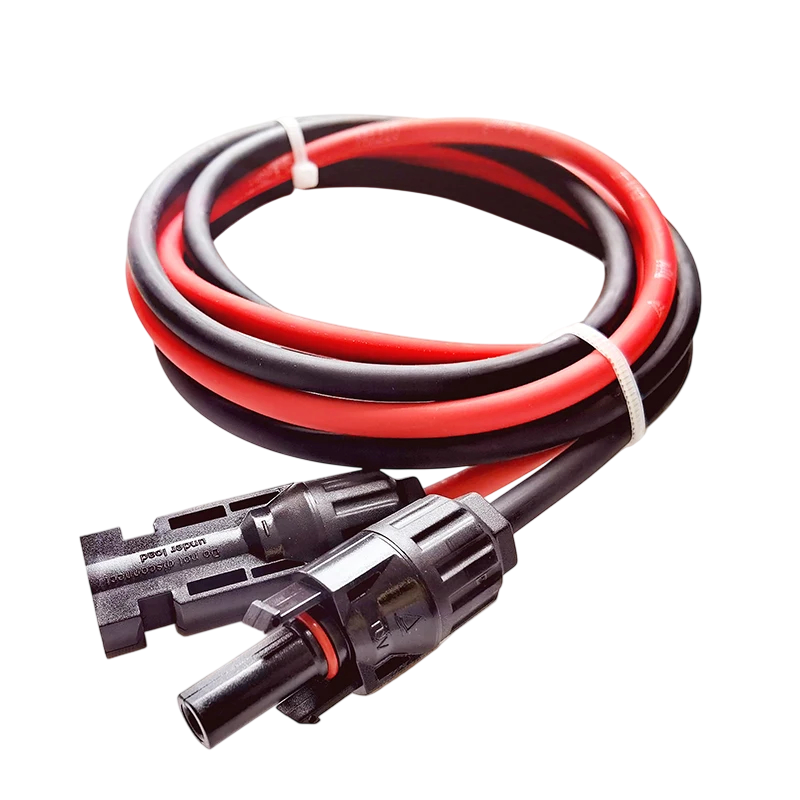

The 6 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the assembly. It is supplied as a pair of wires in red and black colours, making polarity easily distinguishable by the colour of the insulation, so you won't get confused when connecting. The wire has a cross section of 6 mm² according to the designation 10 AWG and is made up of eighty-four strands with a diameter of 0.30 mm, which maintains flexibility even with this cross section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current rating reaches 70 A at 60 °C.
- Length 6 m — reach to a panel located on a distant roof, fence, or standalone structure
- Cross section 6 mm² — wire corresponding to the designation 10 AWG for the highest currents in this range
- Construction of 84 strands of 0.30 mm — flexible core with a diameter of 3.42 mm
- Current rating 70 A — value specified at a temperature of 60 °C
- Maximum wire resistance 3.30 Ω/km — measured at 20 °C, thus the lowest losses in this range of cross sections
- Outer diameter of the cable 7.20 mm — insulation thickness 0.8 mm and sheath 0.8 mm

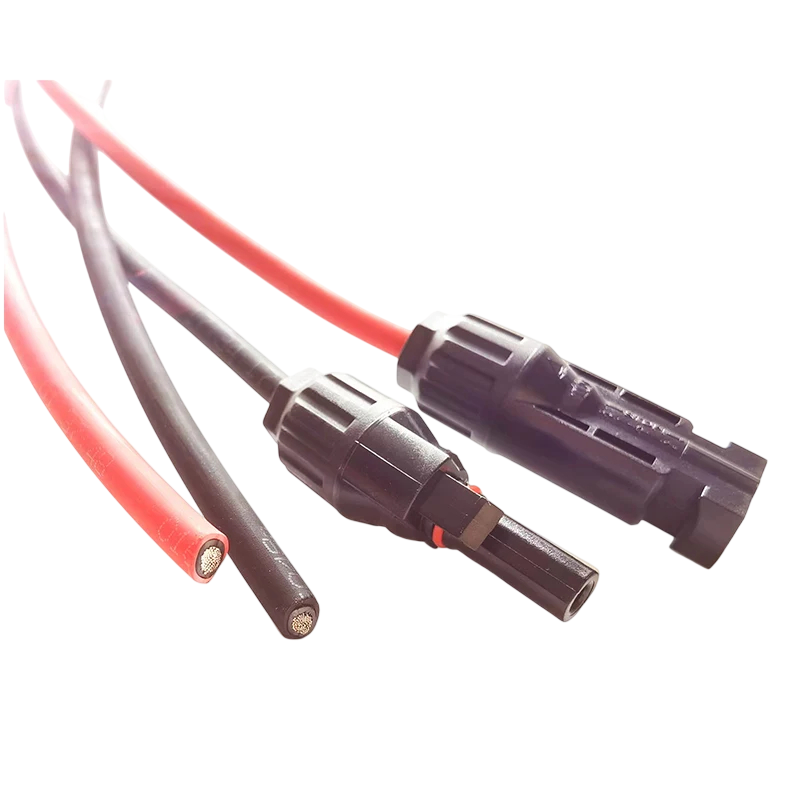

- Solar connector on one end — snap-in connection with a pull-out prevention mechanism
- Red and black insulation — colour differentiation of the positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — ferrule, cable lug, or direct connection to a terminal depending on what the connected device requires. Cross section of 6 mm² with a current rating of 70 A is suitable for powerful assemblies and longer runs where it is necessary to keep losses as low as possible. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour differentiation of the insulation facilitates polarity checking during any subsequent adjustments to the assembly.
