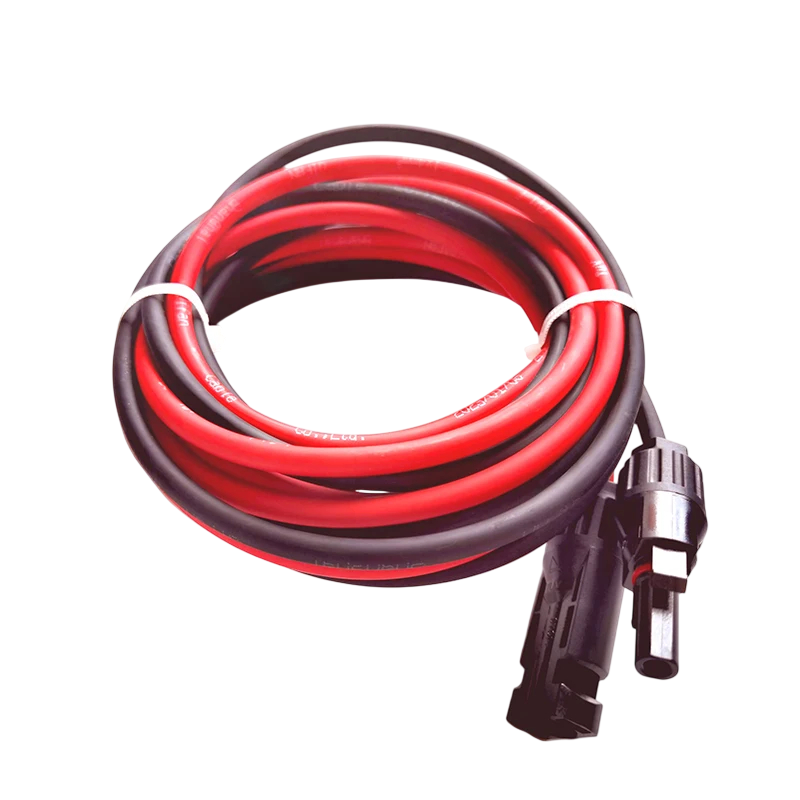

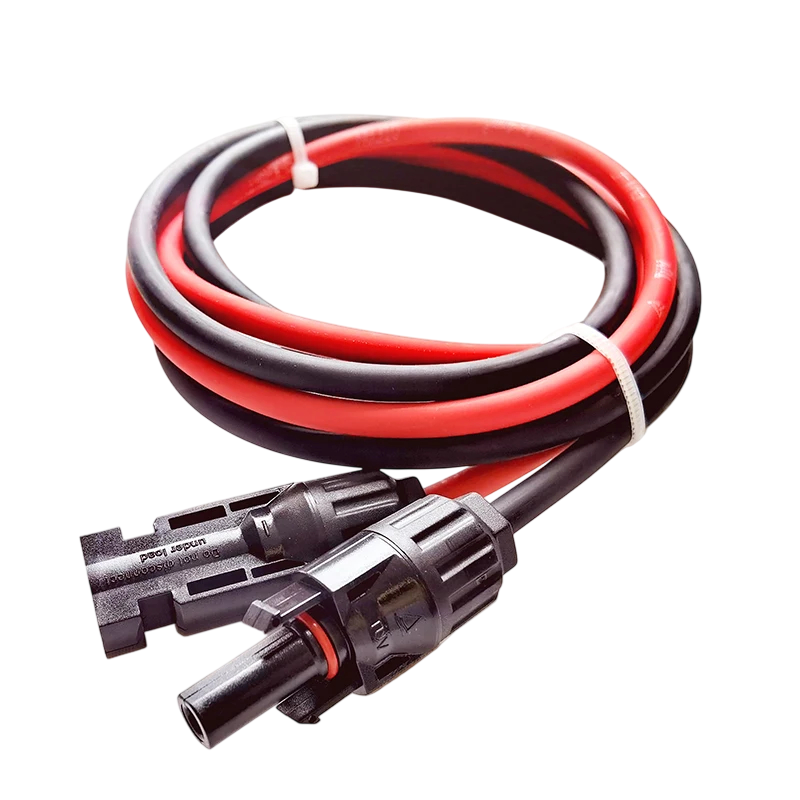

5 m Extension Cable with Solar Connector Photovoltaic Cable 14 AWG with a Cross Section of 2.5 mm² Load Capacity 41 A Red and Black For Panels
You already have the maximum available quantity in your cart.
The 5 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black, so the polarity is already distinguished by the colour of the insulation, preventing confusion during installation. The wire has a cross-section of 2.5 mm² according to the designation 14 AWG and consists of fifty strands with a diameter of 0.25 mm, giving it the flexibility needed for routing around structures. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 41 A at 60 °C.
- Length 5 m — reaches even to a panel placed on a more distant roof, fence, or standalone structure
- Cross-section 2.5 mm² — wire corresponding to the designation 14 AWG with a reserve for higher currents
- Construction of 50 strands of 0.25 mm — flexible core with a diameter of 2.02 mm
- Load capacity 41 A — value stated at a temperature of 60 °C
- Maximum wire resistance 7.98 Ω/km — measured at 20 °C
- Outer diameter of the cable 5.45 mm — insulation thickness 0.67 mm and sheath 0.73 mm

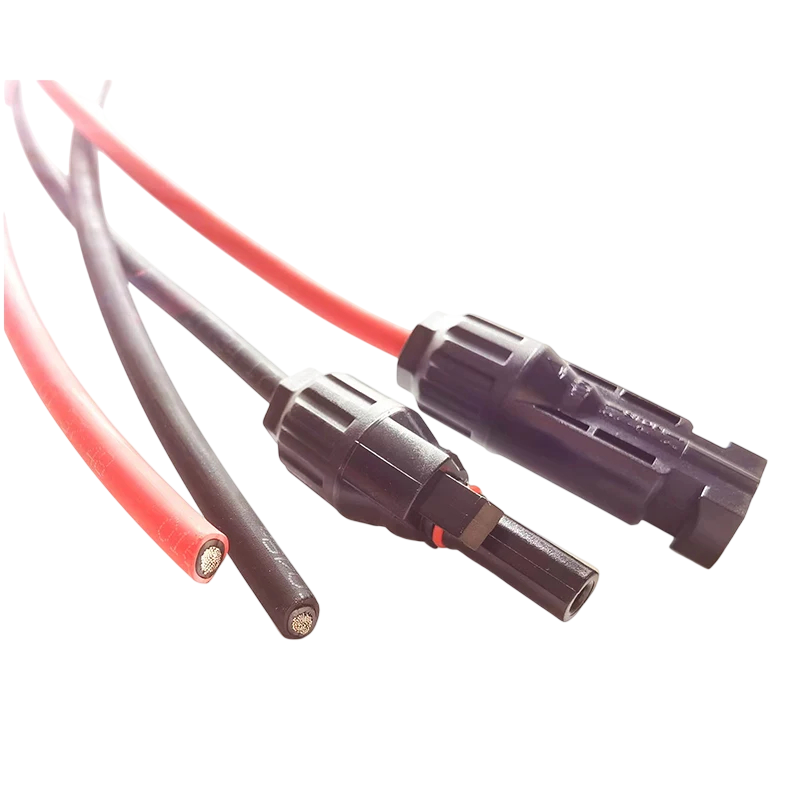

- Solar connector on one end — snap-on connection with pull-out protection
- Red and black insulation — colour coding for positive and negative wires
Package contents:

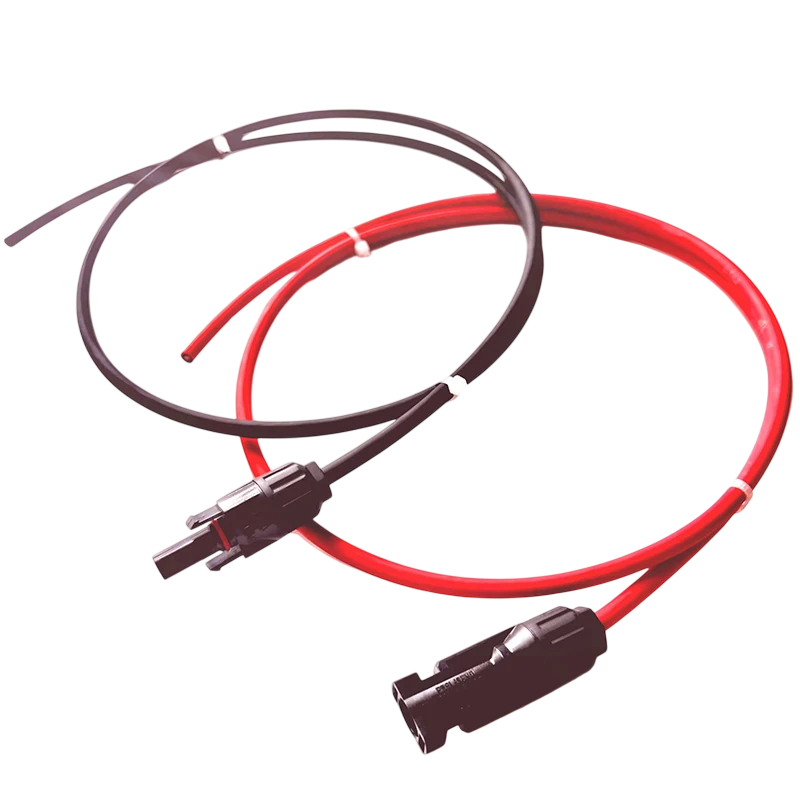

- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — a ferrule, cable lug, or direct connection to a terminal depending on what the connected device requires. The cross-section of 2.5 mm² with a load capacity of 41 A provides a reserve for more powerful panels and longer runs compared to thinner wires. When designing the wiring, consider that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checks during any future modifications of the assembly.
