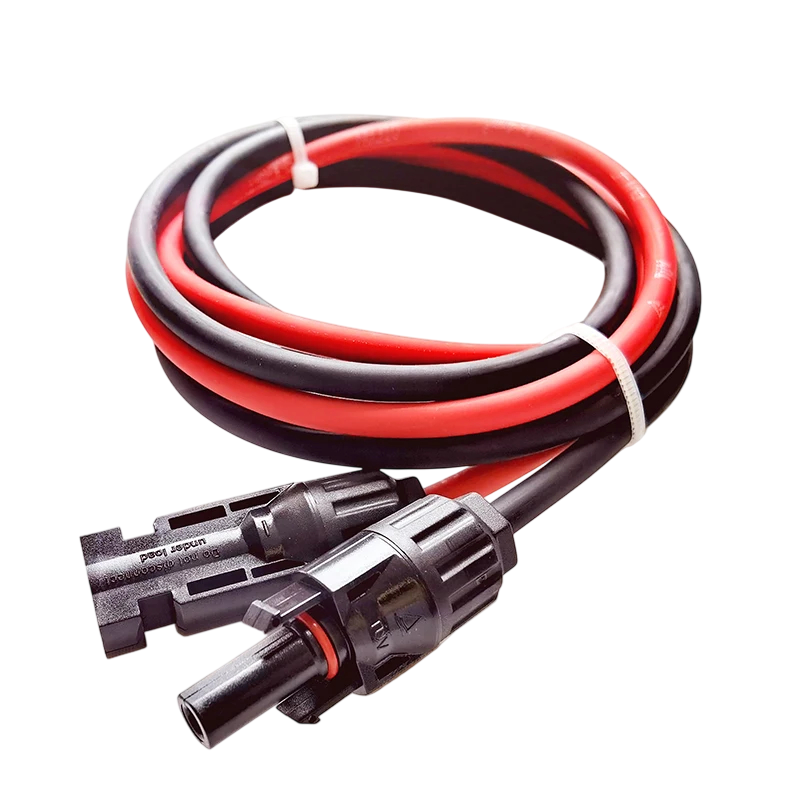

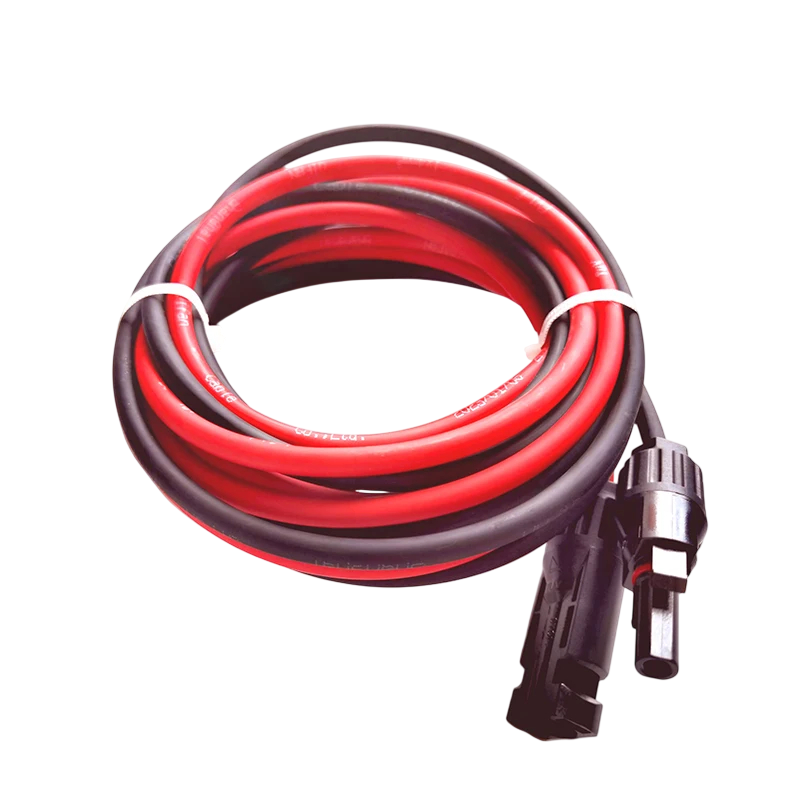

5 m Extension Cable with Solar Connector Photovoltaic Cable 12 AWG with a Cross-Section of 4 mm² Current Capacity 55 A Red and Black For Panels
You already have the maximum available quantity in your cart.
The 5 m photovoltaic extension cable is designed to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black, allowing for easy identification of polarity based on the colour of the insulation, so you won't make a mistake when connecting. The wire has a cross-section of 4 mm² according to the designation 12 AWG and is composed of fifty-six strands with a diameter of 0.30 mm, which maintains its flexibility even with a larger cross-section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current carrying capacity reaches 55 A at 60 °C.
- Length 5 m — reach even to a panel located on a more distant roof, fence, or standalone structure
- Cross-section 4 mm² — wire corresponding to the designation 12 AWG for higher currents and longer runs
- Construction of 56 strands of 0.30 mm — flexible core with a diameter of 2.60 mm
- Current capacity 55 A — value stated at a temperature of 60 °C
- Wire resistance max. 4.95 Ω/km — measured at 20 °C, resulting in lower losses than thinner wires
- Outer diameter of the cable 6.10 mm — insulation thickness 0.67 mm and sheath 0.73 mm
- Solar connector on one end — snap-in connection with a pull-out prevention feature
- Red and black insulation — colour coding for positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector

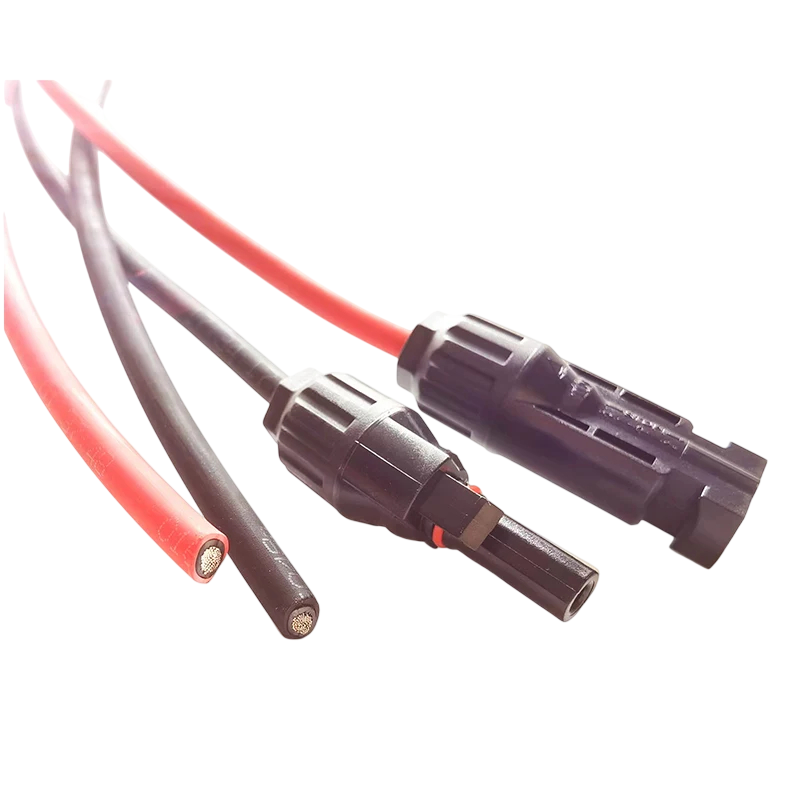

The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functioning system. The free end allows for custom termination — lug, cable eye, or direct connection to a terminal according to the requirements of the connected device. The cross-section of 4 mm² with a current capacity of 55 A is suitable for more powerful panels and systems where current from multiple sources is combined. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checking during any subsequent modifications to the system.
