4K 60 MP Electronic Microscope with Blue IMX415 Camera, HDMI and USB-C 150x Lens, Circular LED Light and Soldering Arm
You already have the maximum available quantity in your cart.

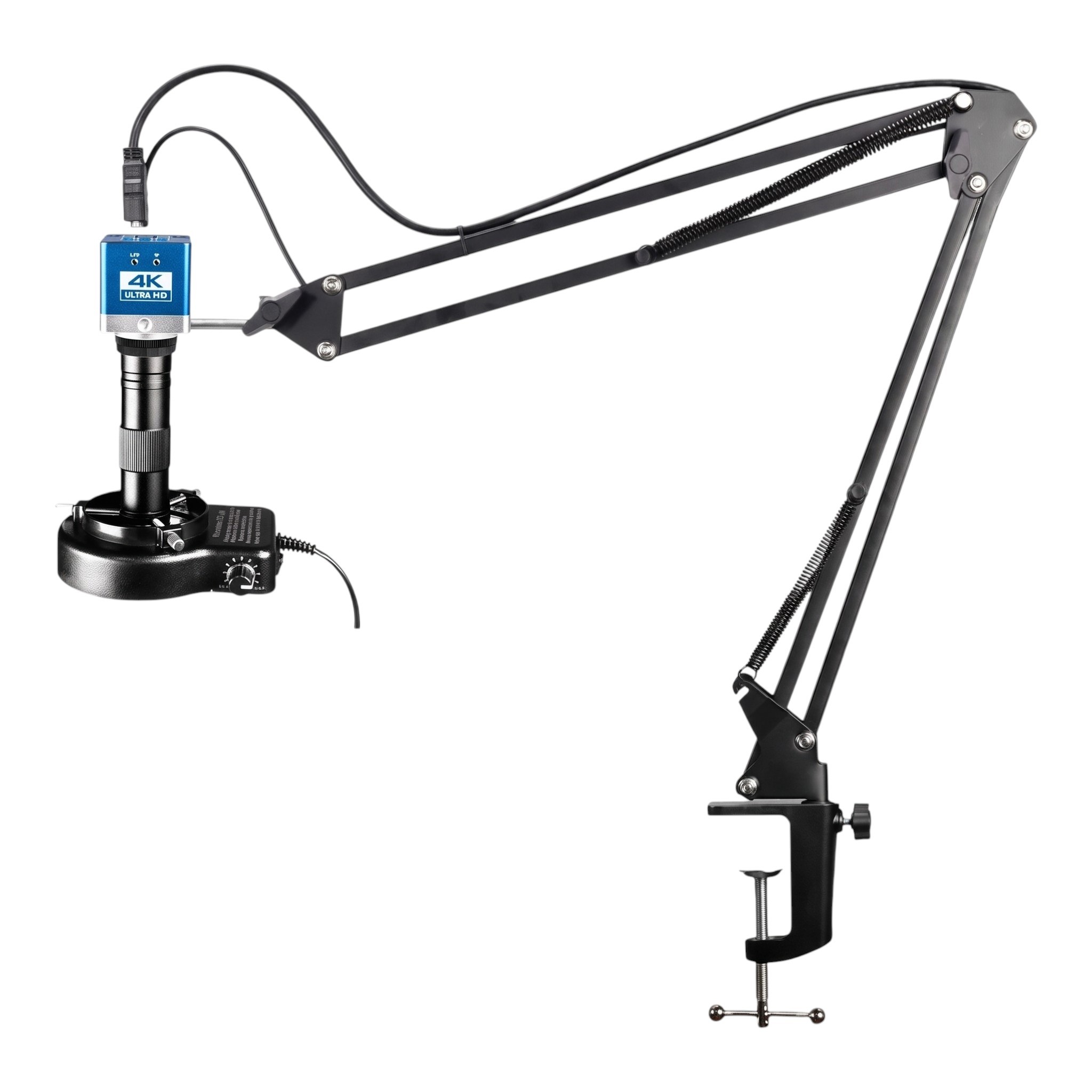

The electronic microscope for soldering and servicing electronics combines a 4K Ultra HD blue camera, a long lens, and circular lighting on a desktop arm. The camera is equipped with a IMX415 sensor, which allows you to take 60 MP resolution photos and view live images on a connected monitor or television. The camera features HDMI and USB-C connectors, along with a microSD card slot. The 150x magnification lens is designed for a detailed view of soldered joints, chips, and connectors during phone and printed circuit board repairs. Below the lens is a mounted circular LED light, and the entire assembly hangs from a spring arm attached to the table.
- 4K Camera – blue body with a silver bottom, IMX415 sensor, and 60 MP resolution photos; the camera captures even fine details such as hairline cracks in solder or shorts between leads.
- Connectors – the camera offers HDMI, USB-C, and a microSD slot; an HDMI cable is included for the monitor, along with a USB-C cable ending in a USB-A connector. The camera is powered by a separate adapter, which is also part of the set.
- 150x Magnification – the black cylindrical lens attaches to the underside of the camera and allows you to zoom in on chip leads, component pads, and small phone connectors.
- Lighting – the circular LED light slides onto the end of the lens and is held in place by several screws; the intensity is adjustable via a dial on the side of the light between Min and Max settings.

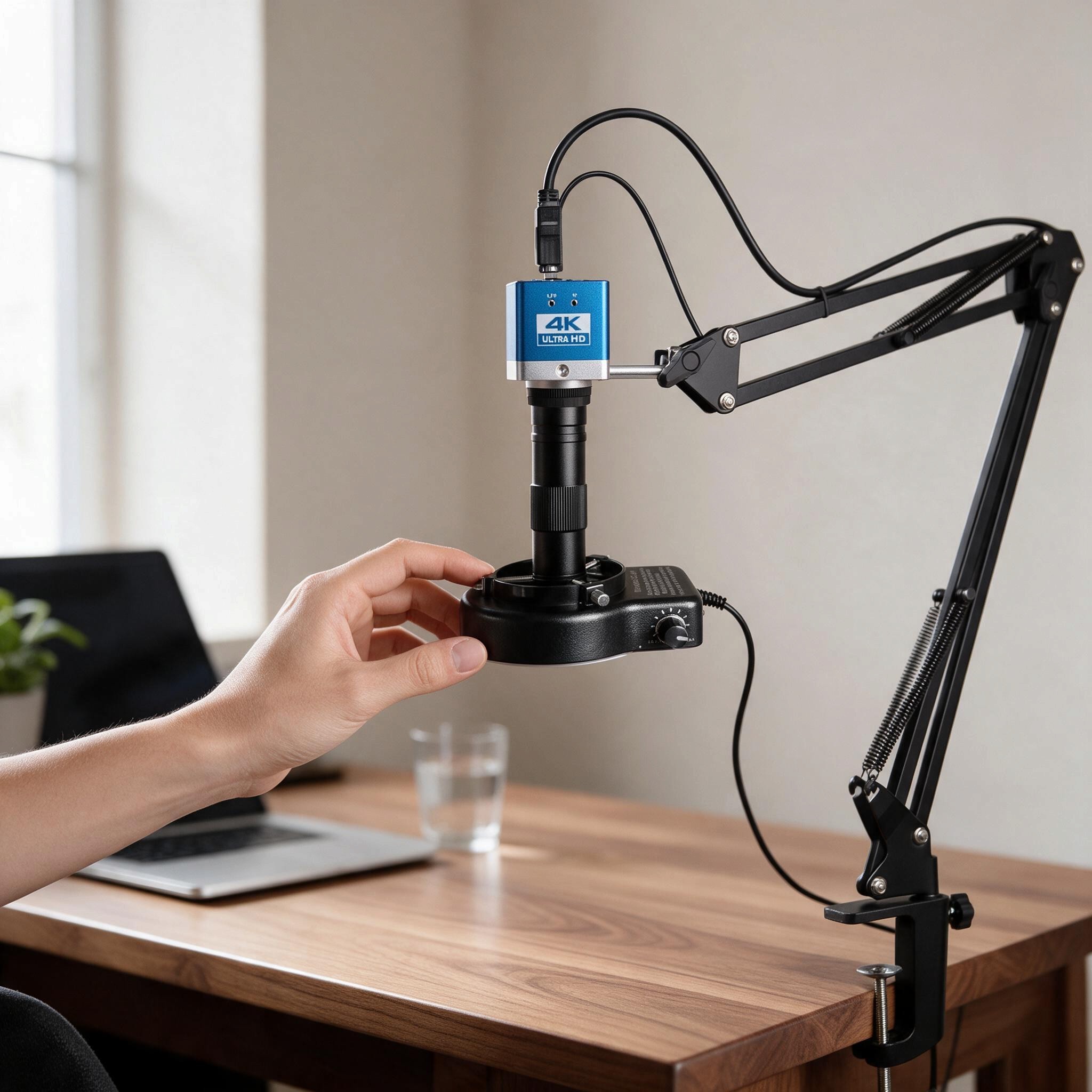

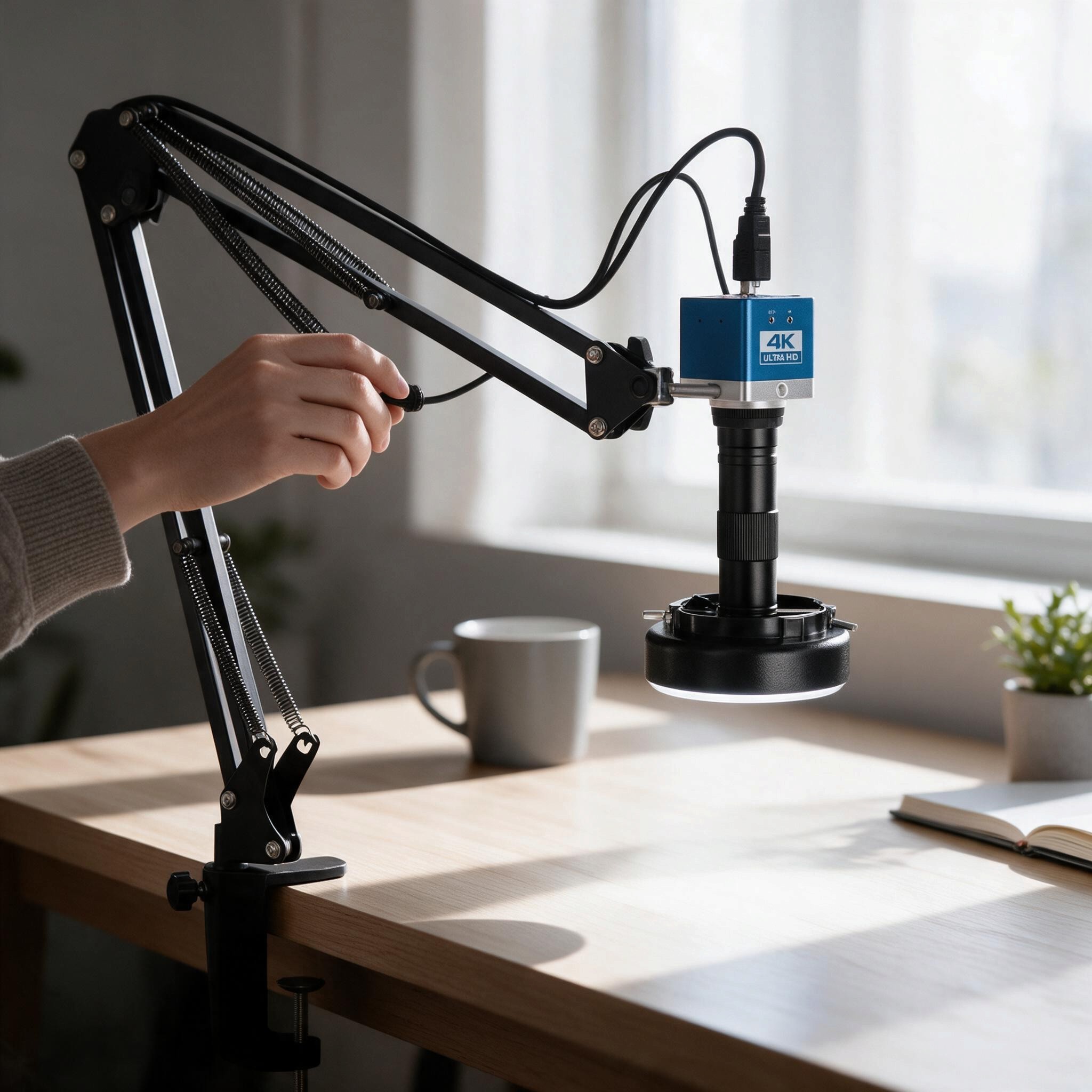

- Desktop Arm – the two-part arm with springs clamps to the edge of the work surface with a screw clamp, allowing the camera to be moved forwards, backwards, and sideways.
- Remote Control – camera settings are adjusted with the included remote, so there is no need to touch the camera during soldering, keeping it in the position set above the board being repaired using the arm.

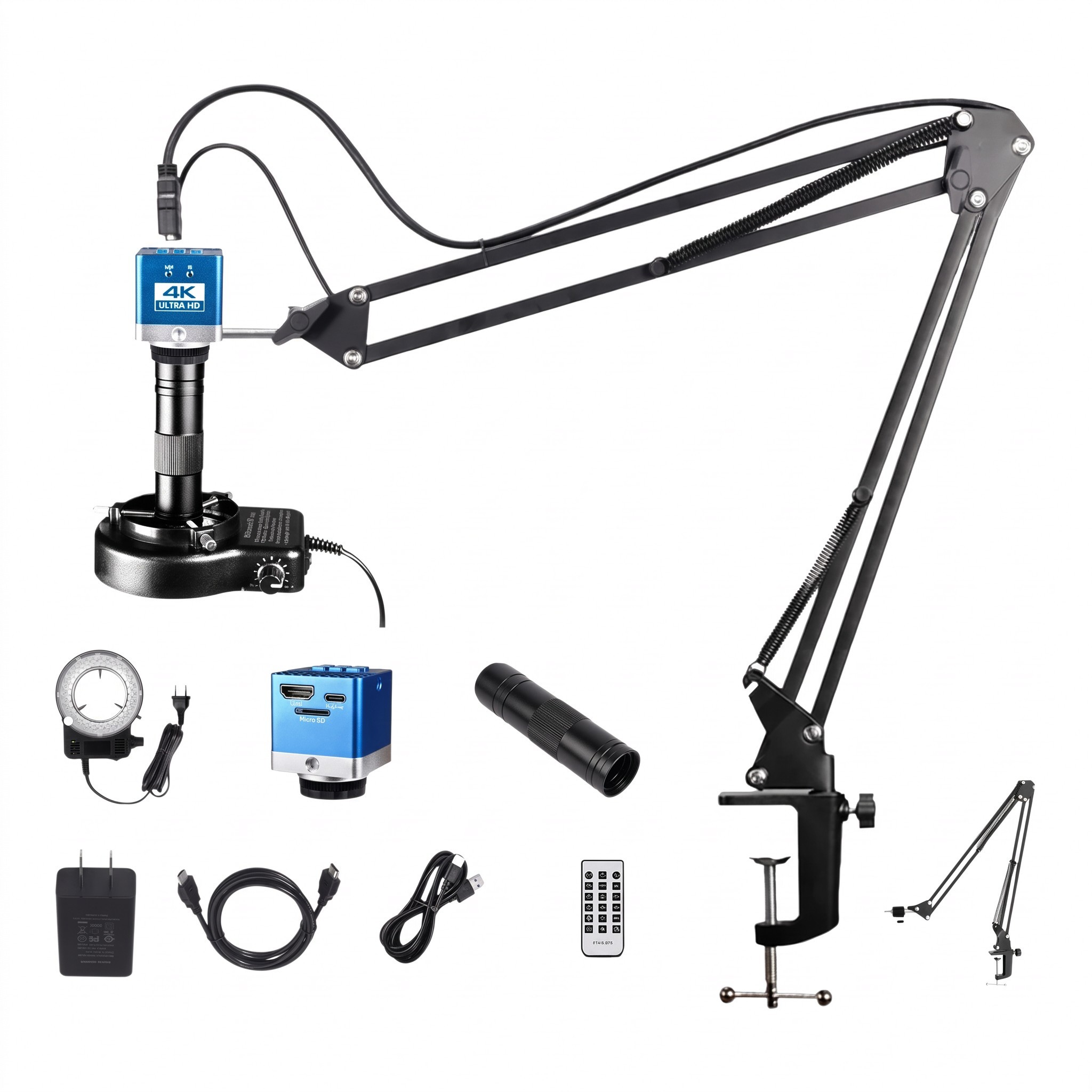

Package Contents:
- 1x 4K CMOS camera
- 1x 150x lens
- 1x circular LED light
- 1x arm with clamp
- 1x power adapter
- 1x HDMI cable
- 1x USB-C to USB-A cable
- 1x remote control

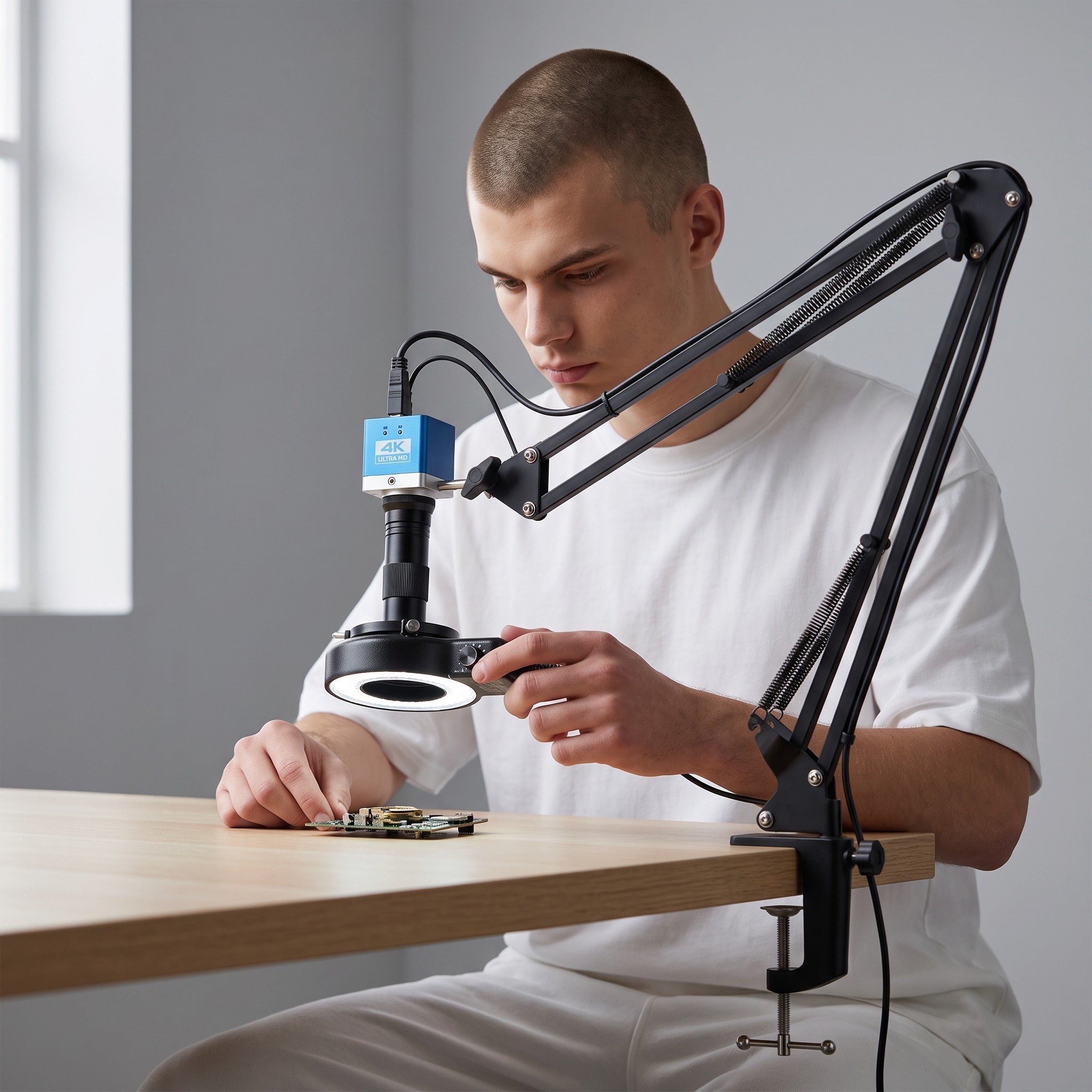

The assembly is designed so that the camera with the lens hangs above the workspace, leaving the table below free. For detailed inspection of joints, the 150x magnification lens is combined with adjustable circular lighting. The live image is transmitted to the monitor via HDMI, with USB-C available for additional connections and a microSD slot for memory cards. A secure attachment is ensured by the arm with screw clamp, which, when attached to the table, does not take up space on its surface. The microscope is suitable for mobile phone repairs, soldering printed circuit boards, and inspecting small electronics.
