4K 48 MP Soldering Microscope with Black IMX678 Camera, HDMI and USB-C 150x Lens, LED Light and Articulating Arm for Phone Repairs
You already have the maximum available quantity in your cart.

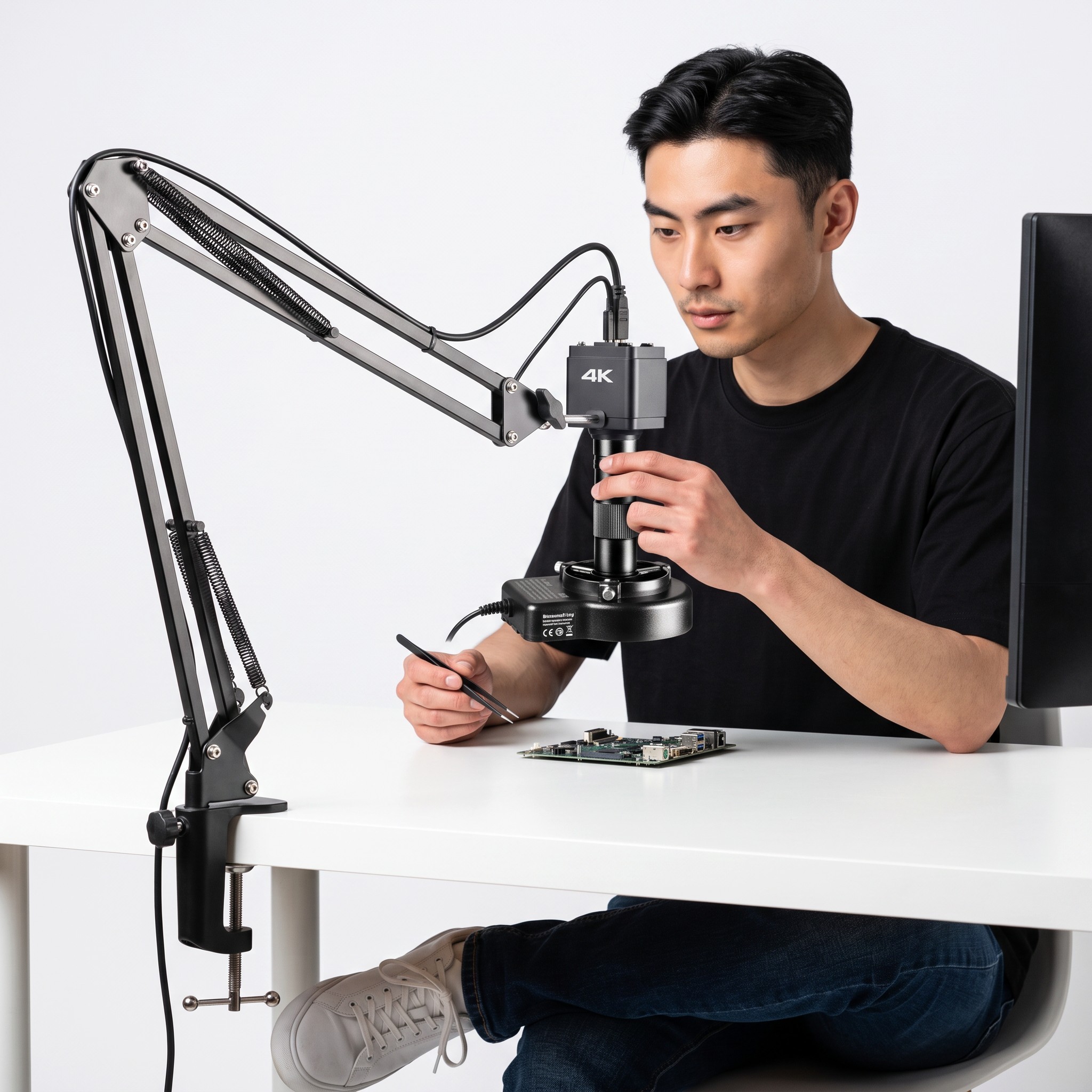

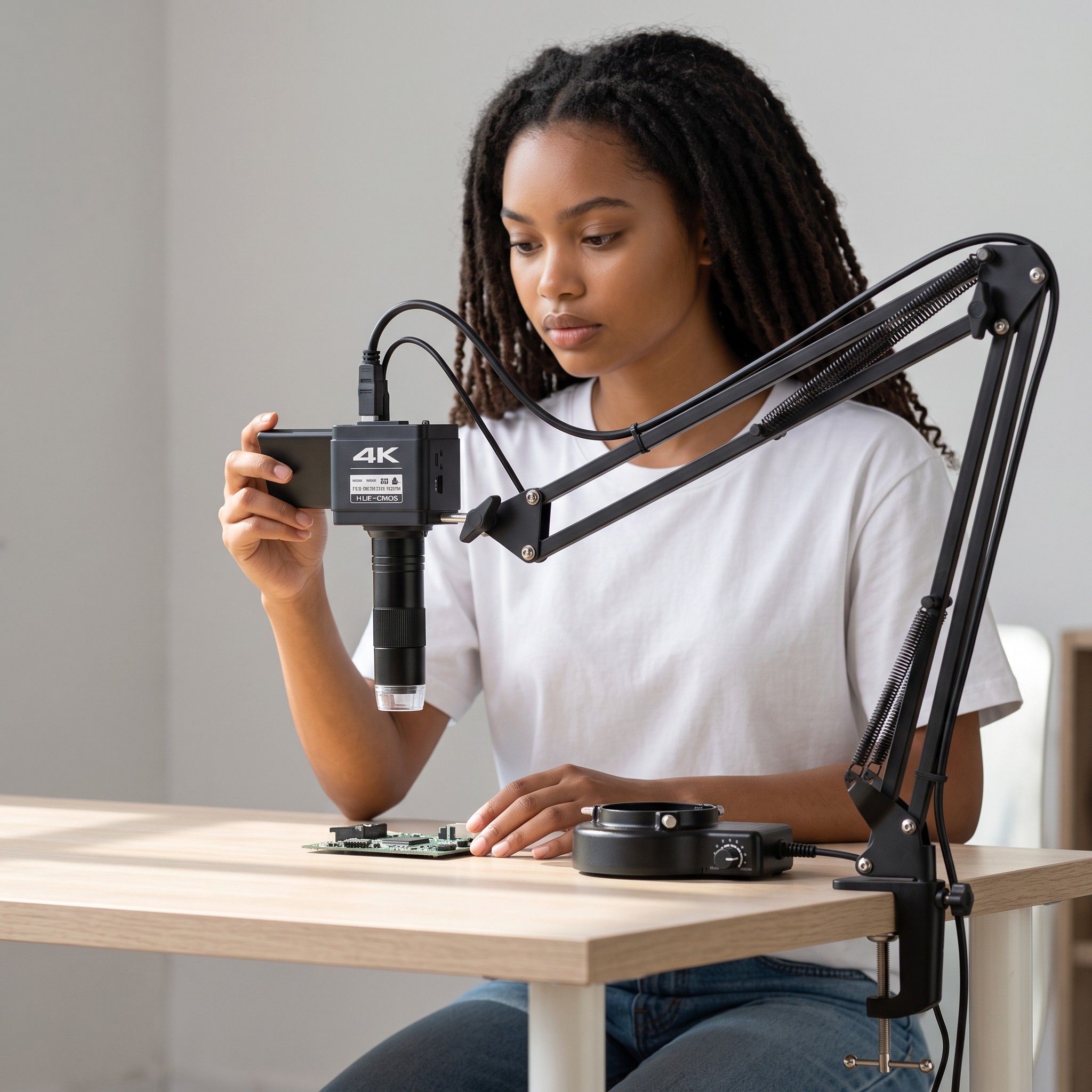

The soldering microscope with a black camera offers an image in 4K resolution of 3840 x 2160 and 48 MP photographs, which is useful for inspecting fine connections on circuit boards as well as for mobile phone repairs. The camera is equipped with a 1/1.8" IMX678 sensor and transmits the image via HDMI output to an external monitor. There is also a USB-C port and a microSD card slot available. The camera is fitted with a 150x magnification lens, and a circular LED light with adjustable brightness is attached to its lower end. The camera is held above the work surface by a spring-loaded articulating arm, which is securely clamped to the edge of the table.
- Sensor and Resolution – The 1/1.8" CMOS IMX678 sensor provides a 4K image with a resolution of 3840 x 2160 and 48 MP images; even labels on small components are easily distinguishable when working under the microscope.
- Camera Interface – HDMI output for monitor or television, USB-C port, and microSD card slot; a USB-C cable with a USB-A connector on the other end is included.
- 150x Lens – The long tube lens with a grooved ring is mounted directly beneath the camera and magnifies solder pads, connector pins, and conductive paths on the board.

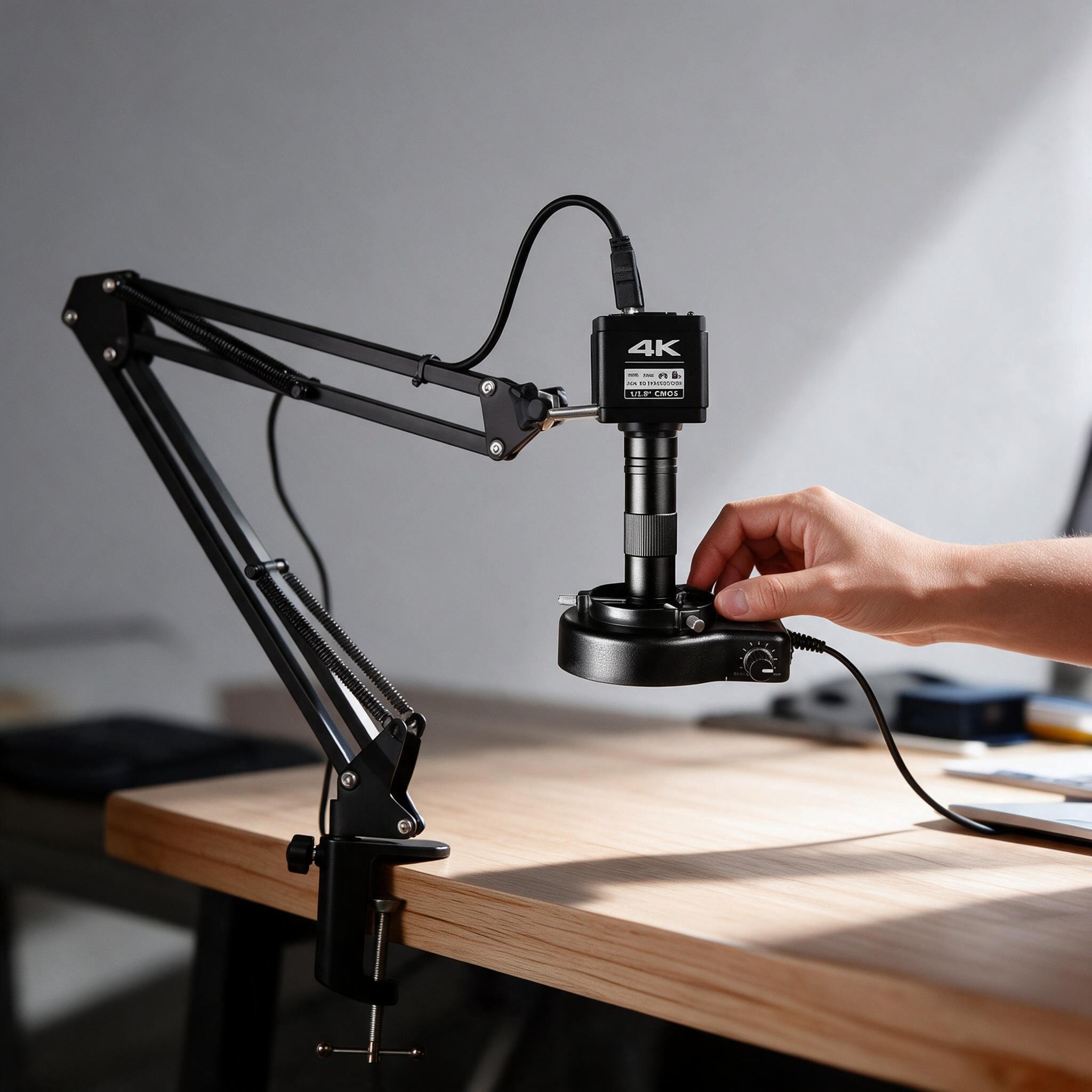

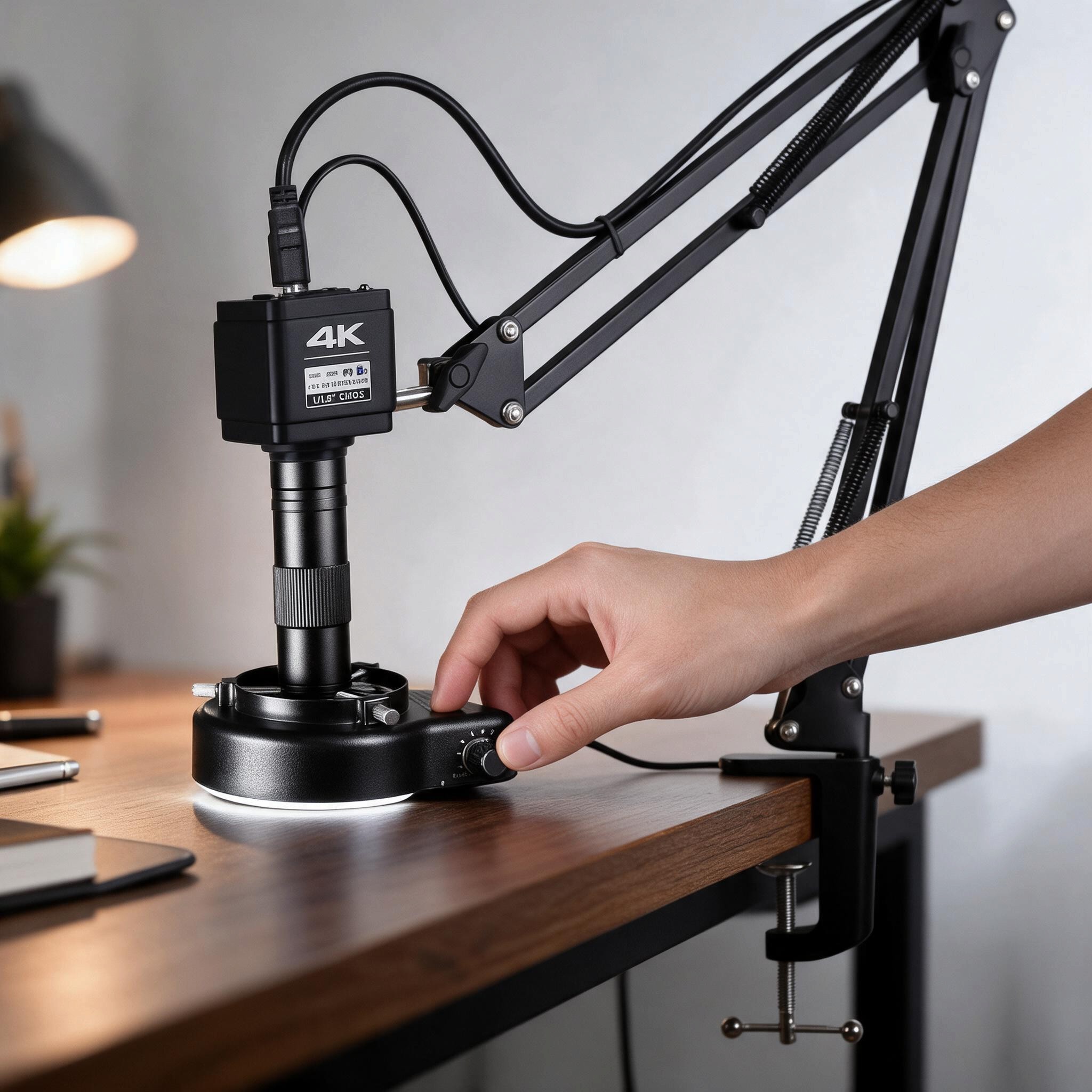

- Circular Lighting – The LED light encircles the end of the lens and its intensity can be adjusted with a rotating knob, allowing the lighting to be tailored to the gloss and colour of the board being repaired.

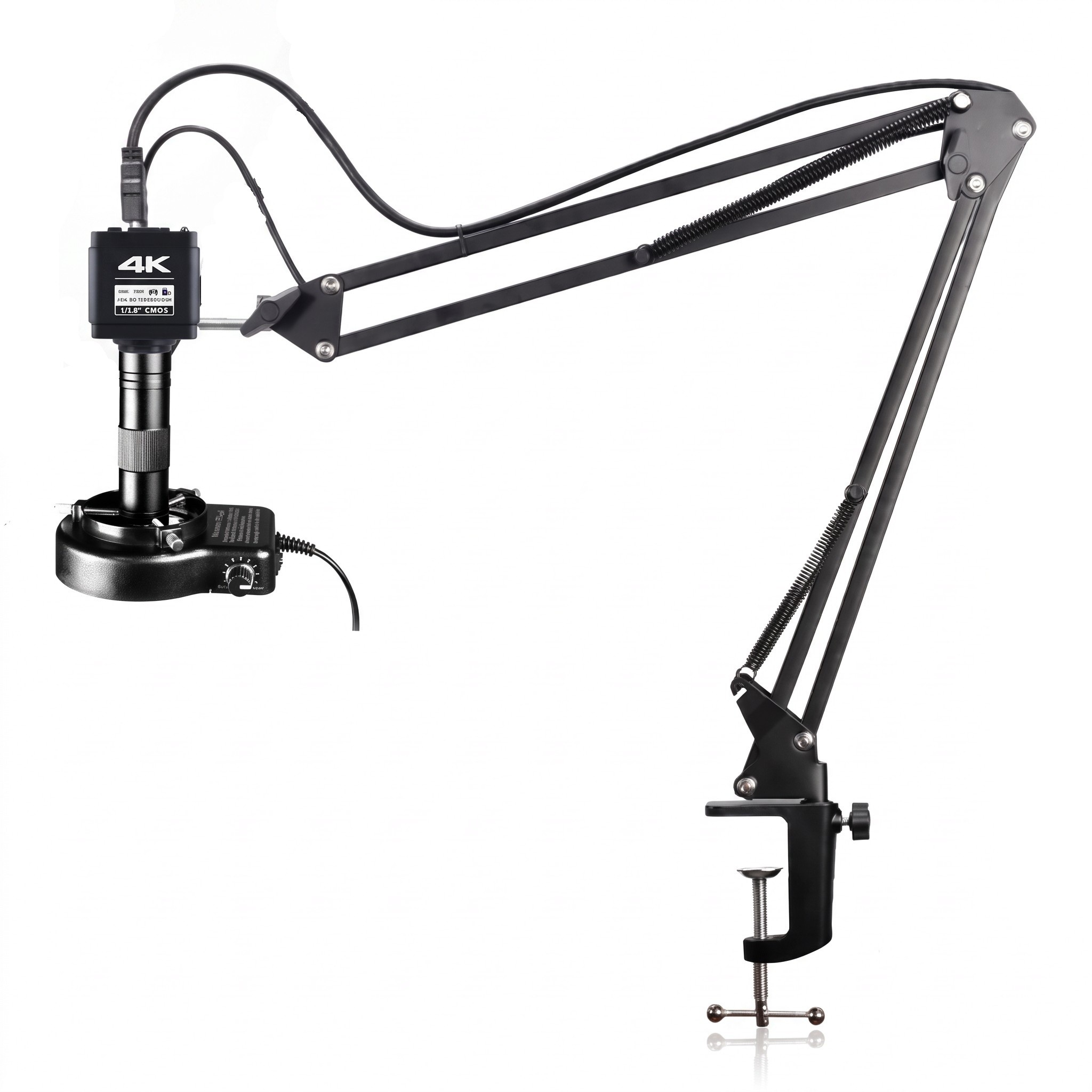

- Arm with Clamp – The spring-loaded arm with several pivot points is secured to the edge of the table with a screw clamp, and the camera can be directed over any part of the work surface.
- Control – The set includes a remote control with buttons that allow the camera to be adjusted without touching its body; this is particularly useful when the camera is suspended on the arm above the work-in-progress board.

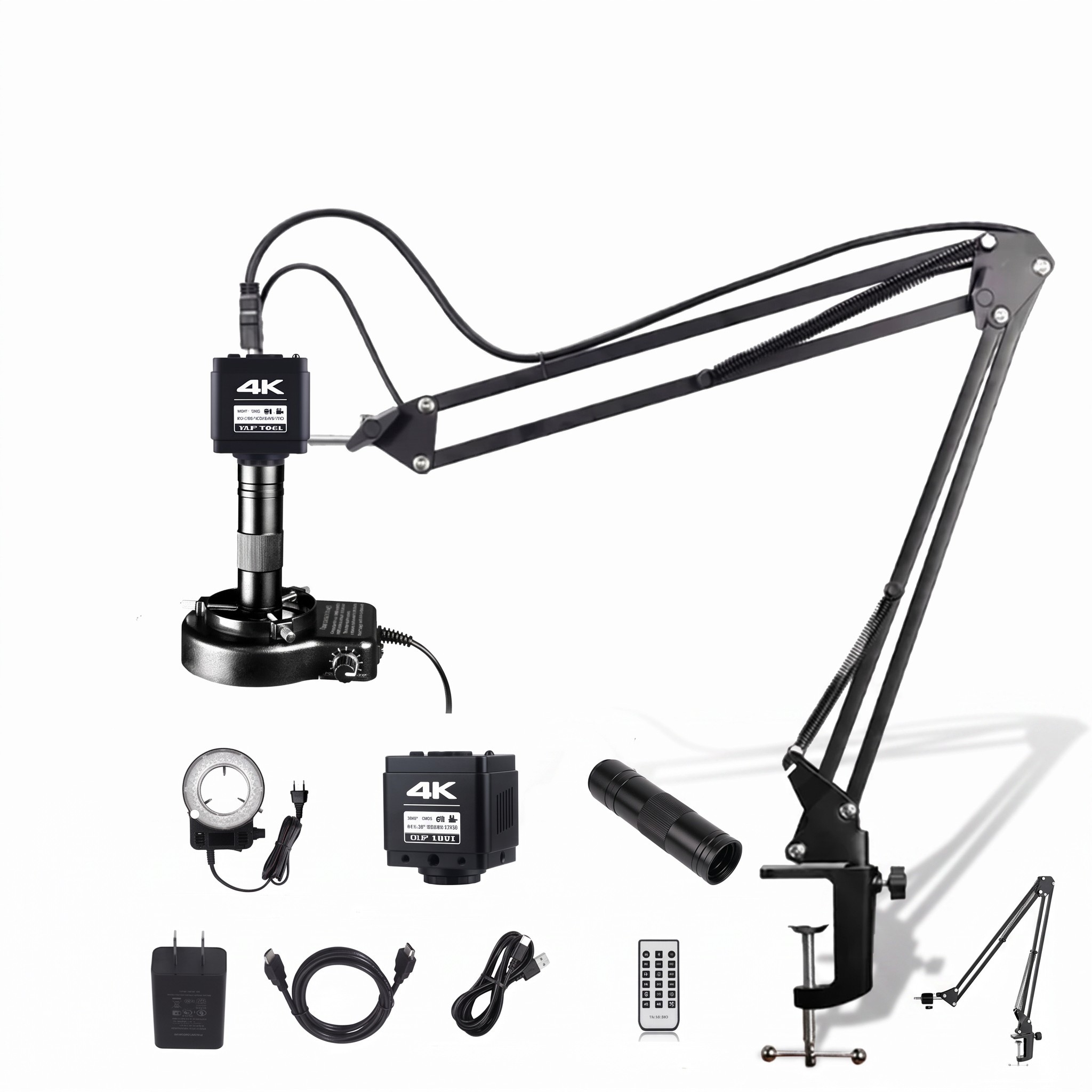

Package Contents:
- 1x CMOS Camera
- 1x 150x Lens
- 1x LED Ring Light
- 1x Articulating Arm with Clamp
- 1x Power Adapter
- 1x HDMI Cable
- 1x USB-C to USB-A Cable
- 1x Remote Control
The set includes the camera, lens, light, arm, and cables, allowing for a complete workstation with a microscope to be assembled directly on the table. The 4K resolution and IMX678 sensor are designed for work where it is necessary to identify small defects in soldered joints or cracked paths. In addition to HDMI, the camera also features a USB-C port with an included cable, allowing the camera to be connected to devices other than just a monitor. Because the articulating arm is clamped, the area beneath the lens remains free for the board, soldering iron, and other tools. The microscope is suitable for use in phone repairs, electronics repair shops, and home soldering.
