4K 48 MP Digital Microscope with Turquoise HDMI and USB Camera 1080p 60 fps Lens 1–130x and PCB Repair Stand
You already have the maximum available quantity in your cart.
The digital microscope with a 4K resolution and 48 MP camera is designed for detailed viewing of small components during soldering, printed circuit board repairs, and mobile phone servicing. The image is transmitted via HDMI directly to a monitor or television, or via USB cable to a computer, allowing you to work with a view on the screen instead of bending over an eyepiece. The video runs at 1080p at 60 frames per second, ensuring smooth display of the movement of the soldering tip or tweezers. The lens with magnification of 1–130x allows you to transition from an overall view of the board to the details of individual soldered joints and traces. The turquoise camera is mounted on a black stand with a small base, which fits even on smaller work desks.

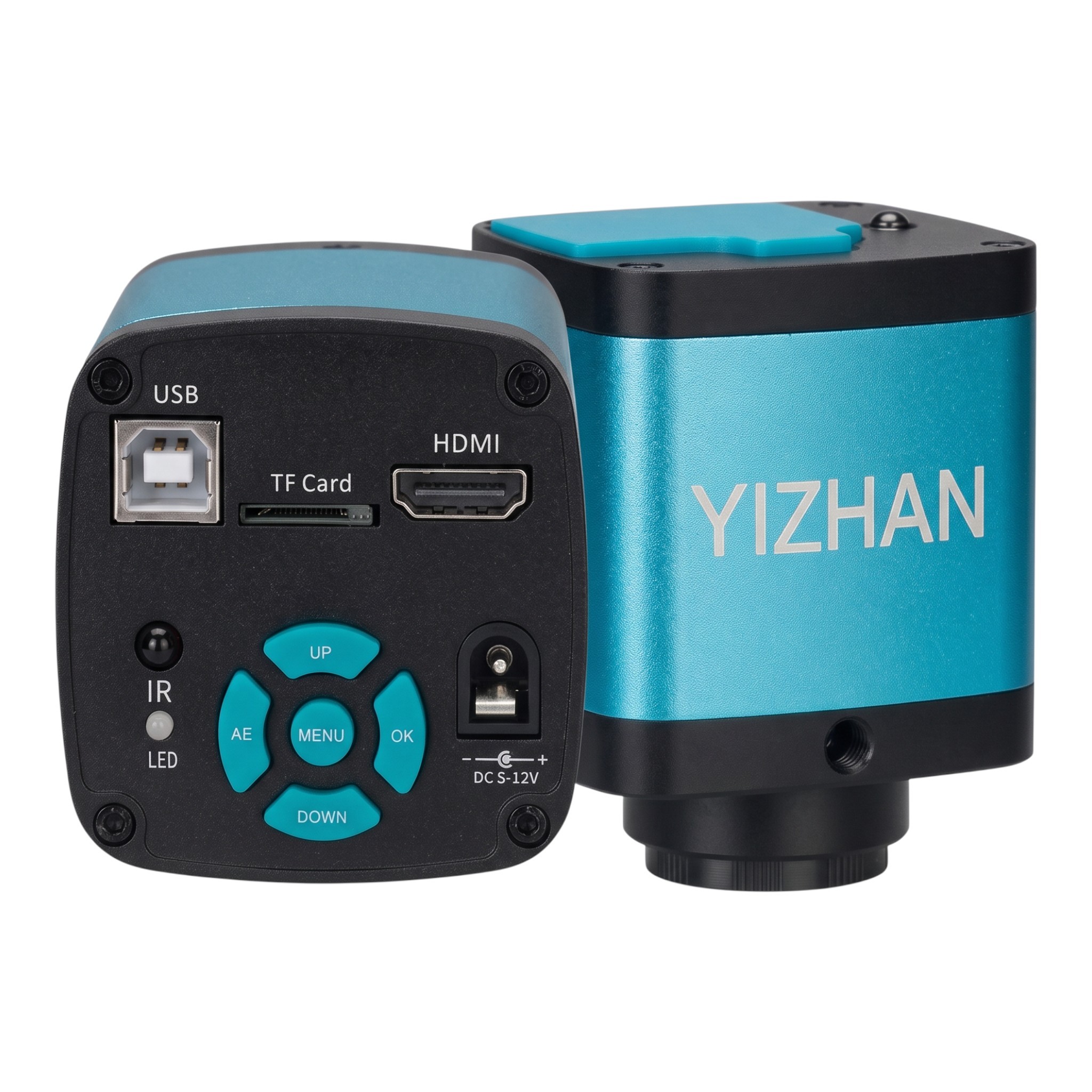

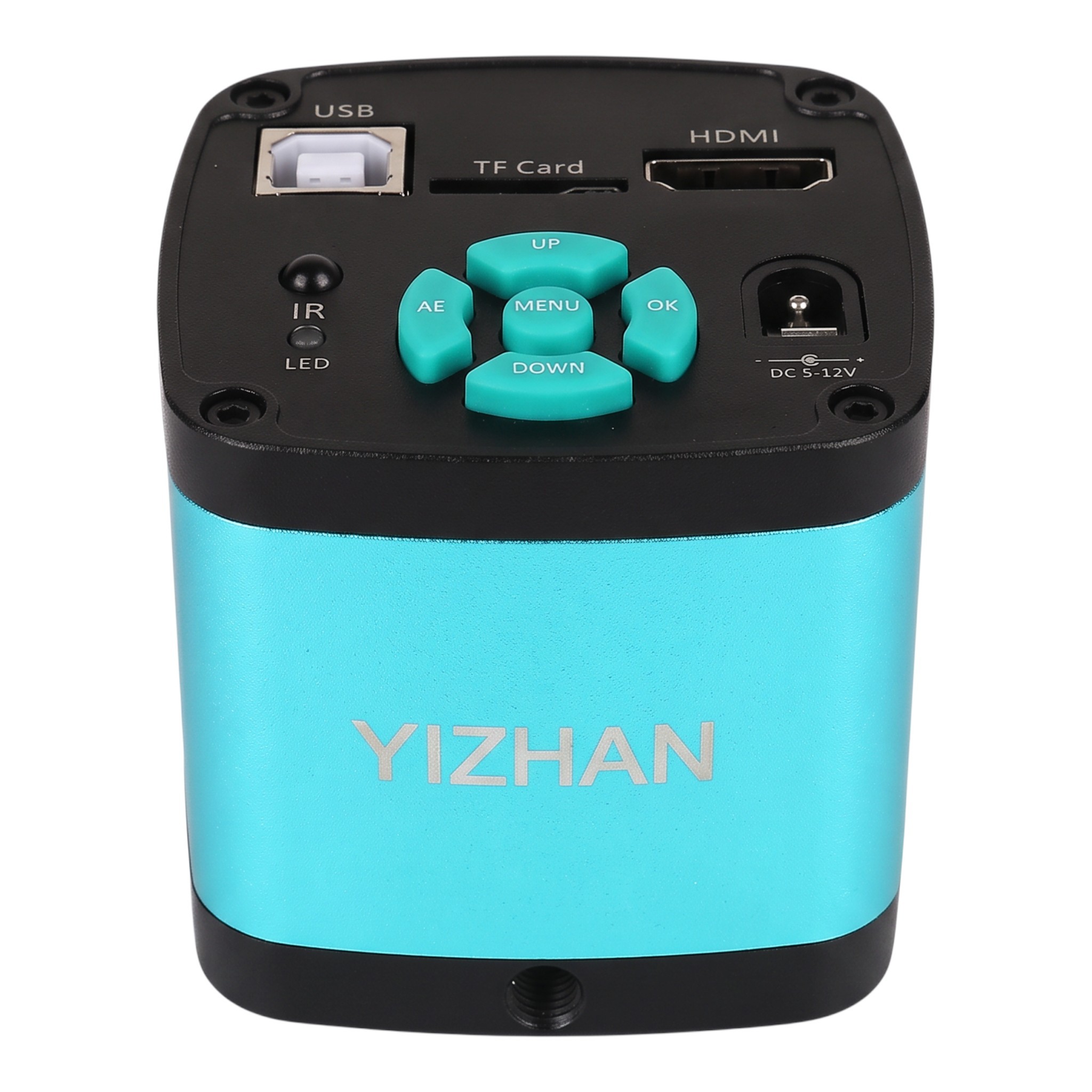

- Camera – 4K resolution and 48 MP, video 1080p at 60 fps; the image remains sharp and clear even when working at high magnification, which is particularly useful for fine details on small components.
- Lens – magnification range of 1–130x covers both an overview of the entire board and the details of small components, solder joints, and connectors.
- Connection – HDMI output for monitor or television and USB for connection to a computer; cables for both methods are included in the package, so you just need to choose the display method that best suits your workspace.
- Remote Control – the camera is operated remotely, without touching the buttons on its body, keeping the assembly on the stand stable during work.

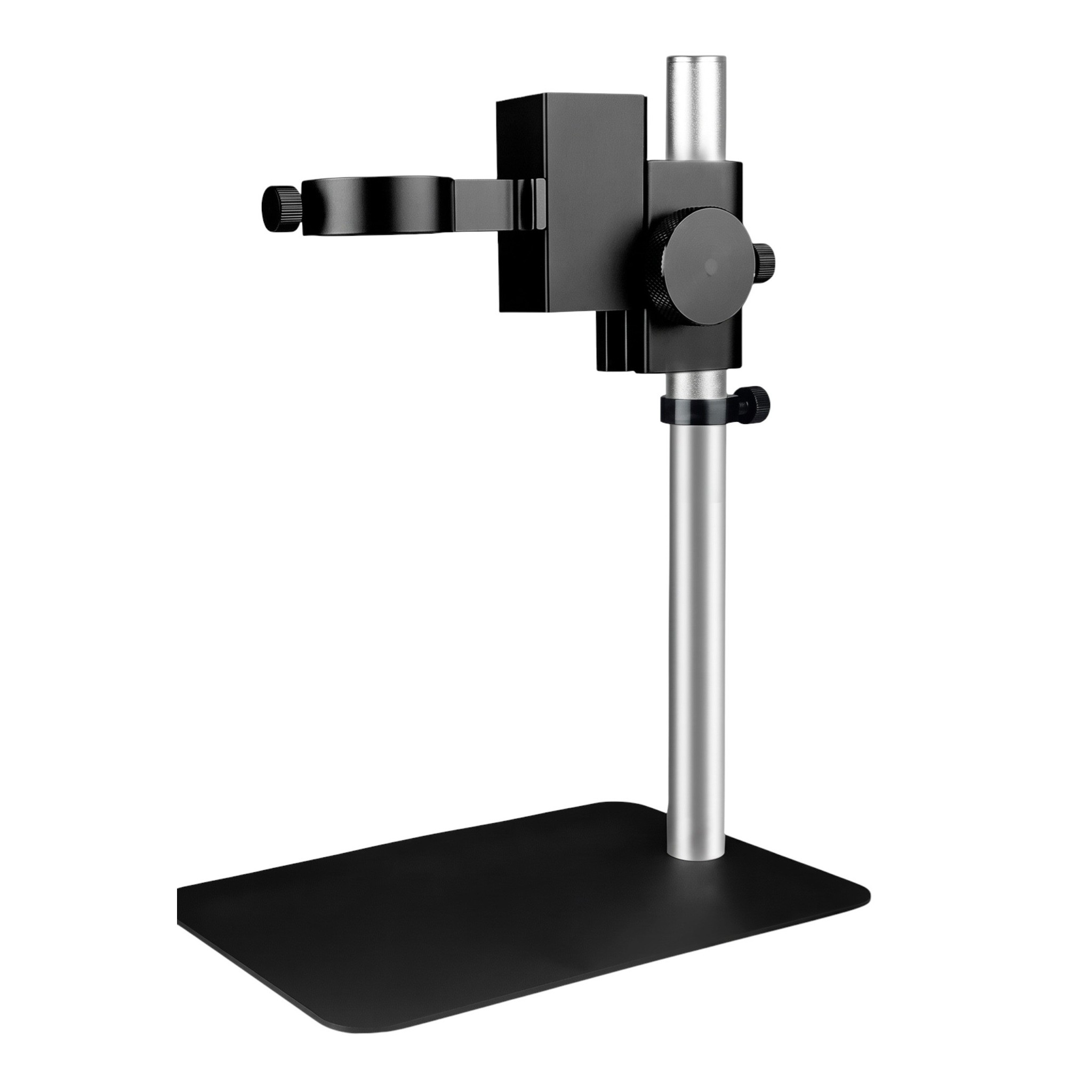

- Stand – column height of 290 mm, base 220 x 150 mm and lens holder 40 mm; the sliding holder is secured on the column with locking screws, and its height above the board is adjustable by sliding along the column according to the size of the part being repaired.

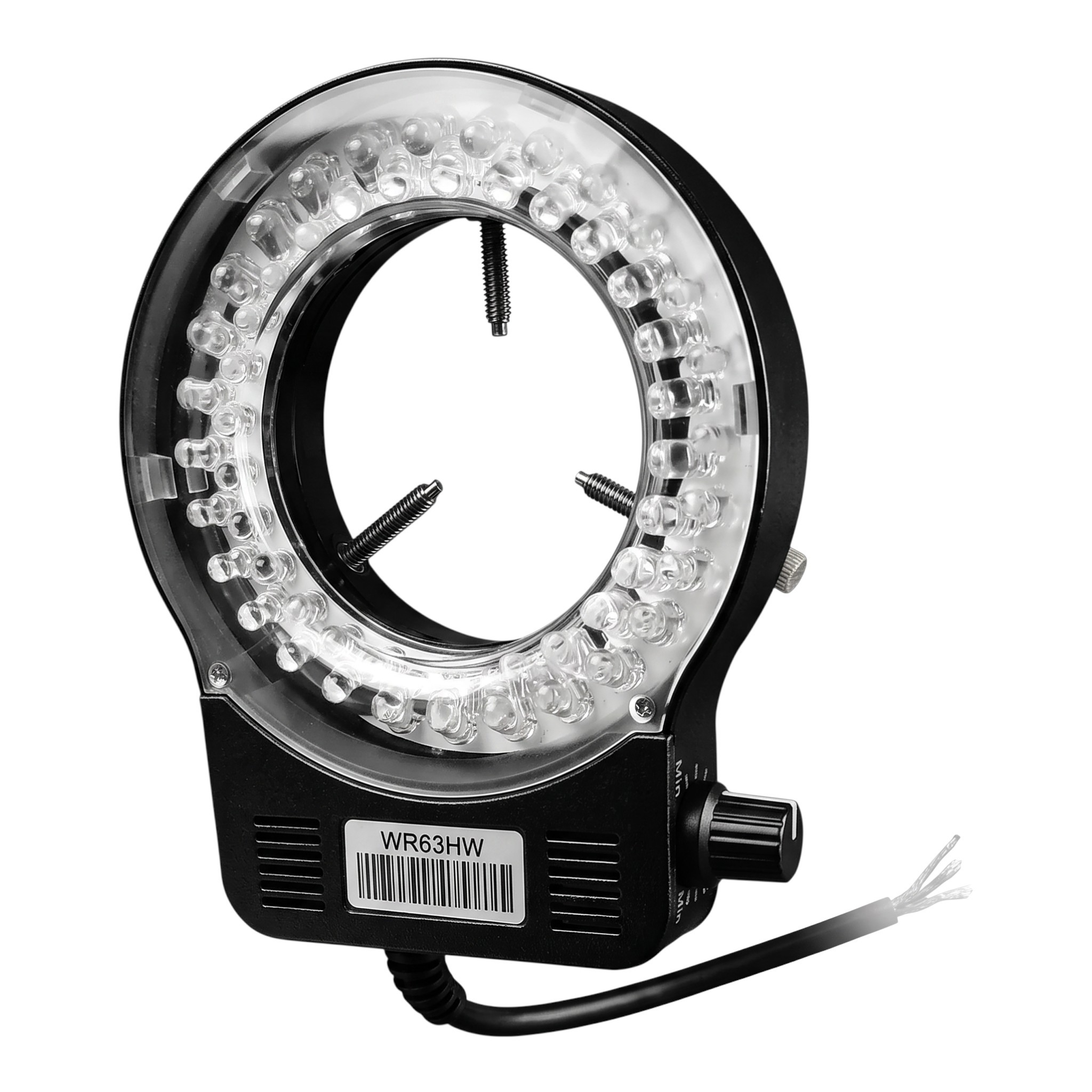

- LED Light – circular light with continuously adjustable brightness of 0–100 % attaches to the lens with a diameter of 2.5–6.6 cm using three screws; brightness is adjusted with a rotary knob and the light is switched on with a separate switch.

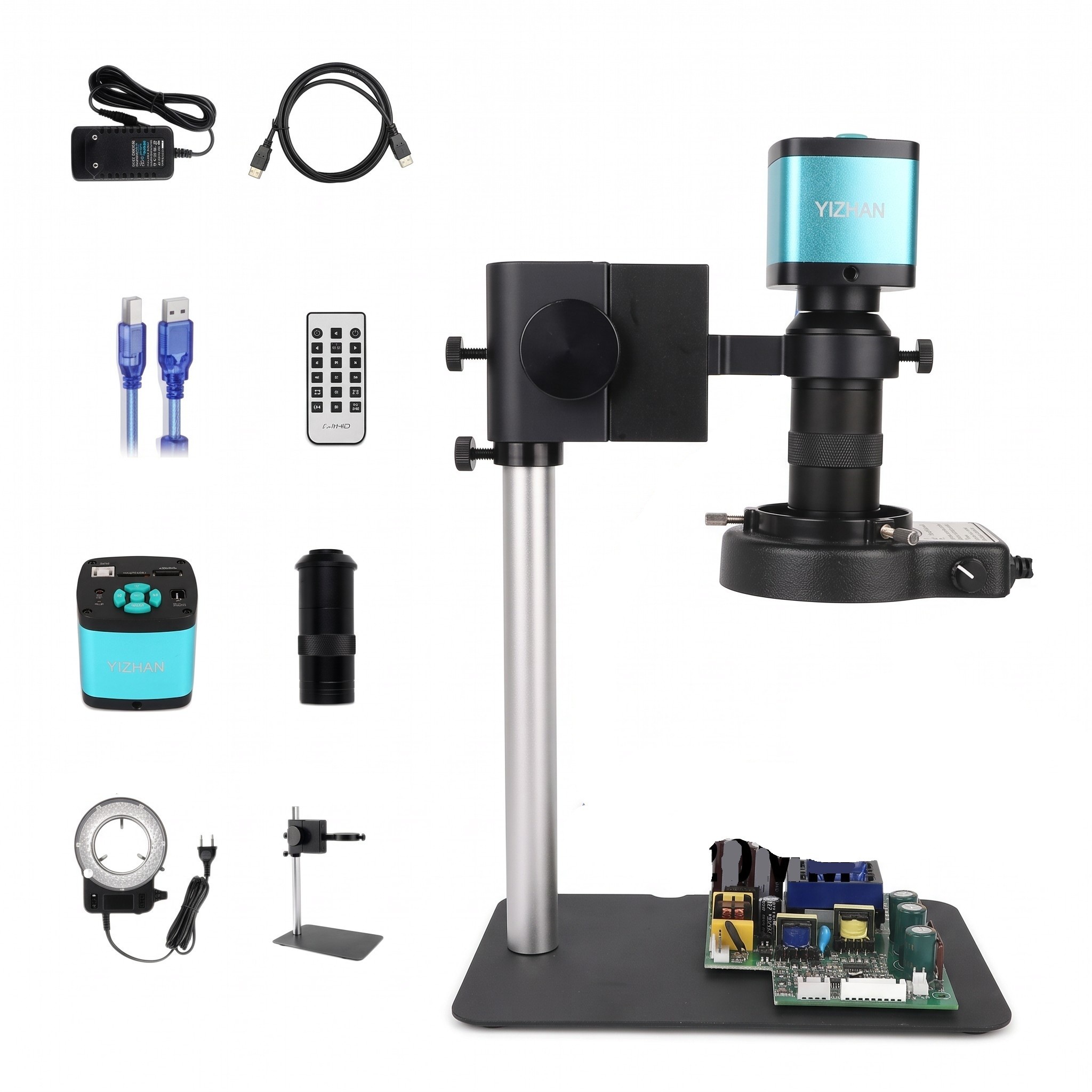

Package Contents:
- 1x microscopic camera
- 1x lens 1–130x
- 1x LED circular light
- 1x stand with a small base
- 1x power adapter
- 1x HDMI cable
- 1x USB communication cable
- 1x remote control

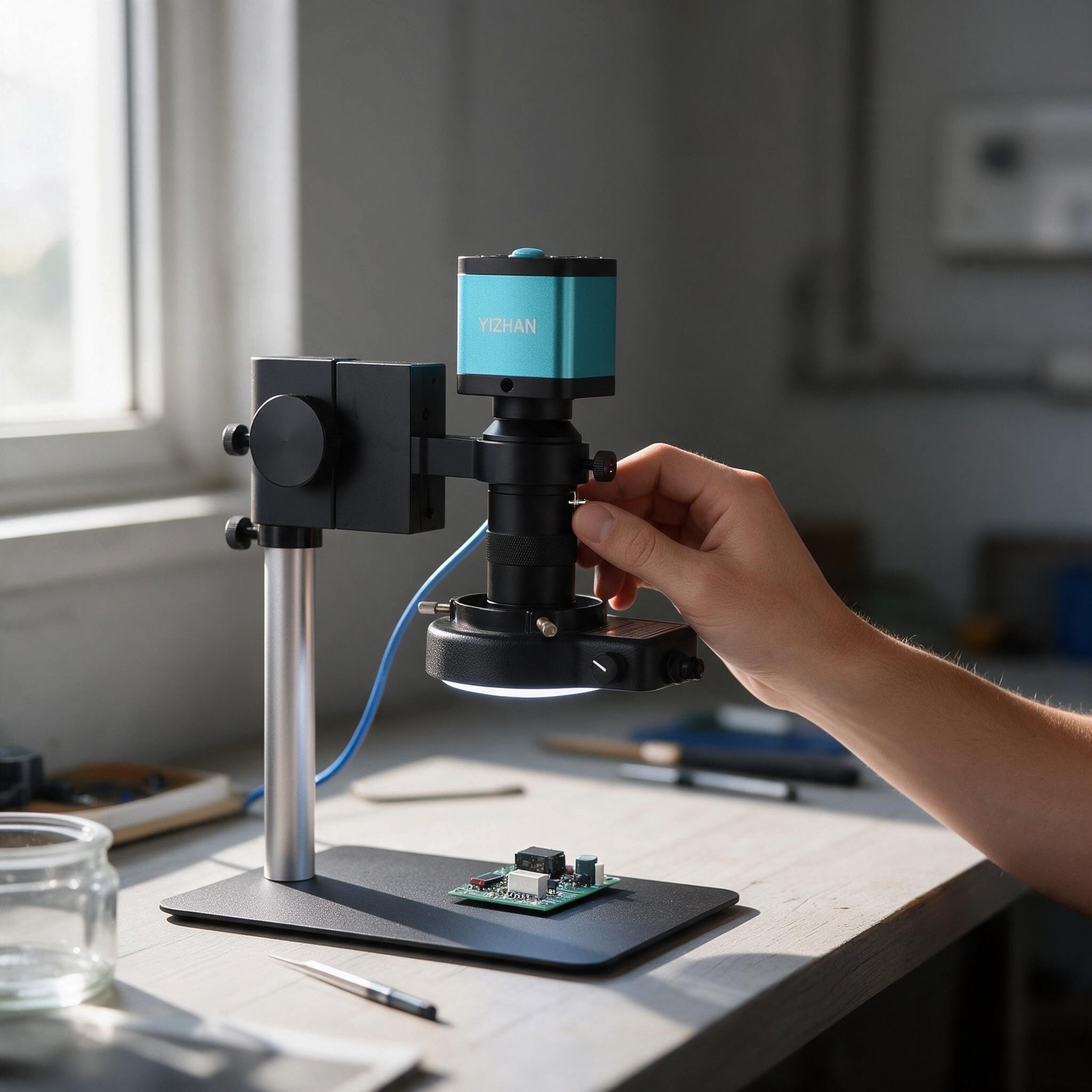

The assembly combines a high-resolution camera, a lens with a wide magnification range, LED lighting, and a sturdy stand into one working unit. With both HDMI and USB outputs, the image can be viewed on a separate monitor, on a television, or on a computer depending on what is available in the workspace. Smooth video at 60 fps makes soldering at magnification easier, as every movement of the tool is clearly visible on the screen. The compact base of 220 x 150 mm takes up little space on the table and leaves ample room for the board, soldering iron, and other tools. The microscope is suitable for electronics servicing as well as for home repairs of phones and printed circuit boards.
