3 m Extension Cable with Solar Connector Photovoltaic Cable 14 AWG with a Cross Section of 2.5 mm² Load Capacity 41 A Red and Black For Panels
You already have the maximum available quantity in your cart.

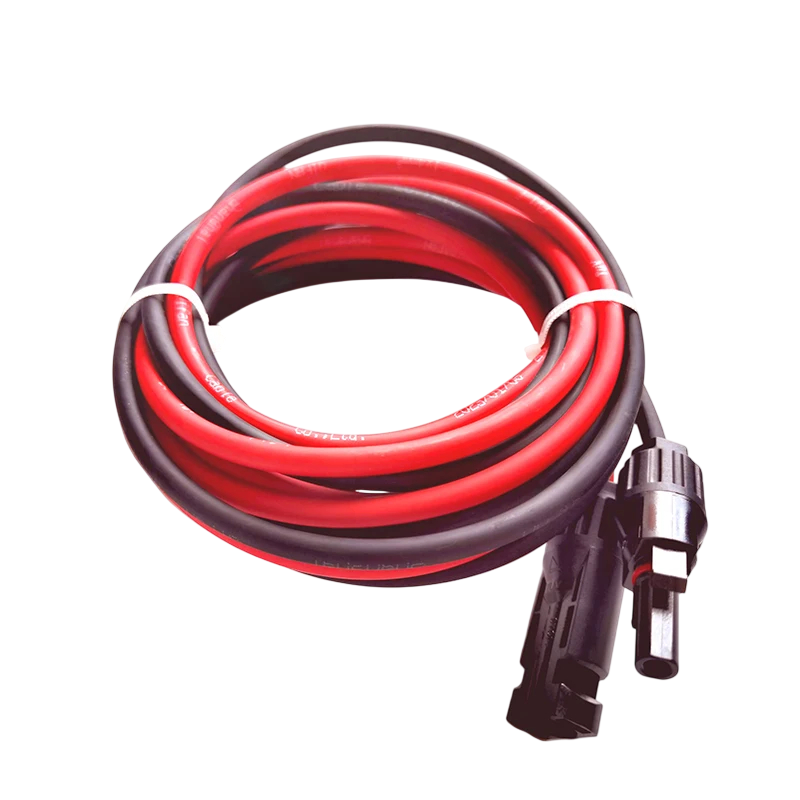

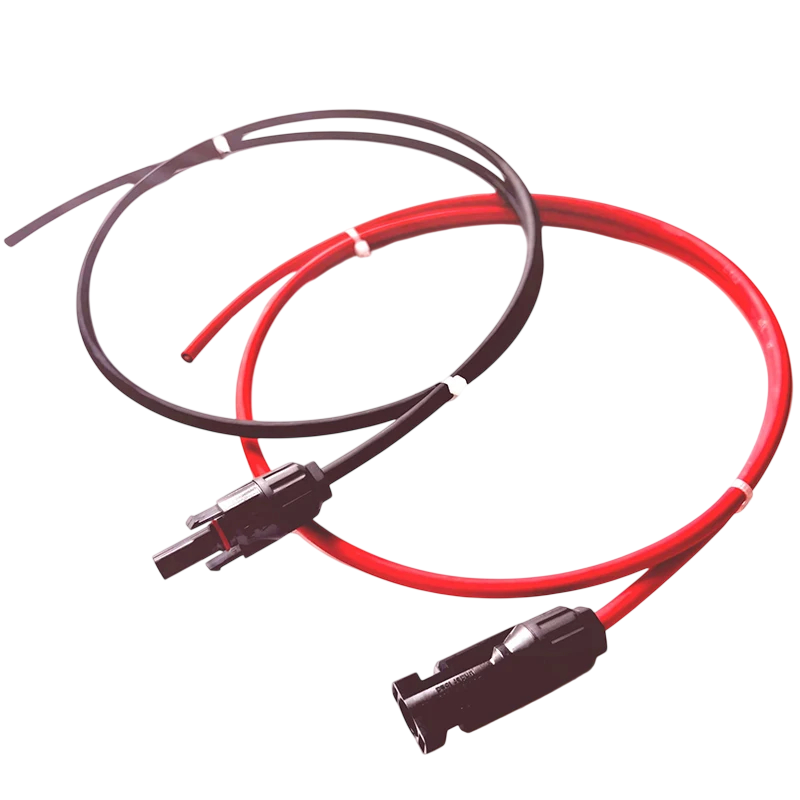

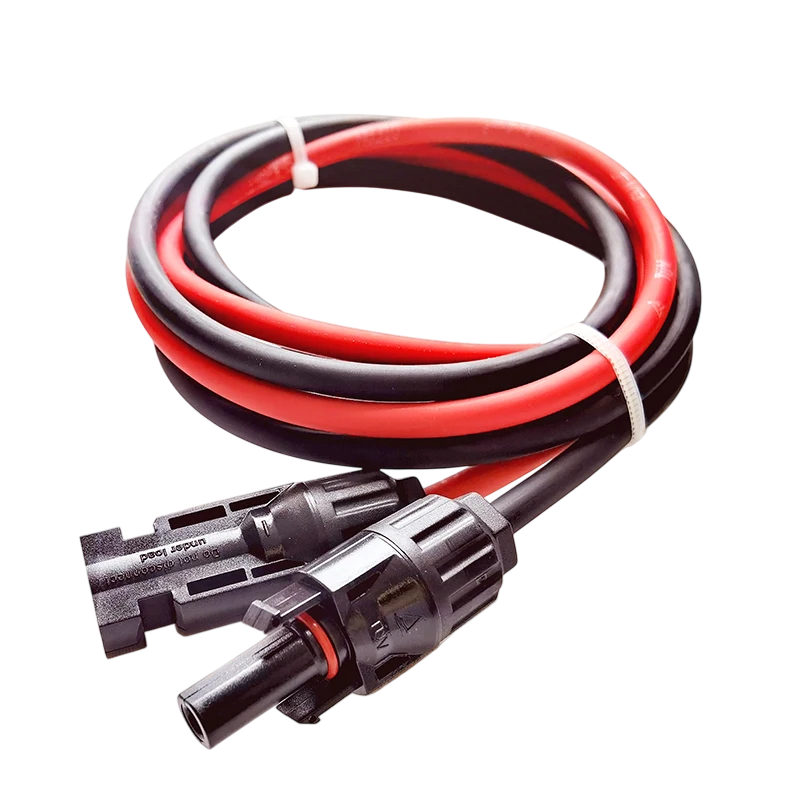

The 3 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black, so the polarity is distinguished by the colour of the insulation, ensuring you won't make a mistake when connecting. The wire has a cross section of 2.5 mm² according to the designation 14 AWG and is composed of fifty strands with a diameter of 0.25 mm, providing the flexibility needed for routing around structures. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 41 A at 60 °C.
- Length 3 m — reach to a panel located on the roof of a shelter or on a distant structure
- Cross section 2.5 mm² — wire corresponding to the designation 14 AWG with a reserve for higher currents
- Construction 50 strands of 0.25 mm — flexible core with a diameter of 2.02 mm
- Load capacity 41 A — value stated at a temperature of 60 °C
- Wire resistance max. 7.98 Ω/km — measured at 20 °C
- Outer diameter of the cable 5.45 mm — insulation thickness 0.67 mm and sheath 0.73 mm

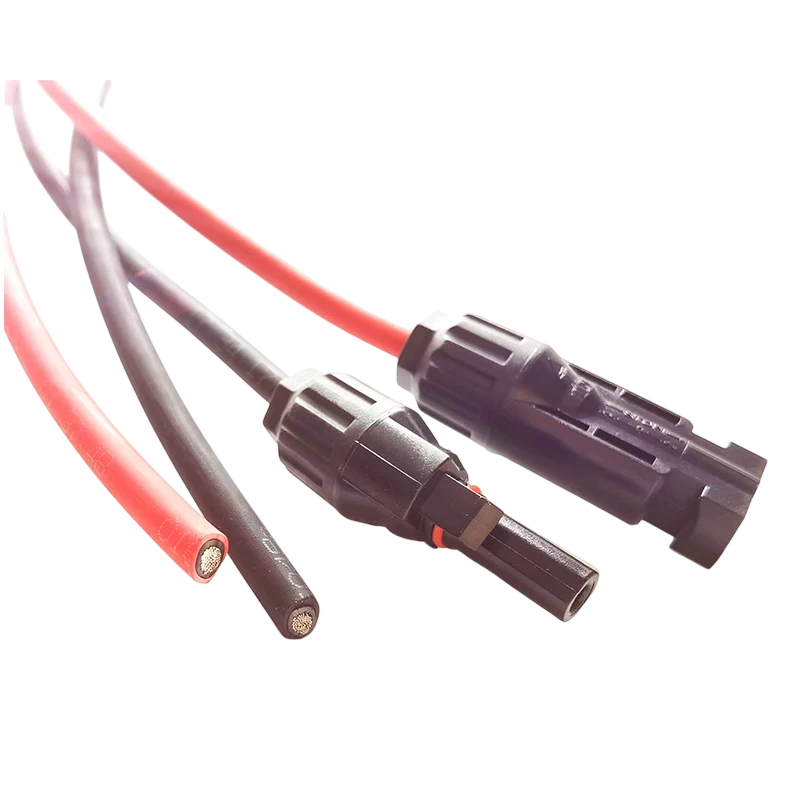

- Solar connector on one end — snap-in connection with a pull-out prevention
- Red and black insulation — colour distinction for positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — lug, cable eye, or direct connection to a terminal depending on what the connected device requires. The cross section of 2.5 mm² with a load capacity of 41 A provides a reserve for more powerful panels and longer runs compared to thinner wires. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour distinction of the insulation facilitates polarity checks during any subsequent adjustments to the assembly.
