3 m Extension Cable with Solar Connector Photovoltaic Cable 10 AWG with a Cross-Section of 6 mm² Current Rating 70 A Red and Black For Panels
You already have the maximum available quantity in your cart.

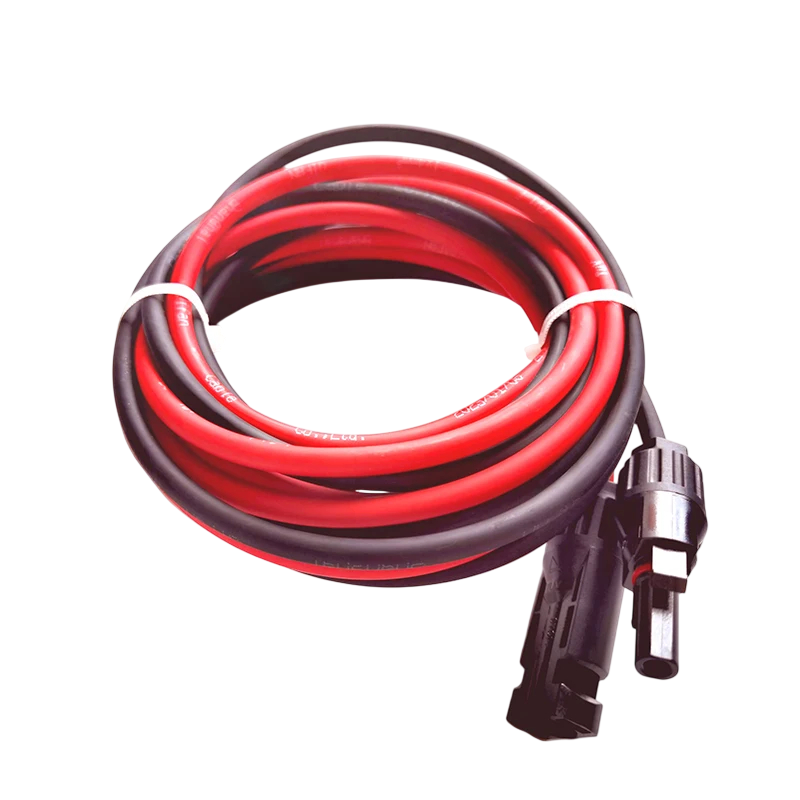

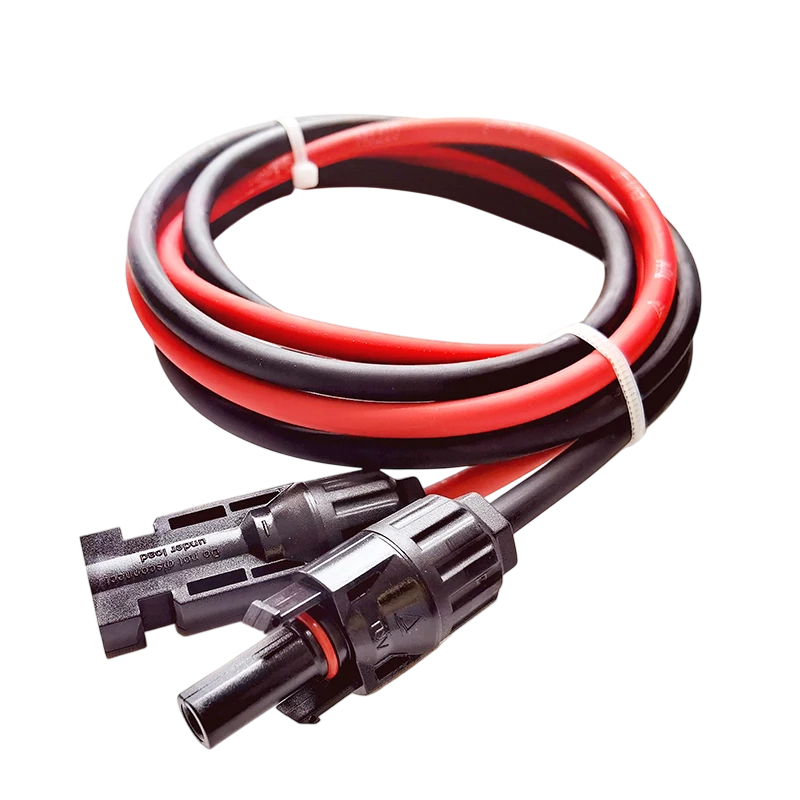

The 3 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black colours, making it easy to distinguish polarity by the colour of the insulation, thus preventing mistakes during installation. The wire has a cross-section of 6 mm² according to the 10 AWG designation and is made up of eighty-four strands with a diameter of 0.30 mm, which maintains its flexibility even at this cross-section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current rating reaches 70 A at 60 °C.
- Length 3 m — reach to a panel located on the roof of a shelter or on a distant structure
- Cross-section 6 mm² — wire corresponding to the 10 AWG designation for the highest currents in this range
- Construction of 84 strands of 0.30 mm — flexible core with a diameter of 3.42 mm
- Current Rating 70 A — value specified at 60 °C
- Maximum wire resistance 3.30 Ω/km — measured at 20 °C, thus the lowest losses in this range of cross-sections
- Outer diameter of the cable 7.20 mm — insulation thickness 0.8 mm and sheath 0.8 mm
- Solar connector on one end — snap-fit connection with pull-out prevention
- Red and black insulation — colour coding for positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — a ferrule, cable lug, or direct connection to a terminal depending on what the connected device requires. Cross-section of 6 mm² with a current rating of 70 A is suitable for high-performance systems and locations where the current from several panels is combined. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checks during any future modifications to the system.
