3-in-1 4K 48 MP Microscope with 160x Magnification and LED Light in Black Body with IMX415 Sensor HDMI and USB-C Output on Arm for PCB Repairs
You already have the maximum available quantity in your cart.
The 3-in-1 microscope combines a camera, lens and LED lighting into one black casing, eliminating the need for separate installation of the tube and light ring. Inside, the IMX415 sensor operates with a resolution of 4K Ultra HD, photographs have a 48 MP resolution, and the optics offer 160x magnification. White LED diodes are arranged in a circle directly around the lens on the front of the body, illuminating the area that the camera is aimed at. The complete unit is clamped to a spring arm with a table clamp, holding it above the work surface. This assembly is designed for soldering and inspecting printed circuit boards as well as for mobile phone repairs.
- 3-in-1 Design – the camera, lens and lighting form a single piece, allowing the entire optics to be adjusted above the board with a single movement of the arm, without the need to adjust the relative positions of the camera, tube and light.
- Image and Photographs – 4K Ultra HD resolution for live images and 48 MP snapshots, which can later be used to check the condition of solder bridges or damaged pads. The images are also suitable as a basis for repair documentation or for communication with the customer.

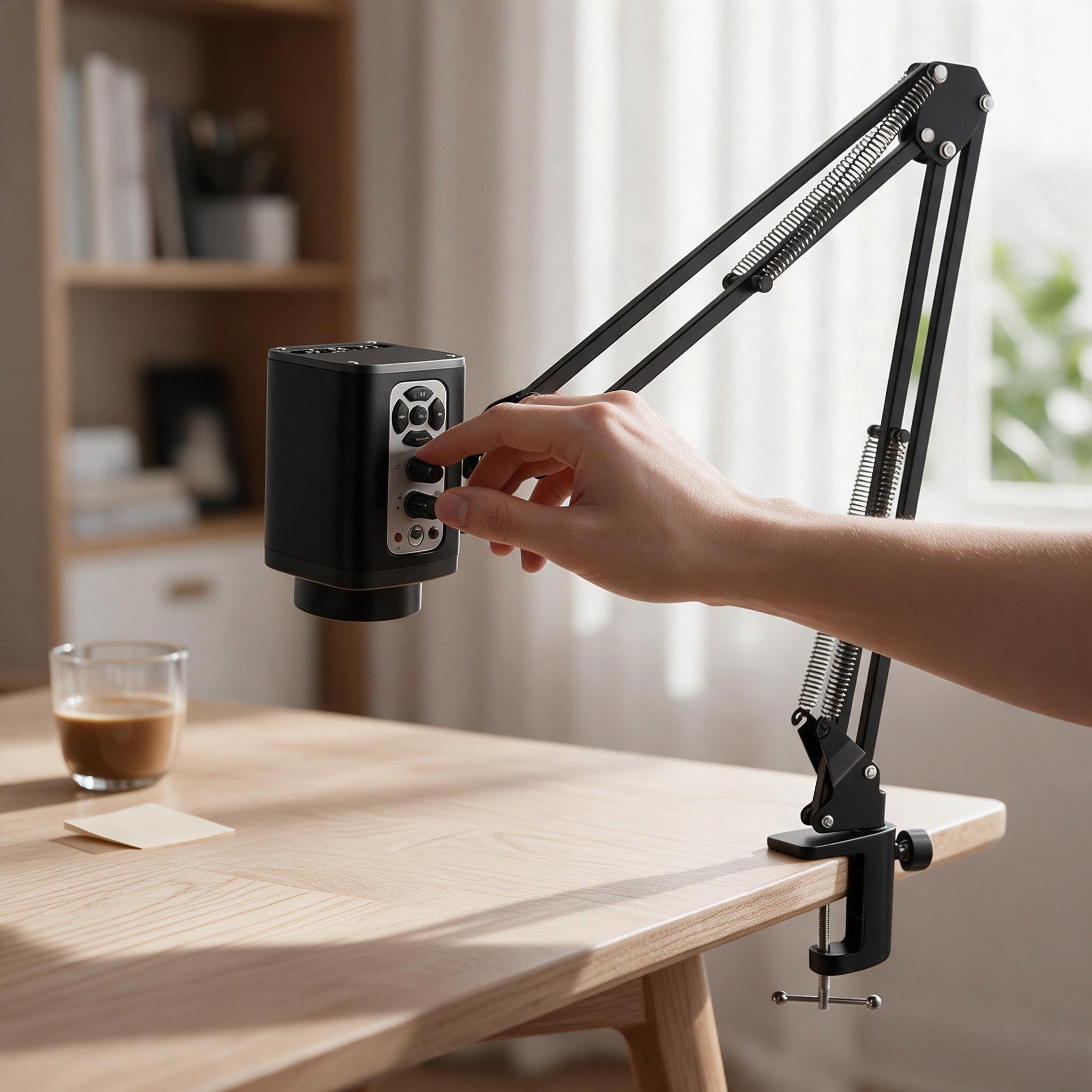

- Control Panel – on the side of the casing is a silver panel with directional buttons, a pair of rotary knobs and an indicator light, allowing settings to be changed directly on the device.
- Outputs – HDMI for direct display on a monitor and USB-C port; the package includes an HDMI cable and a cable with USB-C and USB-A connectors. Power is provided by the included mains adapter.

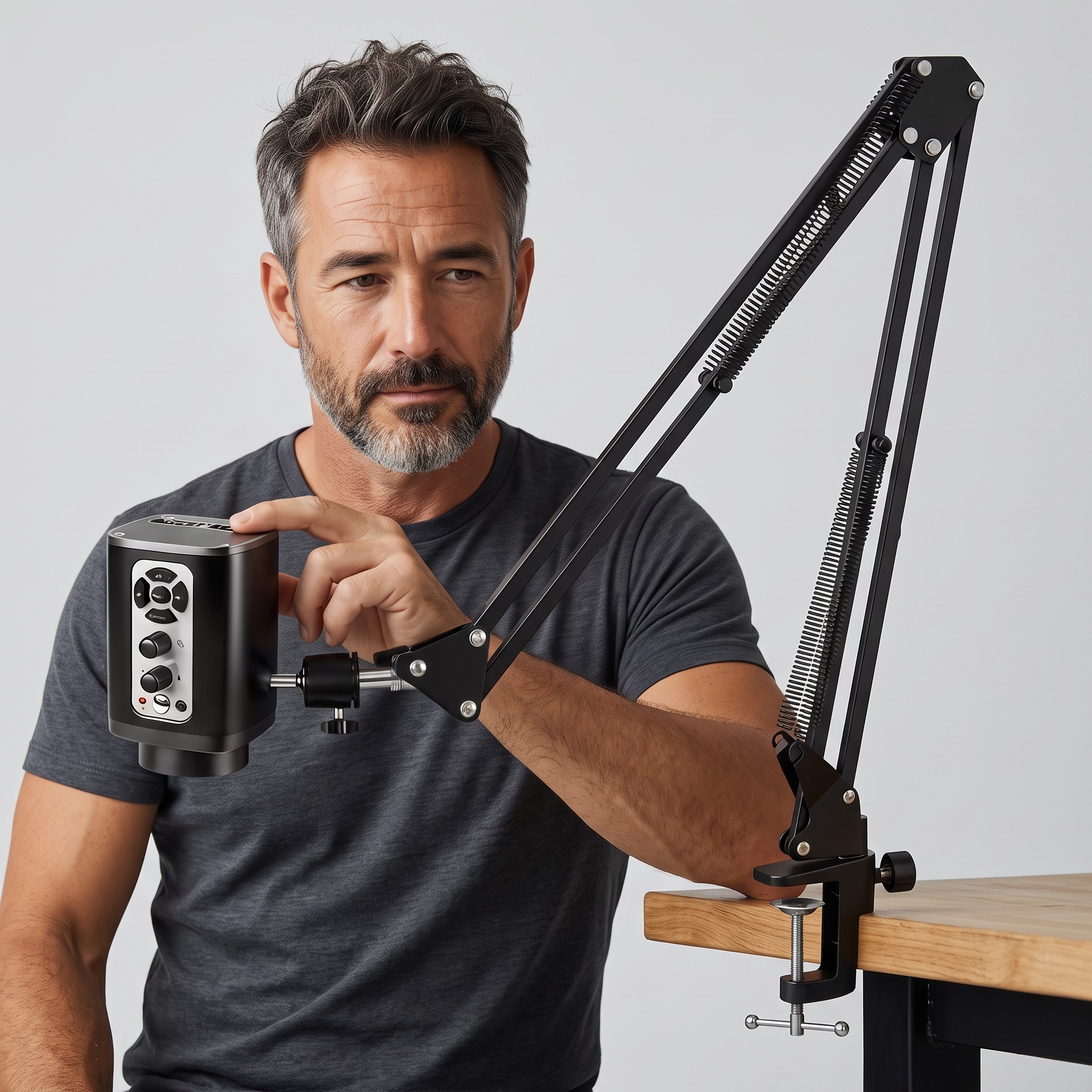

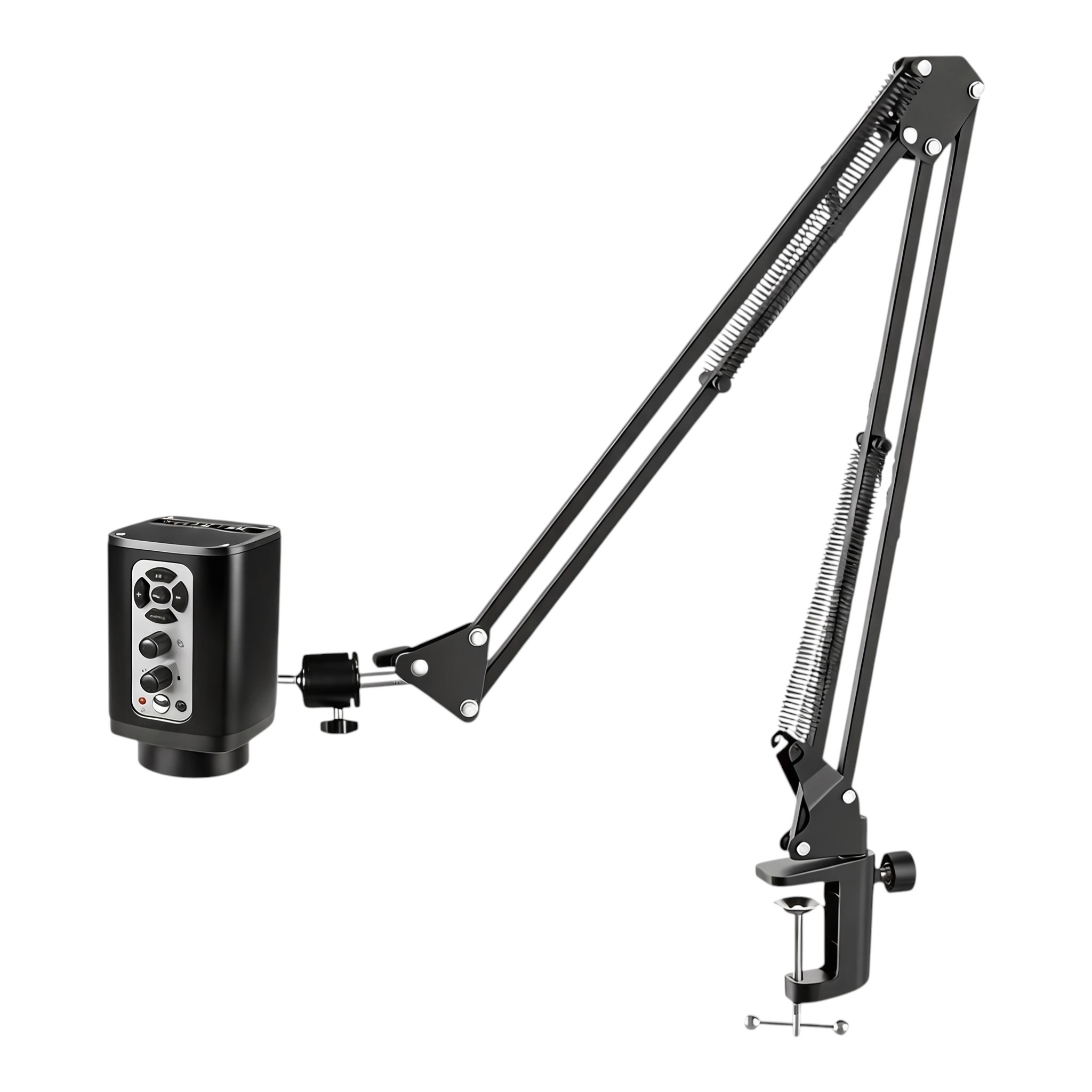

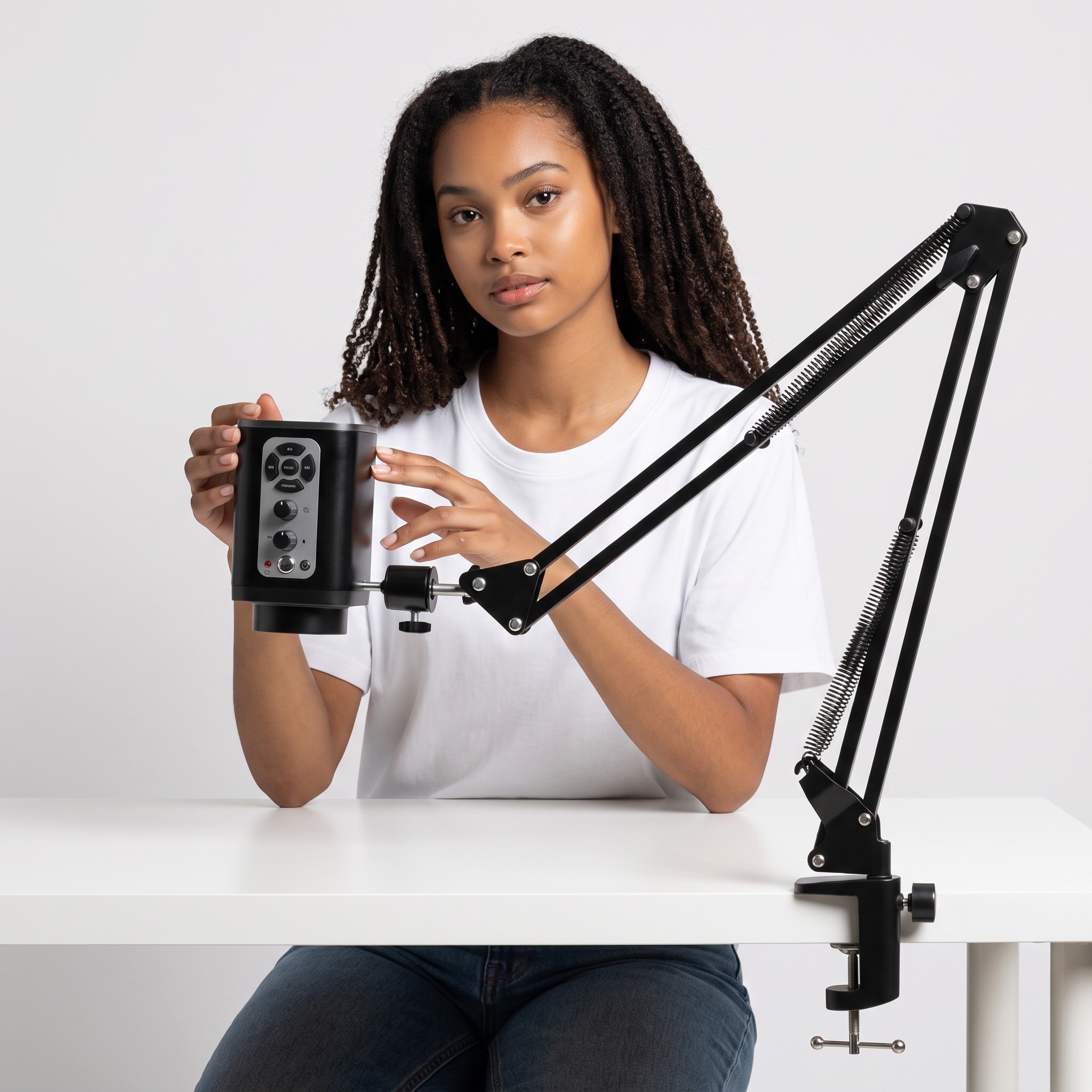

- Spring Arm – a long double arm with springs is screwed to the table with a clamp and the camera can be rotated or brought closer to the object as needed. At the end of the arm is a holder with a locking screw, which holds the camera in the chosen position.
- Remote Control – a separate remote with a range of buttons allows settings to be changed without shaking the arm with your hand, for example, when the camera is extended far above the table.

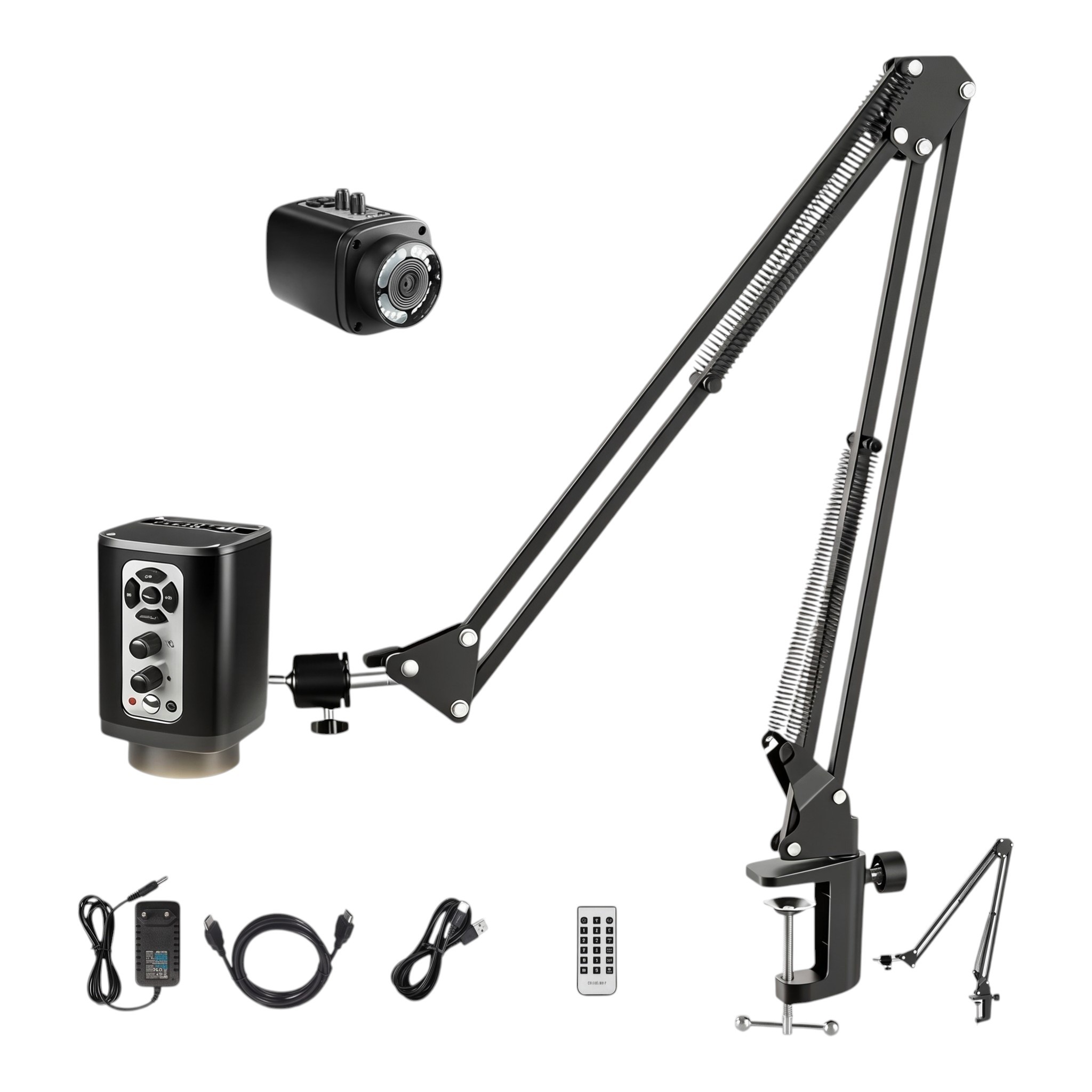

Package Contents:
- 1x 3-in-1 camera with lens and LED light
- 1x power supply
- 1x HDMI cable
- 1x USB-C to USB-A cable
- 1x remote control
- 1x spring arm with clamp
In this model, the optics, light and sensor are combined into one piece, so nothing needs to be assembled before use. For working with fine components, 160x magnification and built-in circular illumination around the lens are available. The image travels via HDMI directly to the screen, with the USB-C connection ensured by the included cable. The arm secured with a clamp to the table keeps the work surface beneath the camera clear for the board and soldering iron. The microscope is suitable for mobile service, electronics repairs and amateur soldering.
