285 x 215 mm ATX Motherboard with LGA 2011-3 Socket and X99 Chipset for Xeon E5 with 4 DDR4 Slots up to 128 GB and 2x M.2 NVMe in Black

285 x 215 mm ATX Motherboard with LGA 2011-3 Socket and X99 Chipset for Xeon E5 with 4 DDR4 Slots up to 128 GB and 2x M.2 NVMe in Black

Quad-channel DDR4 memory up to 128 GB with ECC, two M.2 NVMe slots simultaneously, 2x PCIe 3.0 x16 for graphics cards, TPM 2.0 connector and diagnostic display. Full description
In stock
Delivery €1.59
30-day return policy
€207.82
Safe shopping Safe shopping
Overview
285 x 215 mm ATX Motherboard with LGA 2011-3 Socket and X99 Chipset for Xeon E5 with 4 DDR4 Slots up to 128 GB and 2x M.2 NVMe in Black

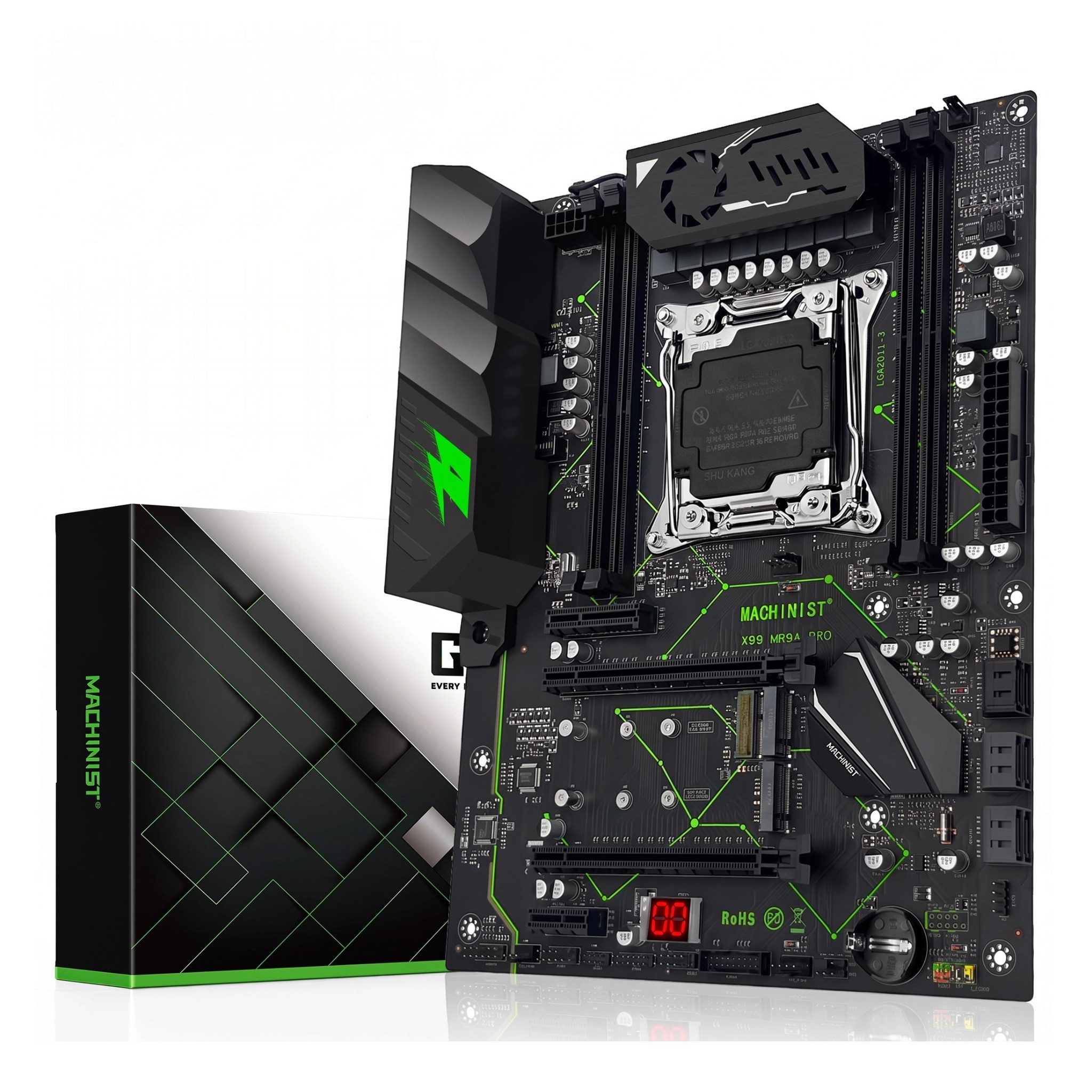

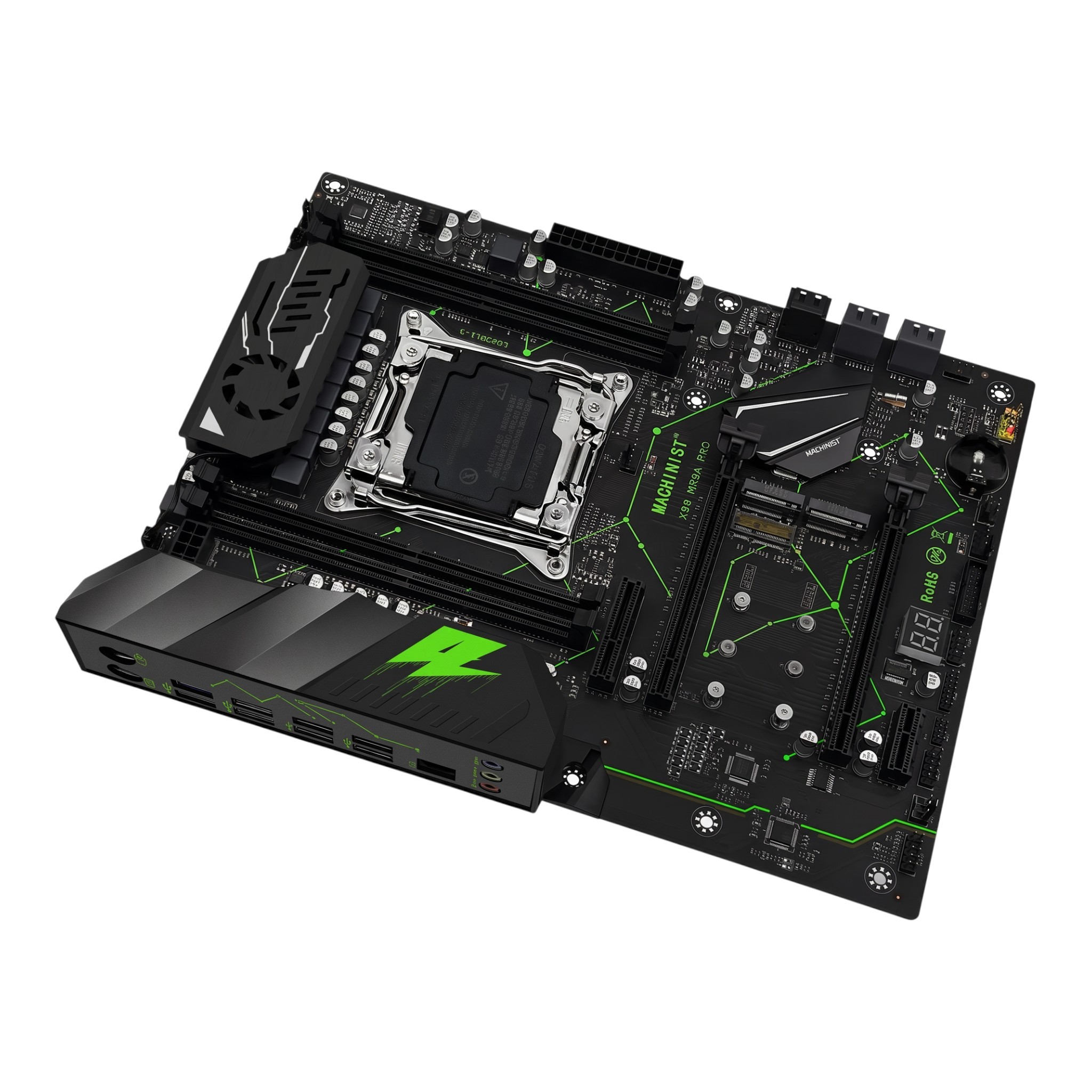

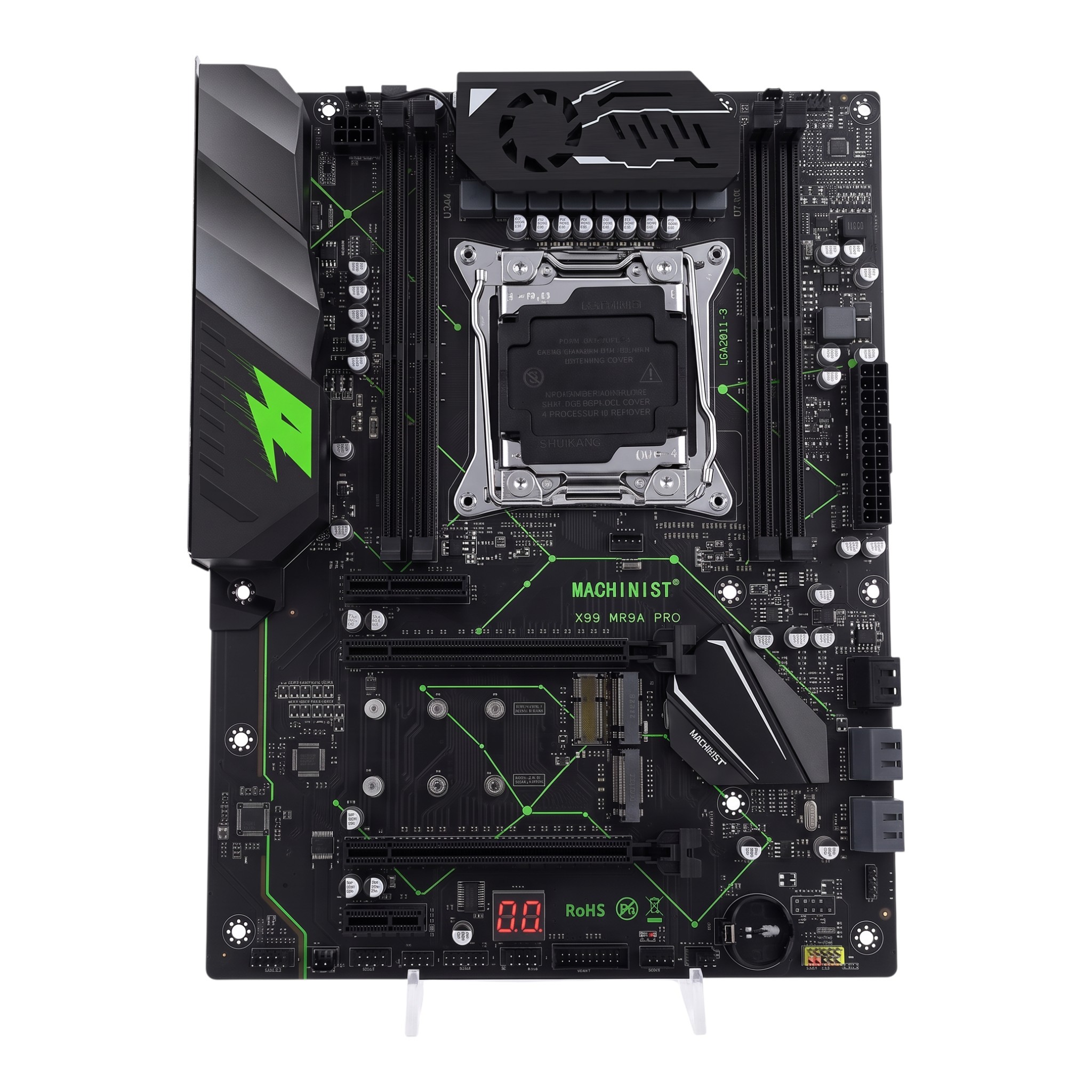

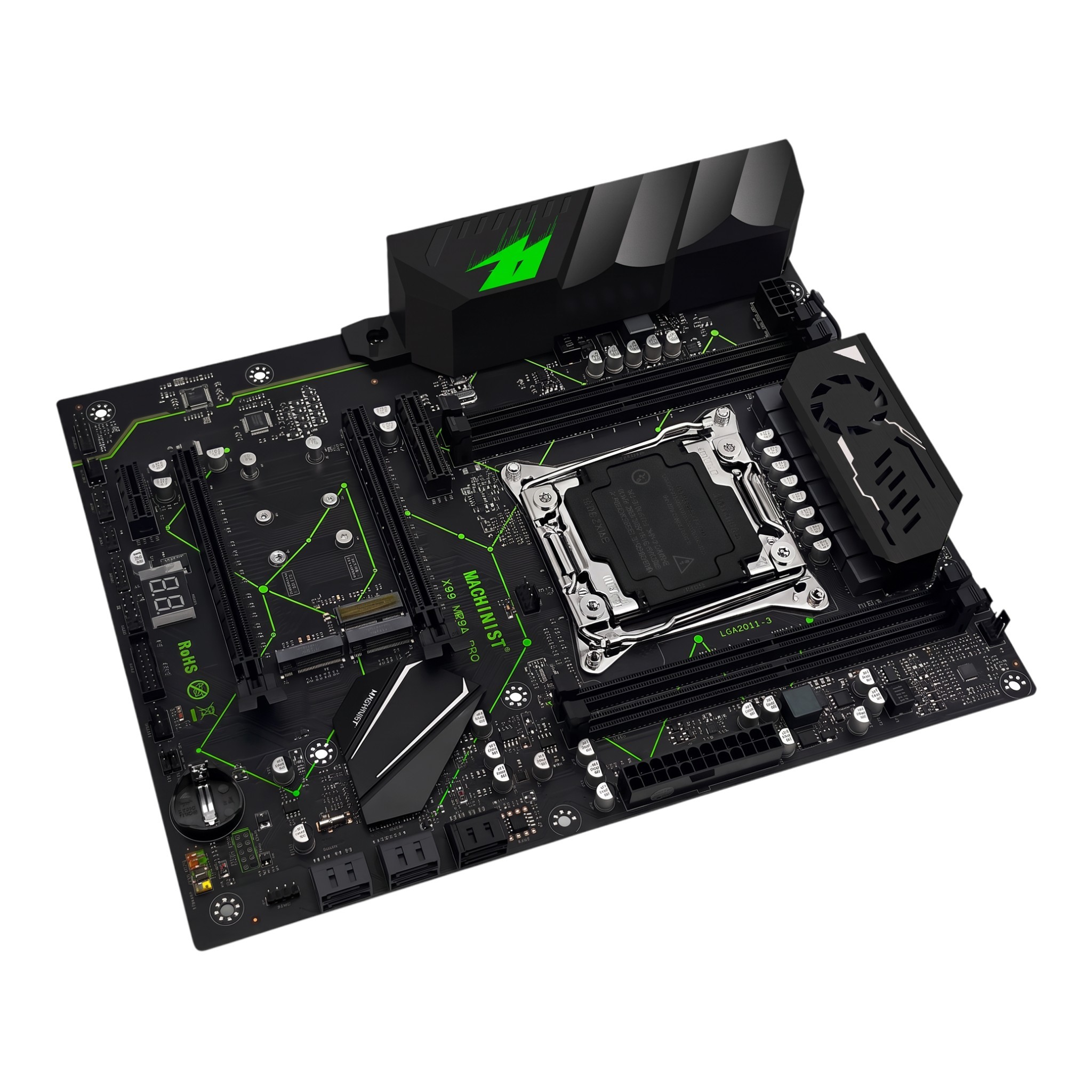

The black ATX motherboard measuring 285 x 215 mm is built on the X99 chipset and LGA 2011-3 socket for Intel Xeon E5 V3 series processors, such as E5 2678 V3, E5 2666 V3 or E5 2650 V3. It is suitable for a workstation for video editing and 3D graphics, a home server, or a gaming setup with a multi-core processor. Four memory slots operate in quad-channel mode and accommodate up to 128 GB of DDR4 memory, both standard and ECC supported. For fast storage, the motherboard features two M.2 NVMe slots that can be used simultaneously, as well as four SATA 3.0 ports. Expansion cards connect via two PCIe 3.0 x16 slots and two smaller PCIe 2.0 slots.

  • Memory – 4 DDR4 slots in quad-channel configuration with a capacity of up to 128 GB, supporting both DDR4 and DDR4 ECC memory with frequencies of 2133 and 2400 MHz.
  • Storage – 2 M.2 slots for NVMe drives with PCIe 3.0 interface and transfer speeds of up to 32 Gb/s, both drives can operate simultaneously; additionally, 4 SATA 3.0 ports with speeds of 6 Gb/s for SSDs and hard drives.
  • Expansion Slots – 2x PCIe 3.0 x16 for graphics cards, PCIe 2.0 x4 and PCIe 2.0 x1. There is no video output on the rear panel, so a dedicated graphics card is required for display.
  • Rear Panel – 2x PS/2 for keyboard and mouse, 2x USB 3.0, 6x USB 2.0, gigabit network port with Realtek 8111 chip and audio connectors for microphone, line input, and line output. The connectors are covered by a protective shield.
  • Power and Cooling – 8-phase CPU power, 24-pin ATX connector and 8-pin connector for the CPU; the power circuits are cooled by a metal heatsink with its own fan.
  • Diagnostics and Security – a two-digit diagnostic display shows codes during startup and helps quickly identify the cause of faults. The 14-pin TPM 2.0 connector allows for connecting a module necessary for Windows 11, data encryption, and Secure Boot functionality.

Package Contents:

  • 1x Motherboard

The X99 chipset board is suitable for builds where the number of CPU cores, large memory capacity, and potential for further expansion are important. The pair of PCIe 3.0 x16 slots allows for the installation of two graphics cards, and the two M.2 NVMe slots provide fast space for the operating system and work data. The quad-channel memory configuration increases bandwidth for demanding tasks such as rendering or running virtual machines. The full ATX format 285 x 215 mm requires a case for motherboards of this size. Thanks to the 8-phase power with active cooling, the motherboard can handle the continuous load of multi-core Xeon processors.
