2 m Extension Cable with Solar Connector Photovoltaic Cable 16 AWG with a Cross Section of 1.5 mm² With Free End Red and Black For Panels
You already have the maximum available quantity in your cart.

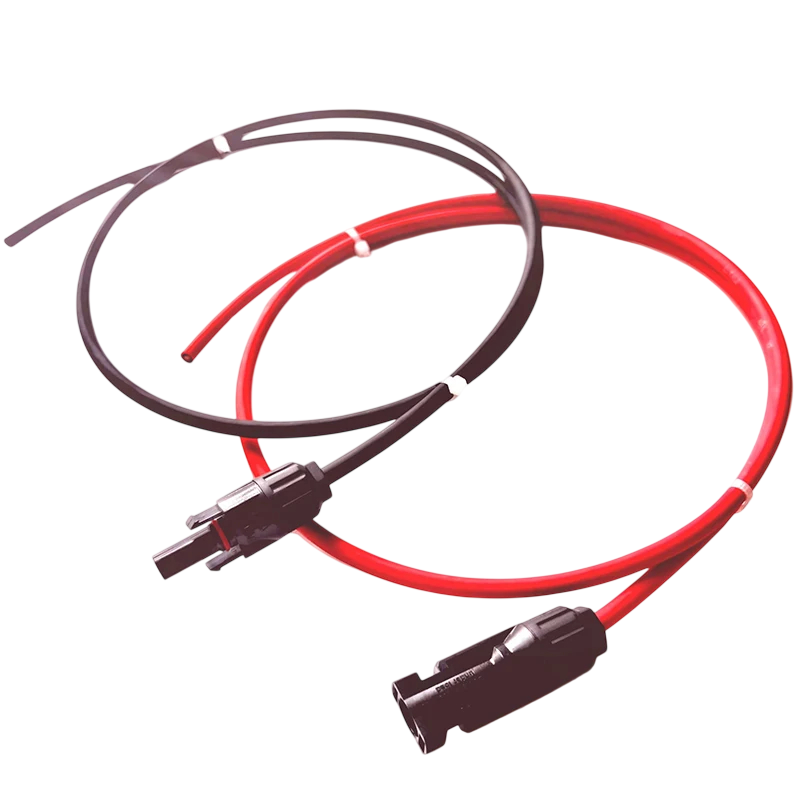

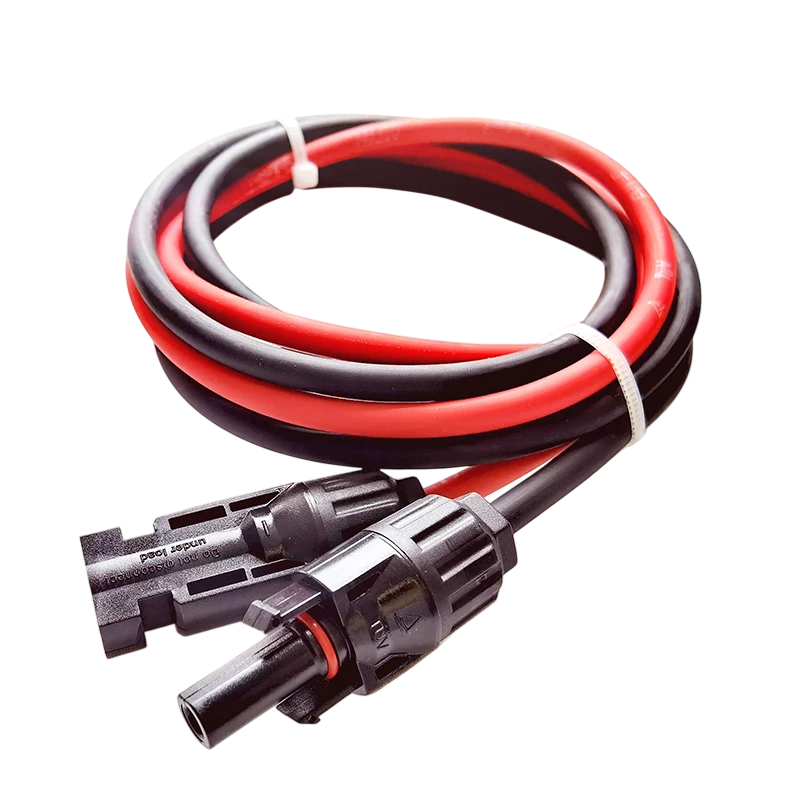

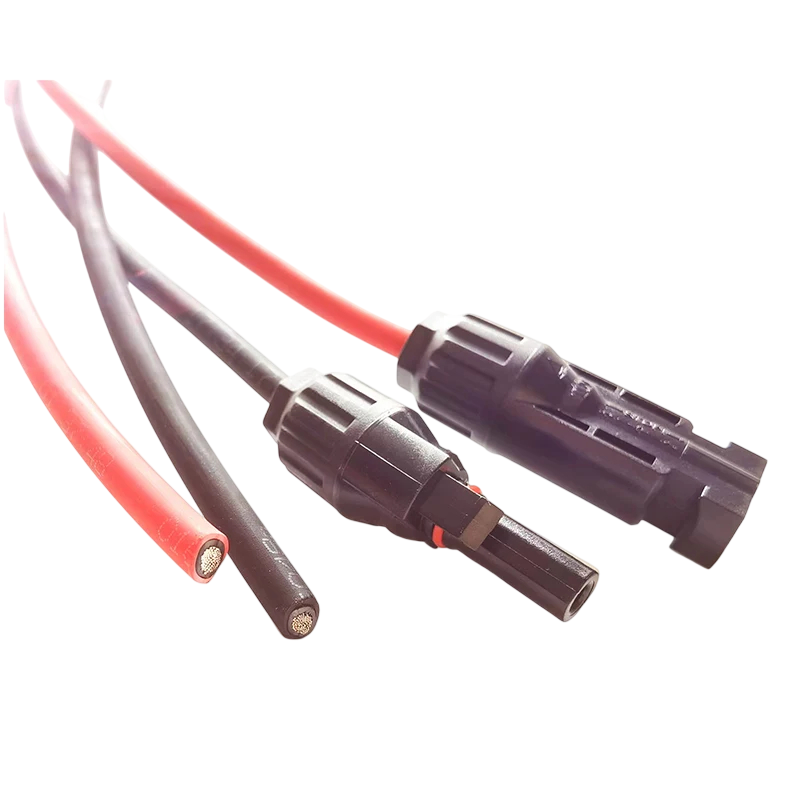

The 2 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black design, allowing polarity to be distinguished by the colour of the insulation, preventing confusion during installation. The wire has a cross section of 1.5 mm² according to the designation 16 AWG, which is suitable for common domestic and mobile photovoltaic installations. One end is fitted with a solar connector from the factory, while the other end remains free for connection to a terminal block or for custom termination. The stranded core provides the cable with the flexibility needed for routing around the supporting structure.
- Length 2 m — ample space to connect the panel to a device positioned nearby
- Cross section 1.5 mm² — wire corresponding to the designation 16 AWG
- Solar connector on one end — snap-in connection with a pull-out protection
- Free end on the other side — terminate according to the requirements of the connected device
- Stranded core — the cable bends well and routes even in tighter spaces
- Red and black insulation — colour distinction for the positive and negative wires
- Pair of cables in the package — one piece carries positive, the other negative
- Designed for photovoltaics — cable intended for direct current wiring of solar assemblies
Package contents:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functioning assembly. The free end allows for custom termination — spade terminal, cable lug, or direct connection to a terminal. Two metres in length is sufficient for typical distances between a panel on the roof of a shelter and a device inside. When planning the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour distinction of the insulation facilitates polarity checks during any future adjustments to the assembly.
