2 m Extension Cable with Solar Connector Photovoltaic Cable 14 AWG with a Cross-Section of 2.5 mm² Load Capacity 41 A Red and Black For Panels
You already have the maximum available quantity in your cart.

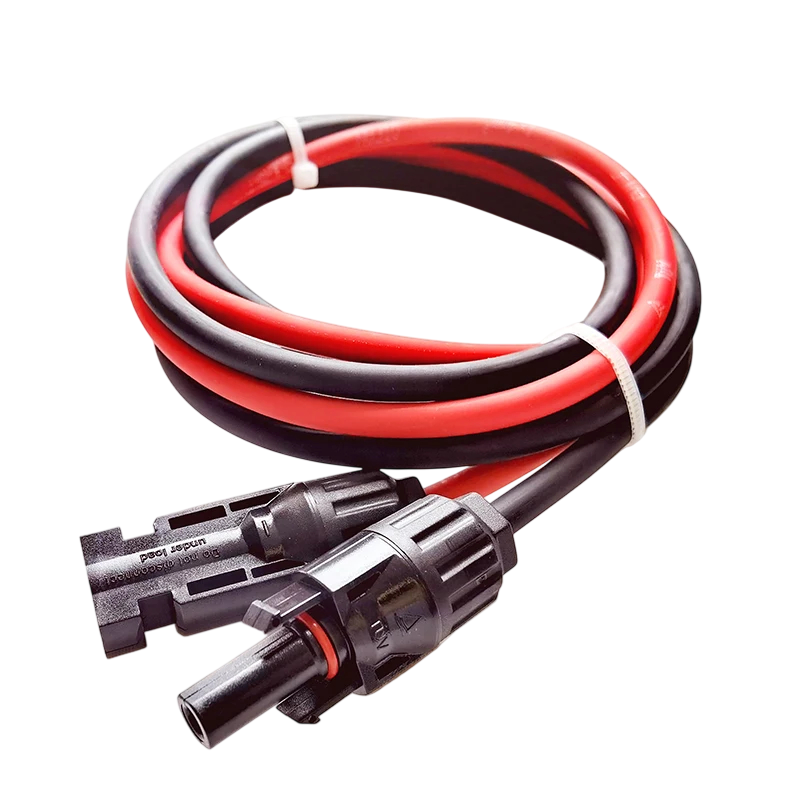

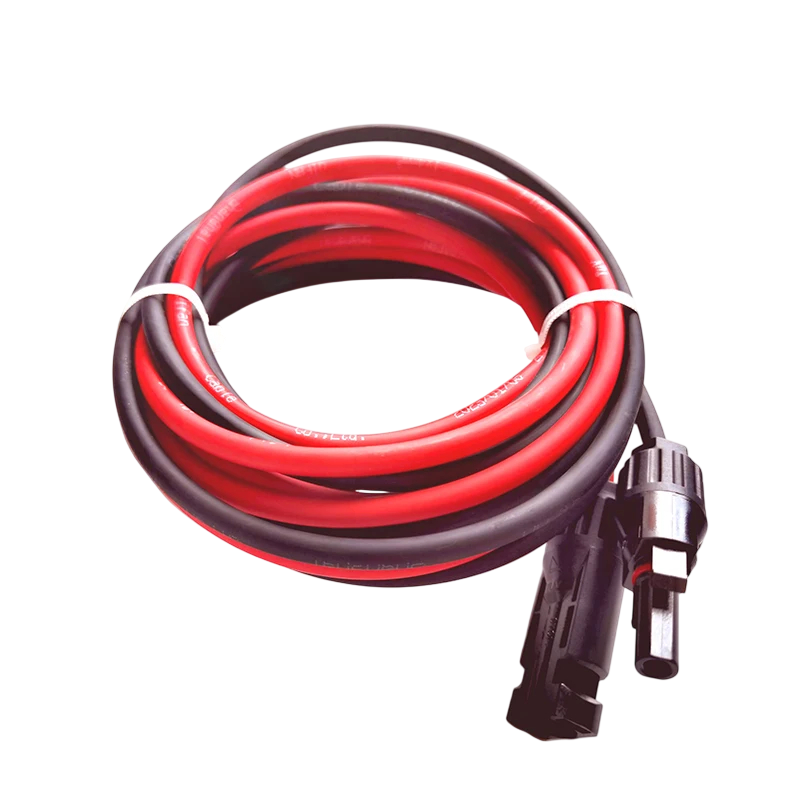

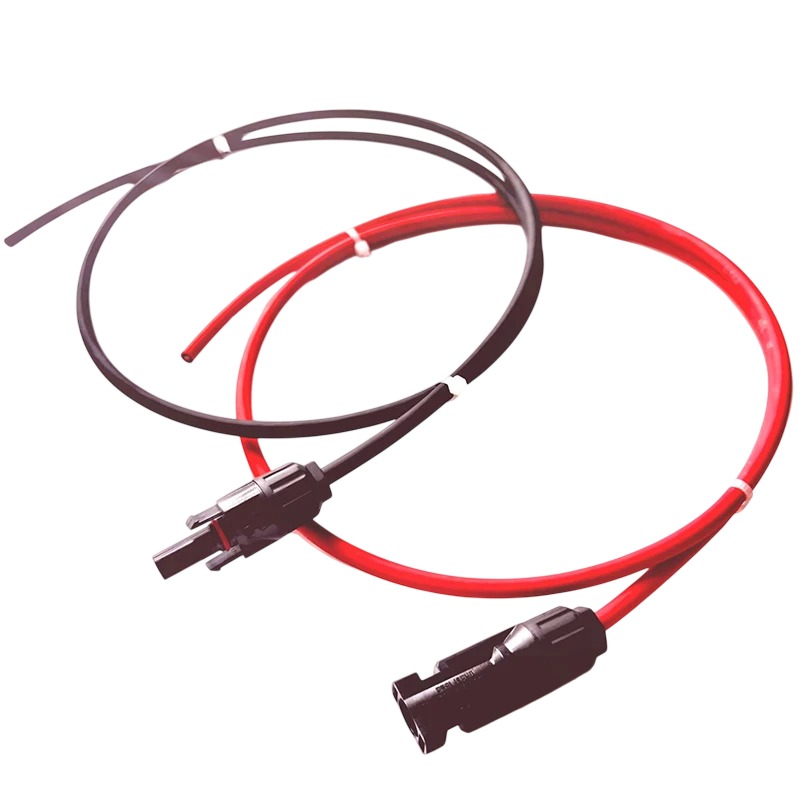

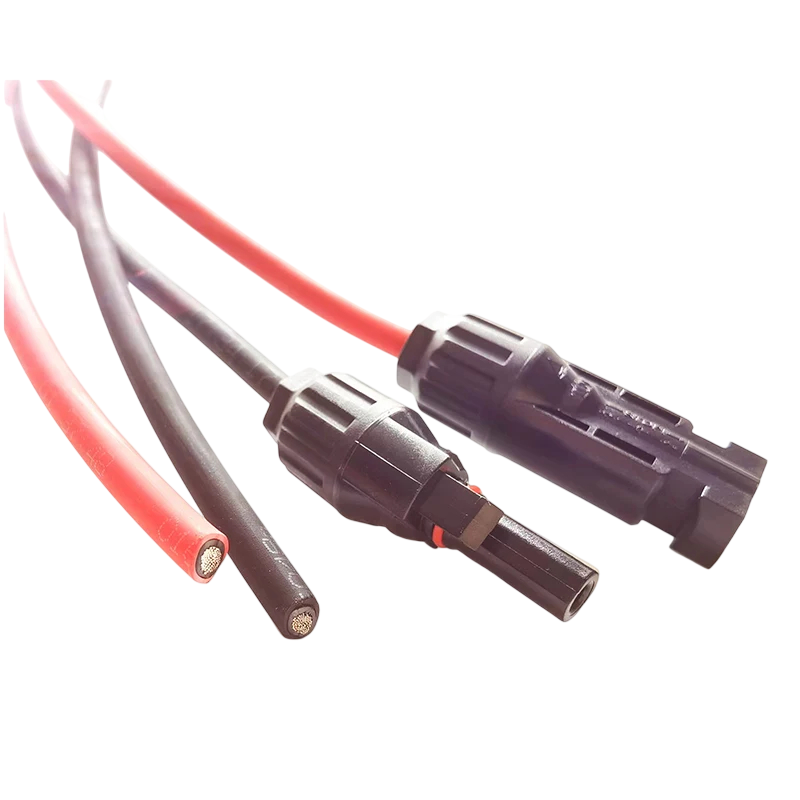

The 2 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black, so the polarity is distinguished by the colour of the insulation, making it easy to connect without confusion. The wire has a cross-section of 2.5 mm² according to the designation 14 AWG and is made up of fifty strands with a diameter of 0.25 mm, giving it the flexibility needed for routing around structures. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 41 A at 60 °C.
- Length 2 m — ample space to connect the panel to a device standing nearby
- Cross-section 2.5 mm² — wire corresponding to the designation 14 AWG with a reserve for higher currents
- Construction of 50 strands of 0.25 mm — flexible core with a diameter of 2.02 mm
- Load capacity 41 A — value stated at a temperature of 60 °C
- Maximum conductor resistance 7.98 Ω/km — measured at 20 °C
- Outer diameter of the cable 5.45 mm — insulation thickness 0.67 mm and sheath 0.73 mm
- Solar connector on one end — snap-fit connection with a pull-out prevention feature
- Red and black insulation — colour coding for positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting the panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — a ferrule, cable eye, or direct connection to a terminal depending on the requirements of the connected device. A cross-section of 2.5 mm² with a load capacity of 41 A provides a reserve for more powerful panels and longer runs compared to thinner wires. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checks during any future modifications to the assembly.
