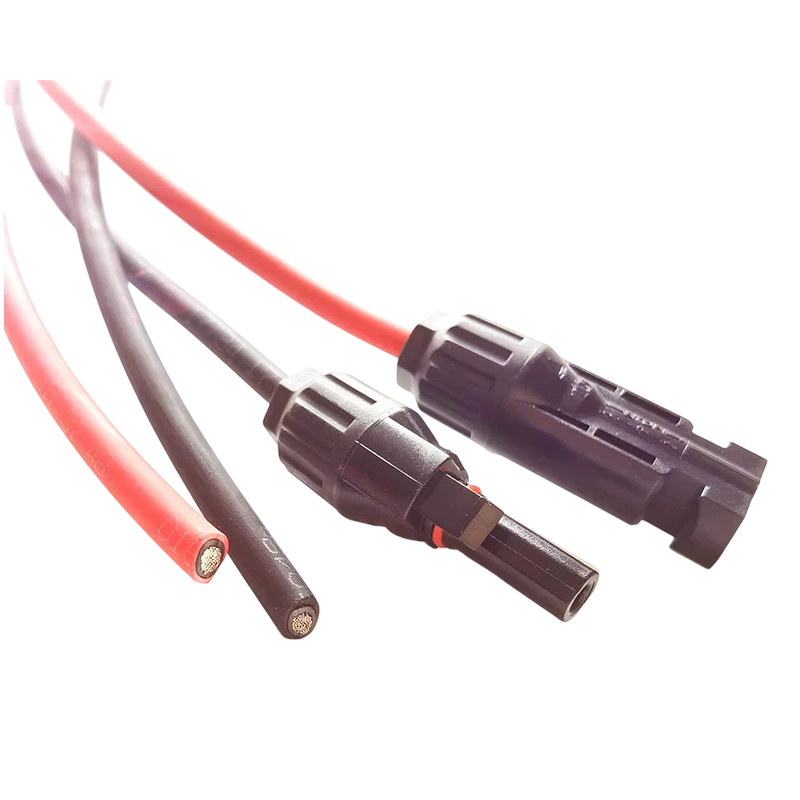

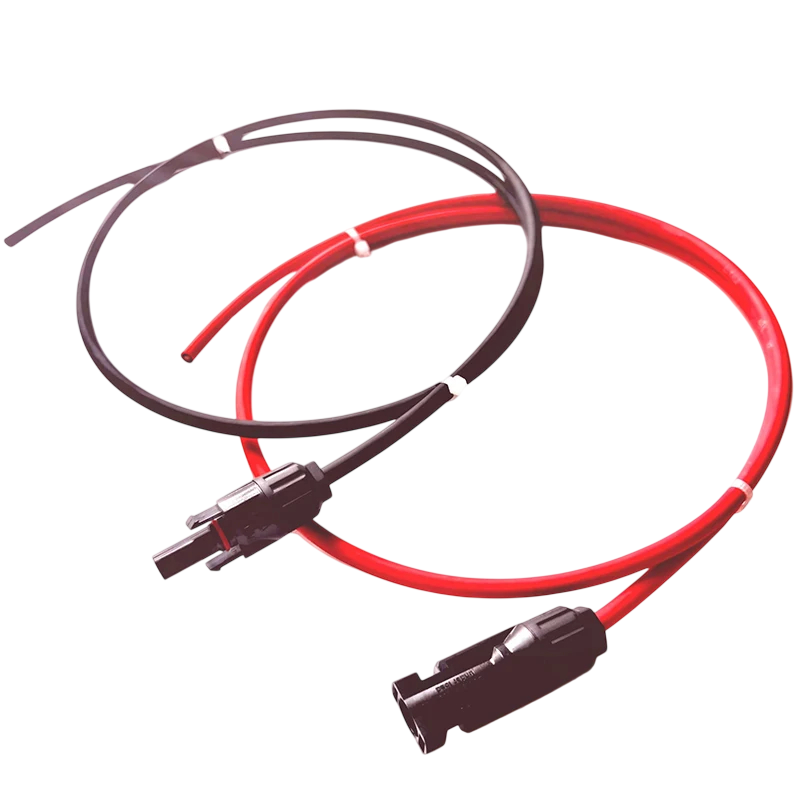

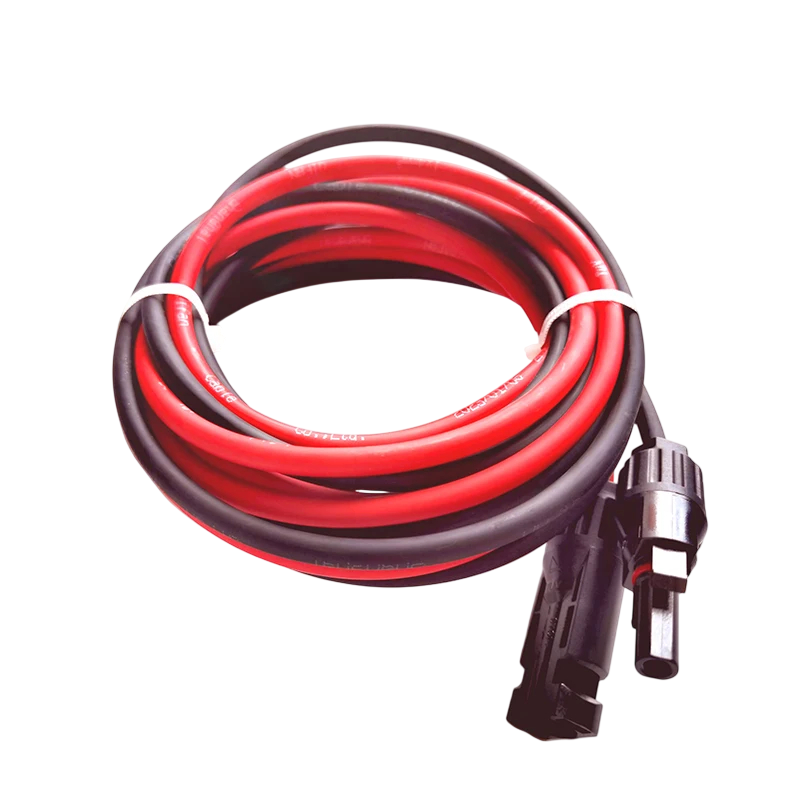

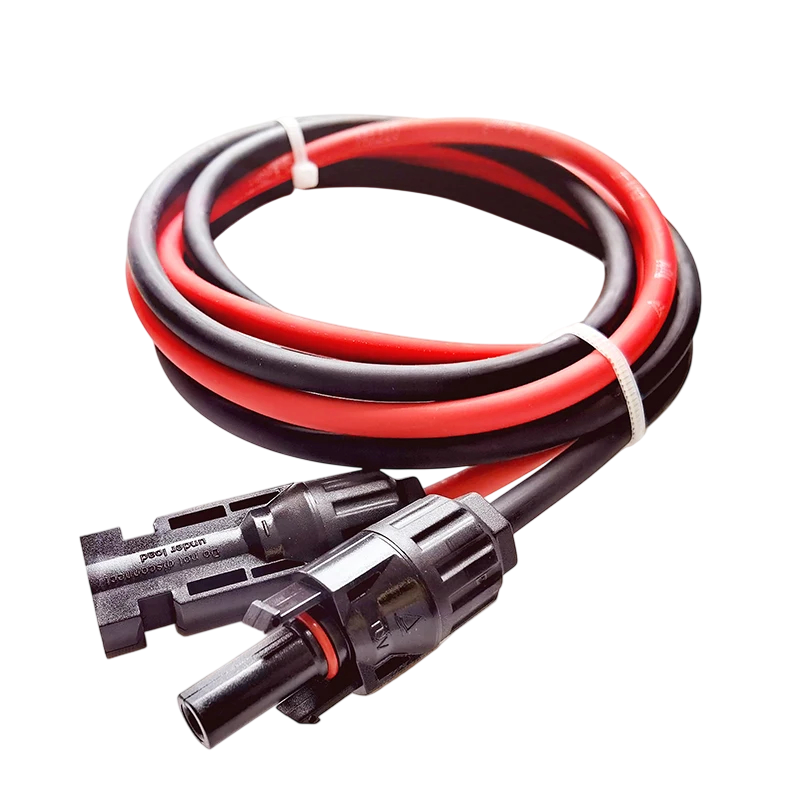

2 m Extension Cable with Solar Connector Photovoltaic Cable 12 AWG with a Cross-Section of 4 mm² Load Capacity 55 A Red and Black For Panels
You already have the maximum available quantity in your cart.
The photovoltaic extension cable, 2 m long, is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of conductors in red and black, making the polarity easily distinguishable by the colour of the insulation, so you won't make a mistake when connecting. The conductor has a cross-section of 4 mm² according to the designation 12 AWG and is composed of fifty-six strands with a diameter of 0.30 mm, which maintains flexibility even with a larger cross-section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 55 A at 60 °C.
- Length 2 m — ample space to connect the panel to a device standing nearby
- Cross-section 4 mm² — conductor corresponding to the designation 12 AWG for higher currents and longer runs
- Construction of 56 strands of 0.30 mm — flexible core with a diameter of 2.60 mm
- Load capacity 55 A — value stated at a temperature of 60 °C
- Max. conductor resistance 4.95 Ω/km — measured at 20 °C, thus lower losses than with thinner conductors
- Outer diameter of the cable 6.10 mm — insulation thickness 0.67 mm and sheath 0.73 mm
- Solar connector on one end — snap-fit connection with anti-pull-out security
- Red and black insulation — colour coding for positive and negative conductors
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — lug, cable eye, or direct connection to a terminal depending on what the connected device requires. The cross-section of 4 mm² with a load capacity of 55 A is suitable for more powerful panels and systems where current from multiple sources is combined. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checking during any future adjustments to the assembly.
