2 m Extension Cable with Solar Connector Photovoltaic Cable 10 AWG with a Cross-Section of 6 mm² Load Capacity 70 A Red and Black For Panels
You already have the maximum available quantity in your cart.

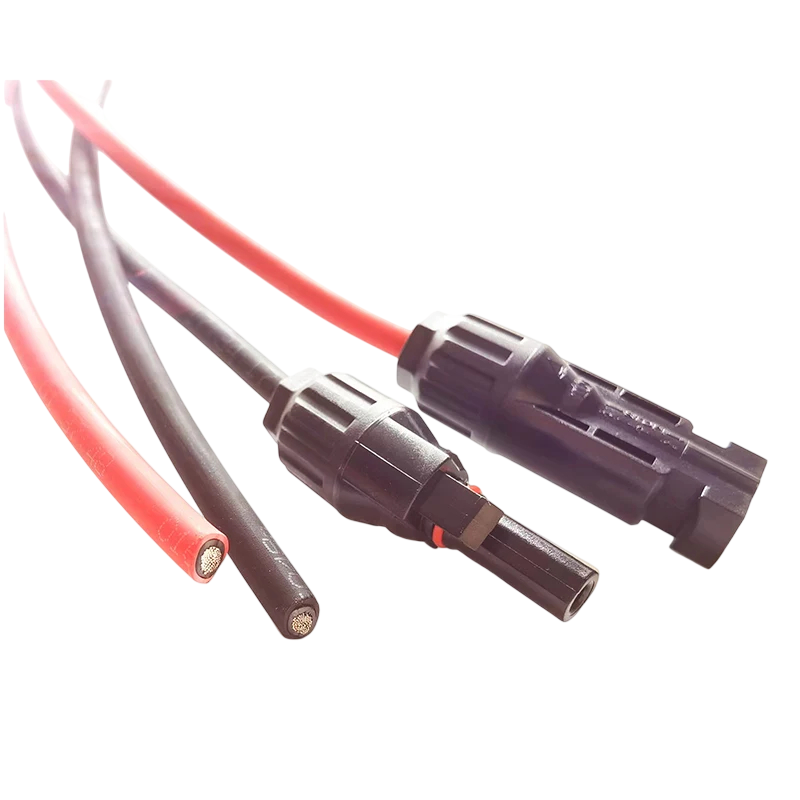

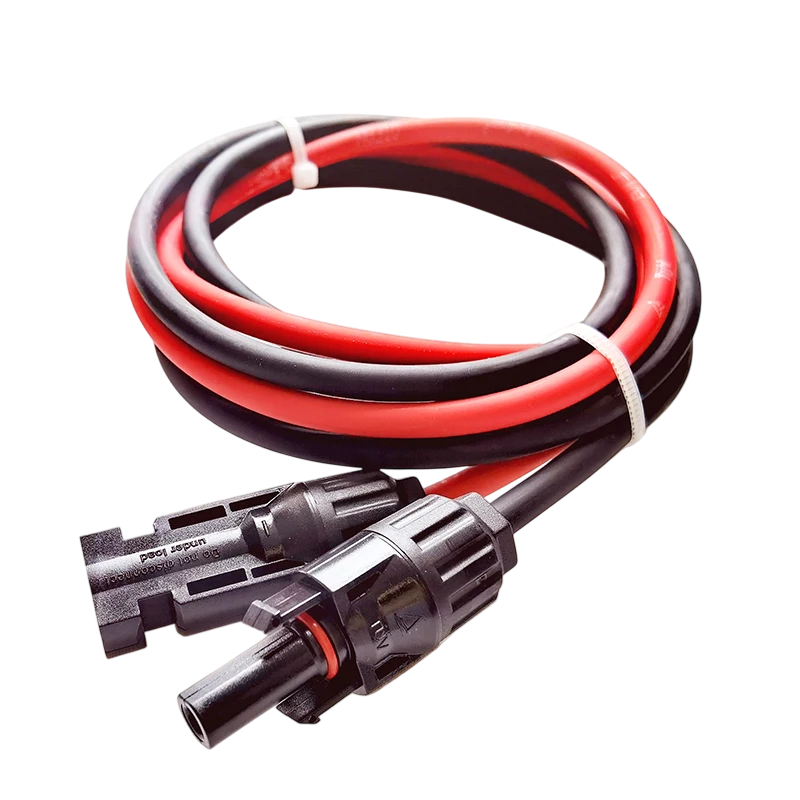

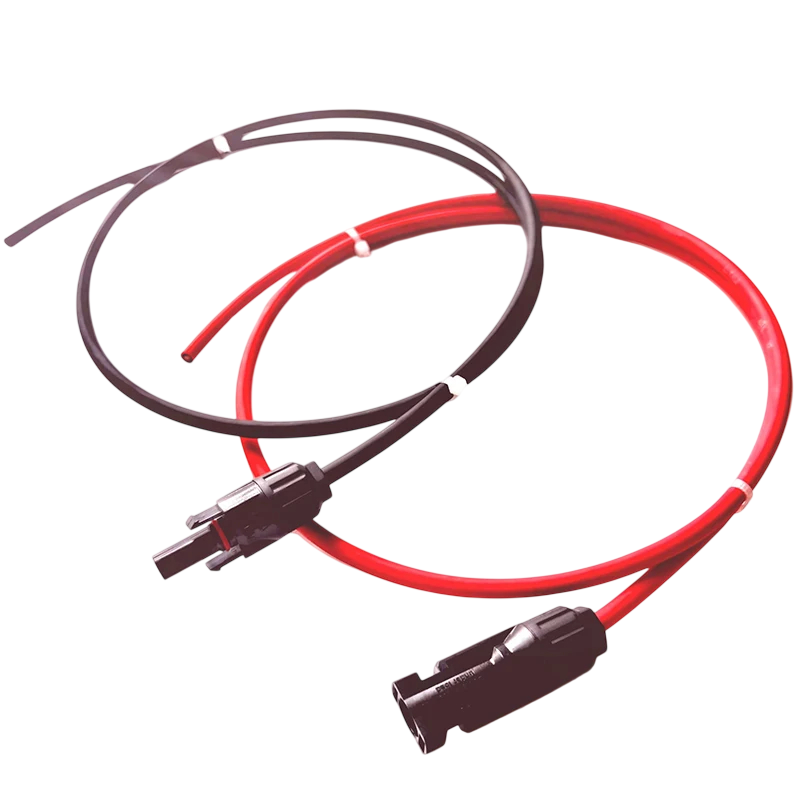

The 2 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black, making polarity distinction easy based on the colour of the insulation, so you won't make a mistake when connecting. The wire has a cross-section of 6 mm² according to the designation 10 AWG and is composed of eighty-four strands with a diameter of 0.30 mm, which maintains its flexibility even with this cross-section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 70 A at 60 °C.
- Length 2 m — ample space to connect the panel to a device standing nearby
- Cross-section 6 mm² — wire corresponding to the designation 10 AWG for the highest currents in this range
- Construction of 84 strands of 0.30 mm — flexible core with a diameter of 3.42 mm
- Load Capacity 70 A — value specified at a temperature of 60 °C
- Max. wire resistance 3.30 Ω/km — measured at 20 °C, thus the lowest losses in this range of cross-sections
- Outer diameter of the cable 7.20 mm — insulation thickness 0.8 mm and sheath 0.8 mm
- Solar connector on one end — snap-in connection with pull-out prevention
- Red and black insulation — colour differentiation of the positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functioning assembly. The free end allows for custom termination — lug, cable eye, or direct connection to a terminal depending on what the connected device requires. Cross-section 6 mm² with a load capacity of 70 A is suitable for high-performance assemblies and locations where current from several panels is summed. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour differentiation of the insulation makes it easier to check polarity during any subsequent modifications to the assembly.
