2 in 1 Laser Angle Measuring Rule with Stand Measuring in Two Axes Range 4 x 90° and Dual-Sided LED Display Matte Aluminium Silver
You already have the maximum available quantity in your cart.

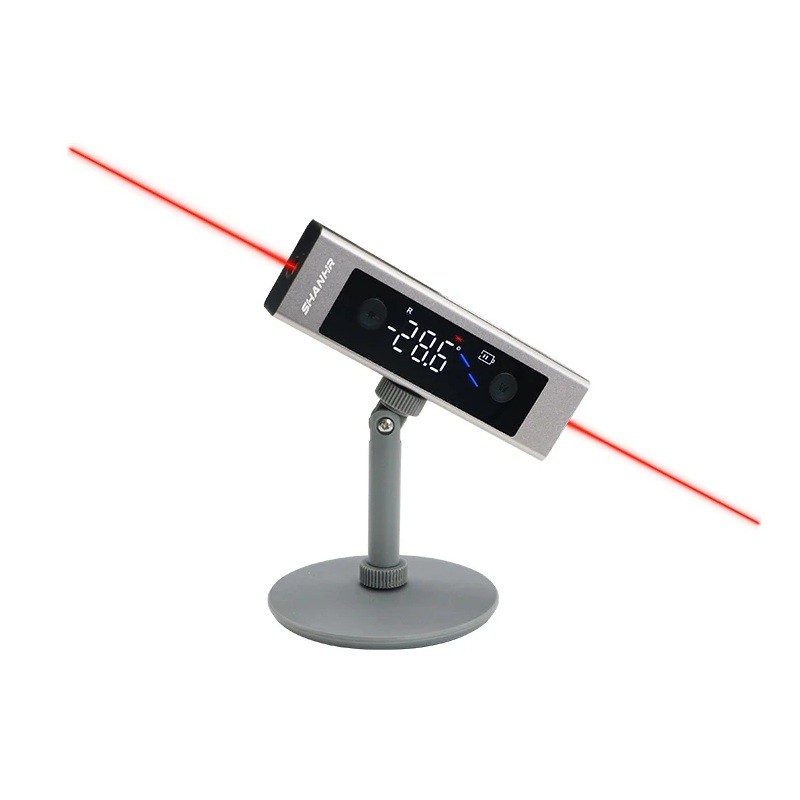

Working with angles in furniture or constructions requires both a numerical value and the ability to transfer it onto a surface to see where the line should go. This laser angle measuring rule combines both functions in one piece and projects a red line simultaneously with the reading on the display. Measurement occurs in two axes and according to the data on the packaging, the range of one axis is 4 x 90° with an accuracy of ± 0.2°. The display is designed to be dual-sided, allowing the value to be read from both sides of the device without turning it. The body is made of matte aluminium, which does not glare and feels good in hand. Dimensionally, it is a slim profile that can be applied to a narrower edge or rail.
Included is a stand with a joint holder, which allows the rule to be rotated to any angle within a range of 360° and left standing independently. Simply loosen the grooved screw, set the position, and tighten it again, ensuring the device remains at the desired angle throughout the work at one location. The circular base keeps the assembly on the table or worktop while the laser projects the line across the entire surface, so there is no need to draw the line. Control is provided by two buttons next to the display, which turn the device on and switch between individual functions, allowing for quick operation.
- Two functions in one — digital angle meter and laser line projection
- Measurement in two axes — simultaneous reading of the slope in two directions without rearrangement
- Range 4 x 90° — covering a full rotation with stated accuracy of 0.2°
- Dual-sided LED display — readable from both the front and back
- Body made of matte aluminium — sturdy construction without a shiny surface
- Stand with joint — rotation to any position within the full range of 360°
Contents of the package:
1x laser angle measuring rule
1x stand with holder
This tool is suitable for carpenters, installers, and DIY enthusiasts who build shelves, railings, or frames themselves and need to work with a specific angle value, not just a plane. The projected red line saves the need for pencil marking and maintains direction even where it is necessary to connect to an already completed part. The stand frees both hands, allowing one to hold the workpiece while continuously checking the angle value on the display. The compact aluminium body fits into a bag or toolbox and does not take up space among other tools. The reading from both sides is especially appreciated by those who work alone and cannot always walk around the workshop to check the device from the other side.
