17 x 17 cm ITX Motherboard with AM5 Socket and B650 Chipset for AMD Ryzen 7000 with DDR5 up to 96 GB 2x M.2 NVMe PCIe 4.0 and 2.5Gb LAN Black

17 x 17 cm ITX Motherboard with AM5 Socket and B650 Chipset for AMD Ryzen 7000 with DDR5 up to 96 GB 2x M.2 NVMe PCIe 4.0 and 2.5Gb LAN Black

Two DDR5 slots up to 7200 MHz with EXPO and XMP profiles, two M.2 NVMe drives, 2.5 Gb/s network, HDMI 2.1 and DisplayPort, and USB-C for a compact gaming PC. Full description
In stock
Delivery €1.59
30-day return policy
€354.98
Safe shopping Safe shopping
Overview
17 x 17 cm ITX Motherboard with AM5 Socket and B650 Chipset for AMD Ryzen 7000 with DDR5 up to 96 GB 2x M.2 NVMe PCIe 4.0 and 2.5Gb LAN Black

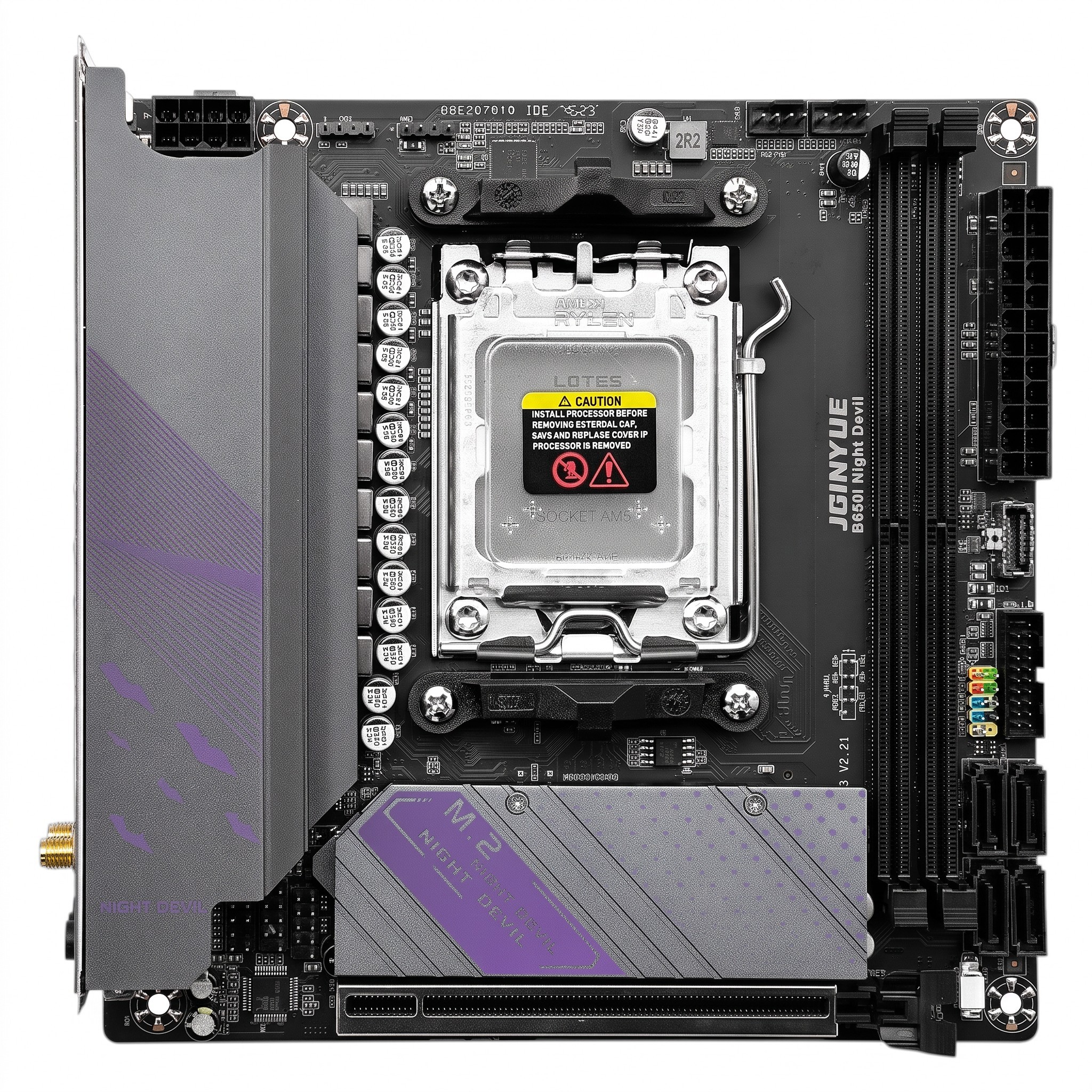

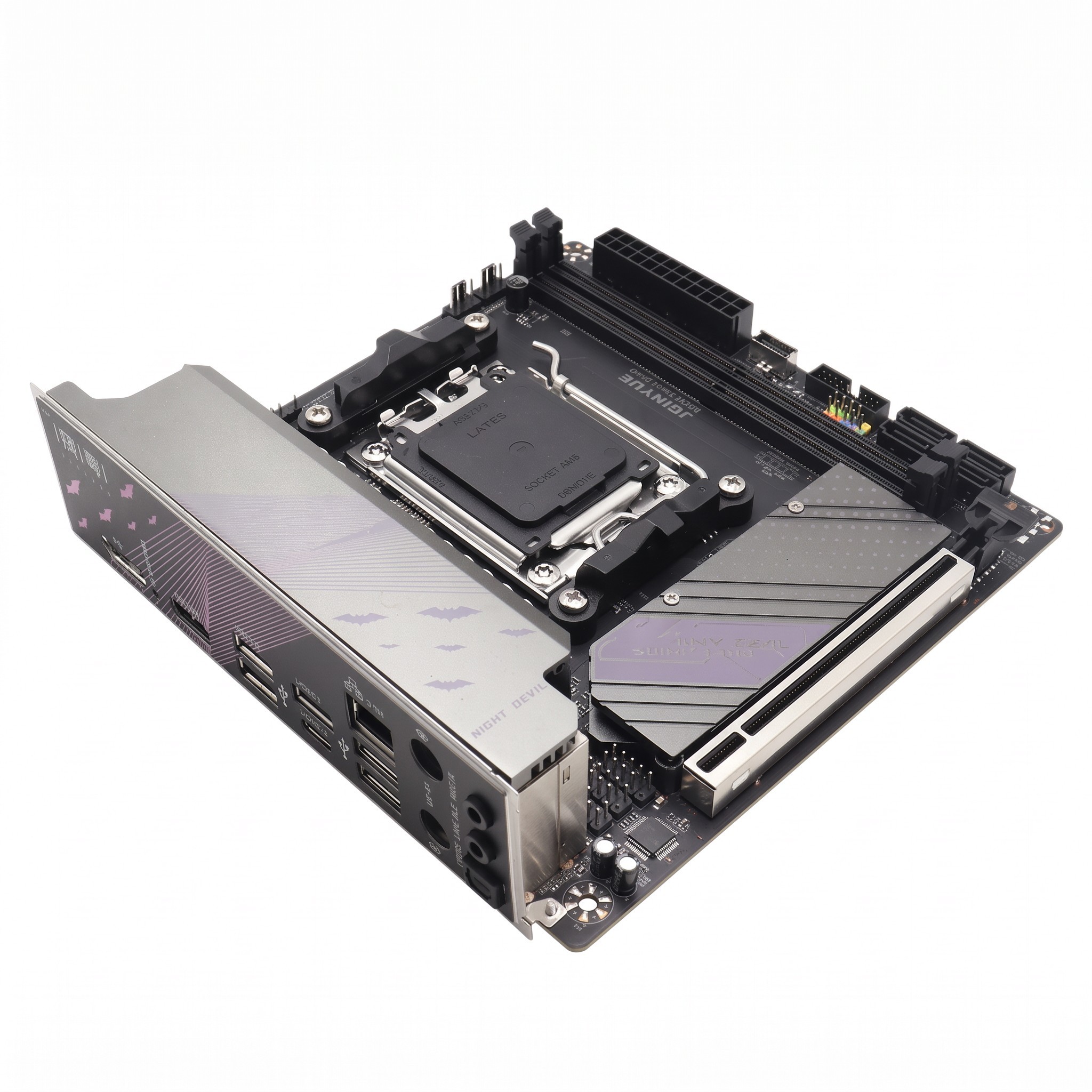

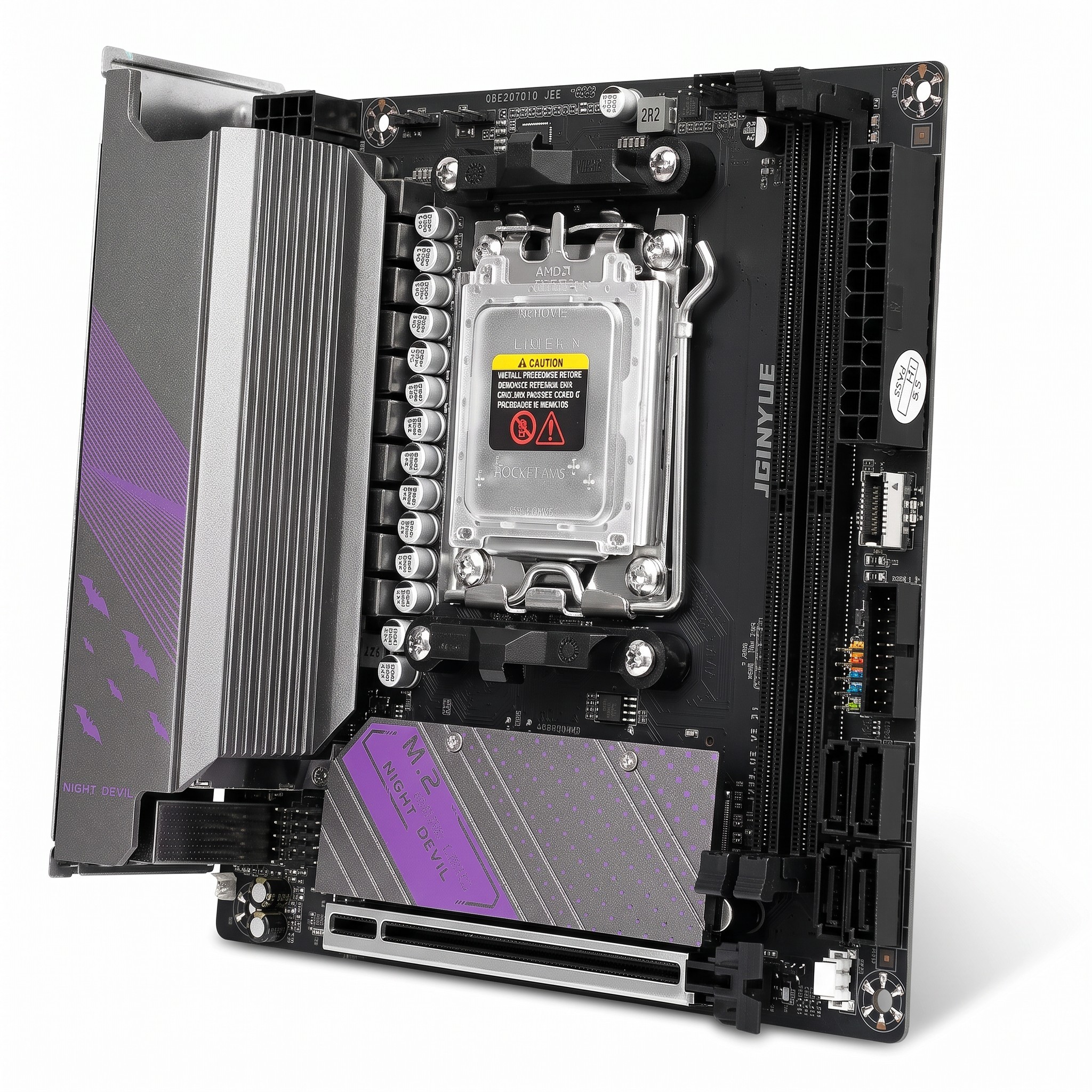

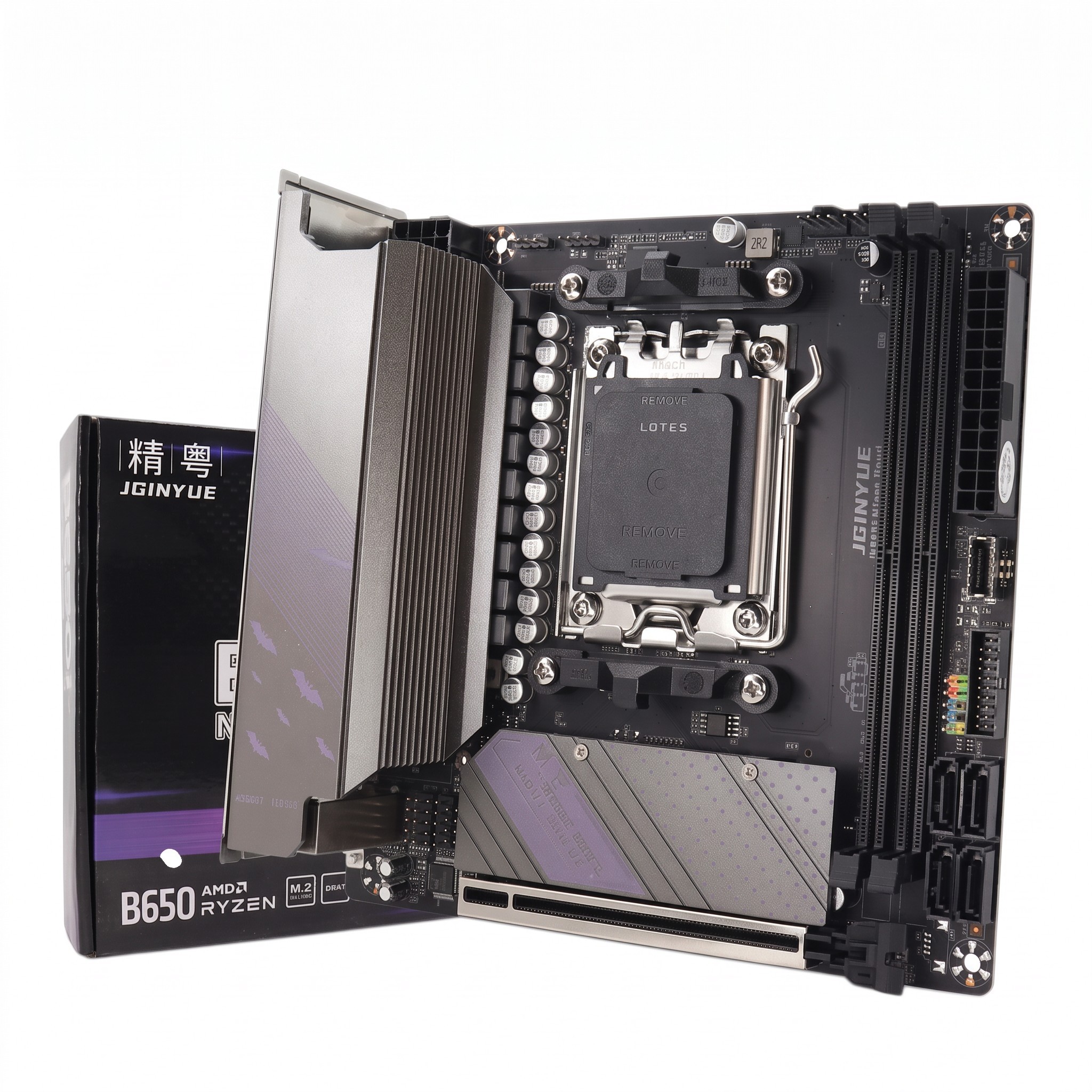

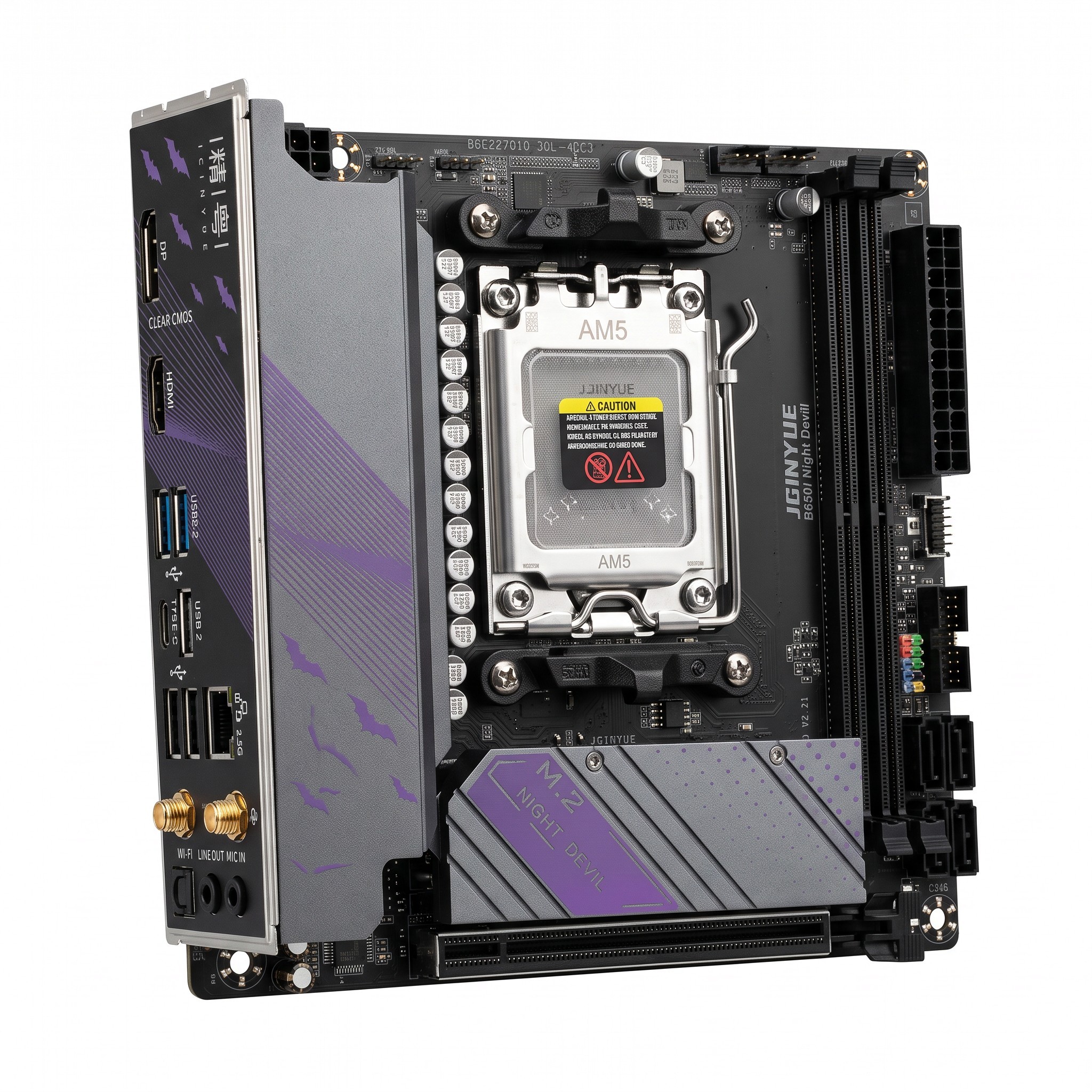

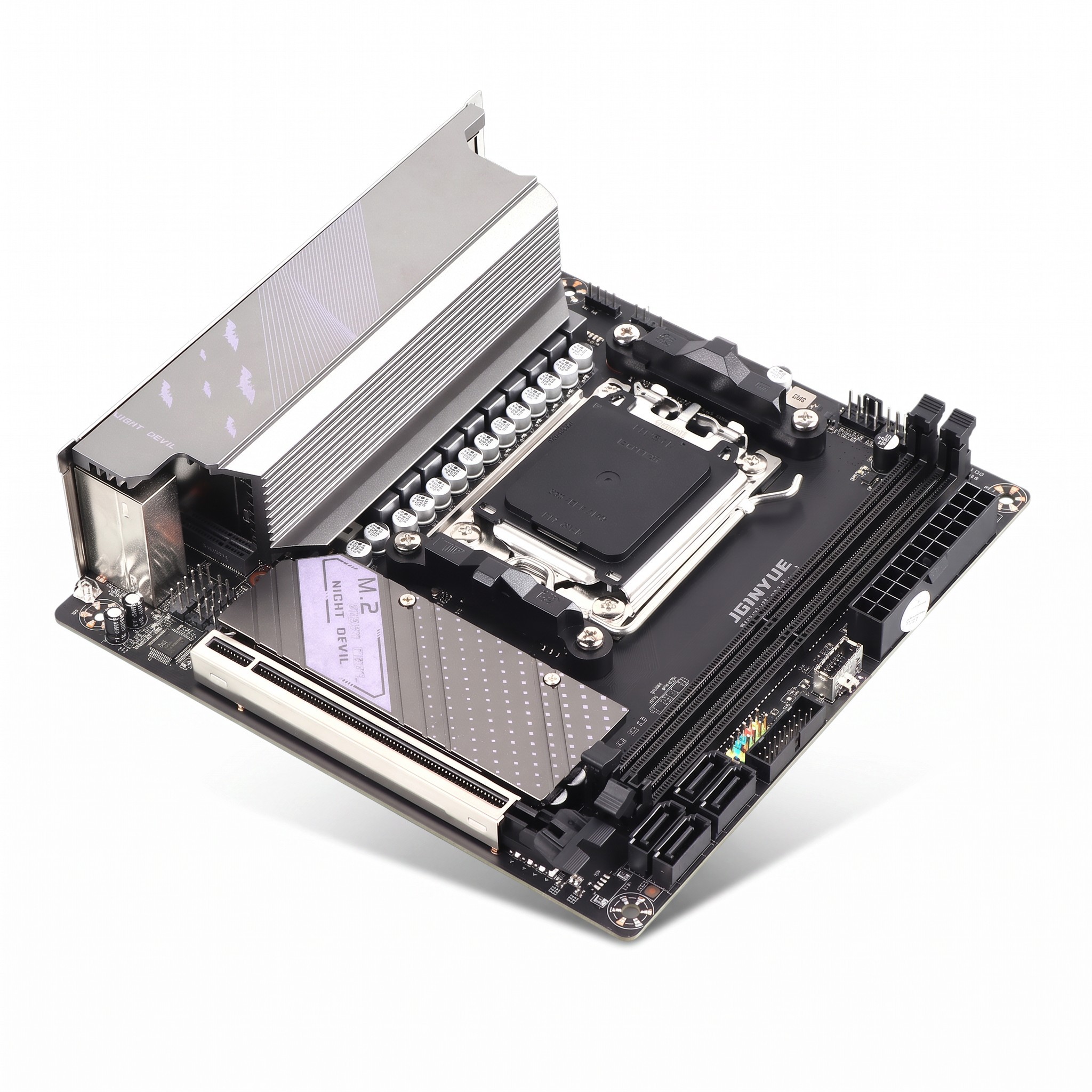

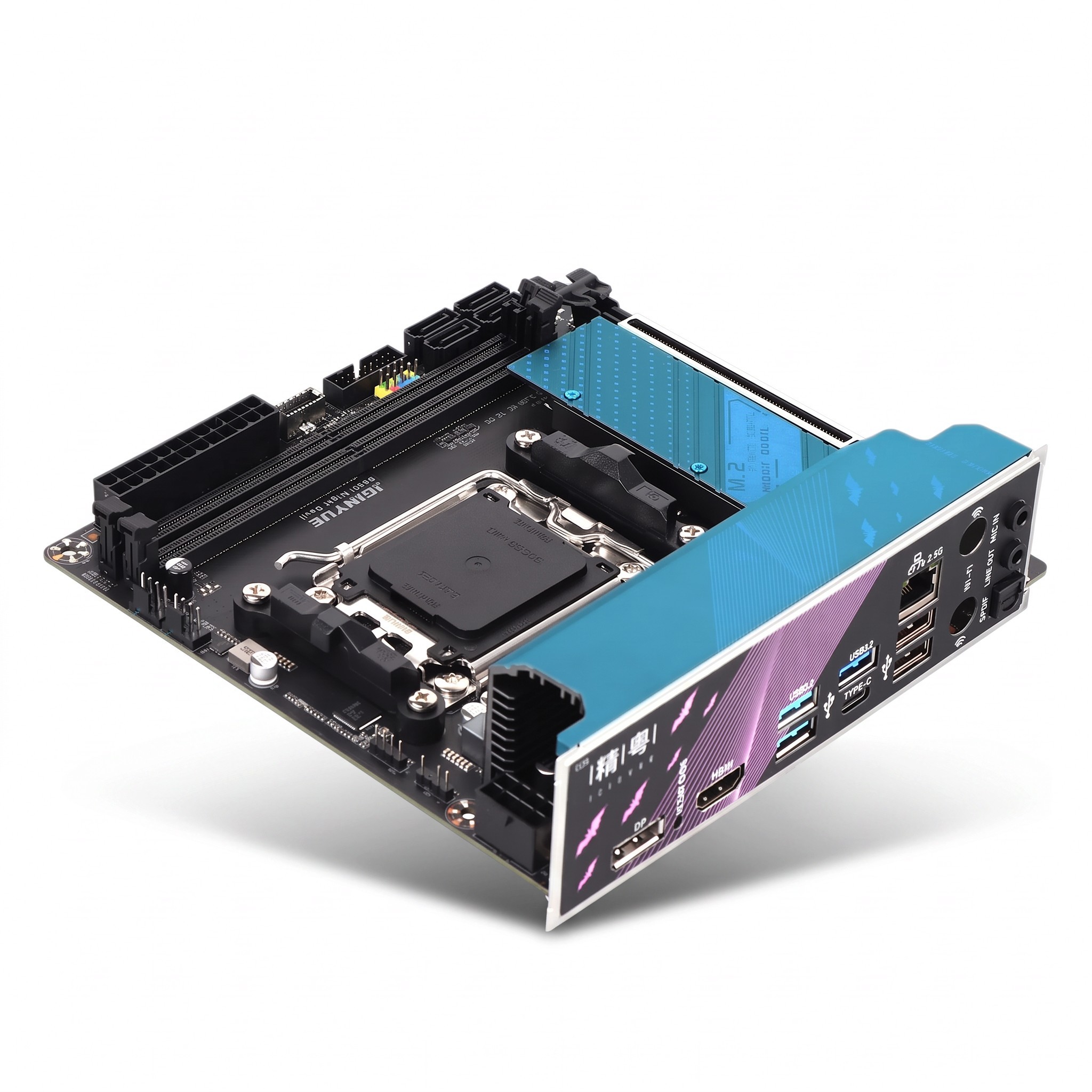

This black ITX motherboard measuring 17 x 17 cm with AMD B650 chipset and AM5 socket is designed for AMD Ryzen 7000 series processors. It is suitable for building a small gaming PC, a powerful living room workstation, or a compact office PC. Two DDR5 memory slots operate in dual-channel mode, supporting frequencies from 4800 to 7200 MHz, AMD EXPO and Intel XMP profiles, and can accommodate up to 96 GB of memory. The board features two M.2 slots for NVMe drives with PCIe 4.0 interface, which is covered by a heatsink, and four SATA 3.0 ports. The graphics card is inserted into the PCIe 4.0 x16 slot, and video from the processor with integrated graphics can be output via HDMI 2.1 or DisplayPort.

  • Memory – 2 DDR5 slots in dual-channel configuration, frequencies from 4800 to 7200 MHz, support for AMD EXPO and Intel XMP profiles, maximum capacity 96 GB.
  • Storage – 2x M.2 NVMe PCIe 4.0 slot and 4 SATA 3.0 ports with speeds of 6 Gb/s for SSDs and hard drives.
  • Power – 11-phase CPU power under the heatsink, 24-pin ATX connector, and 8-pin connector for CPU power.

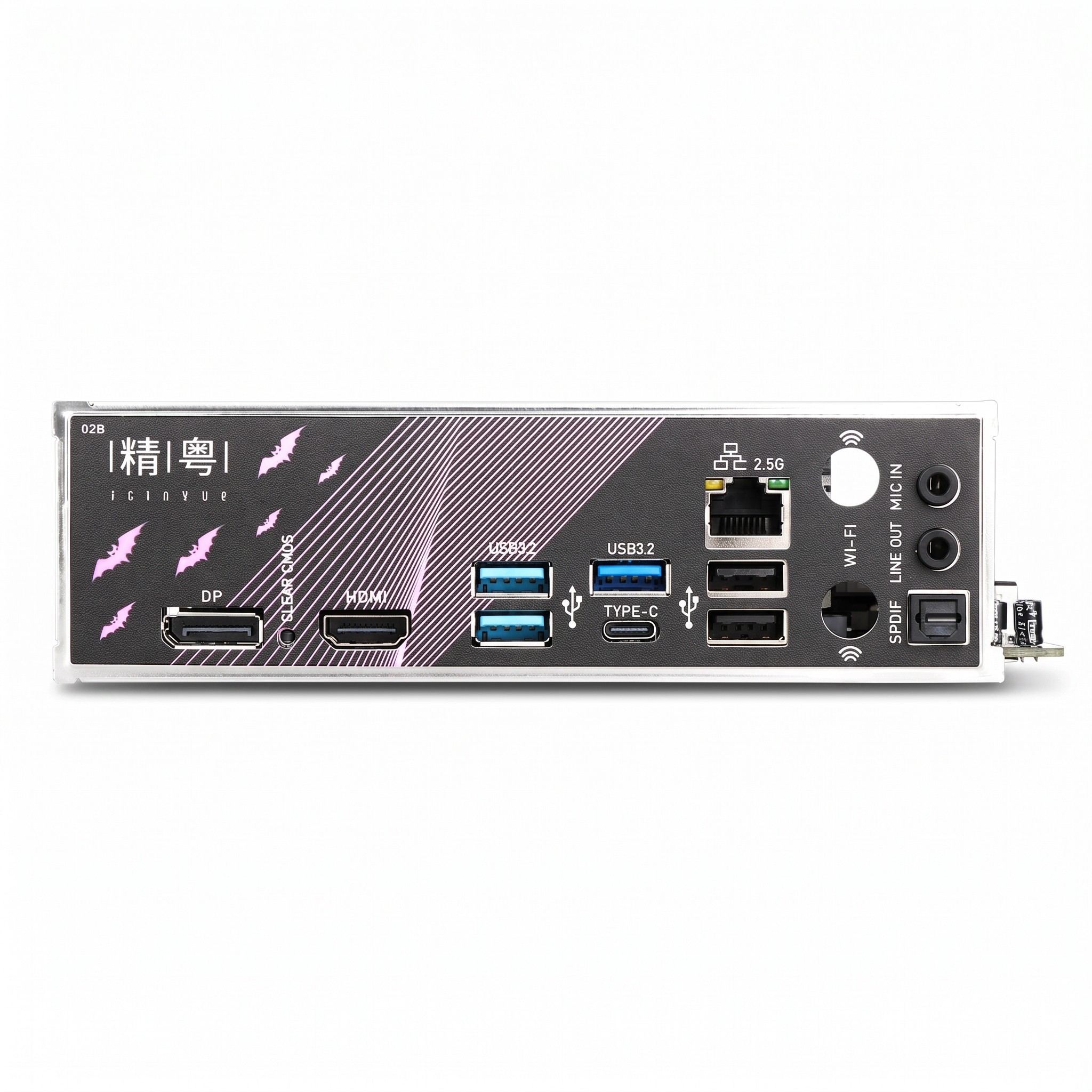

  • Rear Panel – DisplayPort, HDMI 2.1, 3x USB 3.2 Gen2, 1x USB-C, 2x USB 2.0, Intel 2.5 Gb/s network port, Wi-Fi antenna connectors, optical SPDIF output, line output, microphone input, and CMOS clear button.
  • Wireless Connectivity – M.2 slot for Wi-Fi module with PCIe interface, antenna connectors are routed to the rear panel.
  • Internal Connectors – USB 3.2 connector, USB Type E connector with speed of 5 Gb/s for USB-C on the front of the case, 2x USB 2.0, front audio, 2x 5V ARGB connectors for lighting, 2 four-pin connectors for fans, and a connector for case buttons and LEDs.

Package Contents:

  • 1x motherboard

The ITX board with AM5 platform combines small dimensions with DDR5 memory and modern Ryzen processors. Both M.2 positions allow for the installation of a fast system disk and a separate storage for games, meaning SATA drives are not necessary and more space remains in the case. The front panel of the case is equipped with USB 3.2, USB Type E, and USB 2.0 connectors, allowing the use of both USB-C and USB-A ports on modern cases. The HDMI 2.1 and DisplayPort outputs enable operation without a dedicated graphics card for processors with integrated graphics. Addressable case lighting connects to two 5V ARGB connectors.
