17 x 17 cm ITX Motherboard with AM5 Socket and B650 Chipset for AMD Ryzen 7000 to 9000 with DDR5 Wi-Fi 6 and 2x M.2 NVMe PCIe 5.0 White
You already have the maximum available quantity in your cart.

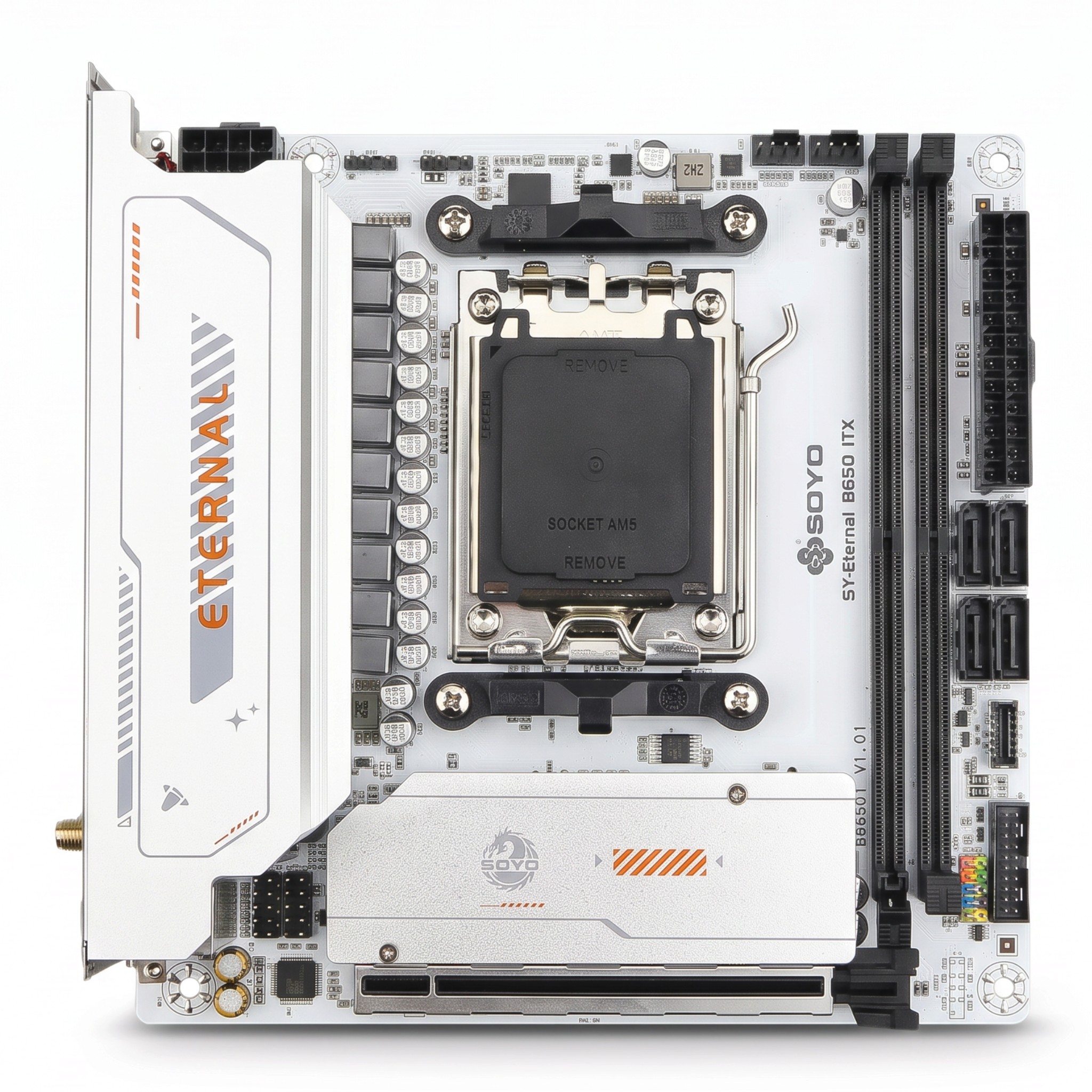

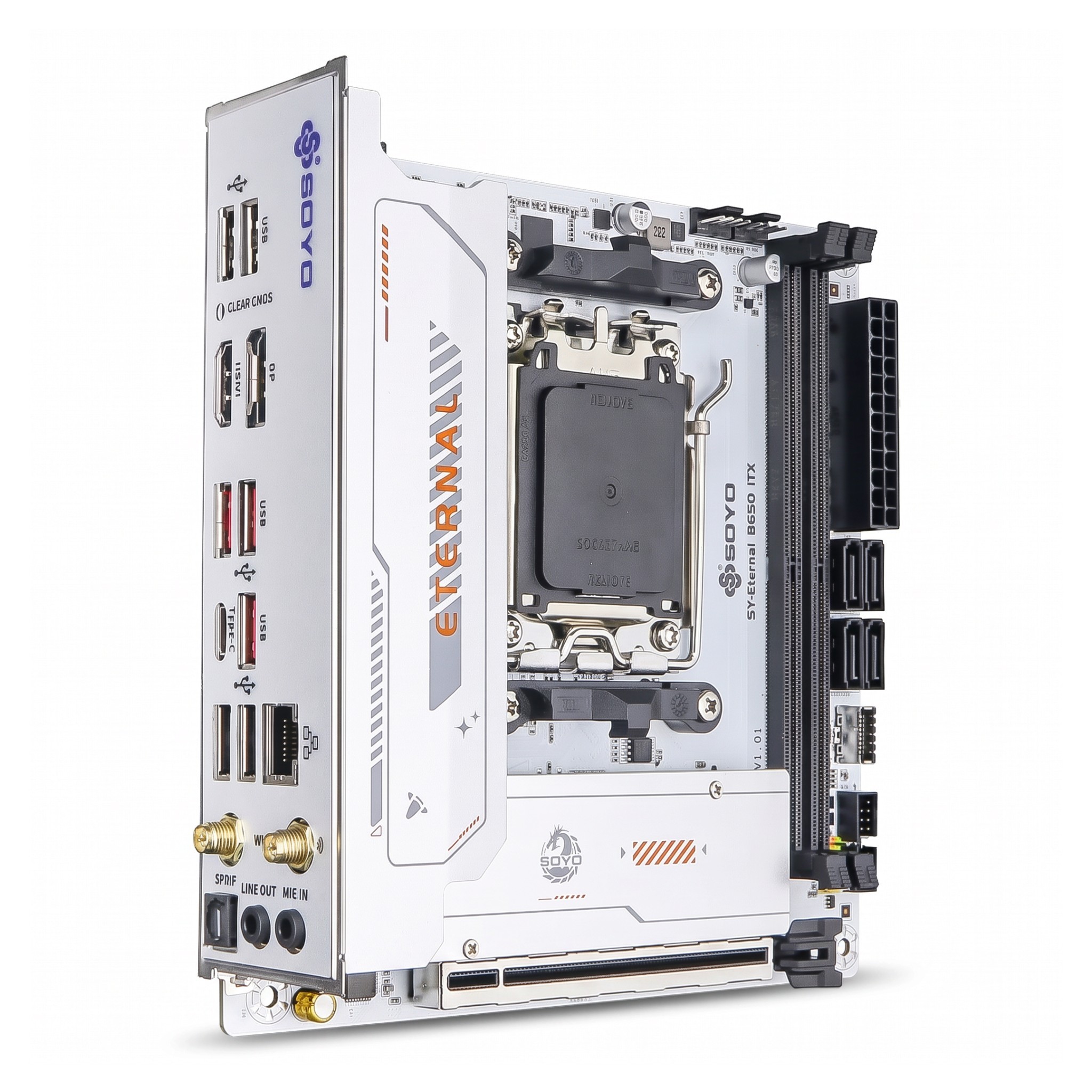

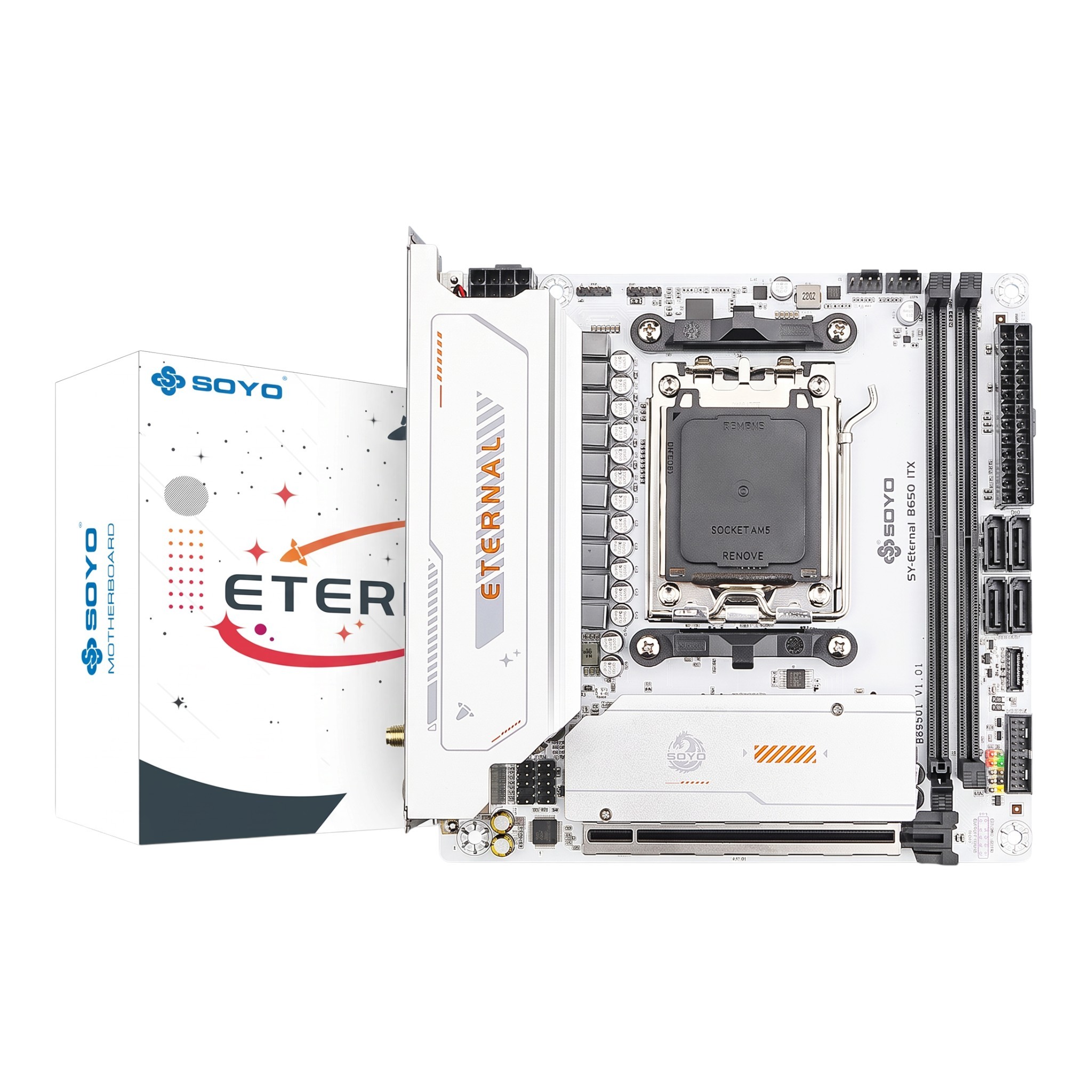

This white ITX motherboard measuring 17 x 17 cm with a B650 chipset and AM5 socket for AMD Ryzen series 7000, 8000, and 9000 is designed for a powerful yet compact gaming or workstation computer. Two DDR5 memory slots operate in dual-channel mode, supporting frequencies from 4800 MHz to 6000 MHz and beyond, accommodating up to 64 GB of memory. For NVMe drives, there are two M.2 slots, the front one with a PCIe 5.0 x4 interface and the rear one on the underside of the board with a PCIe 4.0 x4 interface. The graphics card is inserted into the PCIe 5.0 x16 slot, and video from the processor with integrated graphics can be output via HDMI 2.0 or DisplayPort 1.4. The computer connects to the network via a cable at 2.5 Gb/s or wirelessly through Wi-Fi 6.
- Memory – 2 DDR5 DIMM slots in dual-channel configuration, frequencies of 4800, 5200, 5600, and 6000 MHz or higher with overclocking capability, maximum capacity of 64 GB.

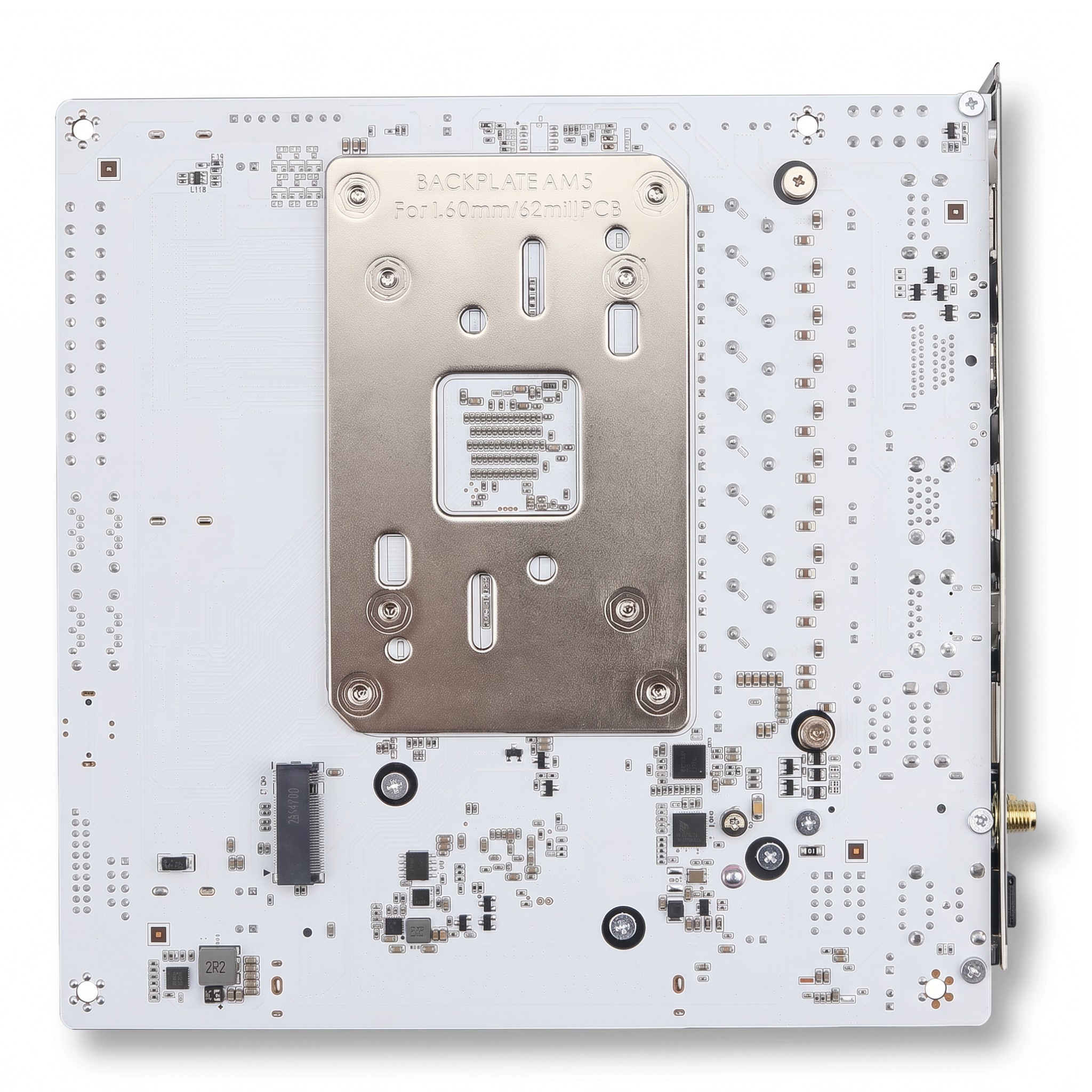

- Storage – 1x M.2 2280 PCIe 5.0 x4 under the heatsink, 1x M.2 2280 PCIe 4.0 x4 on the rear of the board, and 4 SATA 3.0 ports for SSDs and hard drives.
- Power – 10+1 phase power circuits with Dr.MOS 50 A power stages under the heatsink, processors with a TDP of 105 W can be unlocked up to 180 W; 24-pin ATX connector and 8-pin connector for the processor.
- Network and Wireless Connectivity – Realtek 8125 network card with a speed of 2.5 Gb/s and dual-band Wi-Fi 6 (2.4 GHz and 5 GHz) with Bluetooth 5.2, two connectors for antennas on the rear panel.

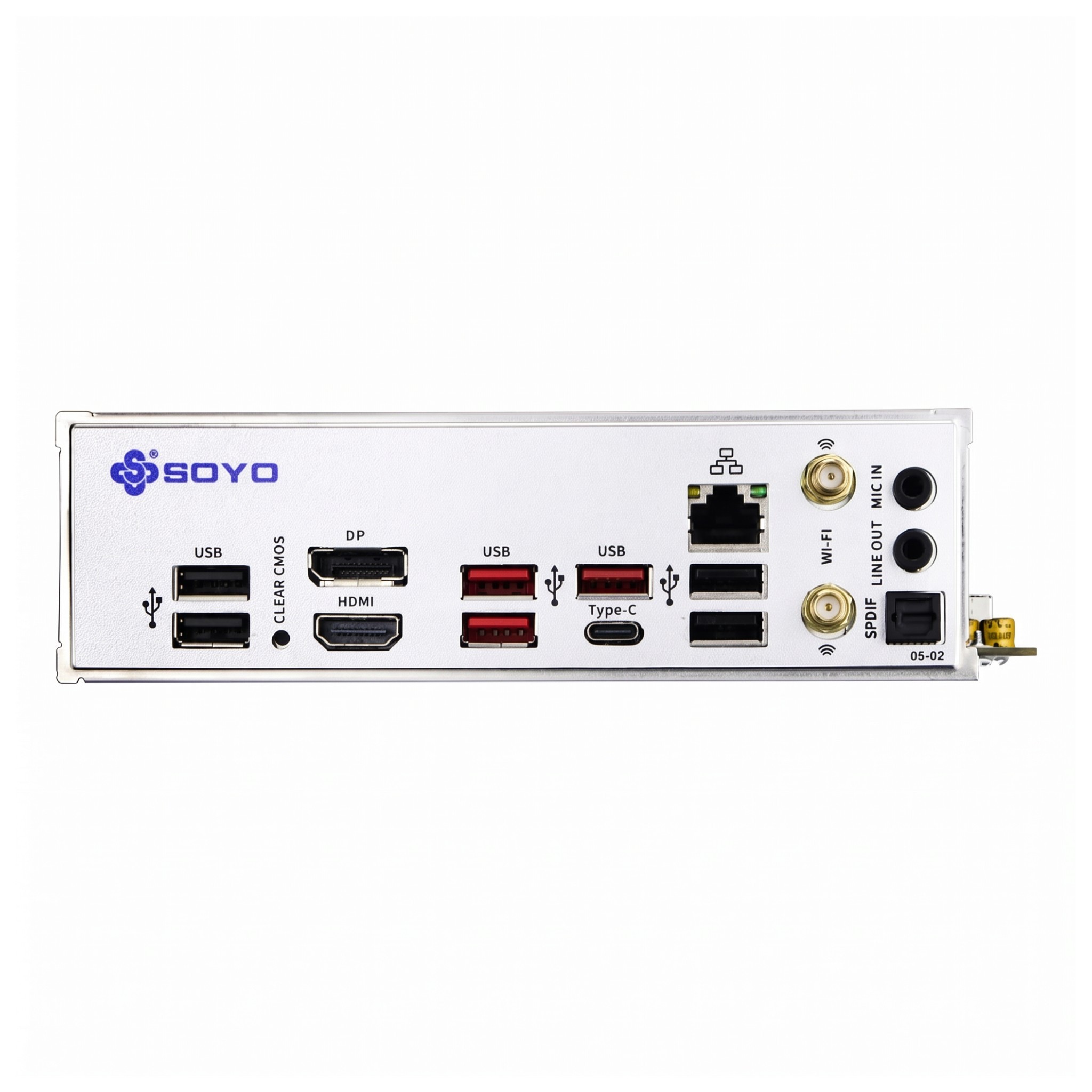

- Rear Panel – 4x USB 2.0, 2x USB 3.0, 1x USB 3.2, 1x USB-C for data transfer speeds of up to 10 Gb/s, HDMI, DisplayPort, RJ45 network port, CMOS clear button, optical SPDIF output, line output, and microphone input.
- Internal Connectors – front audio, 2x USB 2.0, 2x USB 3.2, 2x 5V ARGB connectors for case lighting, CPU fan connector, and system fan connector; audio is provided by a Realtek ALC897 chip.
Package Contents:
- 1x motherboard
This ITX board is suitable for compact cases where it is necessary to combine small dimensions with the modern AM5 platform and DDR5 memory. The AM5 socket offers a wide choice of processors from the 7000 series to the 9000 series, allowing you to start with a cheaper model and later upgrade to a more powerful one. Thanks to two M.2 NVMe slots, both a fast system disk and additional storage for games and data can fit without the need for SATA cables. The combination of a 2.5 Gb/s network port and Wi-Fi 6 allows for a choice between wired and wireless connections. The 10+1 phase power with heatsink is ready for high-performance Ryzen processors under sustained load.
