120 x 120 x 30 mm PC Case Fan with Reversed Blades and ARGB Lighting, Frameless, 12 V up to 1600 rpm with FDB Bearing

120 x 120 x 30 mm PC Case Fan with Reversed Blades and ARGB Lighting, Frameless, 12 V up to 1600 rpm with FDB Bearing

Mirrored blades reverse airflow direction while the illuminated cross arms remain visible. Speeds up to 1600 rpm, powered by 12 V and equipped with FDB bearing. Full description
In stock
Delivery €1.59
30-day return policy
Colour:
€68.95
Safe shopping Safe shopping
Overview
120 x 120 x 30 mm PC Case Fan with Reversed Blades and ARGB Lighting, Frameless, 12 V up to 1600 rpm with FDB Bearing

The PC case fan with reversed blades is designed for setups where the airflow direction needs to be opposite to that of a standard model while keeping its decorative front visible. Instead of a closed square frame, its structure features a frameless design in the shape of a cross, with the blades freely visible between its arms. Each of the four arms is illuminated by a decorative line, and light also penetrates between the blades around the centre. The colours and effects are controlled by ARGB lighting, allowing for a smooth transition of shades across the entire surface of the cross. The fan is powered by DC 12 V, spins up to 1600 rpm, and is suitable for gaming as well as regular home computers.

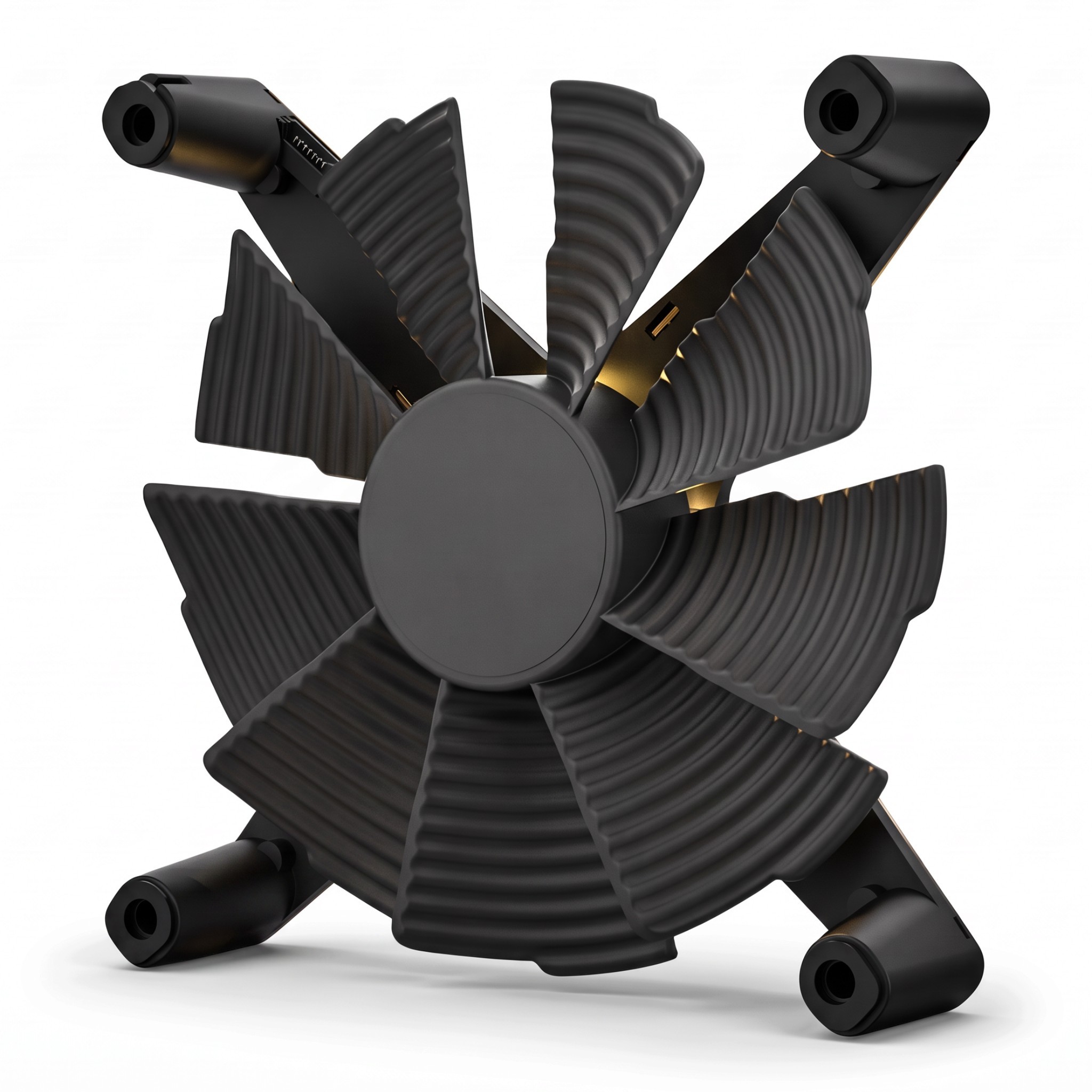

  • Reversed Design – the blade orientation is mirrored compared to the standard version, allowing the fan to be mounted at the bottom or side of the case to intake or exhaust air in the desired direction while the decorative side faces the side panel.
  • Size – the dimensions of 120 x 120 mm fit standard mounting positions in cases and on radiators, with a total thickness of 30 mm.
  • Airflow – at speeds ranging from 600 to 1600 rpm, the fan delivers 28.5 to 53.2 CFM at a static pressure of 1.21 to 2.5 mm H2O, covering both case ventilation and operation on a cooler.
  • Noise – at the lowest speeds, it operates at a noise level of around 19.3 dB(A), reaching approximately 38.6 dB(A) at full power, meaning noise increases proportionally with speed.

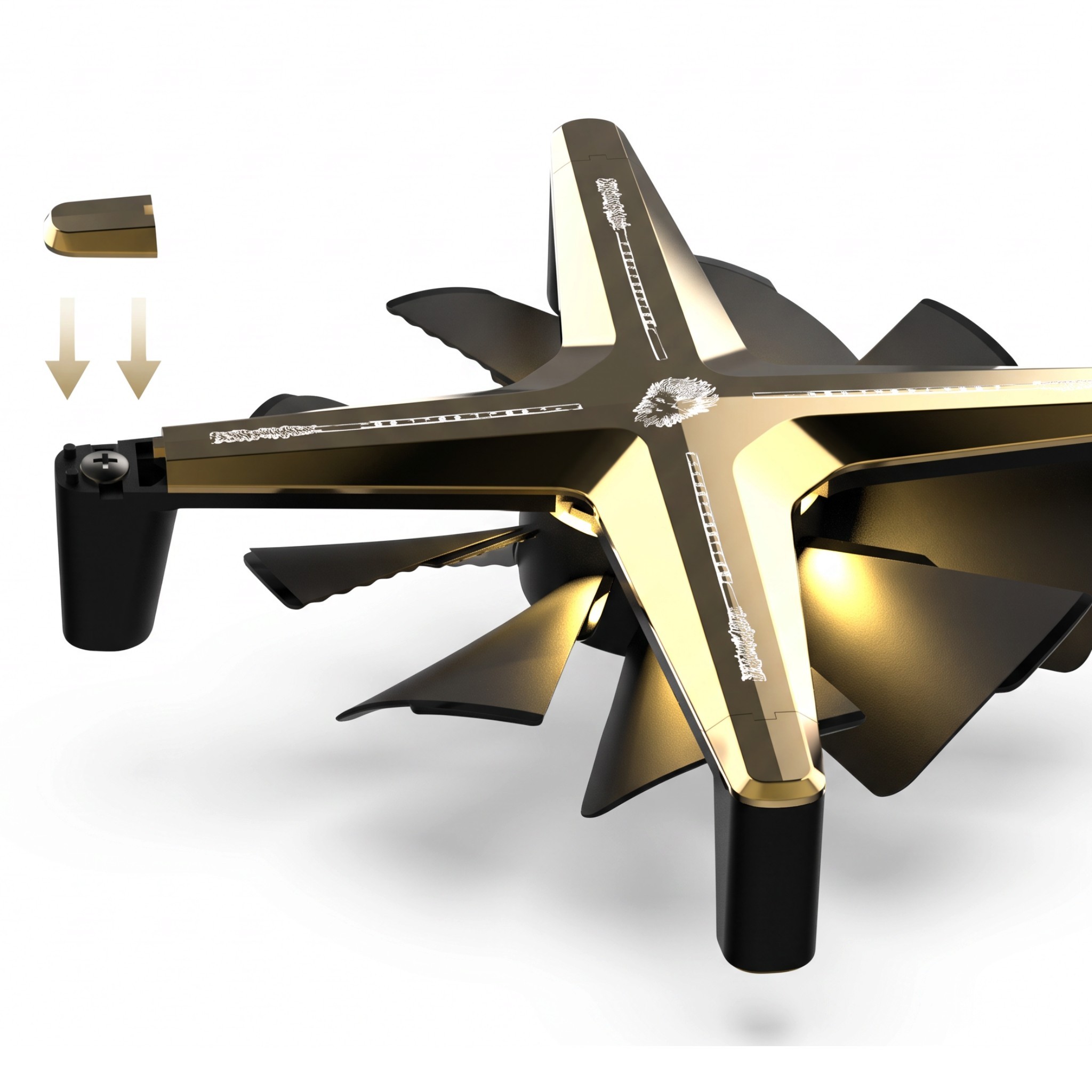

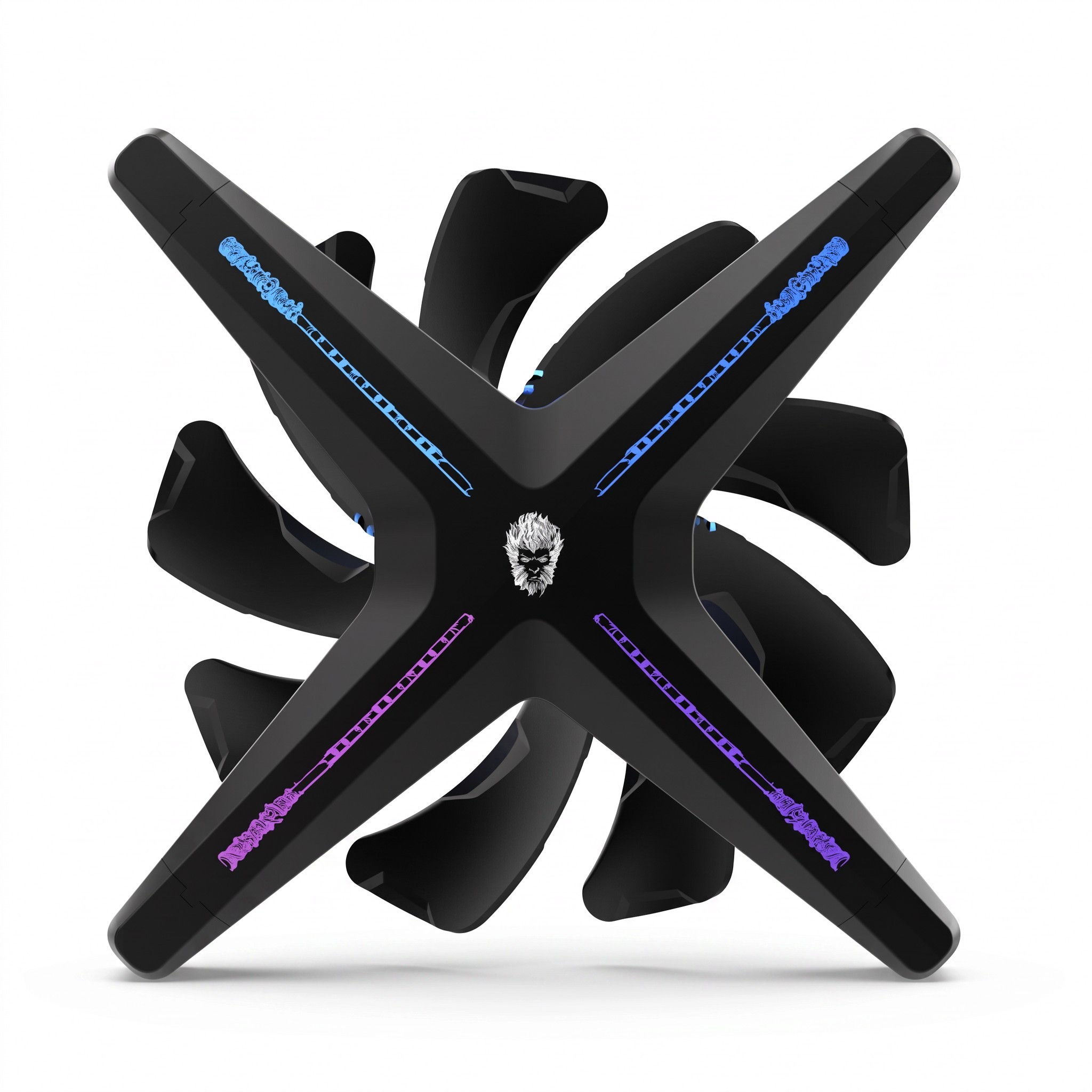

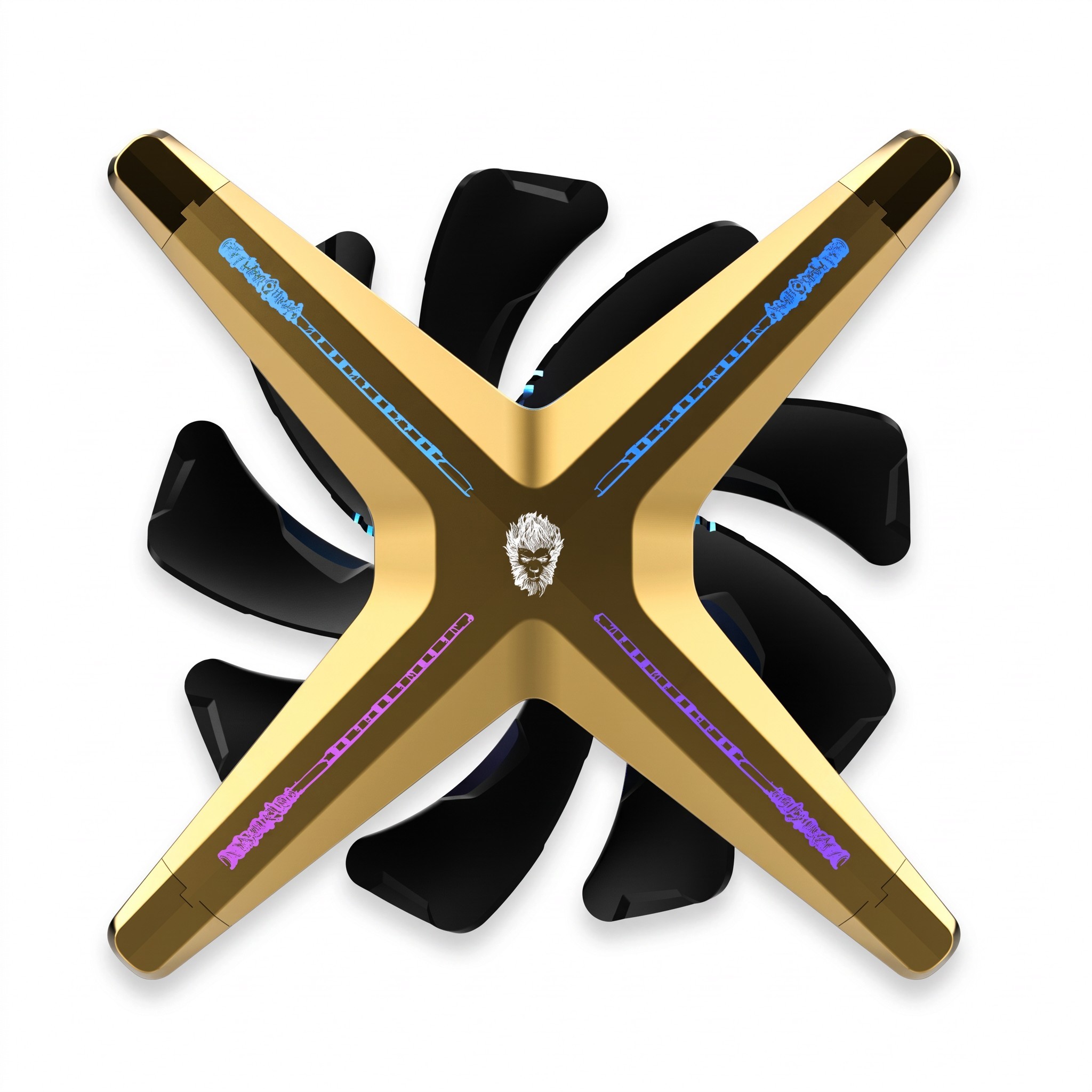

  • Lighting Elements – the illuminated lines run along all four arms of the cross, complemented by light shining between the blades, making the effect visible from both the front and sides.
  • Bearing and Current Draw – the motor is mounted on a FDB bearing and draws 0.35 A at 12 V, which is a typical value considering the size and speed.

Package Contents:

  • 1x 120 mm Reversed PC Case Fan

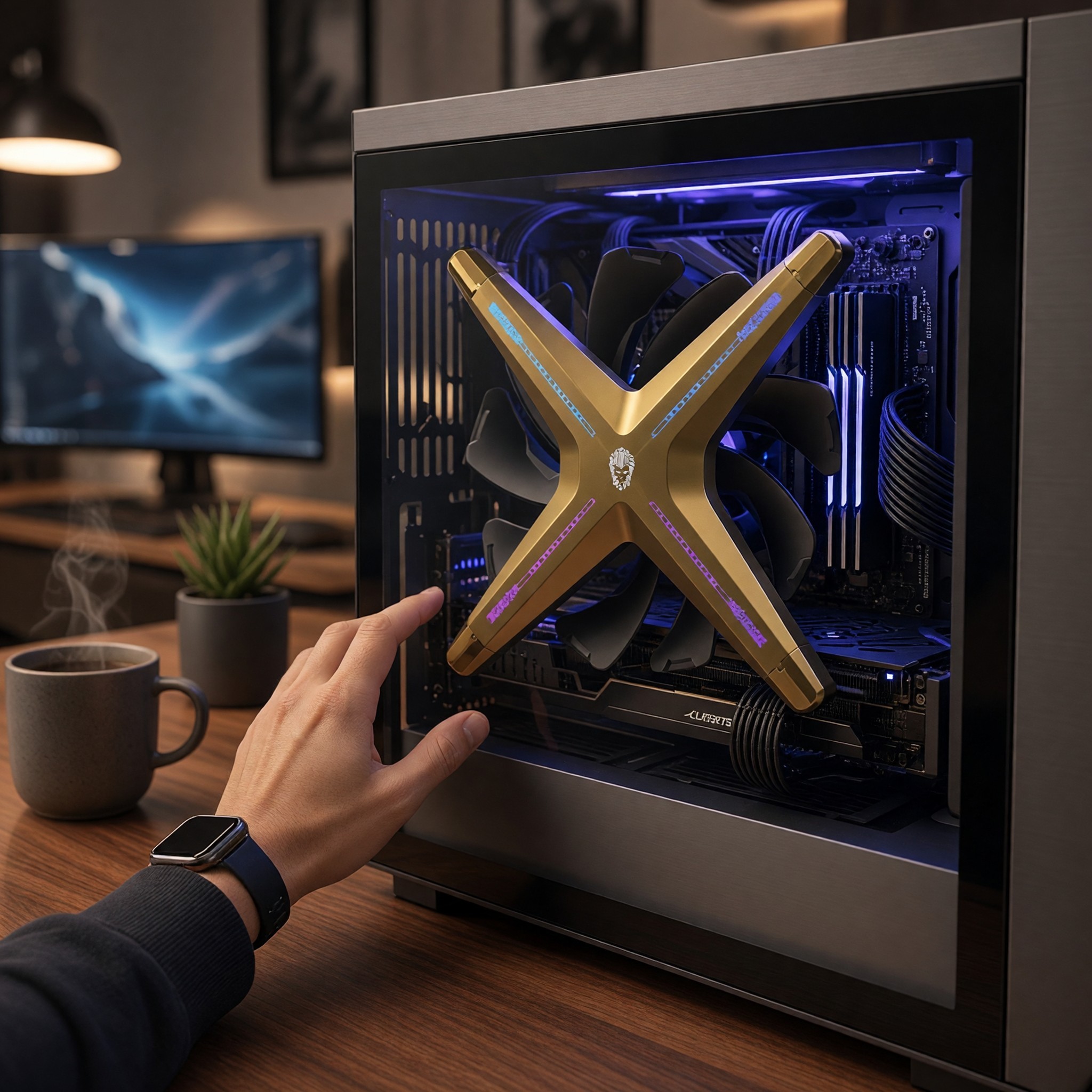

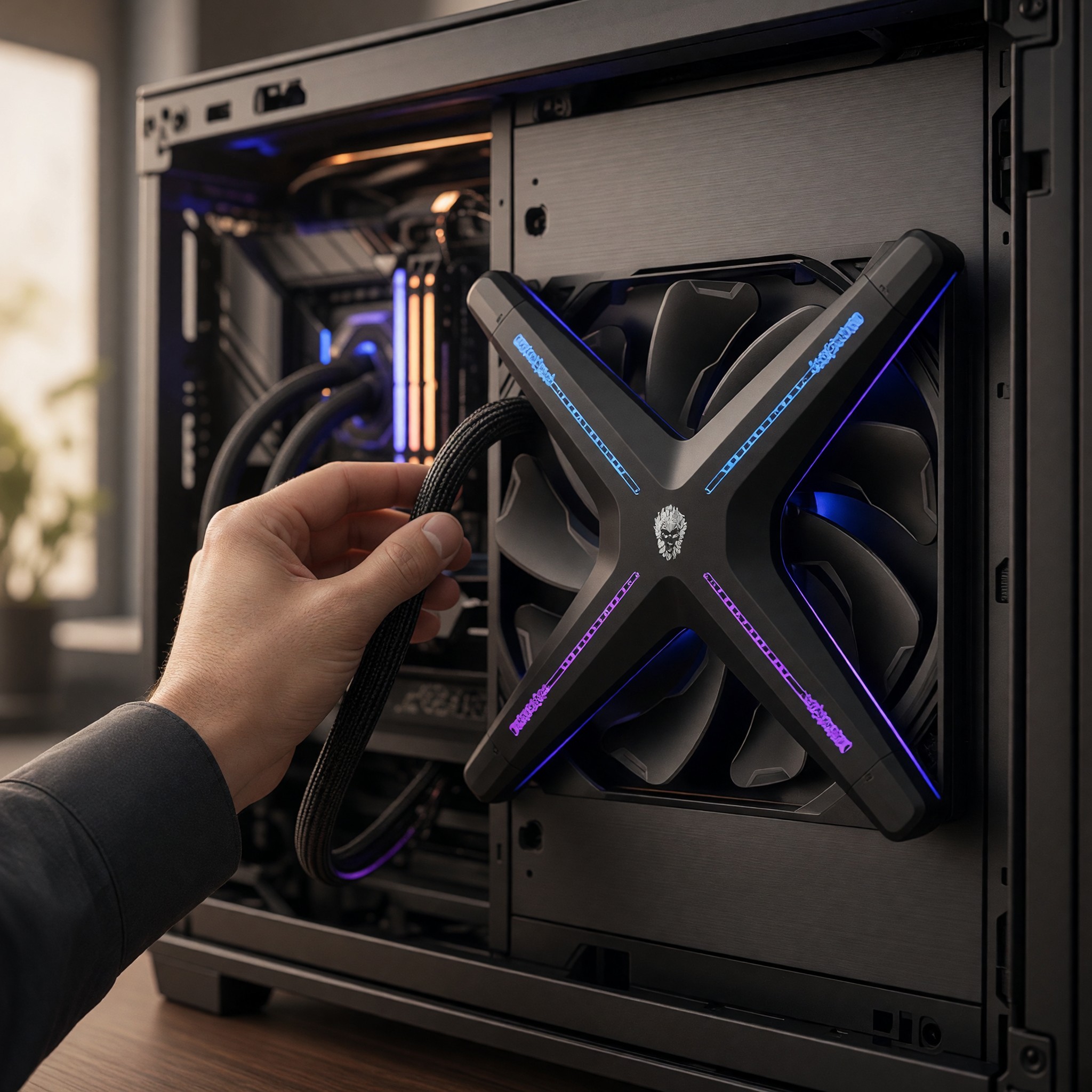

This fan makes sense mainly when building setups that combine intake and exhaust positions, and all fans need to be oriented the same way towards the observer. The open cross-shaped design with illuminated arms stands out behind a glass side panel even in a dark case, where the light lines on the arms reflect significantly. Thanks to the reversed airflow direction, there is no need to sacrifice proper airflow management in the case for aesthetic reasons. Before installation, it is advisable to check that there is enough space for the 30 mm thickness in the chosen position, especially if the fan is to be mounted on a radiator. The fan is sold individually, and as many units can be installed as there are available positions.
