120 x 120 mm Frameless Computer Case Fan with ARGB Lighting, PWM Speed Control and FDB Bearing 12 V 1600 rpm for Gaming PC

120 x 120 mm Frameless Computer Case Fan with ARGB Lighting, PWM Speed Control and FDB Bearing 12 V 1600 rpm for Gaming PC

Frameless X-shaped design reveals the blades and PWM controls speeds up to 1600 rpm. ARGB lighting synchronises, and screws in the corners remain hidden. Full description
In stock
Delivery €1.59
30-day return policy
Colour:
€68.95
Safe shopping Safe shopping
Overview
120 x 120 mm Frameless Computer Case Fan with ARGB Lighting, PWM Speed Control and FDB Bearing 12 V 1600 rpm for Gaming PC

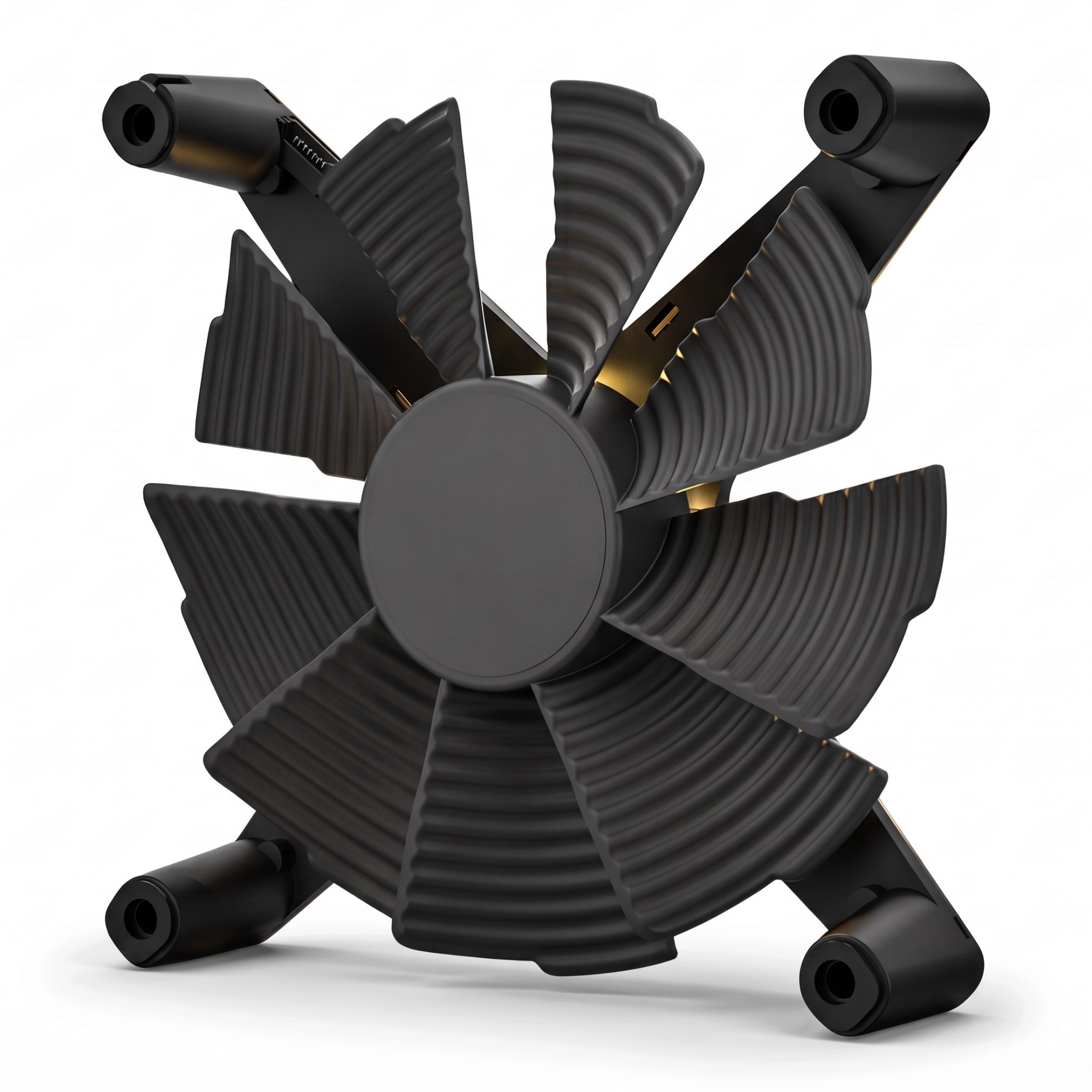

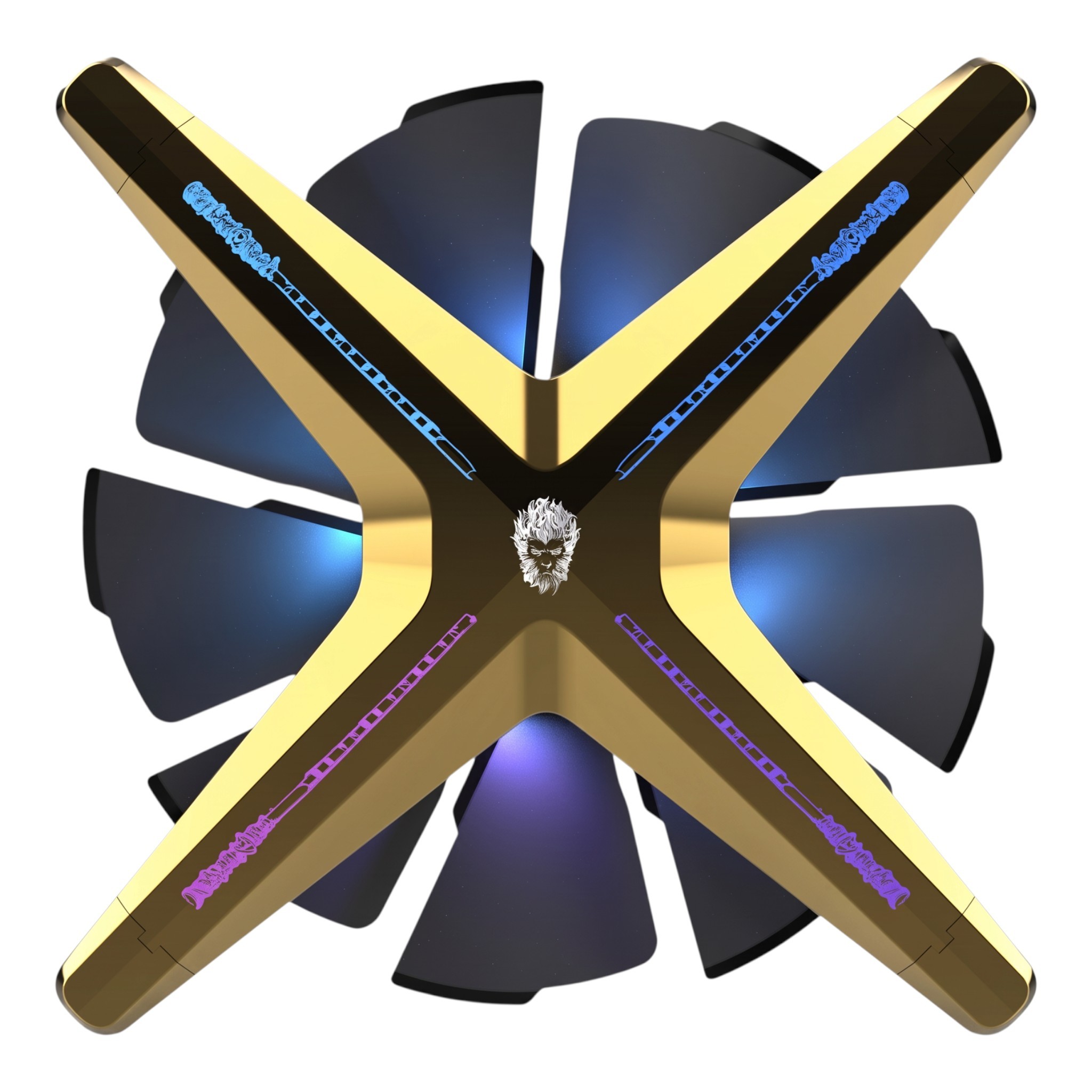

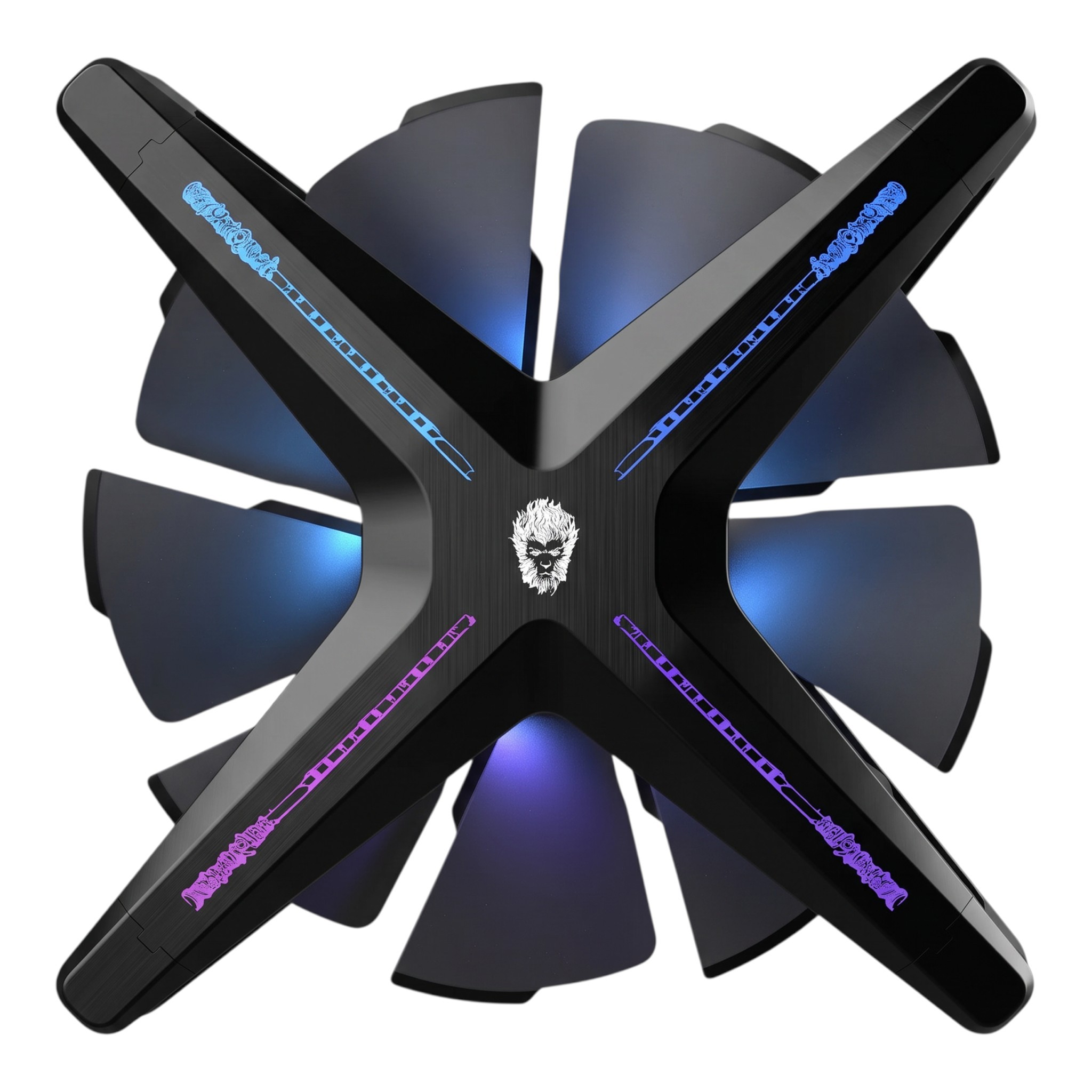

The frameless 120 x 120 mm fan replaces the classic square frame with an X-shaped support structure, allowing the blades to be exposed from the sides and the entire rotor to be clearly visible. Speeds are regulated by PWM control ranging from 600 to 1600 rpm, enabling the performance to adapt to the current temperature in the system based on the motherboard settings. The cross arms carry the light strips, and the lighting illuminates the area around the centre of the rotor. This is an ARGB lighting with synchronisation support, which can be matched with other lighting components in the computer. The power supply voltage is DC 12 V, and the fan is designed for installation in standard 120 mm positions at the front, top, and rear of the case.

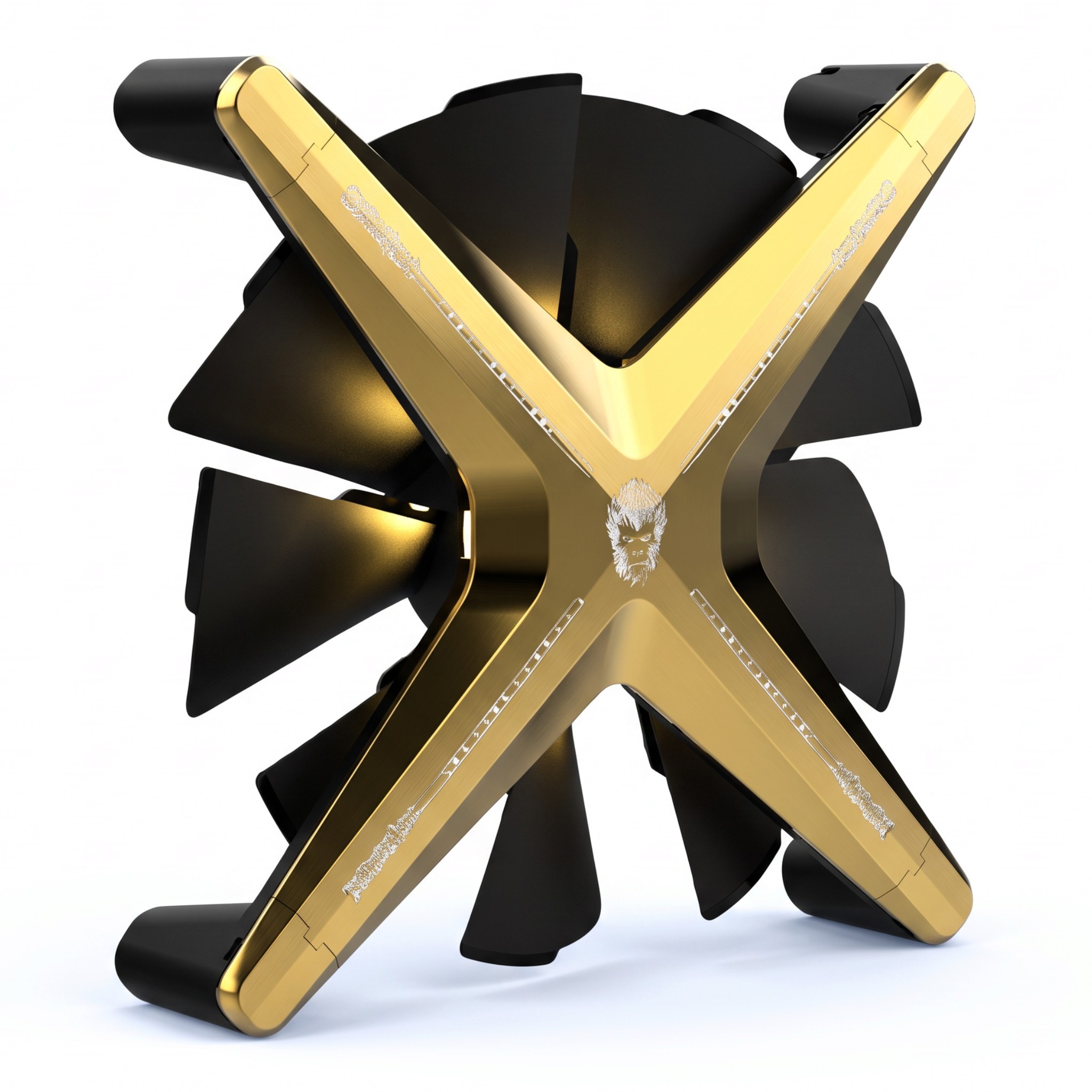

  • Frameless design – instead of a closed frame, the motor is held by four arms connected to corner mounts, allowing air to flow to the blades from the sides, and the open rotor is visible from multiple angles.

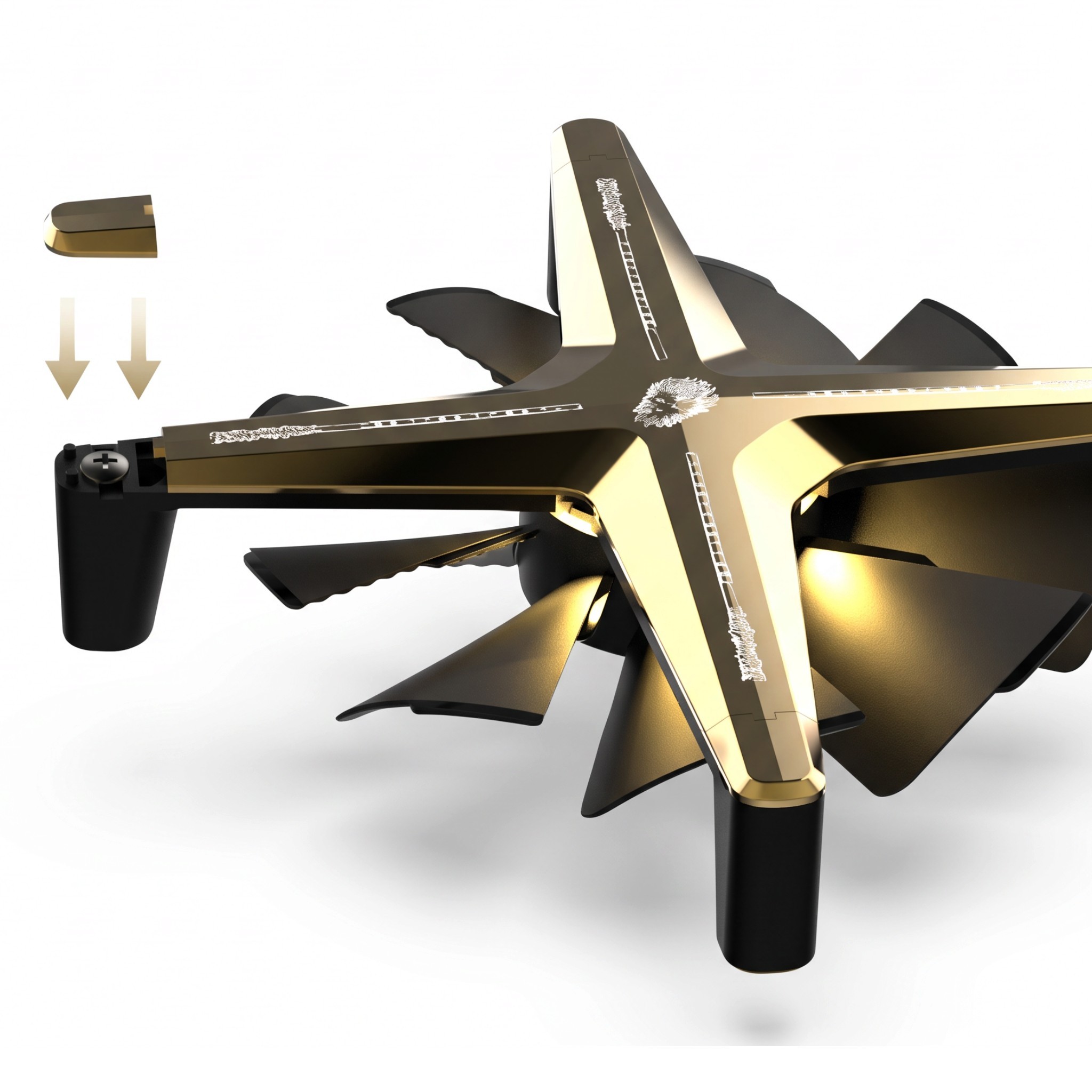

  • Hidden screws – the mounting screw fits into a cover in each corner, which conceals it after installation, making it invisible from the viewing side, thus giving the fan a clean look in any position.
  • Performance – the blades with prominent rippling across the surface ensure an airflow of 28.5 to 53.2 CFM and a static pressure of 1.21 to 2.5 mm H2O, making the fan suitable for case ventilation as well as for CPU coolers or water cooling radiators.
  • Quiet operation – the measured noise level ranges from 19.3 dB(A) at the lowest speeds to 38.6 dB(A) at full performance.
  • Motor bearing – the rotor spins on an FDB bearing with a liquid film, typical for fans designed for long-term operation, with a current draw of 0.35 A.
  • Dimensions – the fan occupies an area of 120 x 120 mm and its thickness is 30 mm, which is slightly more than standard thinner models, and this should be considered for radiators.

Package contents:

  • 1x 120 mm computer case fan

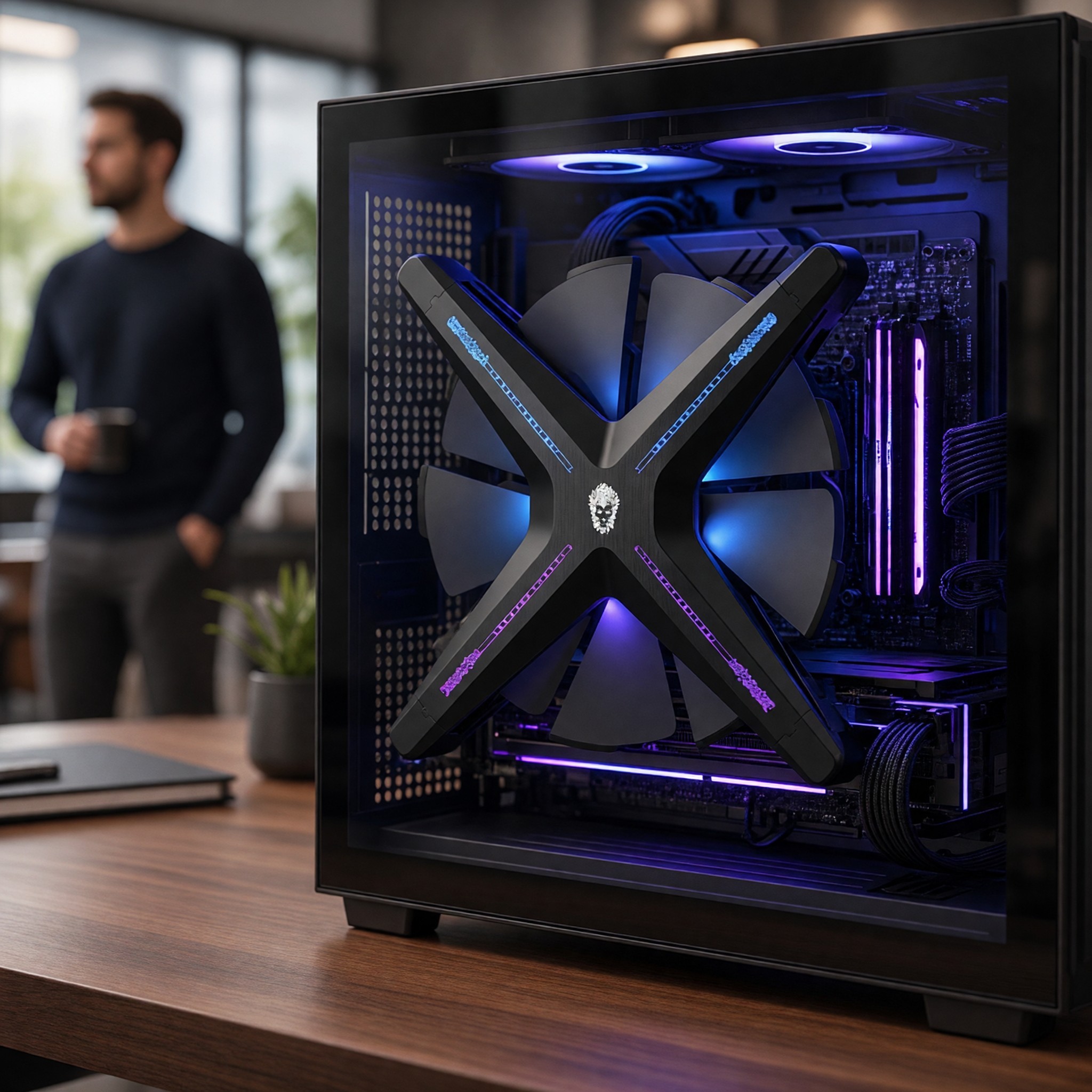

The open frameless design gives the fan an unconventional appearance, which is especially effective behind a glass side panel or at the front of the case. PWM control allows the fan to run at low speeds during regular operation and ramp up to full speed during gaming or intensive calculations. When planning installation, it is advisable to account for the total thickness of 30 mm and the space needed for the corner mounts, especially in compact cases. For a uniform appearance, it is beneficial to install multiple units and set them to the same lighting effect via ARGB synchronisation. The fan is supplied individually as a single unit, allowing the quantity to be adjusted according to the size of the case and the number of available positions.
