120 x 120 mm Computer Case Fan without Frame with ARGB Lighting, PWM Speed Control and 40 mm Blades at 12 V up to 1600 rpm

120 x 120 mm Computer Case Fan without Frame with ARGB Lighting, PWM Speed Control and 40 mm Blades at 12 V up to 1600 rpm

Open X-shaped design, 40 mm wide wavy blades, and PWM control from 600 to 1600 rpm. ARGB light strips can be synchronised with other assembly components. Full description
In stock
Delivery €1.59
30-day return policy
Colour:
€66.33
Safe shopping Safe shopping
Overview
120 x 120 mm Computer Case Fan without Frame with ARGB Lighting, PWM Speed Control and 40 mm Blades at 12 V up to 1600 rpm

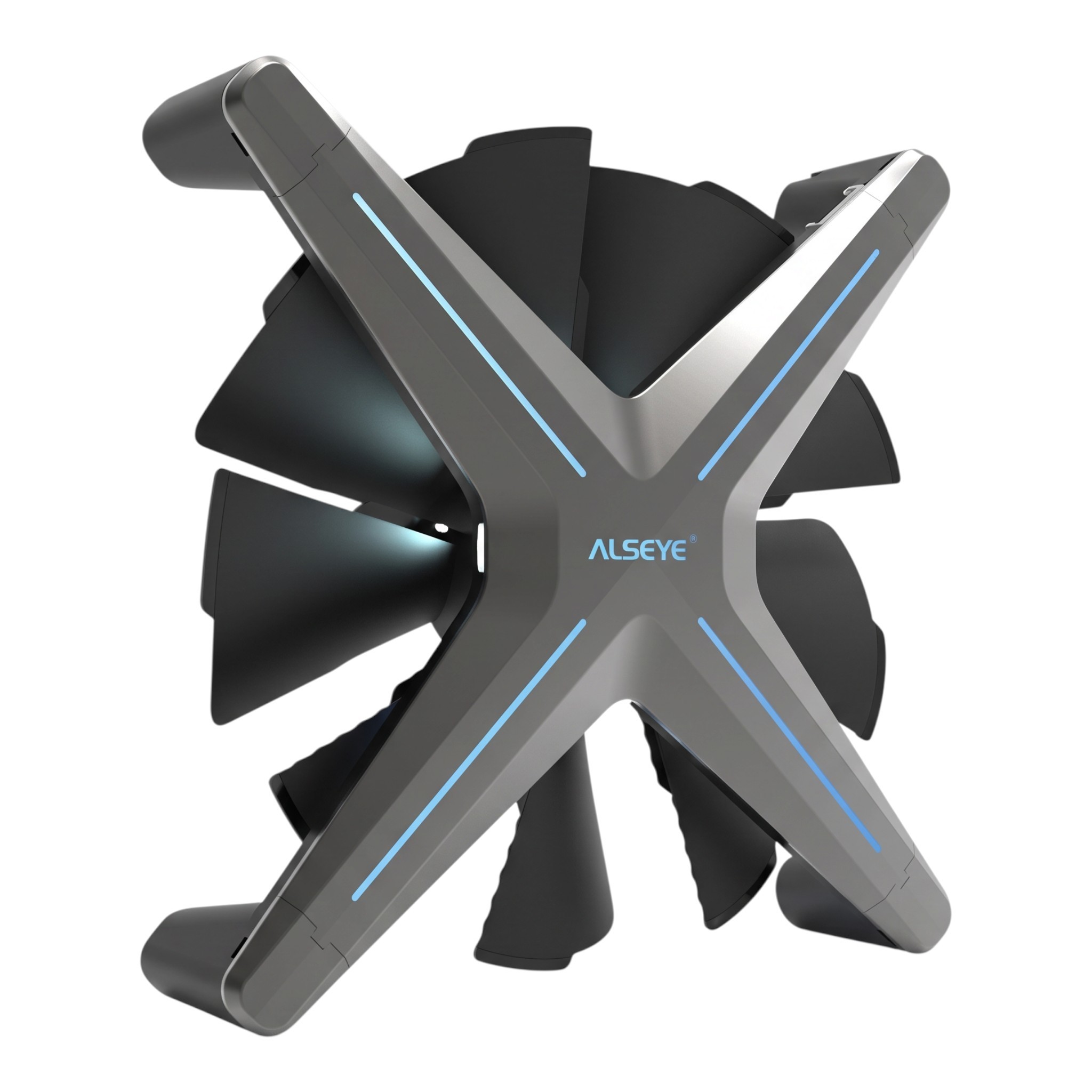

The 120 x 120 mm computer case fan features an open X-shaped supporting structure that replaces the usual solid frame, leaving the blades visible around the entire perimeter. The 40 mm wide blades have concentric waves on their surface, creating an alternating convex and concave profile. The rotation speed is adjustable via PWM control from 600 to 1600 rpm, allowing the fan to run quietly at low speeds and accelerate under load. The arms of the cross feature ARGB light strips, whose colours and effects can be synchronised with other illuminated components of the assembly. The fan is designed for DC 12 V power supply and is suitable for both gaming and office computers.

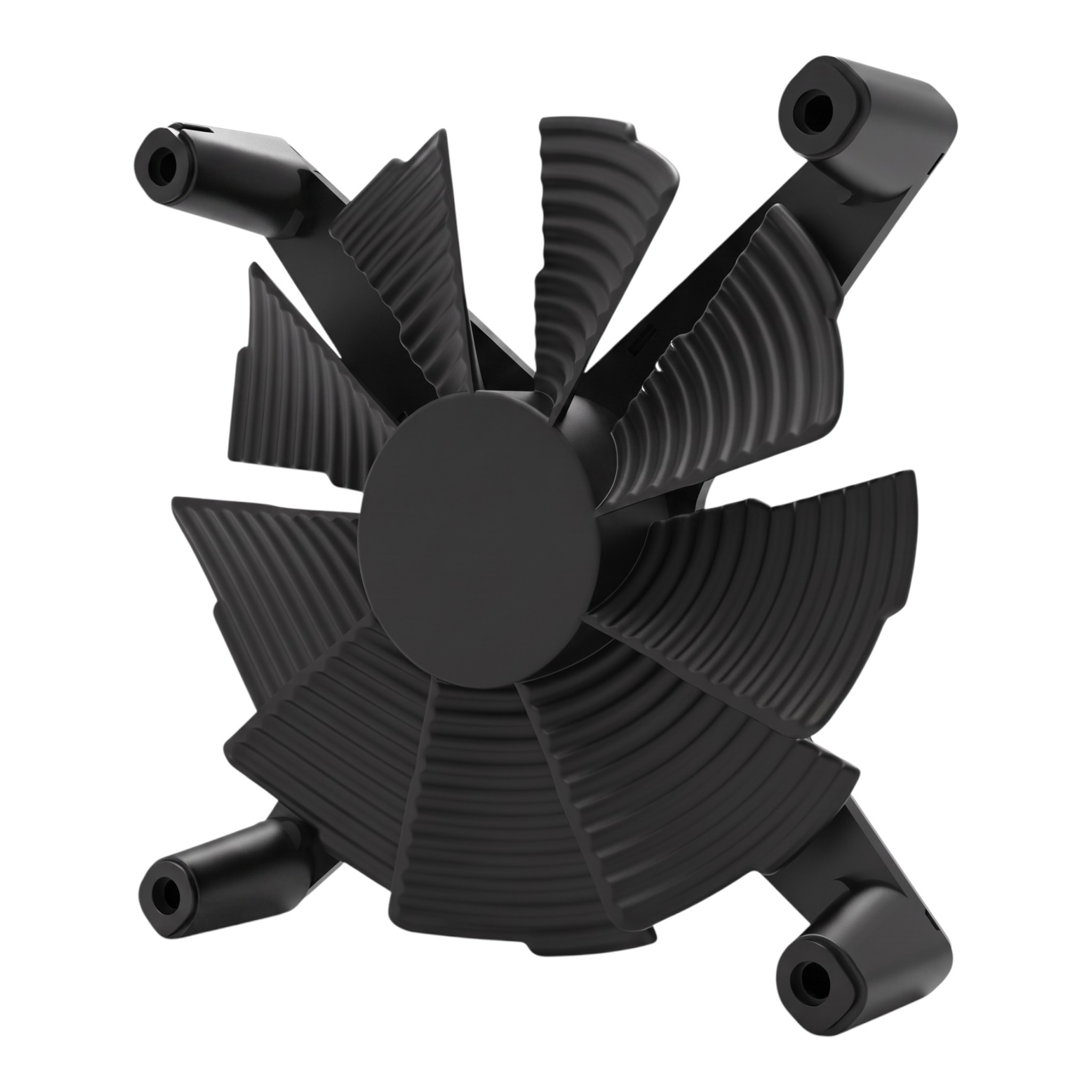

  • Blade Profile – The concentric waves on the blades create alternating convex and concave surfaces, which are well visible due to the open design without a surrounding frame, especially when the lighting behind them is illuminated.
  • Speed Control – PWM control allows the motherboard to smoothly adjust the speed between 600 and 1600 rpm based on temperature or the selected profile in the BIOS or manufacturer’s application.
  • Flow Parameters – The fan moves 28.5 to 53.2 CFM of air and creates a static pressure of 1.21 to 2.5 mm H2O, which is sufficient for cabinet ventilation as well as for a radiator or CPU cooler.
  • Noise and Bearing – The motor operates on a FDB bearing, with noise levels starting at 19.3 dB(A) at the lowest speeds and reaching 38.6 dB(A) at maximum.
  • Recessed Screws – The corner mounts have screws hidden under a cover, so they are not visible from the viewing side after installation, giving the fan a cohesive appearance in any position.
  • Dimensions and Power Supply – The area of 120 x 120 mm corresponds to standard fan positions, the thickness is 30 mm, and the consumption at 12 V is 0.35 A, so the fan does not have any special requirements for power from the source or motherboard.

Package Contents:

  • 1x 120 mm computer fan

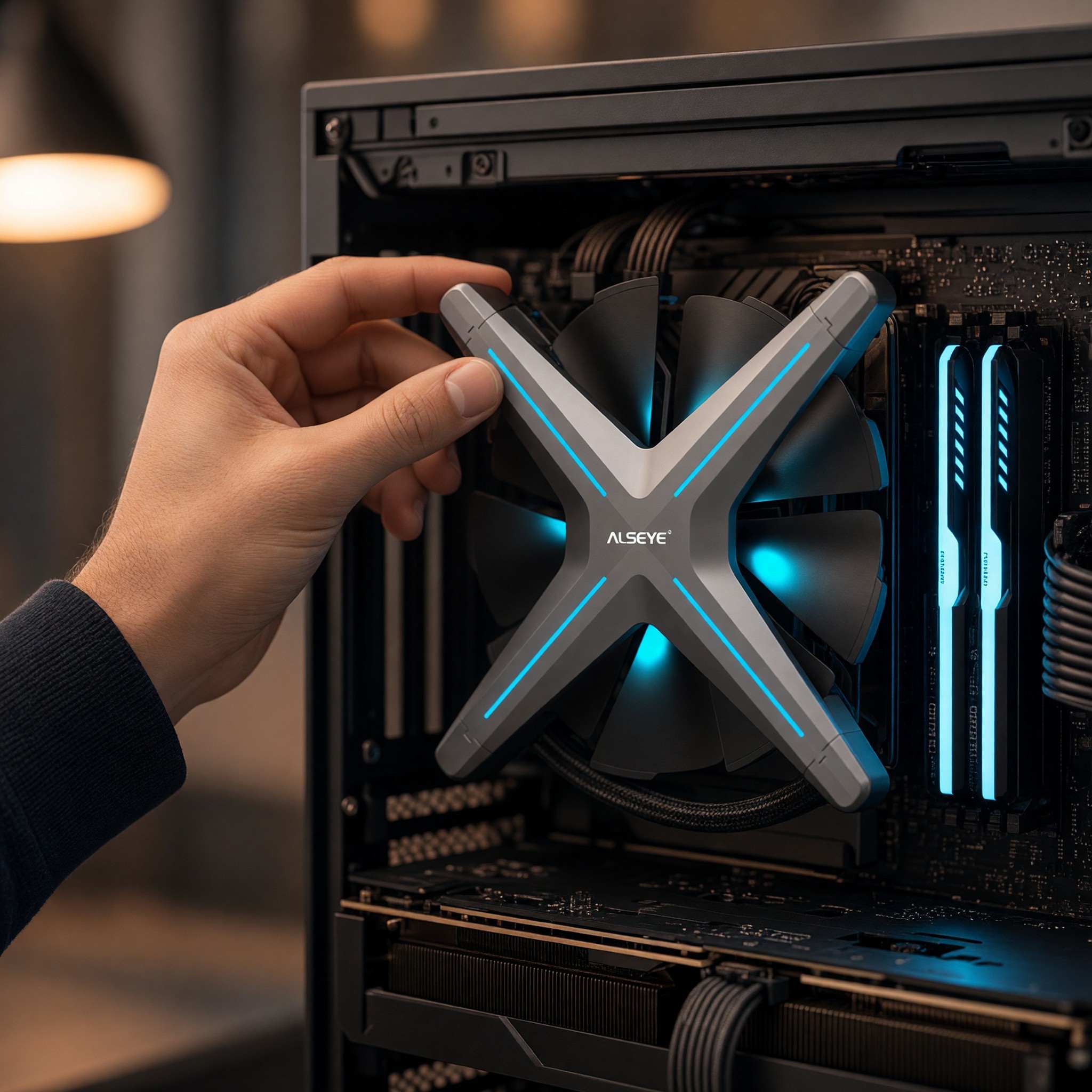

The model without a full frame is best suited for open or glass cases, where both the cross with light strips and the blades themselves are visible. Thanks to PWM speed control, a balance can easily be found between quiet operation when typing or watching videos and higher airflow during gaming. The ARGB lighting with synchronisation support allows the fan to be matched with memory, cooler, and other fans, so the entire assembly can shine with a unified effect. Due to the 30 mm thickness, it is advisable to check the space around the radiator or near the motherboard beforehand. For even airflow within the case, multiple units can be installed and set to the same ARGB synchronisation.
