12 V Water Diaphragm Pump with a Power of 60 W and a Pressure of 120 PSI with a Flow Rate of 5 l per Minute 162 x 96 mm
You already have the maximum available quantity in your cart.

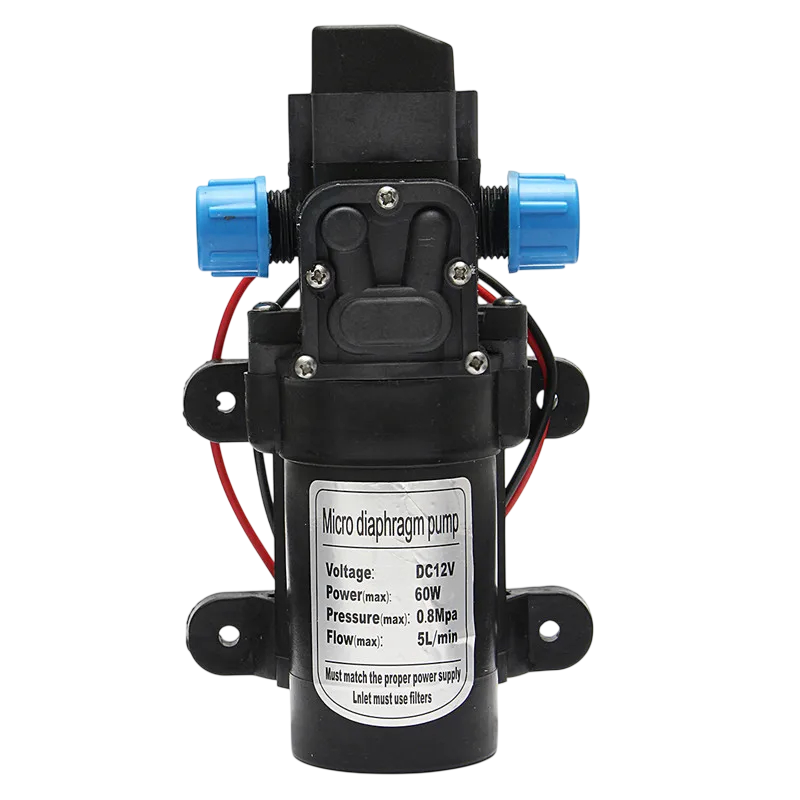

Misting in the garden, watering from a barrel, or a portable shower at the cottage requires a small pump with sufficient pressure and low consumption. This micro diaphragm pump operates at 12 V with a maximum power of 60 W and generates a pressure of 0.8 MPa, which is 120 PSI. The maximum flow rate is 5 litres per minute, which equates to approximately 300 litres of water per hour. The body measures 162 x 96 mm, is black, and both ports are secured with blue threaded nuts. The suction port has an 11 mm diameter, the discharge port 17 mm, and there are red and black power wires leading from the motor.
Key Features:
- Pressure 0.8 MPa — equivalent to 120 PSI, sufficient for misting nozzles and a shower head
- Maximum Power 60 W — the lowest consumption among twelve-volt models in this range
- Flow Rate 5 L per Minute — approximately 300 litres of water per hour of continuous operation
- Power Supply Range 9 to 14.4 V — the pump can tolerate voltage drops during operation
- Suction Port 11 mm — inlet for a thinner supply hose from the tank or barrel
- Discharge Port 17 mm — outlet for thicker hose to nozzles or for the shower
- Blue Threaded Nuts — both ports are tightened with a blue nut over the external thread

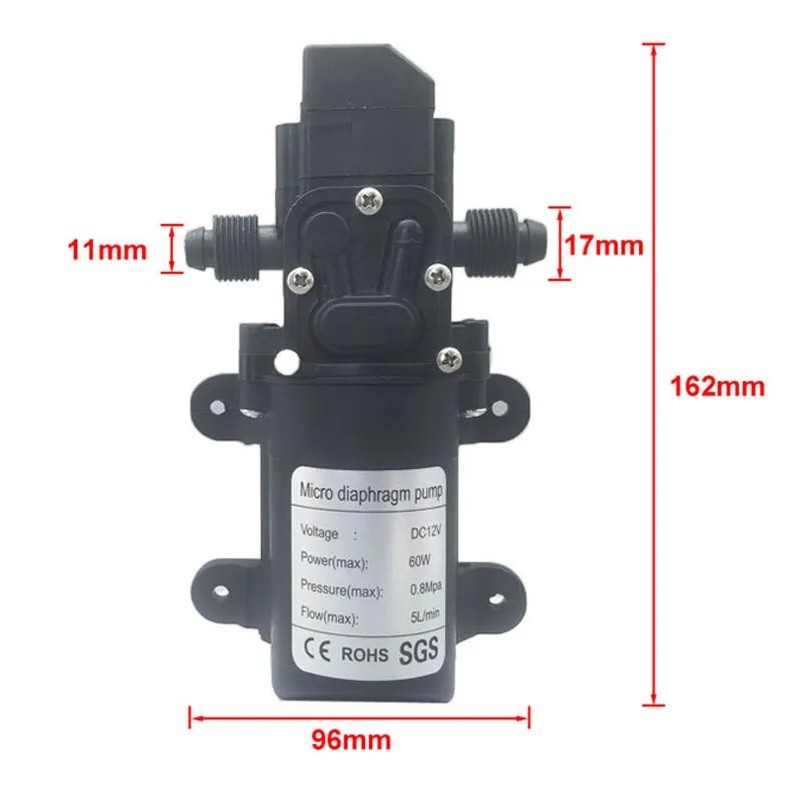

- Dimensions 162 x 96 mm — the pump fits in the palm of your hand and into a smaller technical box
- Four Mounting Feet — plastic feet with holes around the circumference of the motor's cylindrical body
- Suction Filter — the manufacturer states that a filter must be used at the inlet

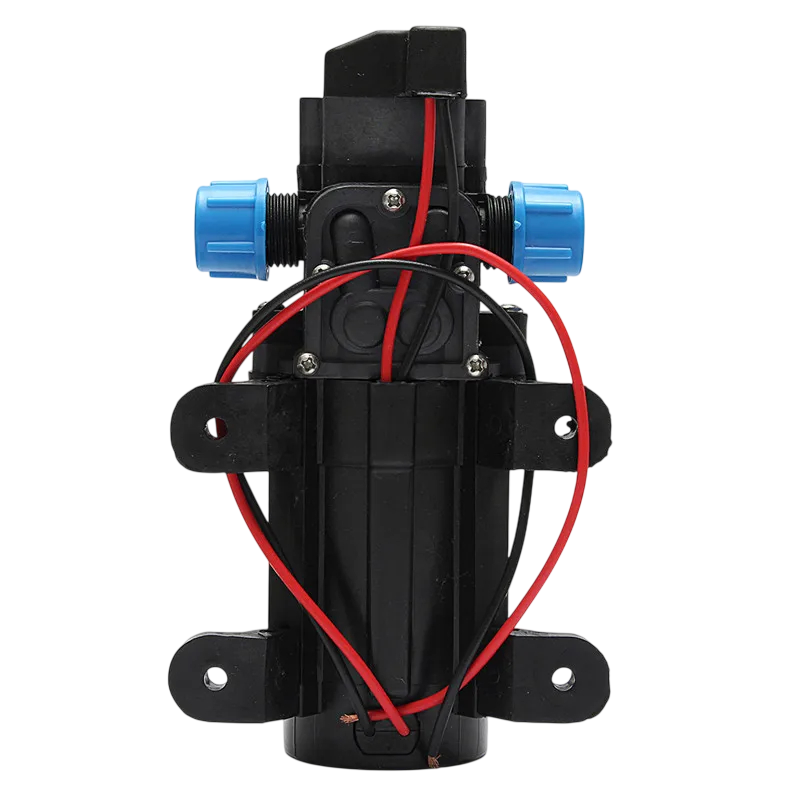

- Power Wires — red and black wires extending from the top of the motor body
- Suitable Power Source — the label warns of the need for an appropriate power source
- Off-Grid Operation — the pump can be powered from a battery or a mains adapter
- Use at a Tank — the pump draws from a barrel, a drum, or an aquarium tank
- Nozzle Connection — a series of misting nozzles can be connected in succession to the discharge
- Black and Blue Design — the black motor casing is complemented by blue nuts on both ports
Package Contents:
- 1x diaphragm pump
The pump is the smallest of the twelve-volt models in this range, yet maintains a pressure of 0.8 MPa comparable to larger units. Dimensions 162 x 96 mm allow the pump to be stored in a cabinet, in a sprayer, or in a garden box. A filter at the inlet is a condition stated directly on the pump's label, and therefore it is advisable to comply with it. The suction port of 11 mm and discharge port of 17 mm cover the common diameters of garden and technical hoses. After connecting the hoses, inlet filter, and 12 V power source, the assembly is ready for operation.
