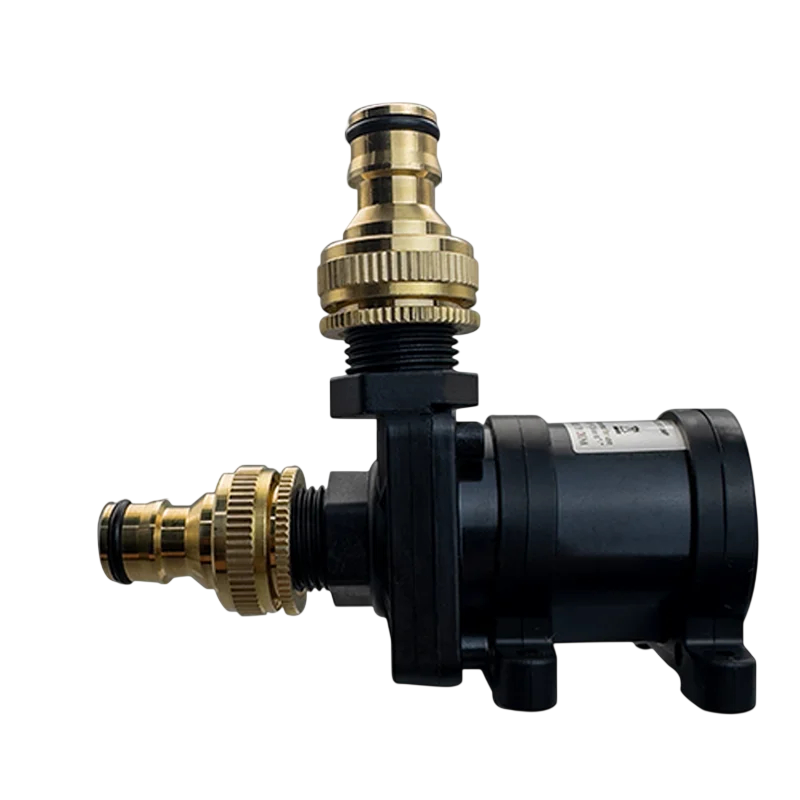

12 V Circulation Pump with DC Connector Flow 700 l/h Head 5 m Power 14 W Protection IP68 Socket 16 mm
You already have the maximum available quantity in your cart.
This circulation pump operates on a centrifugal principle and is powered by a 12 V brushless motor. The power supply connects via a DC connector, so connecting to a source does not require joining individual wires. The flow rate reaches up to 700 l/h at a head of up to 5 m, with the transported amount decreasing as the height of the water column increases. The current consumption of 1.4 A and power of 14 W keep the consumption low even when the pump runs for several hours a day. The black body with IP68 protection withstands humid environments and splashing water, with 16 mm diameter ports with fittings and sealing rings at both the inlet and outlet. The temperature range from -20 °C to 100 °C allows for use with both cold and heated liquids, and the noise level does not exceed 35 dB, ensuring that operation does not disturb even in inhabited areas of the house.
- Centrifugal Design — the impeller transports liquid smoothly, achieving maximum flow of 700 l/h at low head, with the value decreasing as the height increases.
- 12 V Power Supply — DC connector, consumption of 1.4 A and power of 14 W, the source must be direct current, i.e., a battery, adapter, or transformer marked DC.
- Brushless Motor — lasts over 30,000 hours of operation and the shaft made of stainless steel 316 withstands constant contact with liquid.

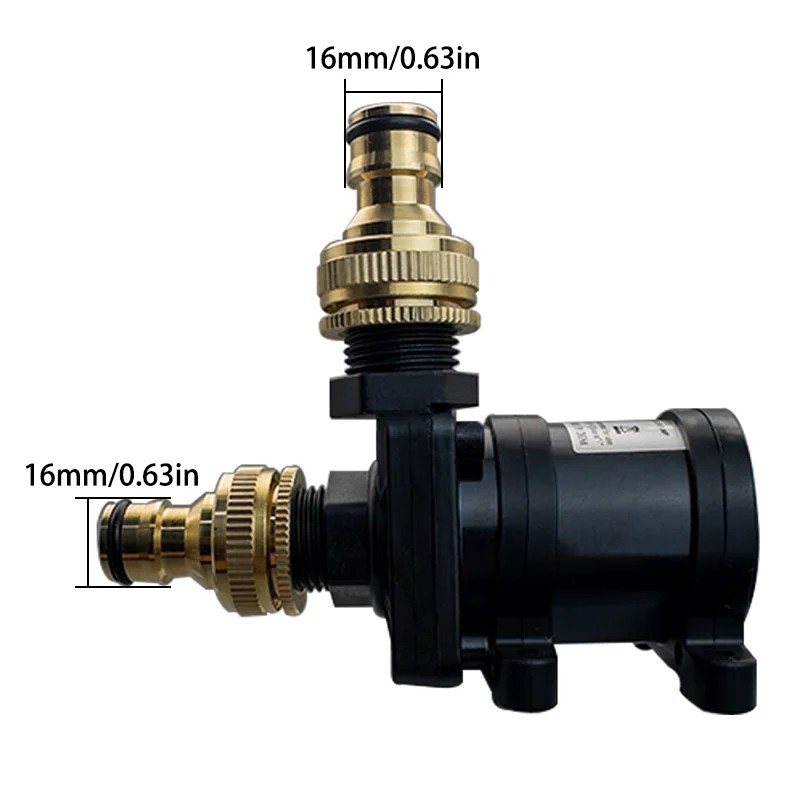

- 16 mm Connection — brass inlet and outlet ports with fittings for quick attachment and removal of hoses.
- Operating Range — liquid and environment from -20 °C to 100 °C, humidity up to 90 % RH and noise not exceeding 35 dB.
- Suitable Liquids — water, alcohol, or diesel without impurities and magnetically conductive particles larger than 0.35 mm; acidic and alkaline solutions damage internal components, hence the pump is not used for them.
Package Contents:
- 1x 12 V circulation pump with DC connector
The pump is not submersible and does not have a self-priming function, therefore it should be placed outside the liquid and the suction side is flooded by gravity. Running dry damages the impeller, so it must be verified that the chamber is filled before each activation. For murky water, it is recommended to use a filter in advance and to clean the chamber more frequently, as particles larger than 0.35 mm hinder the rotor from turning. The noise level up to 35 dB along with low consumption makes sense for long cycles in closed circuits, whether for cooling, filtration, small water features, or transferring between tanks. The voltage must be maintained within the specified range of 12 V and the source must always be direct current, as alternating current without rectification is unsuitable for this motor. The 16 mm ports fit standard hoses, making integration into existing systems a matter of attachment and tightening connections.
