1 m Extension Cable with Solar Connector Photovoltaic Cable 16 AWG with a Cross-Section of 1.5 mm² Current Rating 30 A Red and Black For Panels
You already have the maximum available quantity in your cart.

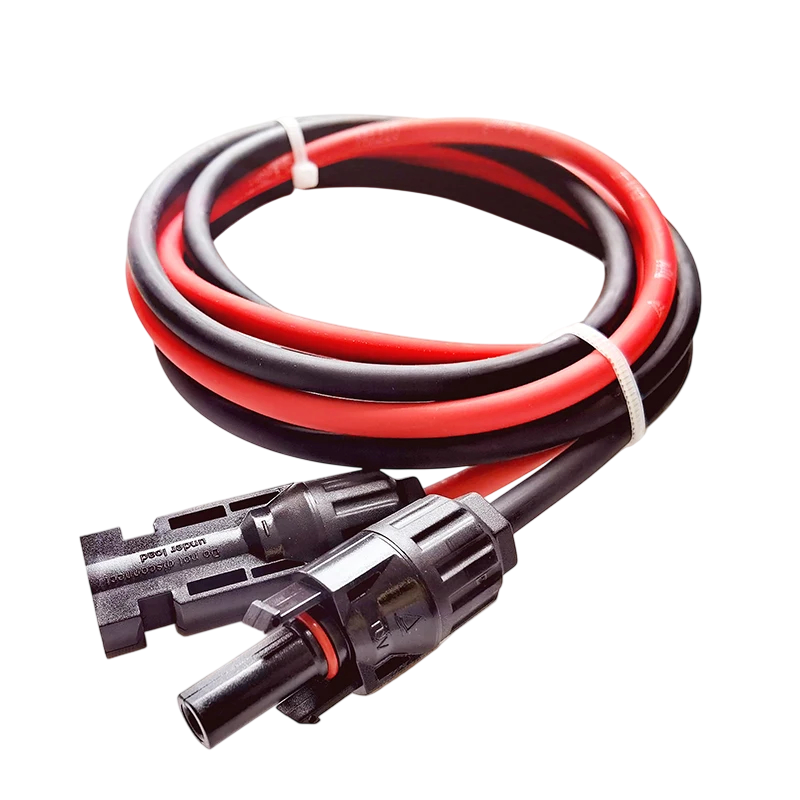

The 1 m photovoltaic extension cable is used to connect a solar panel to a controller, inverter, or other wiring in the setup. It is supplied as a pair of wires in red and black, allowing polarity to be distinguished by the colour of the insulation, so you won't make a mistake when connecting. The wire has a cross-section of 1.5 mm² according to 16 AWG and is made up of thirty strands with a diameter of 0.25 mm, giving it the flexibility needed for routing around structures. One end is fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current rating reaches 30 A at 60 °C.
- Length 1 m — short connection between the panel and the connected device
- Cross-section 1.5 mm² — wire corresponding to the designation 16 AWG
- Construction of 30 strands of 0.25 mm — flexible core for easy routing of the cable
- Current Rating 30 A — value specified at a temperature of 60 °C
- Wire Resistance max. 13.3 Ω/km — measured at 20 °C
- Outer Diameter of the Cable 4.9 mm — insulation thickness 0.67 mm and sheath 0.73 mm

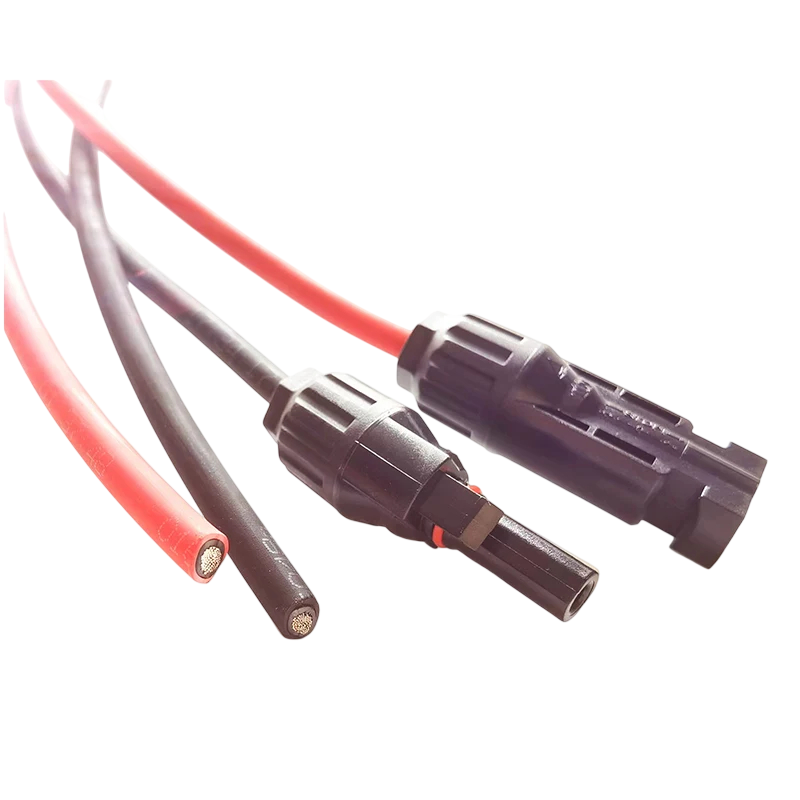

- Solar Connector on One End — snap-in connection with locking
- Red and Black Insulation — colour coding for positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting the panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — spade, eyelet, or direct connection to a terminal depending on what the connected device requires. A cross-section of 1.5 mm² with a current rating of 30 A will cover standard panels in smaller domestic and mobile installations. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation makes it easier to check polarity during any future adjustments to the setup.
