1 m Extension Cable with Solar Connector Photovoltaic Cable 14 AWG with a Cross-section of 2.5 mm² Load Capacity 41 A Red and Black For Panels

1 m Extension Cable with Solar Connector Photovoltaic Cable 14 AWG with a Cross-section of 2.5 mm² Load Capacity 41 A Red and Black For Panels

Set of two wires with a finished connector on one end and a free end on the other. The cross-section of 2.5 mm² can handle a current of 41 A and the outer diameter is 5.45 mm. Full description
In stock
Delivery €1.59
30-day return policy
€23.10
Safe shopping Safe shopping
Overview
1 m Extension Cable with Solar Connector Photovoltaic Cable 14 AWG with a Cross-section of 2.5 mm² Load Capacity 41 A Red and Black For Panels

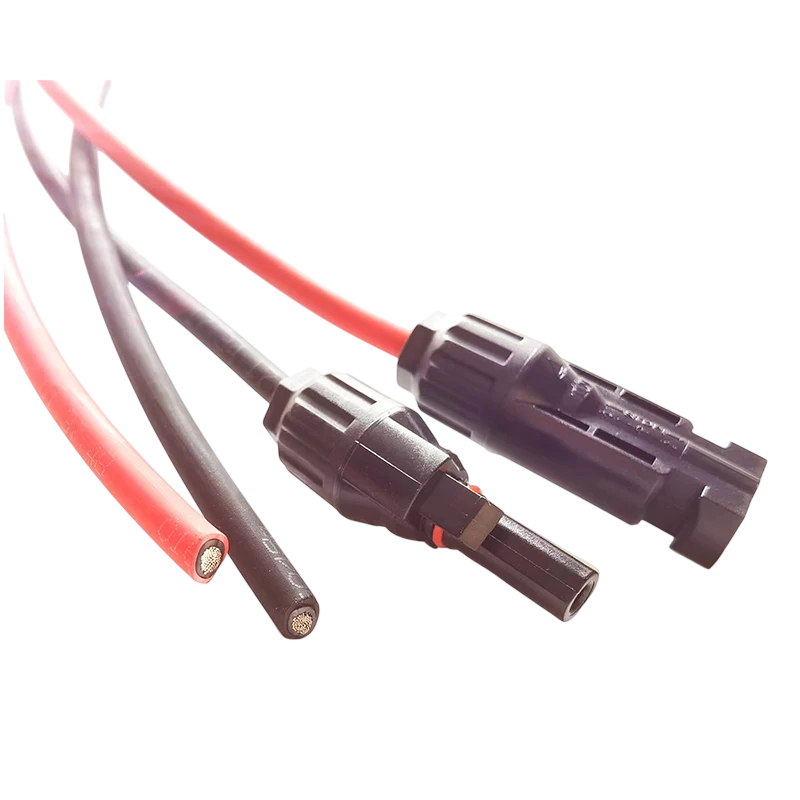

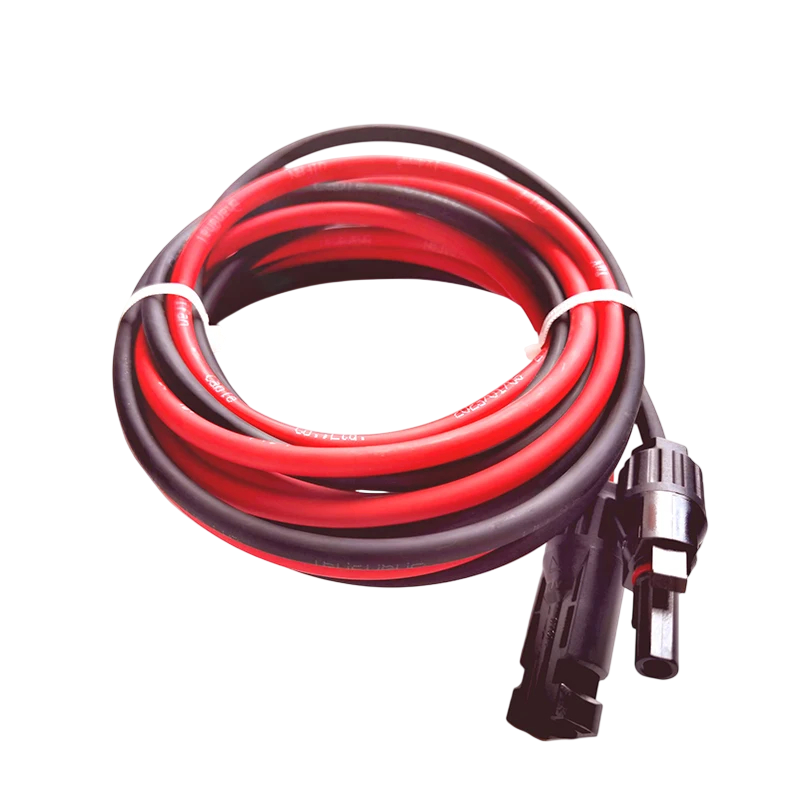

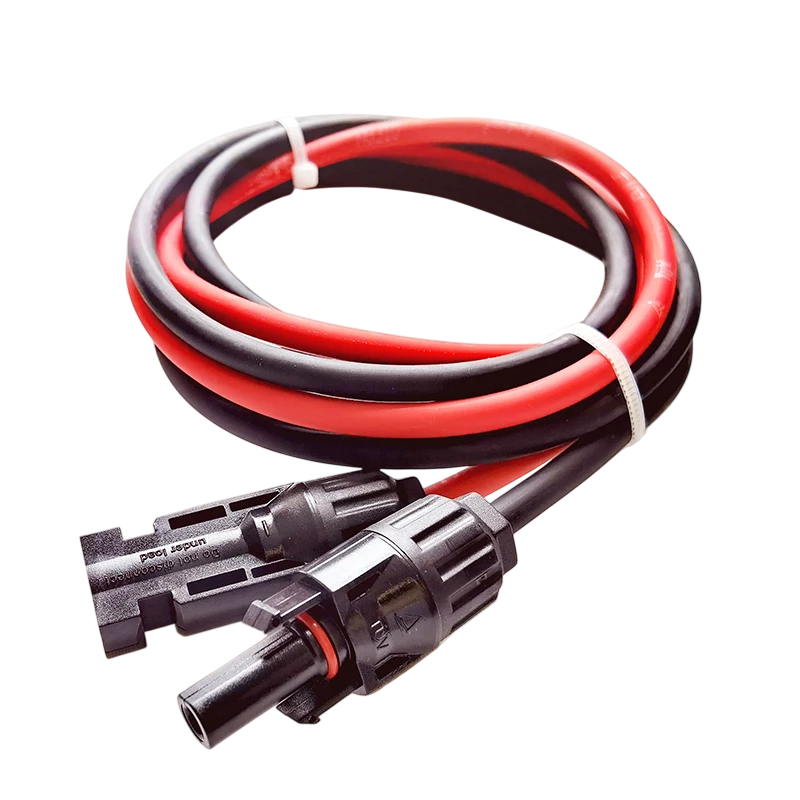

The 1 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or further wiring in the system. It is supplied as a pair of wires in red and black, so the polarity is differentiated by the colour of the insulation, preventing any confusion during installation. The wire has a cross-section of 2.5 mm² according to the designation 14 AWG and is composed of fifty strands with a diameter of 0.25 mm, providing the flexibility needed for routing around structures. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 41 A at 60 °C.

  • Length 1 m — short connection between the panel and the connected device
  • Cross-section 2.5 mm² — wire corresponding to the designation 14 AWG with a margin for higher currents
  • Construction of 50 strands of 0.25 mm — flexible core with a diameter of 2.02 mm
  • Load capacity 41 A — value specified at a temperature of 60 °C
  • Maximum conductor resistance 7.98 Ω/km — measured at 20 °C
  • Outer diameter of the cable 5.45 mm — insulation thickness 0.67 mm and sheath 0.73 mm
  • Solar connector on one end — snap-fit connection with pull-out prevention
  • Red and black insulation — colour differentiation of the positive and negative wires

Contents of the package:

  • 1x cable with red insulation and solar connector
  • 1x cable with black insulation and solar connector

The cables are suitable for connecting the panel to the charge controller, extending existing wiring, or replacing a damaged piece in a functioning assembly. The free end allows for custom termination — a ferrule, cable eye, or direct connection to a terminal depending on the requirements of the connected device. The cross-section of 2.5 mm² with a load capacity of 41 A provides a margin for more powerful panels and longer runs compared to thinner wires. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour differentiation of the insulation makes it easier to check polarity during any future modifications to the assembly.
