1 m Extension Cable with Solar Connector Photovoltaic Cable 12 AWG with a Cross Section of 4 mm² Load Capacity 55 A Red and Black For Panels
You already have the maximum available quantity in your cart.

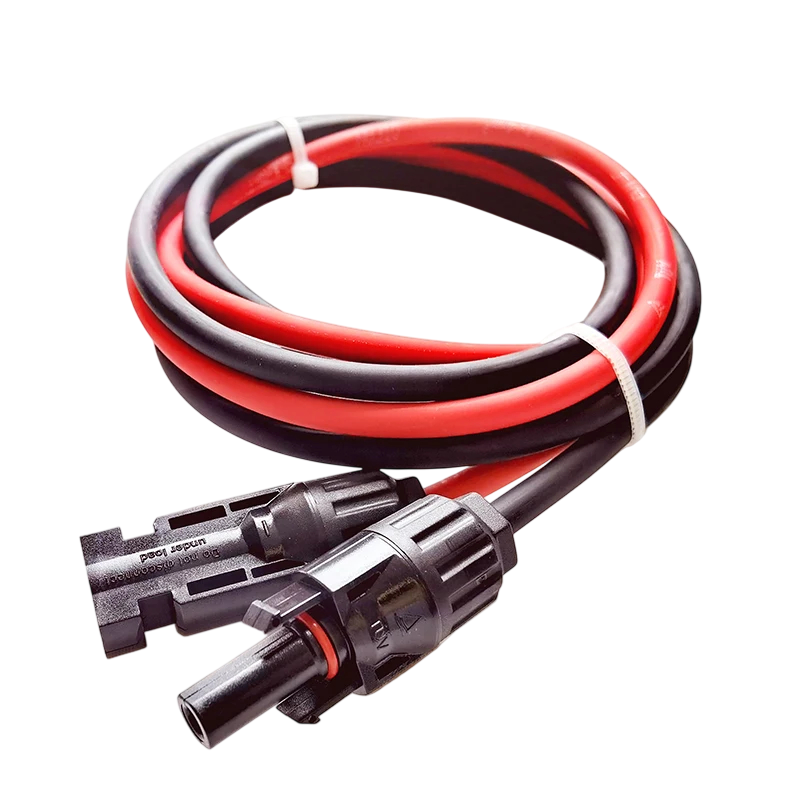

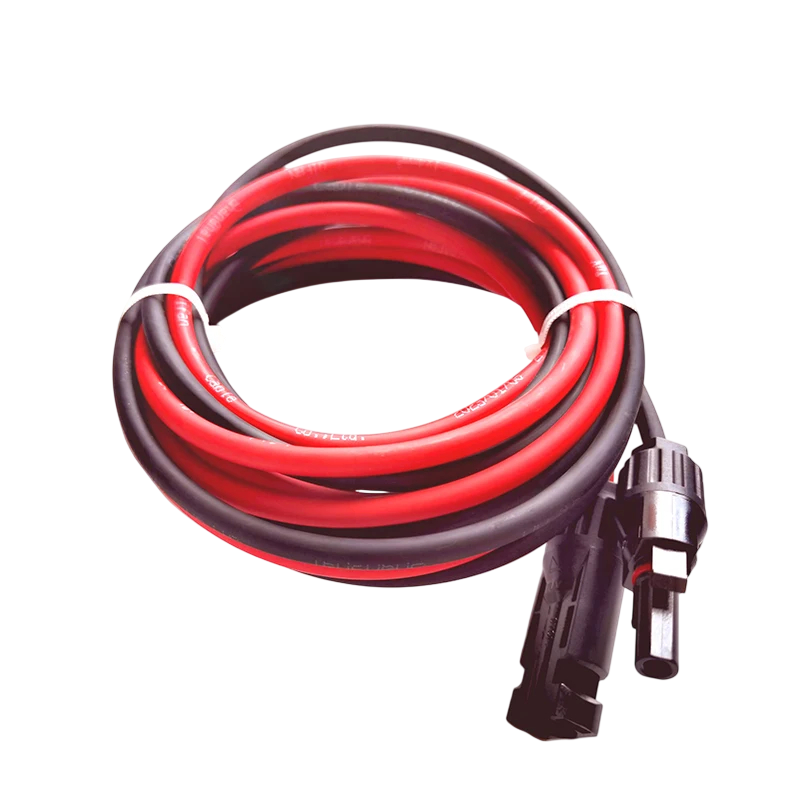

The 1 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or additional wiring in the system. It is supplied as a pair of wires in red and black, allowing for polarity differentiation based on the insulation colour, ensuring you cannot mix them up during installation. The wire has a cross section of 4 mm² according to the designation 12 AWG and is made up of fifty-six strands with a diameter of 0.30 mm, which maintains flexibility even with a larger cross section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 55 A at 60 °C.
- Length 1 m — short connection between the panel and the connected device
- Cross section 4 mm² — wire corresponding to the designation 12 AWG for higher currents and longer runs
- Construction of 56 strands of 0.30 mm — flexible core with a diameter of 2.60 mm
- Load capacity 55 A — value stated at a temperature of 60 °C
- Wire resistance max. 4.95 Ω/km — measured at 20 °C, resulting in lower losses than thinner wires
- Outer diameter of the cable 6.10 mm — insulation thickness 0.67 mm and sheath 0.73 mm

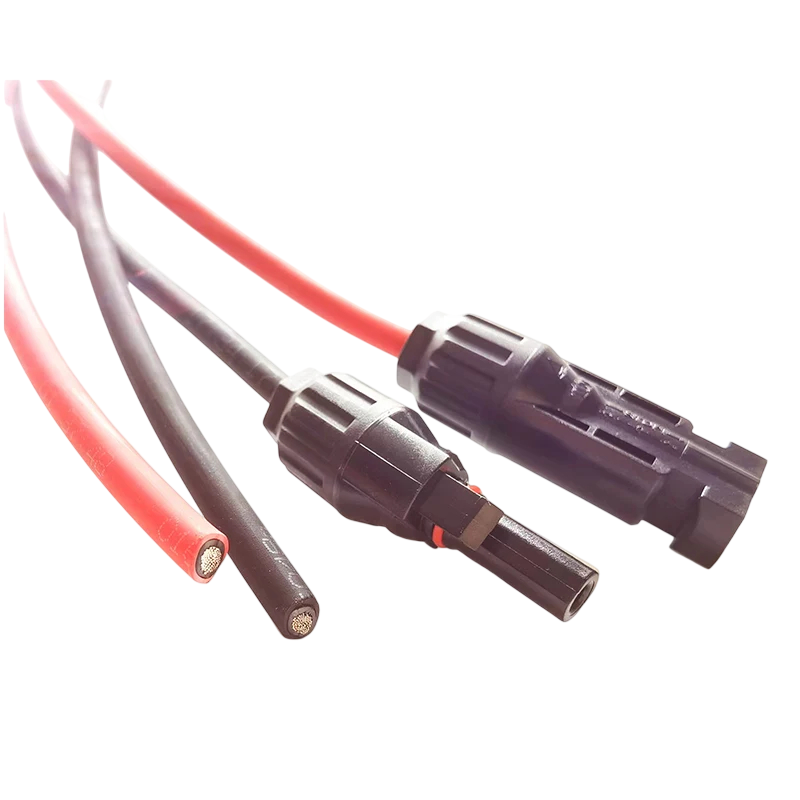

- Solar connector on one end — snap-in connection with pull-out protection
- Red and black insulation — colour differentiation of the positive and negative wires
Package contents:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting a panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — lug, cable eye, or direct connection to a terminal depending on what the connected device requires. The cross section of 4 mm² with a load capacity of 55 A is suitable for more powerful panels and systems where current from multiple sources is combined. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour differentiation of the insulation facilitates polarity checks during any subsequent adjustments to the assembly.
