TONGSHENG TSDZ8 Mid Motor Kit 48 V 750 W Battery 48 V 13 Ah 624 Wh Bluetooth Display EKD01 Brake Sensors Conversion to Electric Bicycle
You already have the maximum available quantity in your cart.
The TONGSHENG TSDZ8 mid motor kit is designed to convert a standard bicycle into an electric bicycle. At its core is the TSDZ8 48 V 750 W mid motor, which is mounted in the bottom bracket area and drives the bike through the chain. The power is supplied by a 48 V 13 Ah battery with a capacity of 624 Wh intended for mounting on the down tube. The kit includes a Bluetooth display EKD01 with a diagonal of 2.4 inches and brake sensors that disconnect the motor drive when braking. The black battery features a BMS protection system, IP65 rating, and a USB output for charging small electronics.
Main Features
- Motor – TONGSHENG TSDZ8 mid motor with a voltage of 48 V and a power output of 750 W.
- Display – Bluetooth display EKD01 with a diagonal of 2.4 inches for displaying ride data and controlling the drive.
- Brake Sensors – when the brake lever is pressed, the motor drive is interrupted, enhancing safety during braking.
- Battery – voltage of 48 V, capacity of 13 Ah, and energy of 624 Wh, class A cells, with a lifespan of over 1000 charge cycles.
- Battery Protection – BMS 30 A system for cell protection, IP65 rating against water and dust, and protection against damage from falls.
- Battery Mounting – positioned on the down tube using a mounting base with a 6-pin connector and an XT60 output connector.
- USB Output – 5 V 1 A port on the battery for charging a phone or light.
- Charge Indicator – LED battery status indicator directly on the casing.
- Dimensions and Weight of Battery – 36.8 x 9 x 11.1 cm, weight 4.25 kg.
- Charger – mains charger with an output of 54.6 V 2 A and a European plug.
- Colour – black.
- Usage – conversion of city, trekking, and mountain bikes into electric bicycles with a mid-frame drive.
Package Contents
- 1x TONGSHENG TSDZ8 48 V 750 W mid motor

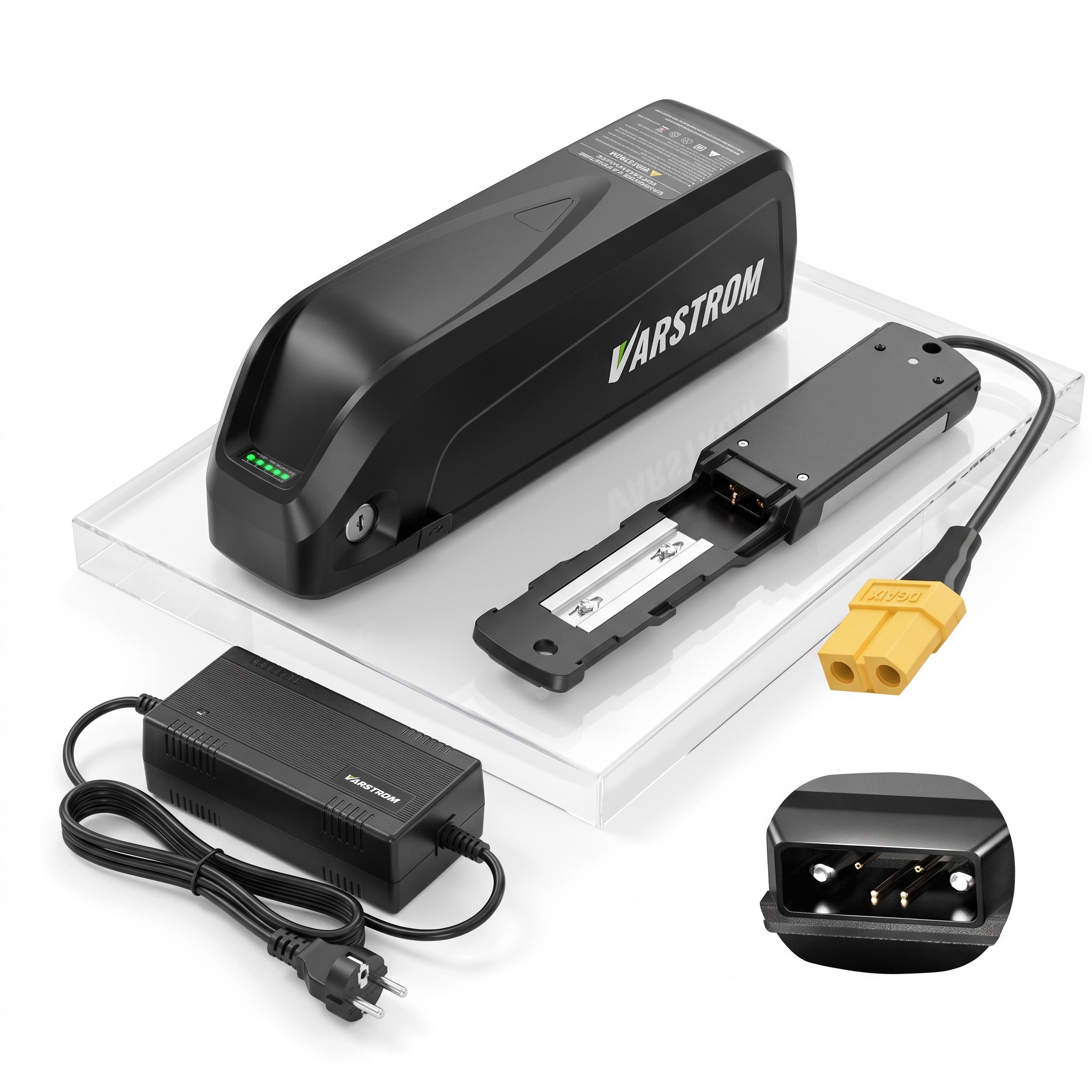

- 1x 48 V 13 Ah 624 Wh battery
- 1x battery mounting base with XT60 connector
- 1x Bluetooth display EKD01
- 1x set of brake sensors
- 1x 54.6 V 2 A charger

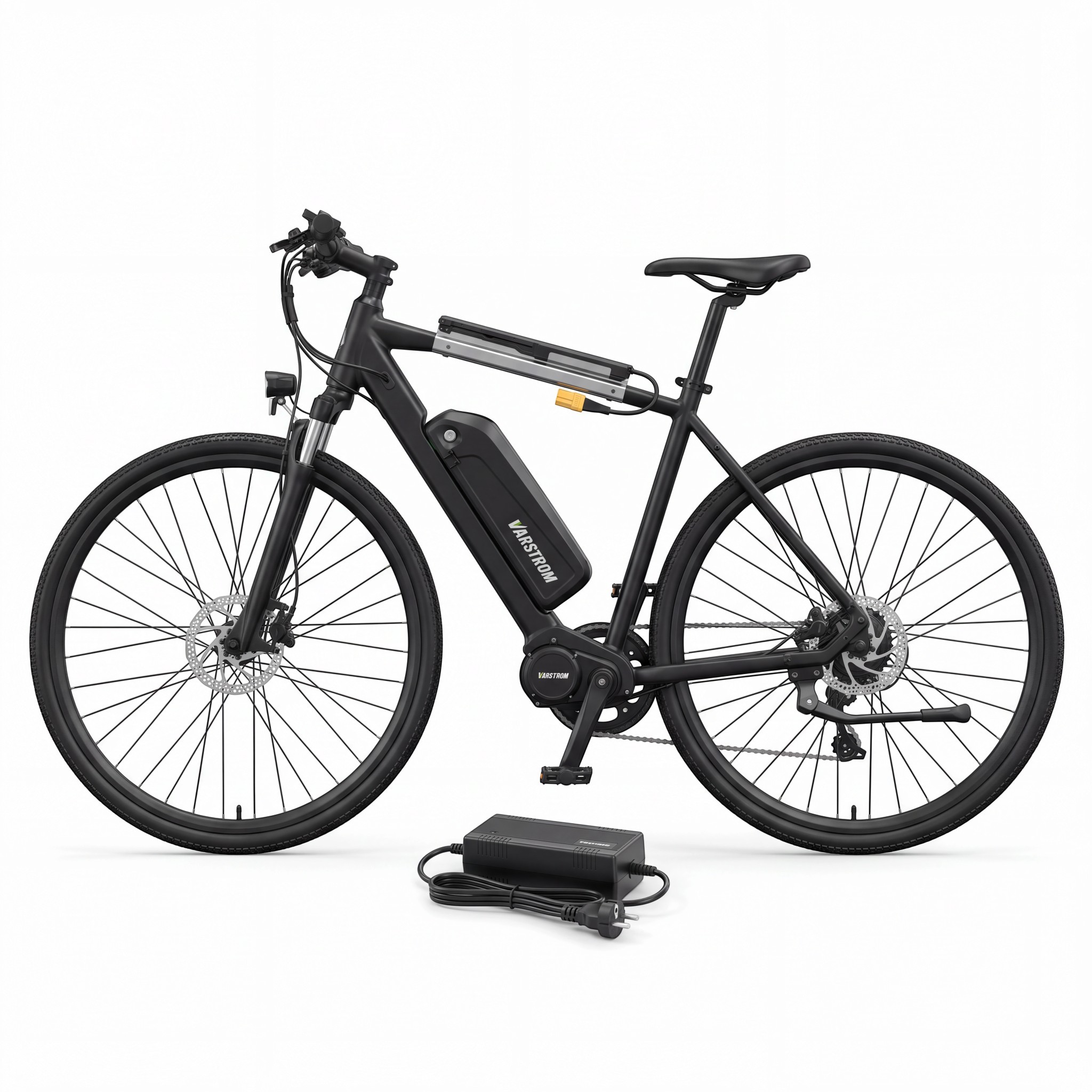

The TONGSHENG TSDZ8 kit allows you to convert your own bicycle into an electric bicycle with a mid motor of 48 V 750 W. The 48 V 13 Ah battery with an energy capacity of 624 Wh is mounted on the down tube and can be removed from the bike for separate charging. The Bluetooth display EKD01 provides an overview of the ride, and the brake sensors disconnect the drive when braking. The BMS 30 A protection system and IP65 rating protect the battery during regular use. The 54.6 V 2 A charger is included in the kit, so no additional accessories are needed for charging the battery.
