TONGSHENG TSDZ8 Electric Bike Conversion Kit Mid-Motor 48 V 750 W Battery 48 V 13 Ah 624 Wh Touch Display VD18MT Brake Sensors
You already have the maximum available quantity in your cart.
The TONGSHENG TSDZ8 conversion kit allows you to equip your own bicycle with electric drive without the need to purchase a new electric bike. The main component of the kit is the TSDZ8 48 V 750 W mid-motor, which is installed in the bottom bracket and transfers power to the rear wheel via the chain. The power supply is provided by a 48 V 13 Ah battery with an energy capacity of 624 Wh, designed to be mounted on the down tube. Control and ride information is provided by the VD18MT 1.45-inch touch display, and brake sensors disconnect the motor whenever braking occurs. The battery, housed in a black casing, features BMS protection, IP65 rating, and a USB output.
Main Features
- Motor – TONGSHENG TSDZ8 mid-drive with a voltage of 48 V and a power output of 750 W.
- Touch Display – VD18MT with a diagonal of 1.45 inches, touch control directly on the screen, compact dimensions for handlebar mounting.
- Brake Sensors – interrupt the motor drive when the rider pulls the brake lever, enhancing safety.

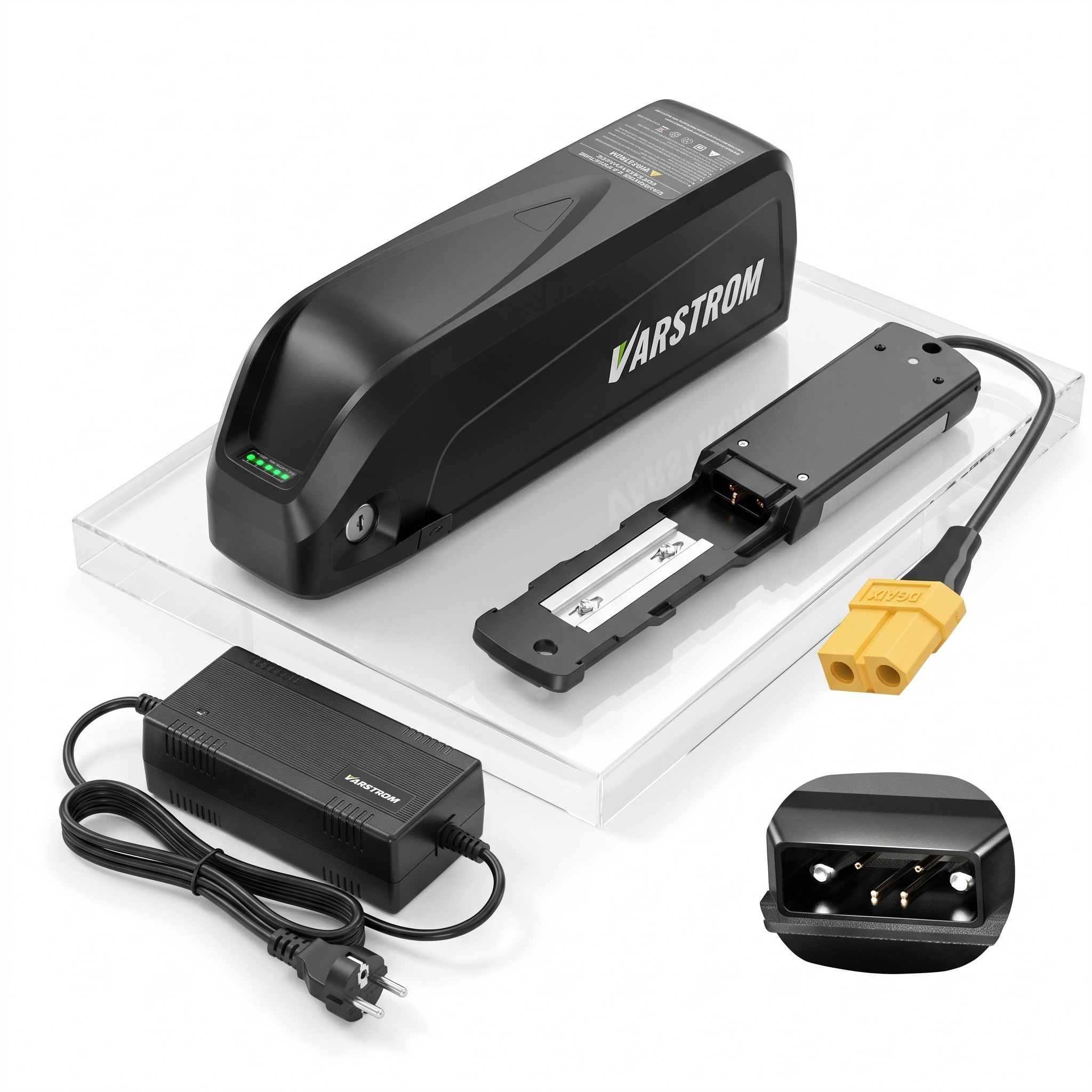

- Battery – voltage of 48 V, capacity of 13 Ah, energy of 624 Wh, class A cells, lifespan of over 1000 charge cycles.
- Battery Protection – BMS 30 A, IP65 rating against water and dust, and protection against damage from falls.
- Battery Mounting – casing for the down tube, mounting base with a 6-pin connector and XT60 output connector.
- Battery Accessories – LED charge status indicator and 5 V 1 A USB port for charging a phone or light.
- Dimensions and Weight of Battery – 36.8 x 9 x 11.1 cm, 4.25 kg.
- Charger – output 54.6 V 2 A, European plug.
- Colour – black.
- Usage – conversion of a city, trekking, or mountain bike to an electric bike with mid-drive.
Contents of the Package
- 1x TONGSHENG TSDZ8 48 V 750 W mid-motor
- 1x 48 V 13 Ah 624 Wh battery
- 1x battery mounting base with XT60 connector
- 1x VD18MT 1.45" touch display
- 1x brake sensor set
- 1x 54.6 V 2 A charger
The TONGSHENG TSDZ8 kit with VD18MT touch display is suitable for riders who want electric drive on their bike and modern touch control. The 750 W mid-motor utilises the bike's gears, assisting in climbing hills and riding on flat terrain. The 48 V 13 Ah battery with 624 Wh energy is mounted on the down tube and connects to the drive via the XT60 connector. The IP65 rating, BMS protection, and USB output enhance the practical use of the battery. The brake sensors and 54.6 V 2 A charger are included in the kit, providing motor disconnection during braking and convenient battery charging at home.
