TONGSHENG TSDZ8 Electric Bike Conversion Kit Mid Motor 48 V 750 W Battery 48 V 13 Ah 624 Wh Mini Display DZ40 Brake Sensors
You already have the maximum available quantity in your cart.
The TONGSHENG TSDZ8 electric bike conversion kit includes the main components needed to add electric drive to a regular bicycle. The drive is provided by a 750 W mid motor TSDZ8 operating at 48 V, which is installed in the bottom bracket area. The motor is powered by a 48 V 13 Ah battery with an energy capacity of 624 Wh housed for down tube mounting. For ride monitoring, there is a compact Mini DZ40 display with a diagonal of 1.68 inches, and brake sensors ensure that the motor disconnects when braking. The battery in black is protected by a BMS system and has an IP65 rating, offering a USB output of 5 V 1 A.
Main Features
- Mid Motor – TONGSHENG TSDZ8, 48 V, 750 W, mounted in the bottom bracket area of the bicycle.
- Display – compact Mini Display DZ40 with a diagonal of 1.68 inches, taking up minimal space on the handlebars.
- Brake Sensors – disconnect the motor drive when the brake lever is pressed.
- Battery – 48 V 13 Ah, energy capacity of 624 Wh, class A cells and a lifespan of over 1000 charging cycles.
- Protection – 30 A BMS system, IP65 rating against water and dust, and resistance to damage from drops.

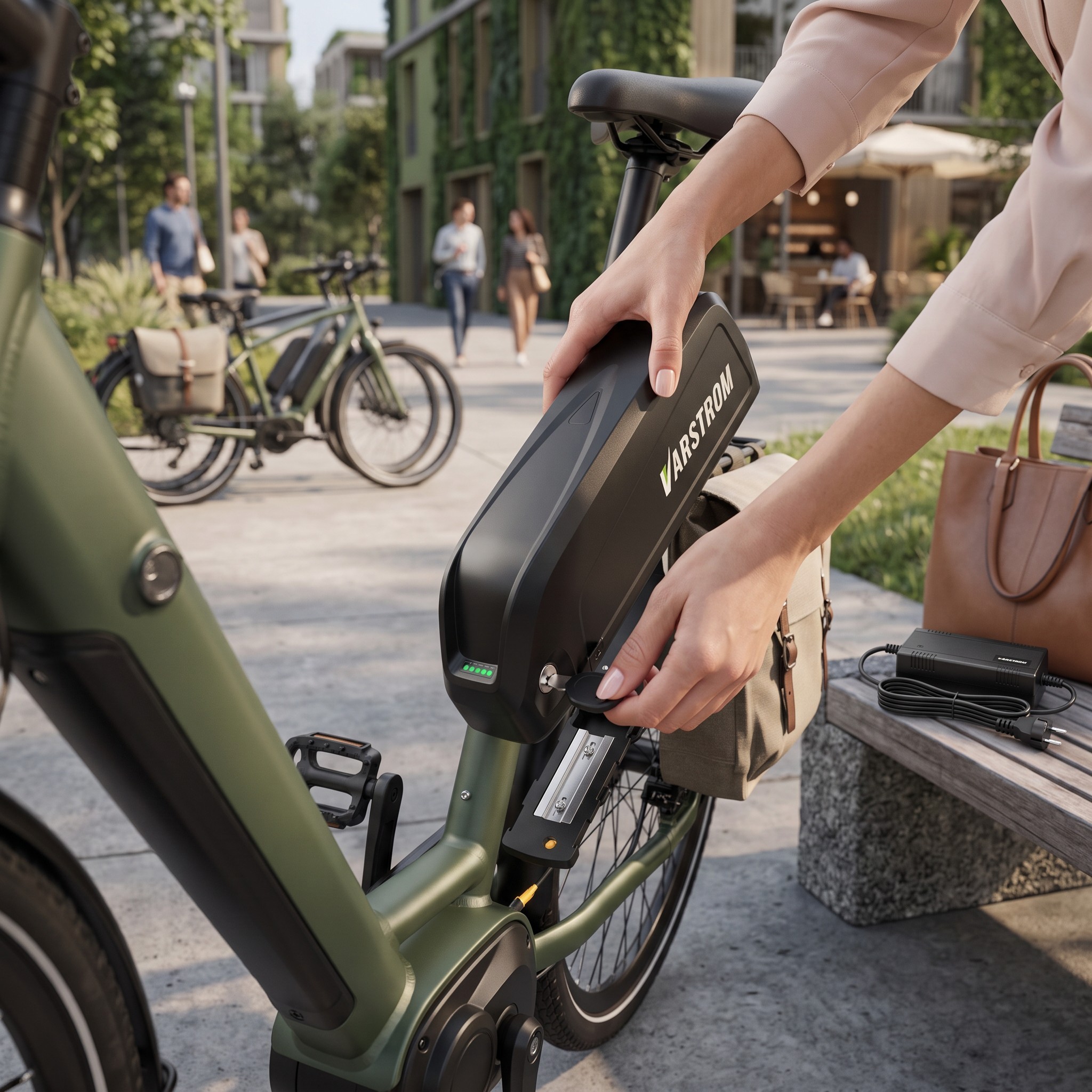

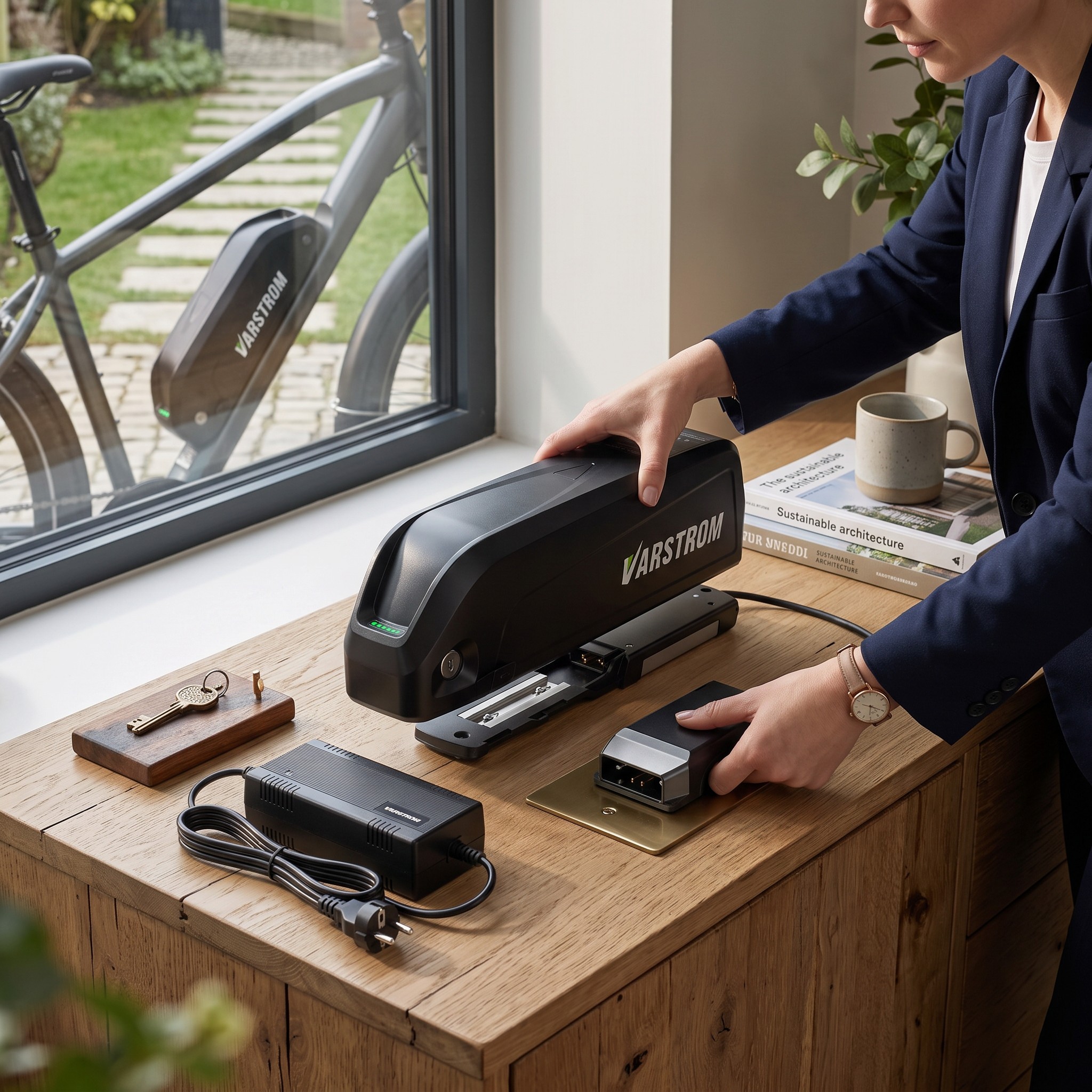

- Battery Mounting – on the down tube using a mounting base with a 6-pin connector, connecting to the drive via an XT60 connector.
- Indication and USB – LED charge status indicator and USB output of 5 V 1 A for charging a phone or light during rides.
- Battery Dimensions – 36.8 x 9 x 11.1 cm, weight 4.25 kg.
- Charging – charger with an output of 54.6 V 2 A and a European plug.
- Colour – black.

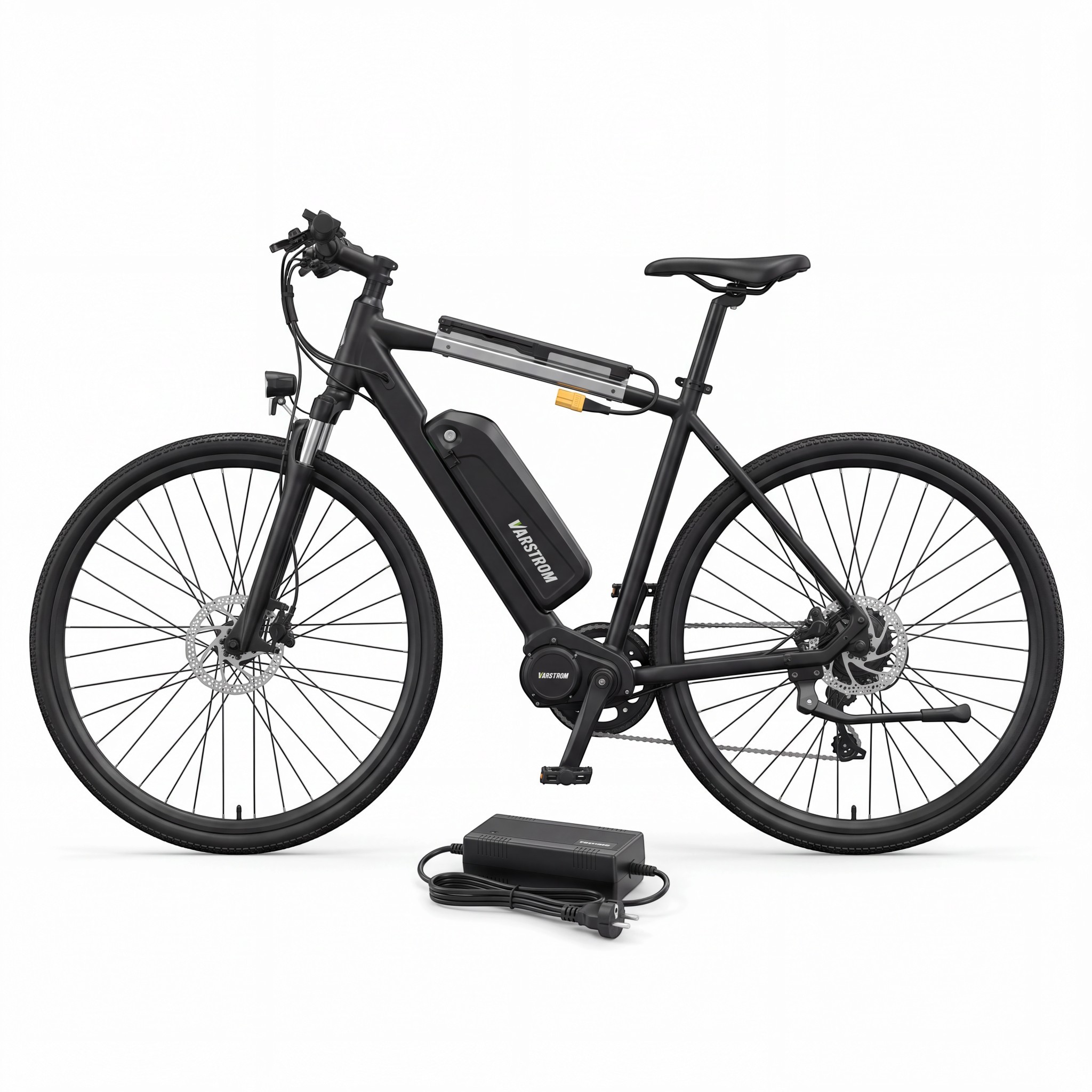

- Suitable for – conversion of city, trekking, and mountain bikes where you want to retain your own frame and components while adding electric drive.
Package Contents
- 1x mid motor TONGSHENG TSDZ8 48 V 750 W

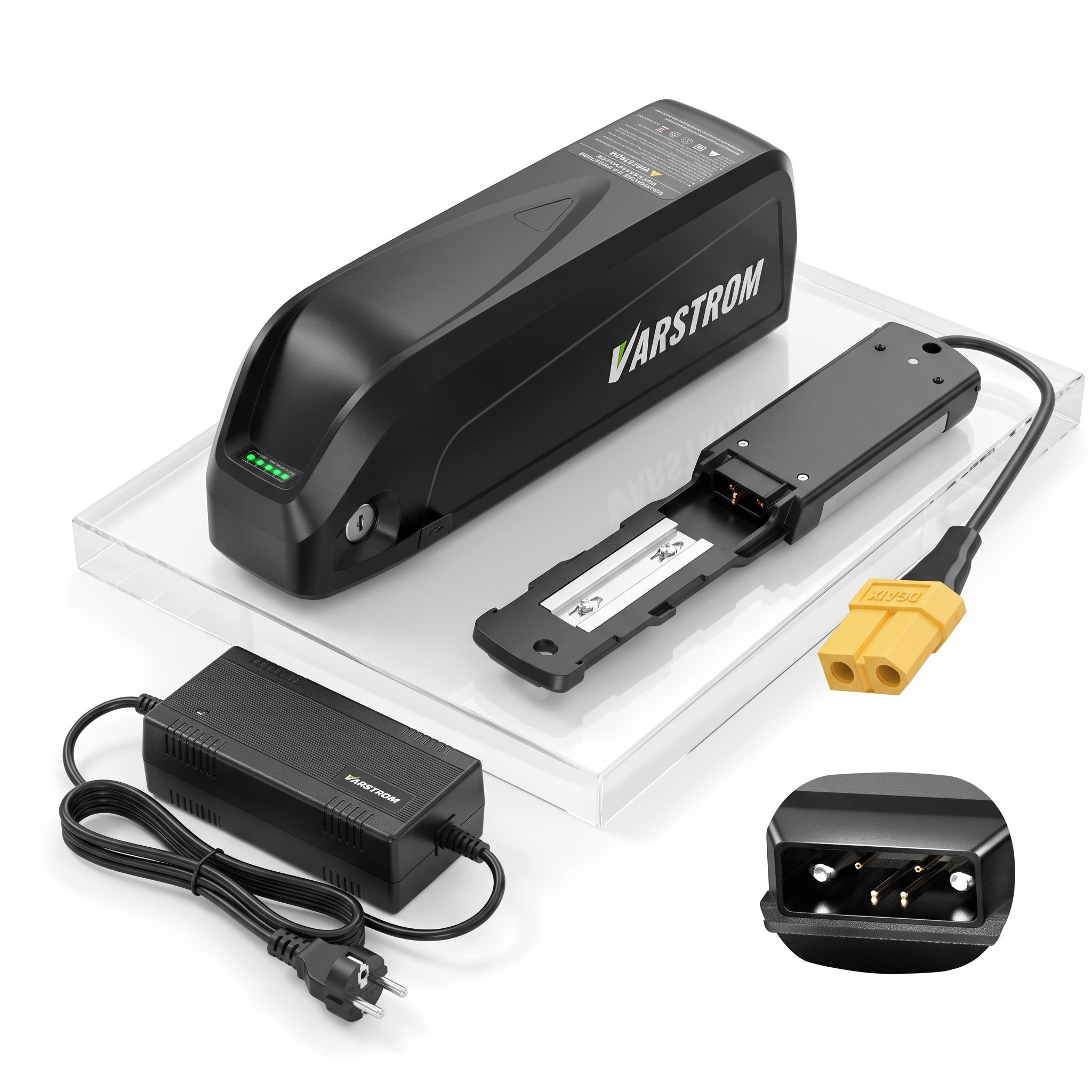

- 1x battery 48 V 13 Ah 624 Wh

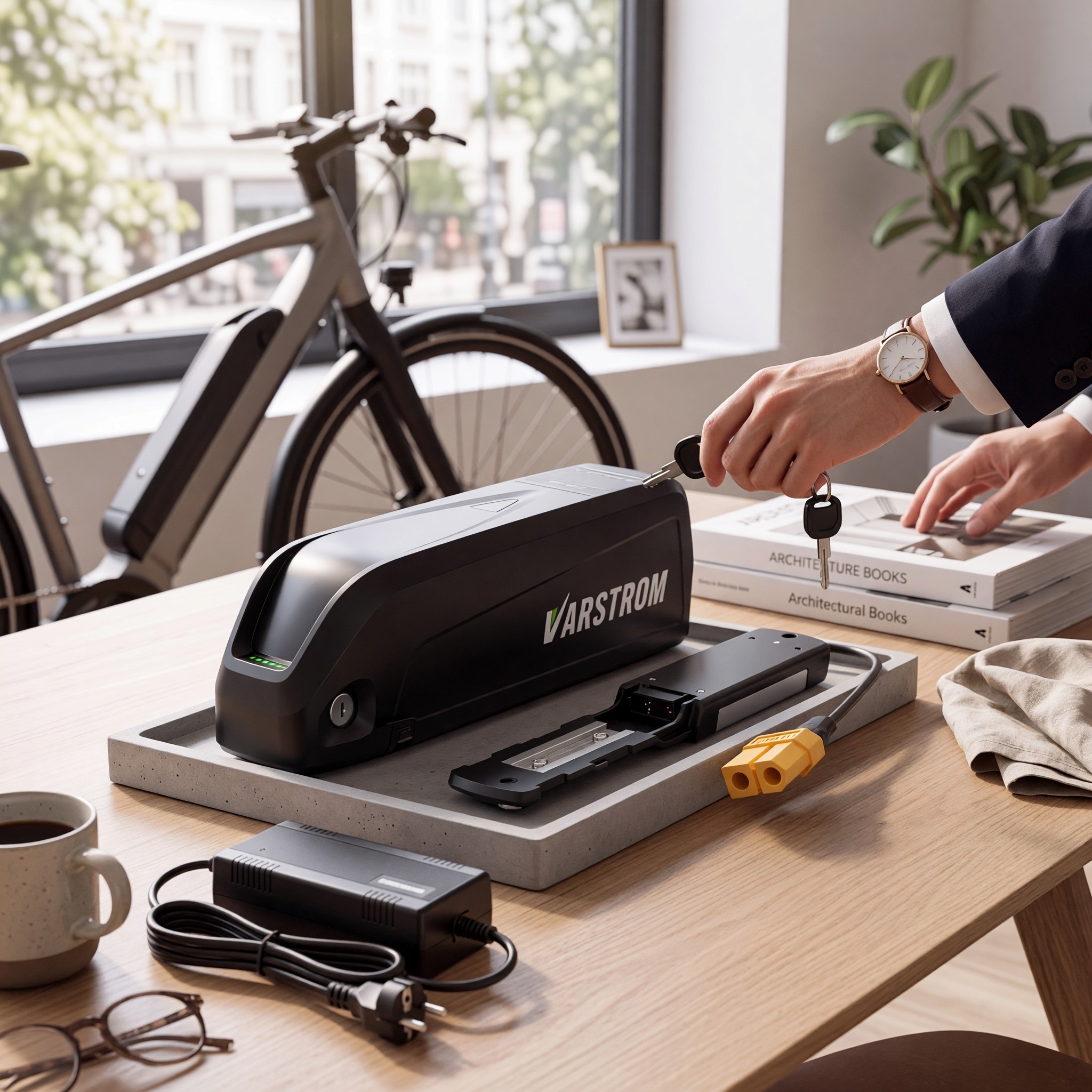

- 1x battery mounting base with XT60 connector
- 1x Mini Display DZ40 1.68"
- 1x set of brake sensors
- 1x charger 54.6 V 2 A
The TONGSHENG TSDZ8 kit with Mini Display DZ40 is designed for those who want electric drive on their own bike and prefer compact controls on the handlebars. The 750 W mid motor drives the bike through the chain, allowing the use of the bike's gears. The 624 Wh battery is mounted on the down tube and can be easily connected to the drive thanks to the base with an XT60 connector. IP65 rating and 30 A BMS protection safeguard the battery during normal operation. Brake sensors and the 54.6 V 2 A charger complete the kit with elements necessary for safe and comfortable operation.
