OBD2 Diagnostic Scanner ELM327 V1.5 With Bluetooth 4.0 16 Pin Error Code Reading For Android Black For Car Diagnostics
You already have the maximum available quantity in your cart.

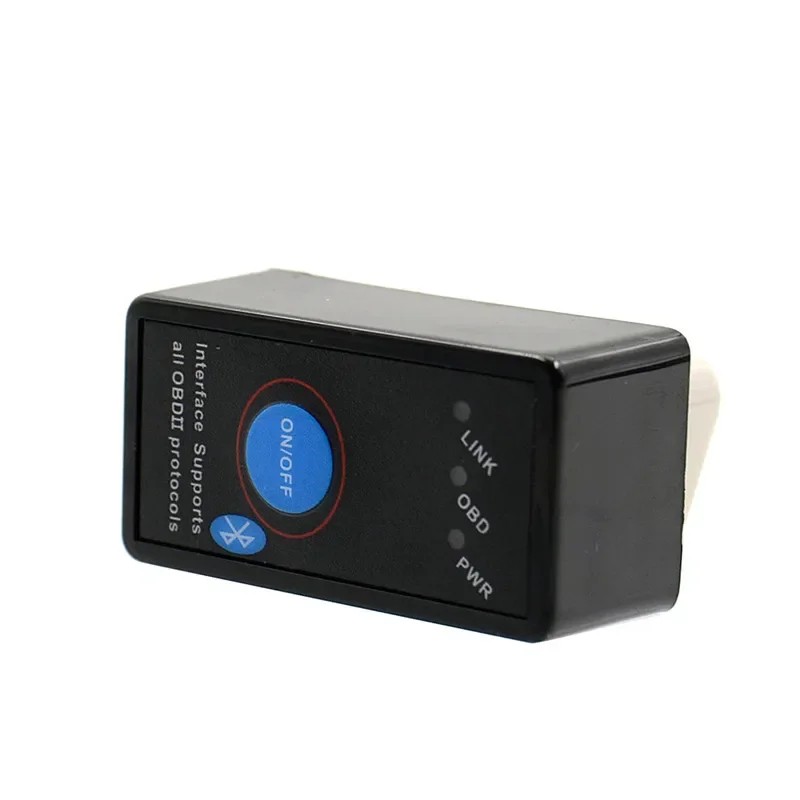

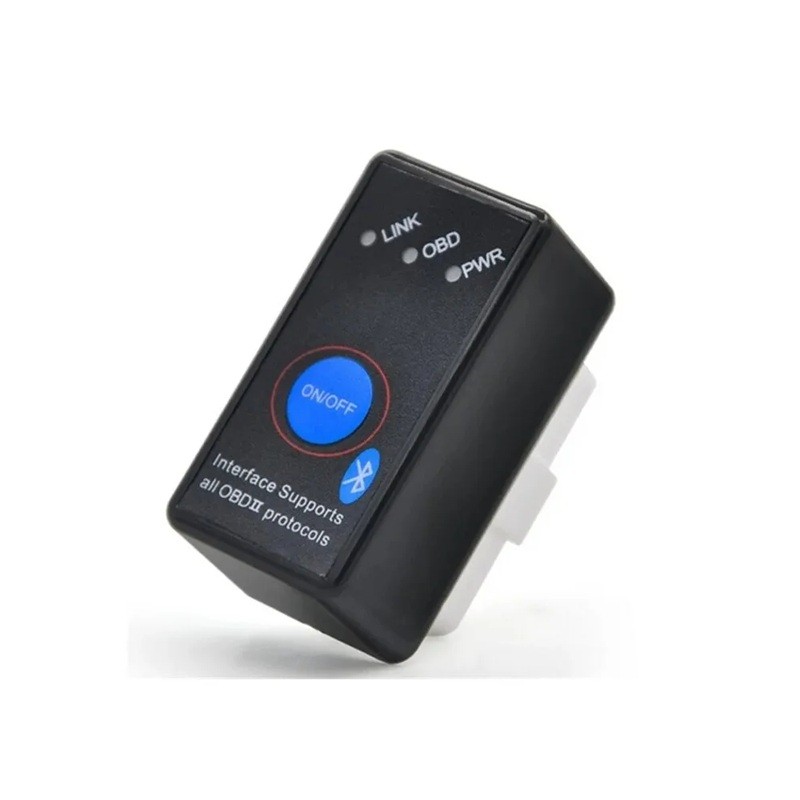

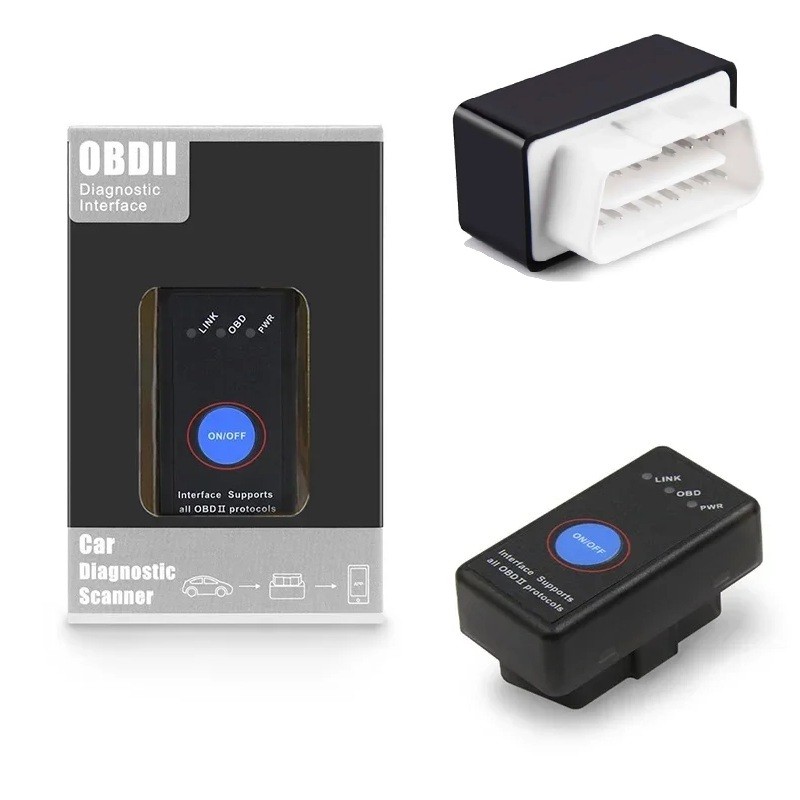

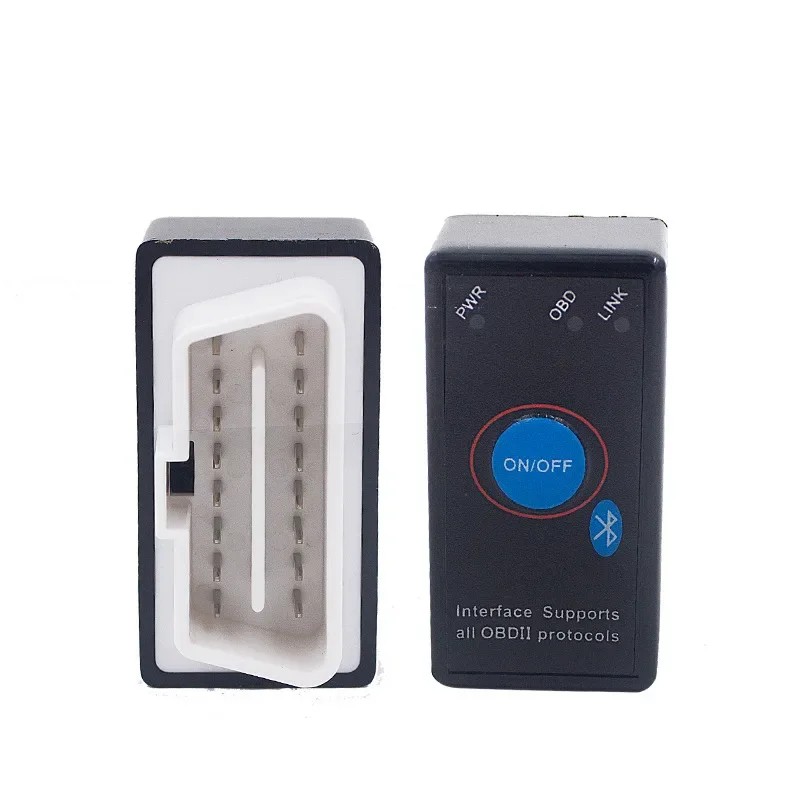

The OBD2 Diagnostic Scanner ELM327 V1.5 is a wireless adapter for reading and erasing error codes in passenger vehicles. It connects via Bluetooth 4.0 to an Android phone and works with apps such as Torque. It reads both generic and manufacturer-specific fault codes and supports all OBD-II protocols. The small black body plugs into the 16-pin OBD2 socket and features PWR, OBD, and LINK indicator lights. The wireless range of 5-10 m allows you to monitor data even outside the vehicle.
The adapter is designed for Android phones running versions 4.0 to 4.4 or 5.0 and does not work with iOS devices. It can also be used with a computer equipped with Bluetooth. The scanner works only with passenger cars and does not support trucks or 24 V systems. It also does not support diesel, electric, or hybrid vehicles. If the app displays an error, your vehicle is likely not supported.
The blue ON/OFF button is used to reset and wake the device. The adapter has an automatic sleep mode, which activates after 30 minutes of inactivity. In sleep mode, its consumption is only 10 mA, thus saving the car battery. The connection is simple: plug the adapter into the OBD2 socket, pair it via Bluetooth, and launch the diagnostic app. After pairing, enter the PIN on your phone and select the Bluetooth connection. The adapter is suitable for regular checks as well as for monitoring data while driving.
Main Features:
- Bluetooth Connection — wireless connection with range of 5-10 m.

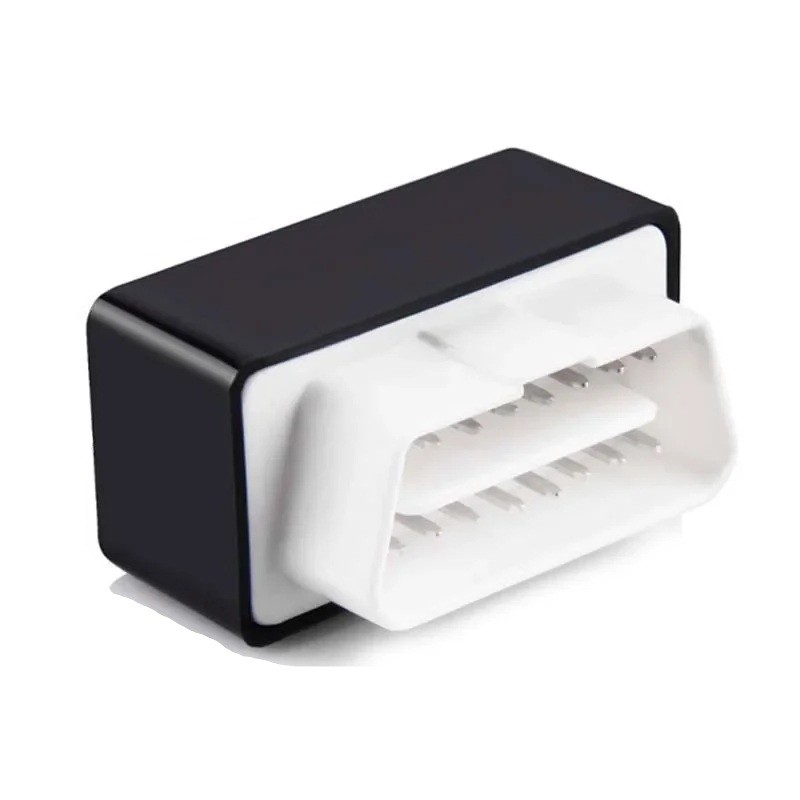

- Connector — 16-pin OBD2 socket.
- Code Reading — generic and manufacturer-specific fault codes.
- OBD-II Protocols — ISO9141 ISO14230 KWP ISO15765 CAN and SAE J1850.
- Compatibility — Android 4.0-4.4 or 5.0 and PC with Bluetooth.
- ON/OFF Button — reset and wake the device.
- Automatic Sleep — switches after 30 minutes of inactivity.
- Low Consumption — only 10 mA in sleep mode.

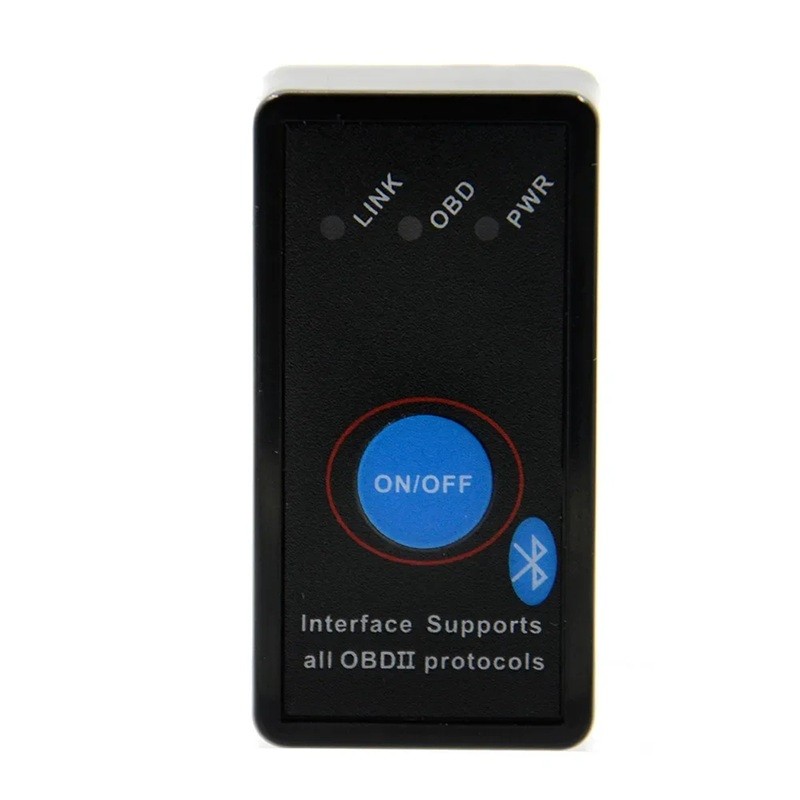

- LED Indicators — PWR, OBD, and LINK indicate status.
- Compact Body — black design measuring 4.8 x 2.5 x 3.3 cm.
- Limitations — for passenger cars only, excluding diesels, electric vehicles, and hybrids.
- Wide Vehicle Support — works with all OBD-II compatible cars.
- Code Erasure — resets the engine fault light after repair.
- Easy to Use — plug in, pair, and launch the app.
Package Contents:
- 1x ELM327 V1.5 Diagnostic Scanner
The scanner offers an affordable way to diagnose your passenger car using an Android phone. By reading both generic and manufacturer-specific codes, you can quickly identify the cause of the engine light. The automatic sleep and low consumption help save the car battery even when left in the socket. This tool is appreciated by DIY enthusiasts and drivers who want to keep track of their vehicle's condition. Before purchasing, ensure that your vehicle is compatible with OBD-II and that you are using a supported version of Android.
