Handheld LCR Meter with Automatic Measurement and Component Sorting, 4.5-Digit 2.8" TFT Display, 100 Hz–100 kHz, Black-Blue, for Electronics

Handheld LCR Meter with Automatic Measurement and Component Sorting, 4.5-Digit 2.8" TFT Display, 100 Hz–100 kHz, Black-Blue, for Electronics

Measures inductance, capacitance, resistance, and ESR with an accuracy of 0.3%. Automatically identifies components, sorts by tolerance, and charges via USB-C cable. Full description
In stock
Delivery €1.59
30-day return policy
€154.54
Safe shopping Safe shopping
Overview
Handheld LCR Meter with Automatic Measurement and Component Sorting, 4.5-Digit 2.8" TFT Display, 100 Hz–100 kHz, Black-Blue, for Electronics

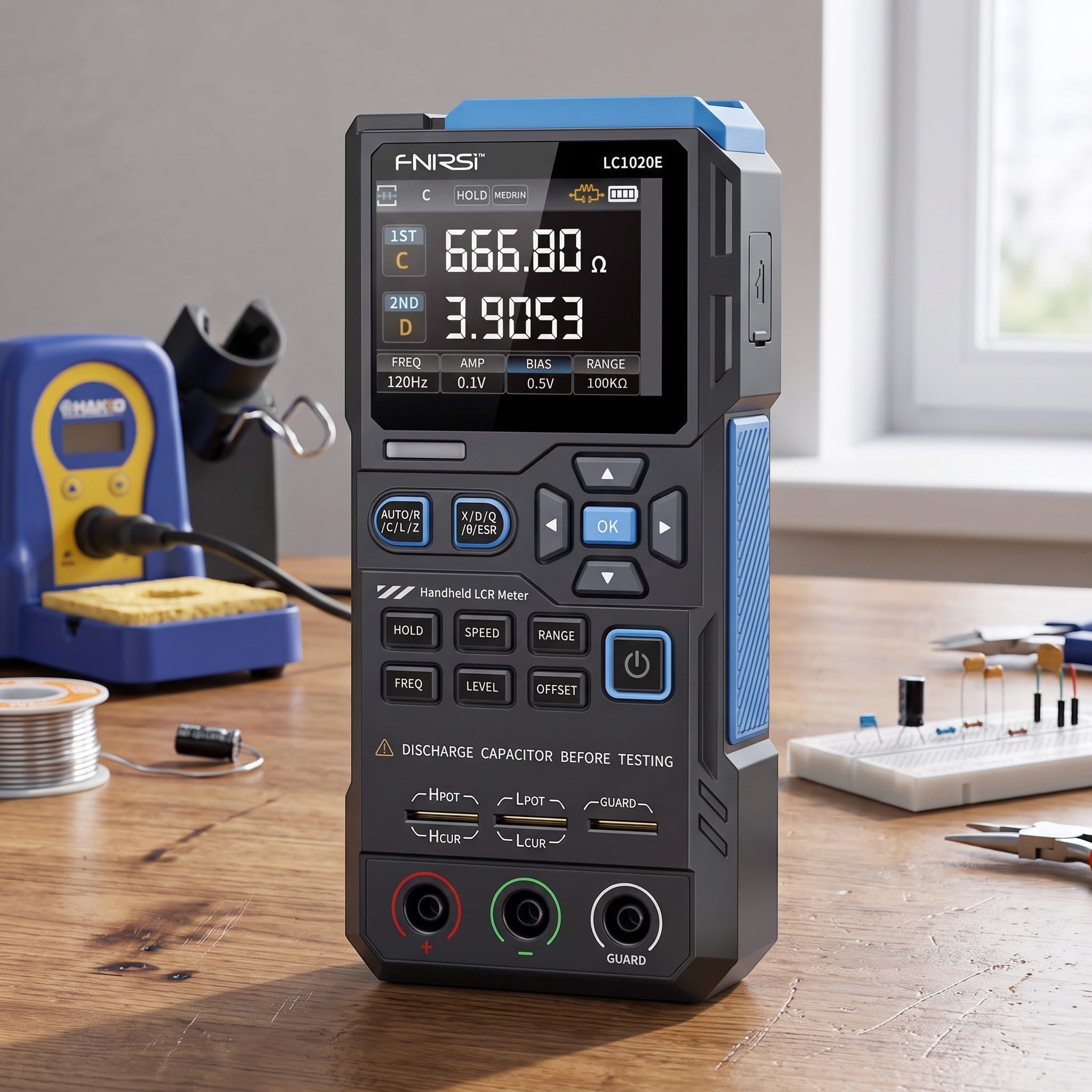

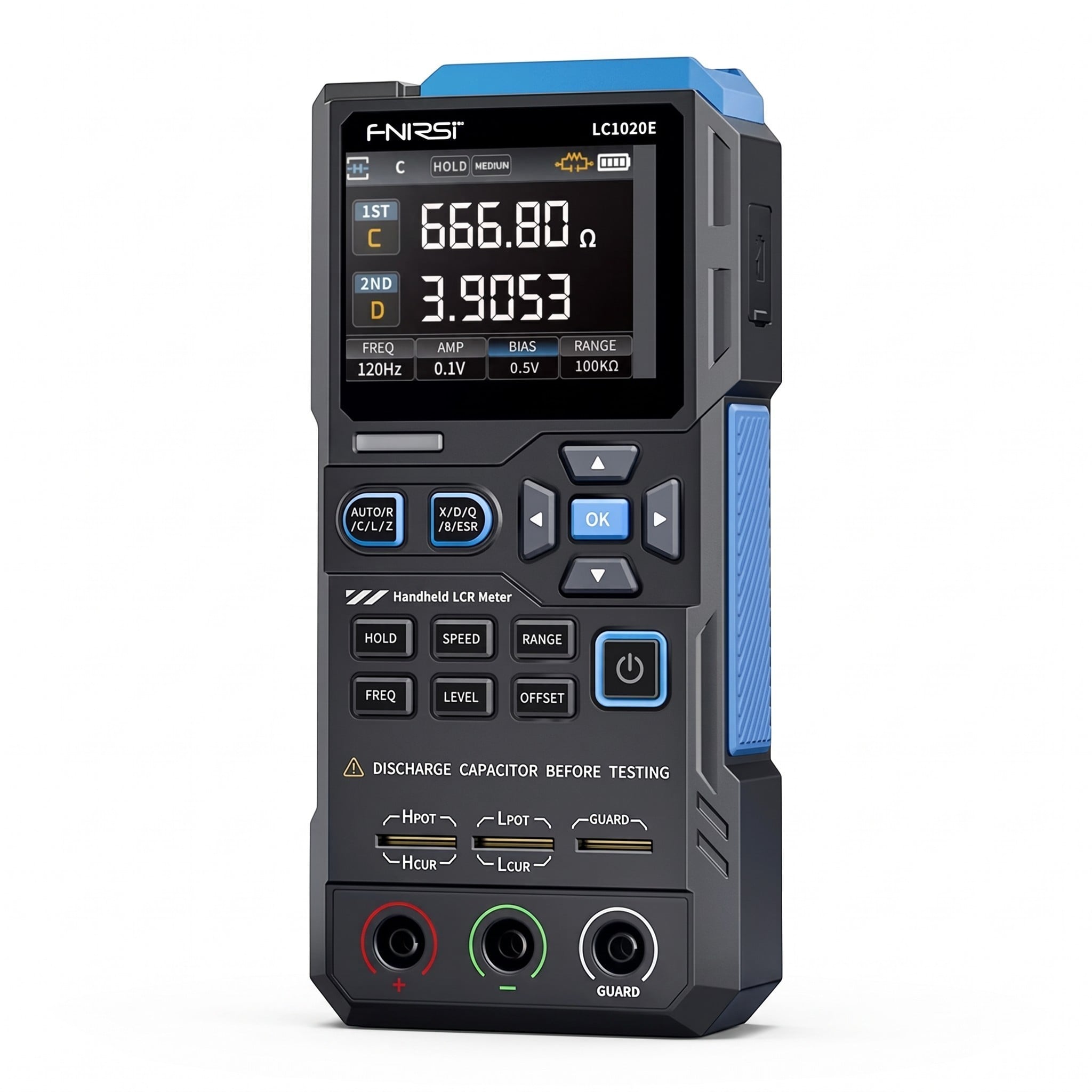

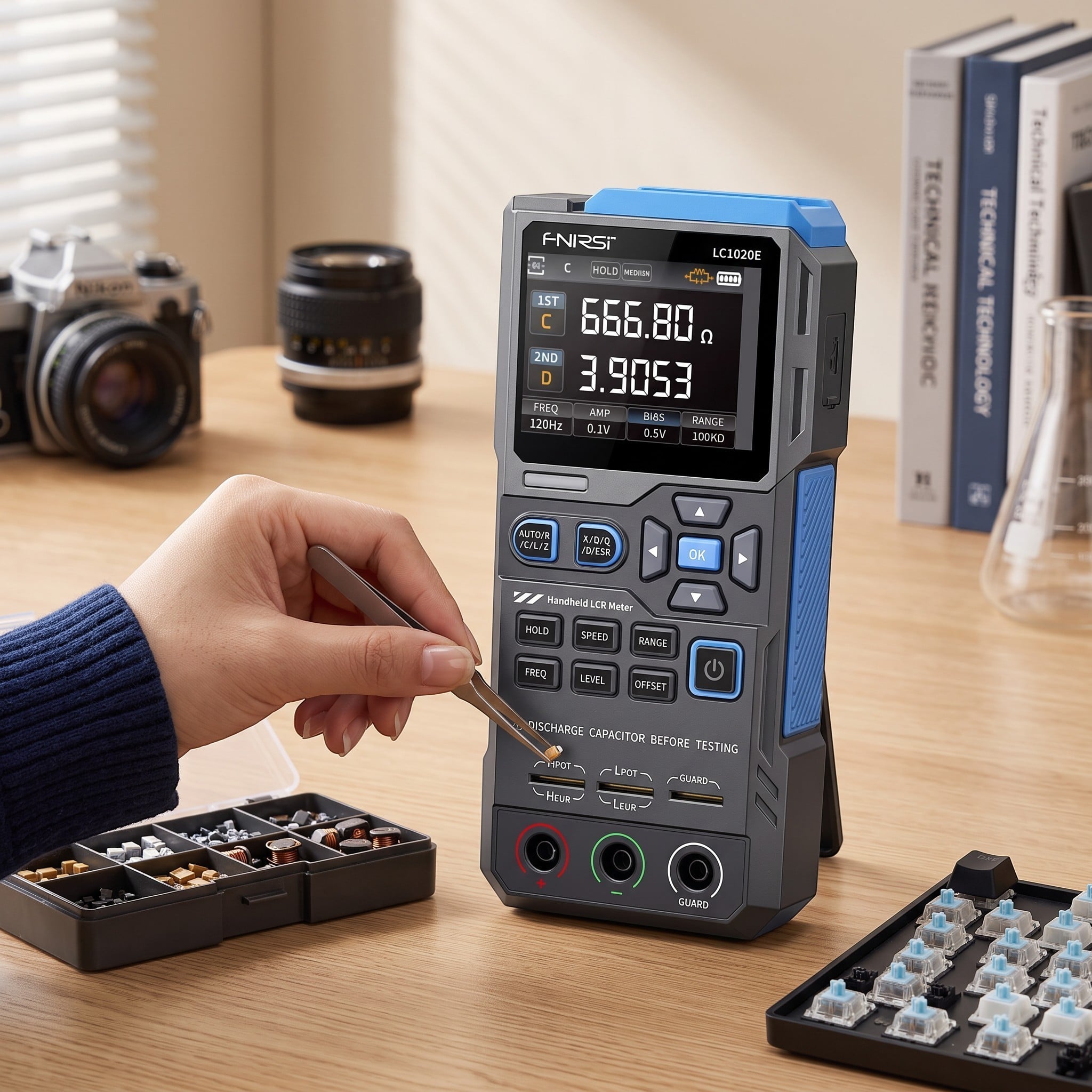

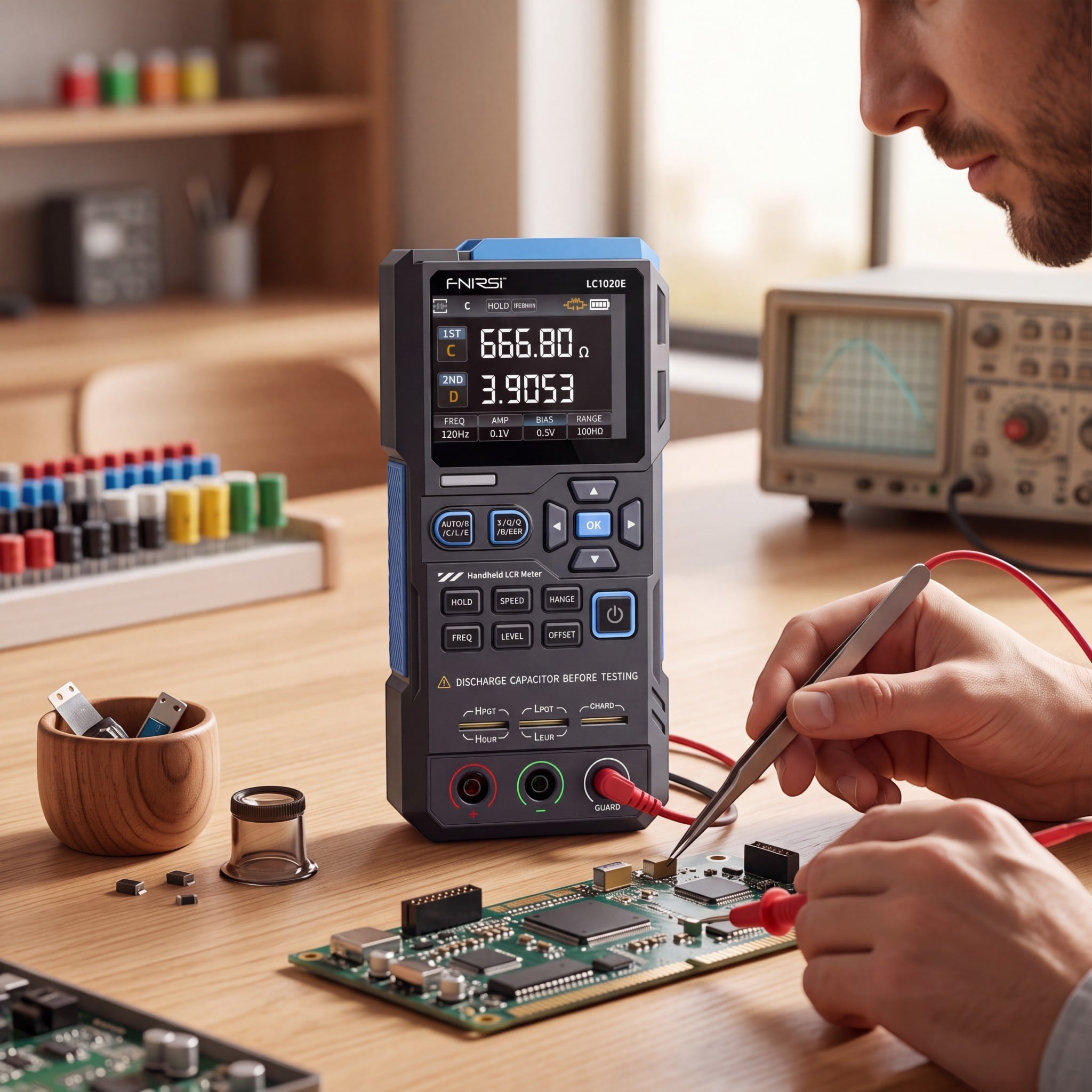

The handheld LCR meter is designed for precise measurement of inductance, capacitance, resistance, and impedance of electronic components. The device automatically identifies the type of component (resistor, coil, capacitor) and switches to the appropriate measurement mode. The sorting function compares measured values with the set nominal value and tolerance, making it suitable for quick checks of large quantities of components. The colour 2.8-inch TFT display simultaneously shows both the main and secondary parameters with a resolution of 4.5 digits. This meter is intended for electronics professionals, service technicians, developers, and hobbyists who need to test components on the workbench as well as in the field.

Main Features:

  • Display: 2.8" colour TFT display, 4.5 digits for main and secondary parameters
  • Basic Accuracy: 0.3 %
  • Measurement Range: inductance 0–100 H, capacitance 0–100 mF, resistance 0–10 MΩ
  • Main Parameters: AUTO / R / C / L / Z
  • Secondary Parameters: X / D / Q / θ / ESR
  • Test Frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz
  • Test Levels (RMS): 0.1 V, 0.3 V and 0.6 V
  • Internal Bias Voltage: 0.0 V and 0.5 V for more stable measurements of sensitive components
  • Measurement Speed: fast (4× per second), medium (2× per second), slow (1× per second)
  • Calibration: open-circuit calibration and short-circuit calibration to eliminate the influence of cables and fixtures
  • Comparison and Sorting: calculation of relative deviation from the nominal value in percentage, adjustable tolerance 0.1–99.9 %
  • Recording Function: counting of compliant and non-compliant measurements, value hold function with HOLD button
  • Test Lead Configuration: three-terminal and five-terminal (HPOT/HCUR, LPOT/LCUR, GUARD)
  • Output Impedance: 100 Ω
  • Interface: USB-C (virtual serial port) for data transfer and charging
  • Power Supply: rechargeable Li-ion battery 3.7 V / 3000 mAh
  • Additional Features: language settings, display brightness and sound settings, automatic shutdown

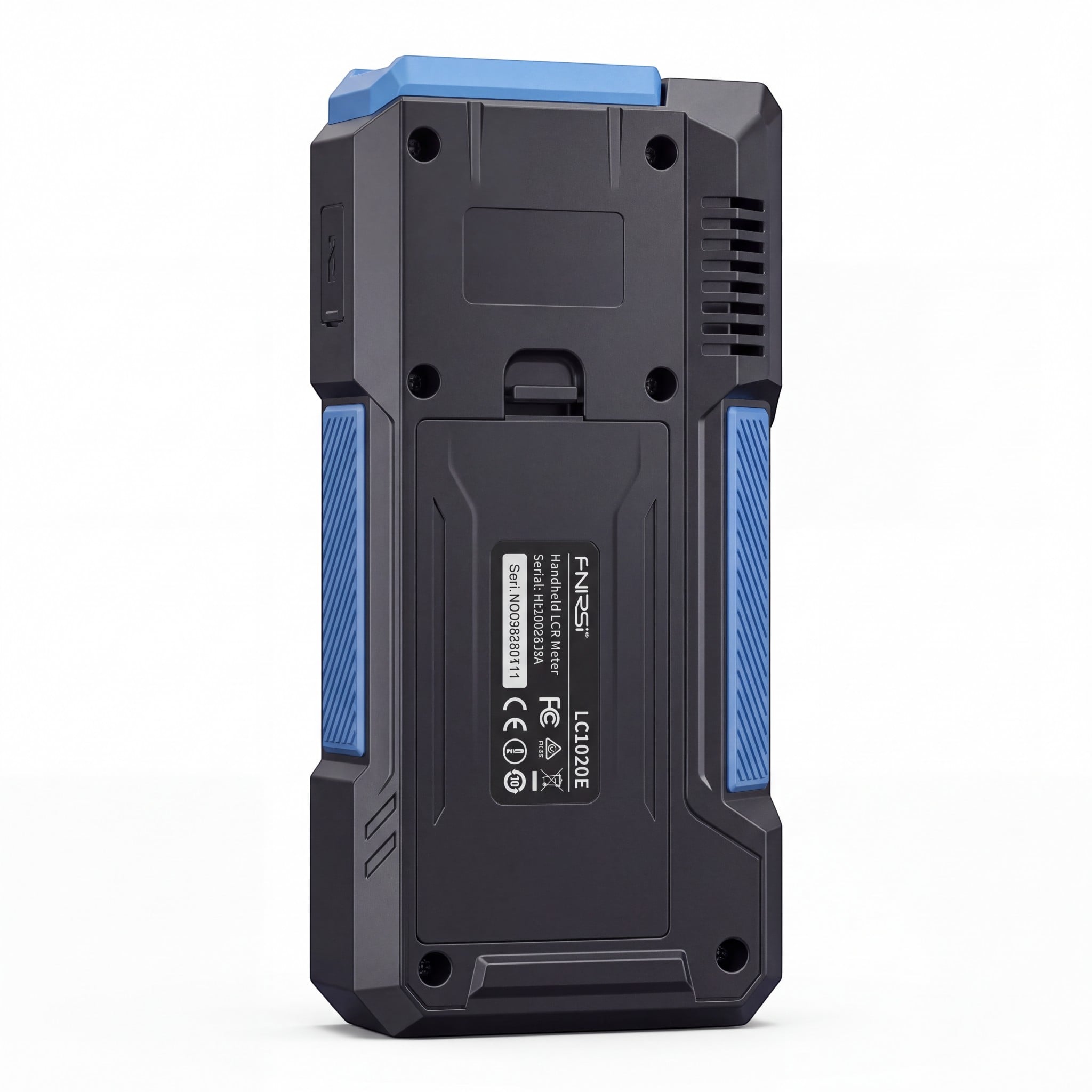

  • Construction: foldable stand, black-blue design
  • Packaging Dimensions: 26 × 15 × 9 cm
  • Weight: 0.8 kg

Contents of the Package:

  • LCR Meter 1×
  • Data Cable 1×
  • Shorting Plate 1×
  • Kelvin Test Probes 1×
  • Measuring Cables (black and red) 1 pair
  • User Manual 1×

This LCR meter offers the functions of a bench component tester in a compact portable design. Five test frequencies, selectable test levels, and internal bias voltage allow for measurement tailored to specific types of components. Open-circuit and short-circuit calibration eliminates errors caused by measuring cables and fixtures. The sorting mode with adjustable tolerance and result counting simplifies the inspection of series of resistors, capacitors, and coils. The built-in battery and USB-C charging enable use in the workshop, service, and field.
