Veterinary Ultrasound with Rectal Linear Probe 6.5 MHz 5.6 Inch Display Dimensions 240 x 120 x 45 mm For Examination of Cattle and Horses
Veterinary Ultrasound with Rectal Linear Probe 6.5 MHz 5.6 Inch Display Dimensions 240 x 120 x 45 mm For Examination of Cattle and Horses 1

Veterinary Ultrasound with Rectal Linear Probe 6.5 MHz 5.6 Inch Display Dimensions 240 x 120 x 45 mm For Examination of Cattle and Horses

The reproduction of a mare or cow is assessed more easily with the linear probe. The entire set fits into the case, and the strap keeps it close to the body even in the field between herds. Full description
In stock
€2,513.93
Price incl. VATImport charges will apply
Safe shopping Safe shopping
Overview
Veterinary Ultrasound with Rectal Linear Probe 6.5 MHz 5.6 Inch Display Dimensions 240 x 120 x 45 mm For Examination of Cattle and Horses

For large livestock, external examinations often fail because the probe must pass through too thick a layer of tissue. The rectal probe bypasses this problem: it has the shape of a narrow rod and is inserted through the rectum, thus being close to the organs of interest. The frequency 6.5 MHz provides a detailed image at a short distance suitable for assessing the reproductive and digestive tracts of horses, cattle, camels, and other large animals. The image is displayed on a 5.6-inch screen of the main unit, which you carry over your shoulder with a strap and control with the other hand. The compact body measuring 240 x 120 x 45 mm does not obstruct even when working in a standing position.

Key Features:

  • Rod Design of the Probe — elongated shape with a linear sensing field on one side of the head.
  • Frequency 6.5 MHz — higher resolution for nearby structures, as the probe operates from an immediate distance.
  • Linear Image — rectangular field of view renders the observed area without distortion into a fan shape.
  • Adjustable Depth — range of 126 to 307 mm in sixteen steps, allowing you to zoom in or expand the image.
  • Pregnancy Evaluation — the device includes calculations for pregnancy testing as well as measurements of distance, circumference, area, and volume.
  • 256 Shades of Grey — a fine scale helps distinguish the wall of the organ from its contents.
  • Freeze and Record — the Freeze button stops the image, and the Review function recalls saved images from the 32 GB memory.
  • USB Output — you can transfer findings to an external drive without disassembling the device.
  • Strap Included — both shoulder and waist straps keep the unit close to the body and leave your hands free.
  • Aluminium Case — transport between farms is managed by a lockable case with a handle and lock.

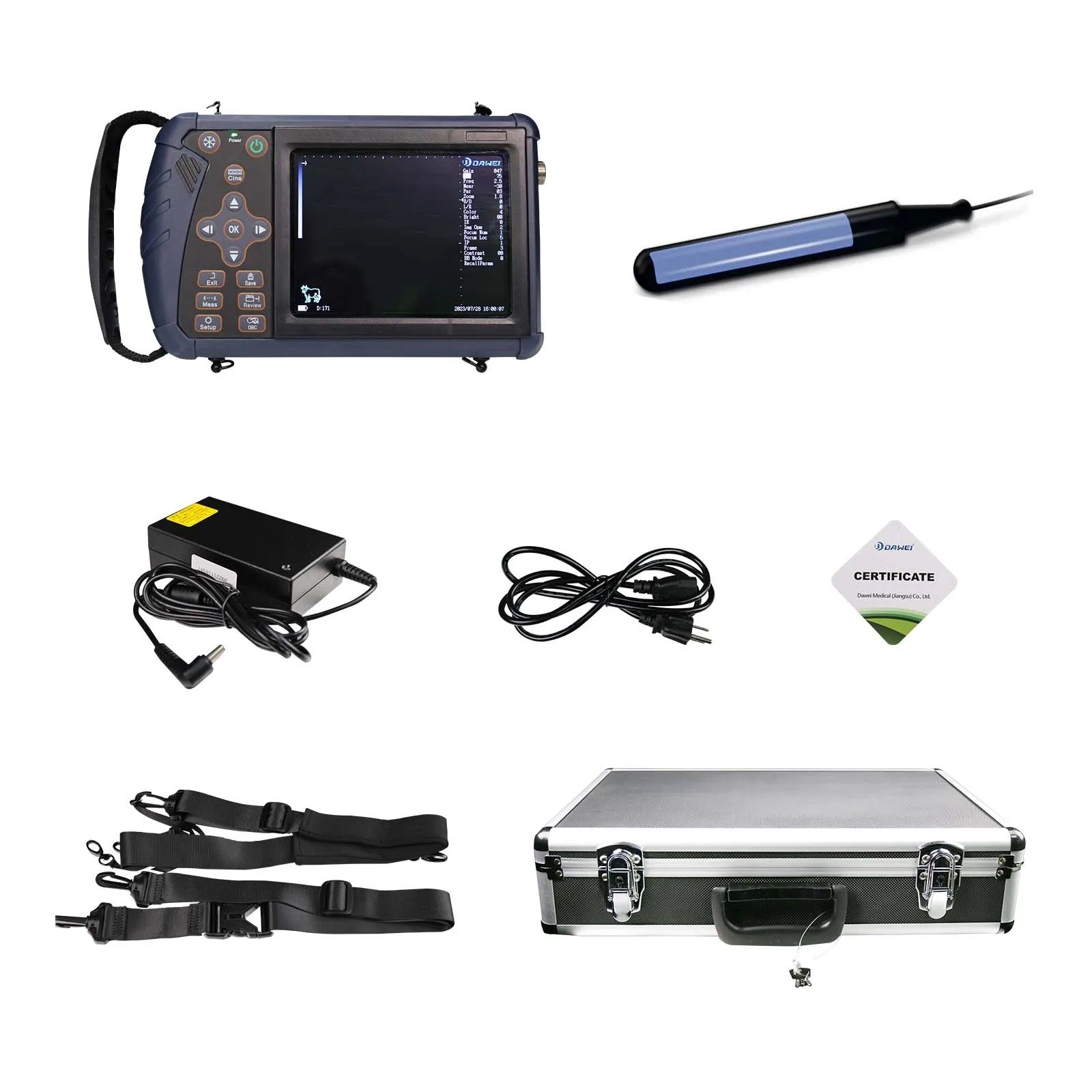

Contents of the Package:

  • 1x main ultrasound unit
  • 1x rectal linear probe 6.5 MHz
  • 1x power adapter
  • 1x power cable
  • 1x portable case
  • 1x carrying strap
  • 1x user manual

The set with the rectal probe is essential equipment for insemination technicians and veterinarians working with herds of cattle or horse breeding. Work takes place directly in the standing position, where you do not have access to a socket or table, which is why battery operation and carrying on a strap are advantageous. The linear image from the frequency 6.5 MHz provides a basis for assessing the condition of the reproductive system without the need to transport the animal elsewhere. Saved images are useful for herd documentation and for comparison between individual checks. Thoroughly clean the probe and cable after use and allow them to dry before storing in the case to prevent moisture from remaining in the foam bedding.

Price incl. VAT €2,513.93
