Veterinary Ultrasound with Convex Probe 3.5 MHz Display 5.6 Inches Depth 126 to 307 mm Memory 32 GB Blue For Detecting Pregnancy in Pigs and Sheep
Veterinary Ultrasound with Convex Probe 3.5 MHz Display 5.6 Inches Depth 126 to 307 mm Memory 32 GB Blue For Detecting Pregnancy in Pigs and Sheep 1

Veterinary Ultrasound with Convex Probe 3.5 MHz Display 5.6 Inches Depth 126 to 307 mm Memory 32 GB Blue For Detecting Pregnancy in Pigs and Sheep

You can determine the pregnancy of a sow or ewe directly in the barn. The device runs on battery and you can save the image to memory or transfer it to a flash drive via USB. Full description
In stock
Delivery €1.59
30-day return policy
€2,019.61
Safe shopping Safe shopping
Overview
Veterinary Ultrasound with Convex Probe 3.5 MHz Display 5.6 Inches Depth 126 to 307 mm Memory 32 GB Blue For Detecting Pregnancy in Pigs and Sheep

The 3.5 MHz convex probe is a classic choice for confirming pregnancy in medium-sized livestock. The curved head creates a wide fan of images and the lower frequency penetrates deeper into the tissue, allowing the probe to be used on pigs, sheep, and dogs. The image is displayed on a 5.6-inch LED screen built directly into the device, so there is no need for an external monitor. You can choose the display depth in the range of 126 to 307 mm in sixteen steps according to the size of the animal being examined. The body measures 240 x 120 x 45 mm and includes a hand strap and rubber bumpers in the corners, making it usable even while standing by the pen.

Key Features:

  • 3.5 MHz Convex Head — wide field of view and deeper penetration, suitable for sows, ewes, and larger dogs.
  • Adjustable Depth — sixteen levels from 126 to 307 mm cover both shallow and deeply located structures.
  • Three Display Modes — B, B+B, and 4B, allowing you to display multiple sections side by side.
  • 256 Shades of Grey — resolution of shades helps differentiate fluid from tissue at the boundaries of structures.
  • Measurement Functions — pregnancy test, distance, circumference, area, volume, and angle are calculated directly in the device.
  • Loop Playback — Cine function saves at least 256 images, approximately ten seconds of recording for review.
  • 32 GB Memory — internal TF card holds a large archive and data can be transferred via USB interface to an external flash drive.
  • Button Control — Freeze, Save, Review, Meas, Setup, and OBC are located next to the display under your thumb.
  • Battery Operation — battery status is visible in the lower bar of the screen, so you know how many examinations are left.
  • Durable Design — dark blue casing with rubber bumpers withstands work in farming conditions.

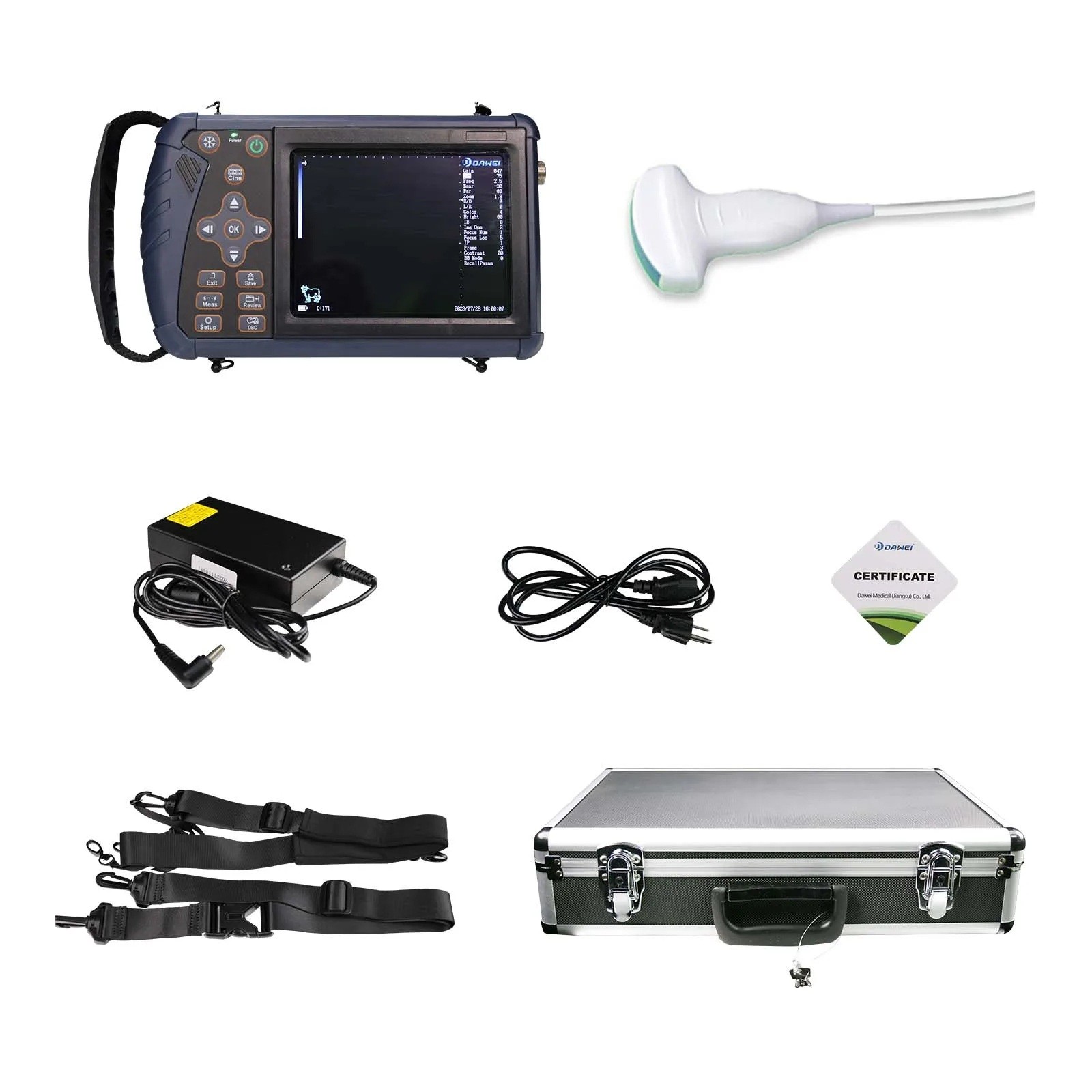

Package Contents:

  • 1x main ultrasound unit
  • 1x 3.5 MHz convex probe
  • 1x power adapter
  • 1x power cable
  • 1x portable case
  • 1x carrying strap
  • 1x user manual

For pig and sheep breeders, this configuration is the most common entry into ultrasound diagnostics, as it covers the most frequent need, namely checking for pregnancy after mating. The examination is performed externally through the abdominal wall, so it does not require the animal to be restrained in a cage or assistance from another person. Dimensions 240 x 120 x 45 mm mean that you can carry the device in one hand throughout the premises. You can review saved images in the comfort of your office and compare them between individual checks. Clean the probe after each animal and remove any gel residue to prevent clogging of the head surface.
