Vector Network Antenna Analyser VNA 10 kHz–1.5 GHz, 2.8" Touch Screen, 650 mAh Battery, ABS Case, Black, Antenna Tuner

Vector Network Antenna Analyser VNA 10 kHz–1.5 GHz, 2.8" Touch Screen, 650 mAh Battery, ABS Case, Black, Antenna Tuner

Measurement of SWR, impedance, S11/S21 and Smith chart for antennas and cables. Portable device with TDR function, USB-C, microSD slot and SMA calibration set. Full description
In stock
Delivery €1.59
30-day return policy
€125.72
Safe shopping Safe shopping
Overview
Vector Network Antenna Analyser VNA 10 kHz–1.5 GHz, 2.8" Touch Screen, 650 mAh Battery, ABS Case, Black, Antenna Tuner

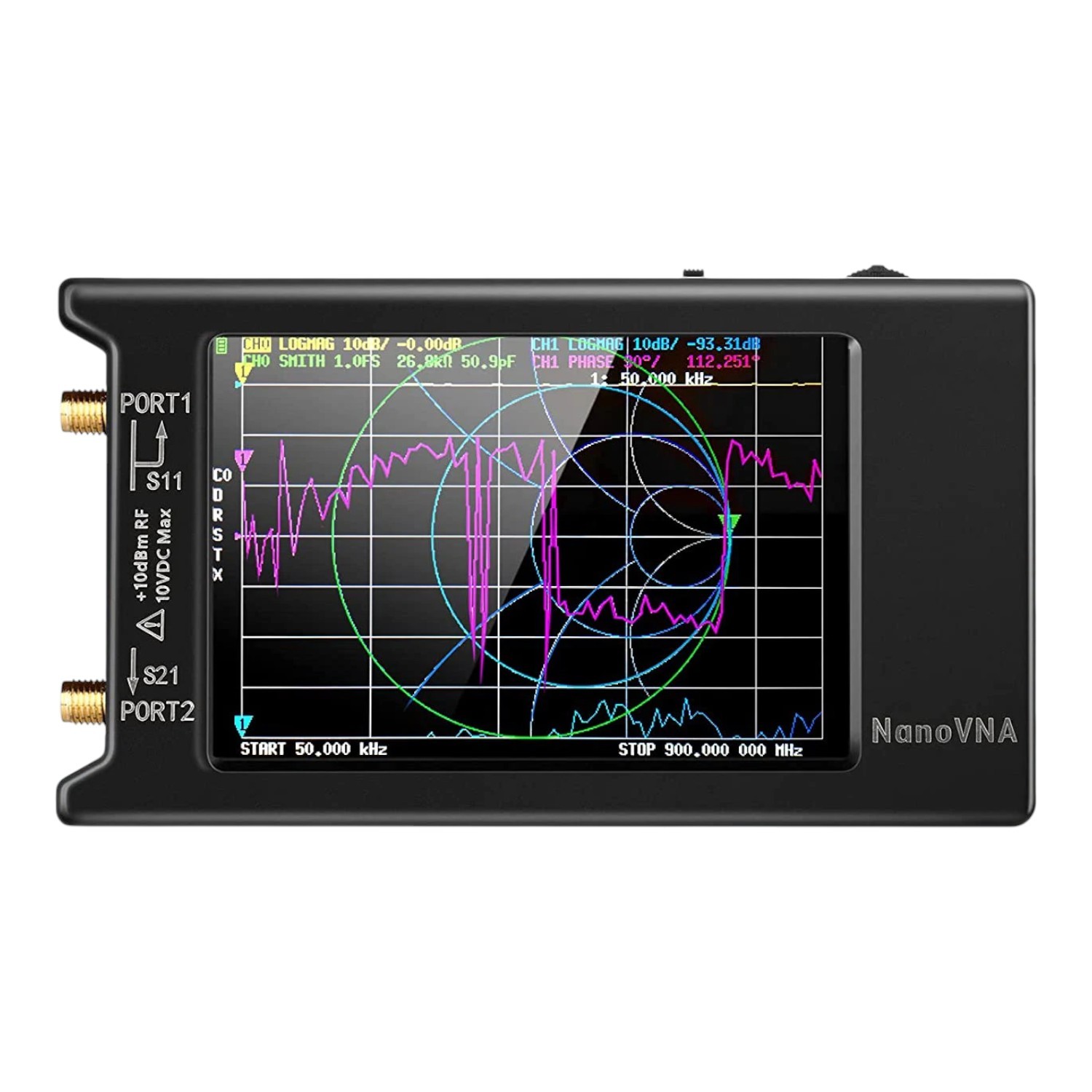

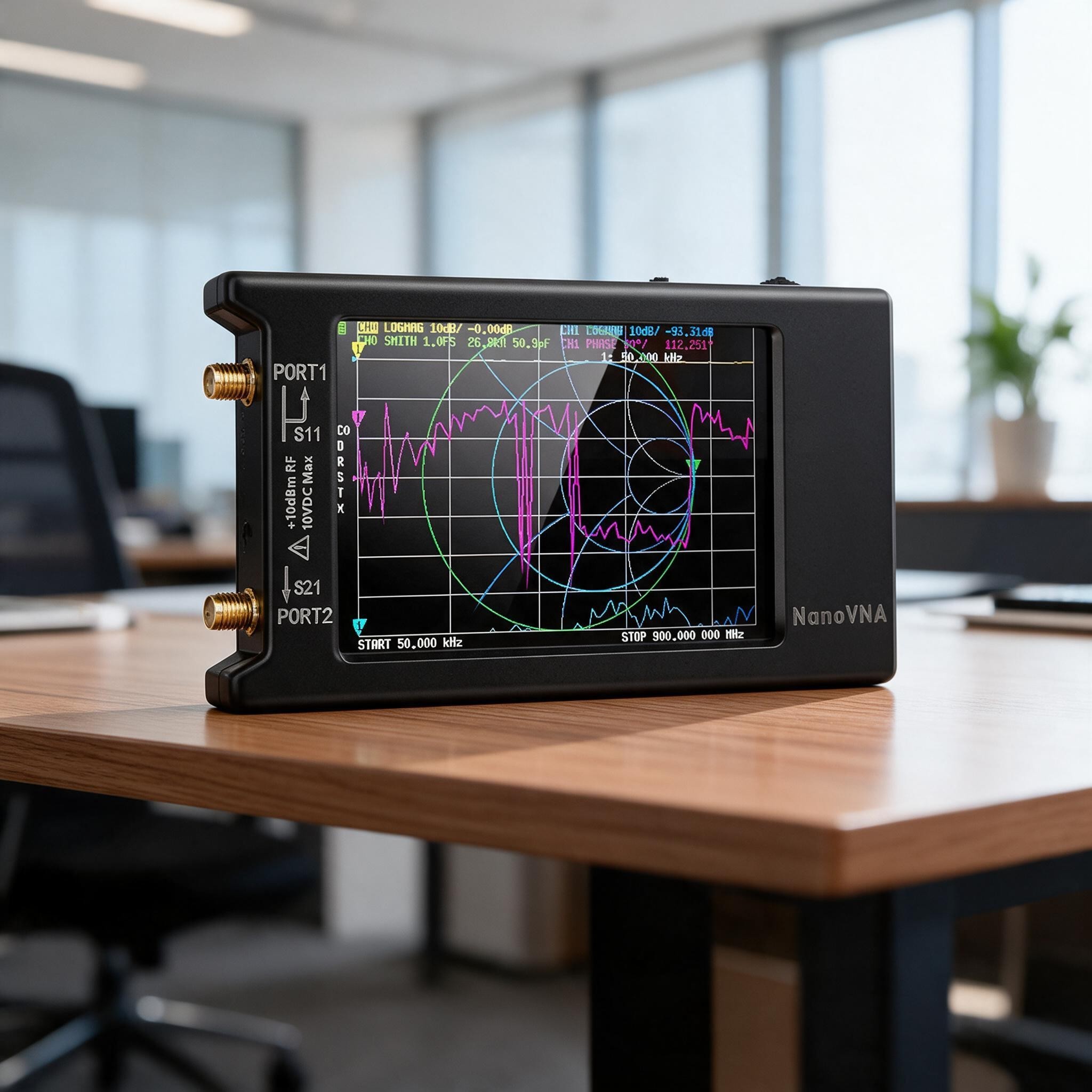

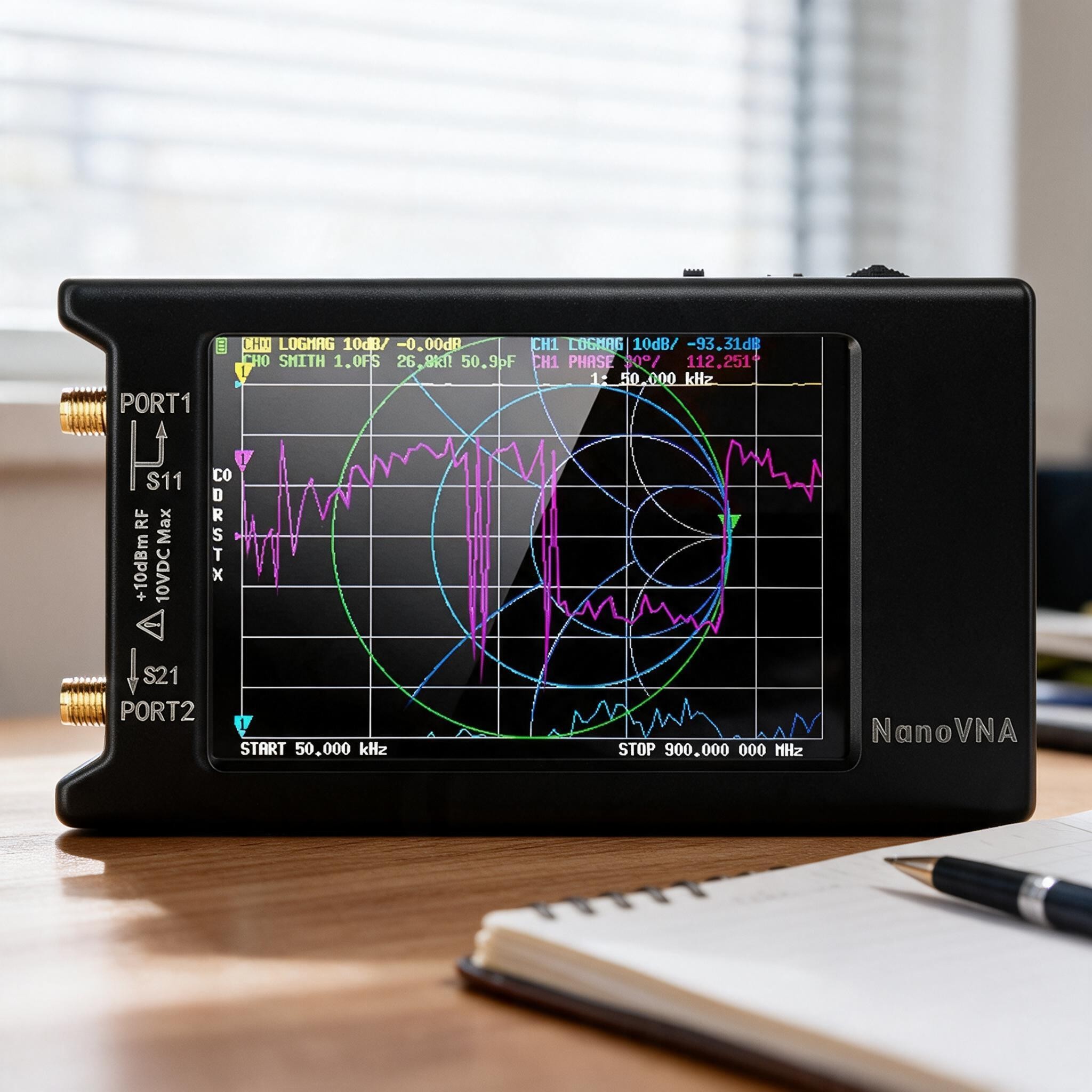

The Vector Network Antenna Analyser VNA covers a frequency range of 10 kHz–1.5 GHz. It is used for measuring antennas, coaxial cables, filters, and other high-frequency circuits. The device measures S parameters, standing wave ratio (SWR), impedance, phase, and delay, and displays the results in a Smith chart. Time Domain Reflectometry (TDR) allows monitoring of transmission line characteristics and locating mismatches or faults in the cable. The analyser is operated via a touch screen or multifunction switch and connects to a computer or phone via USB-C. Thanks to the built-in battery, measurements can also be taken in the field, for instance, when tuning antennas and setting the antenna tuner directly at the installation site.

  • Frequency range: 10 kHz – 1.5 GHz
  • Measurement dynamic range: 70 dB in the 50 kHz – 300 MHz band, lower in higher bands
  • RF output: -13 dBm (maximum -9 dBm)
  • Frequency accuracy: < 0.5 ppm
  • SWR port: < 1.1
  • Measured quantities: S parameters (S11, S21), SWR, impedance, phase, delay, Smith chart, and Time Domain Reflectometry (TDR) analysis
  • Display: 2.8" Touch TFT Display with a resolution of 320 × 240 px
  • Control: by touch or multifunction switch (left / OK / right)
  • Calibration points: 101, scanning points: 101
  • Display: 4 traces, 4 markers, 5 memory positions for saving settings
  • Interface: USB Type C, CDC communication mode (serial), connection to PC and most Android phones (does not support iPhone)
  • Storage: microSD card slot up to 32 GB for storing measured data
  • Power supply: USB 5 V / 120 mA, built-in 650 mAh battery, maximum charging current 0.8 A
  • Battery status displayed on the screen
  • Connectors: 2× SMA (PORT1 – S11, PORT2 – S21), maximum input +10 dBm RF / 10 V DC
  • Case: black, made of ABS plastic
  • Dimensions of the PCB: 54 × 85.5 × 11 mm (excluding connectors and switches)
  • Usage: MF, HF (shortwave), VHF and UHF antennas, baluns, cables, duplexers and filters, measurement of insertion loss and port isolation

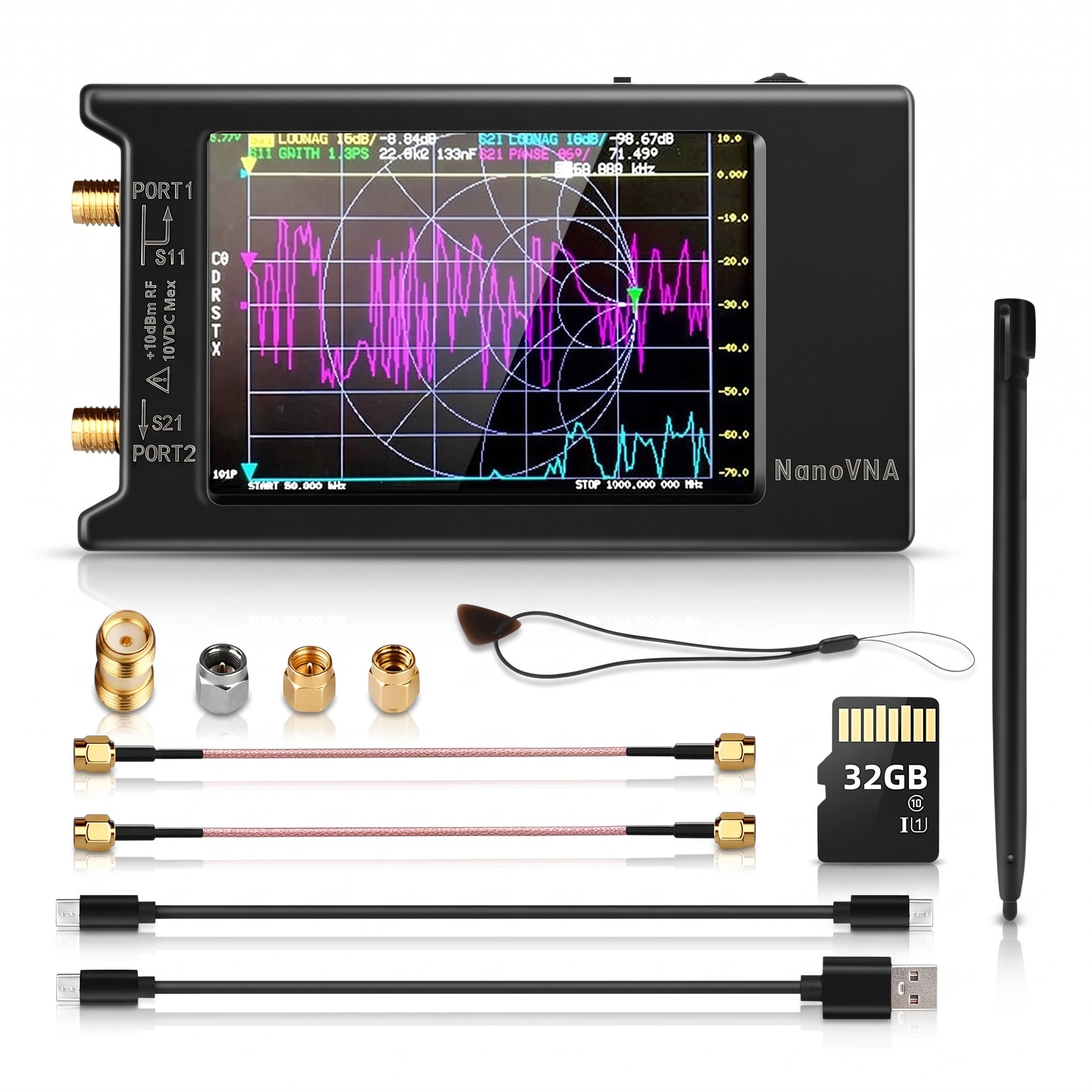

  • Package contents: 1× analyser with 2.8" touch screen and 650 mAh battery, 2× SMA RG174 cable 20 cm (male–male), 2× SMA connector (female–female), 1× SMA SHORT calibration set, 1× SMA OPEN calibration set, 1× SMA LOAD calibration set, 1× USB Type-C data cable, 1× USB-C – USB-C cable, 1× touch probe

The analyser is designed for radio amateurs, service technicians, and enthusiasts of high-frequency electronics who need to measure antennas in MF, HF, VHF, and UHF bands. It allows for checking SWR and impedance matching. It also measures the insertion loss of filters and port isolation in dual-band and tri-band duplexers. Compact dimensions and a built-in battery facilitate measurements directly at the antenna without external power supply. Measured data can be stored on a microSD card or transferred to a computer via USB-C interface. The SHORT, OPEN, and LOAD calibration sets are included in the package, so calibration can be performed without additional accessories.
