Universal Circuit Breaker Lock with Switch 50 × 27.5 mm Safety Locking of Switch for Distribution Boards and Electrical Installations

Universal Circuit Breaker Lock with Switch 50 × 27.5 mm Safety Locking of Switch for Distribution Boards and Electrical Installations

Safety locking of the circuit breaker to secure the switch in the distribution board. Compact dimensions and easy installation with the option of using a padlock. Full description
In stock
Delivery €1.59
30-day return policy
€14.80
Safe shopping Safe shopping
Overview
Universal Circuit Breaker Lock with Switch 50 × 27.5 mm Safety Locking of Switch for Distribution Boards and Electrical Installations

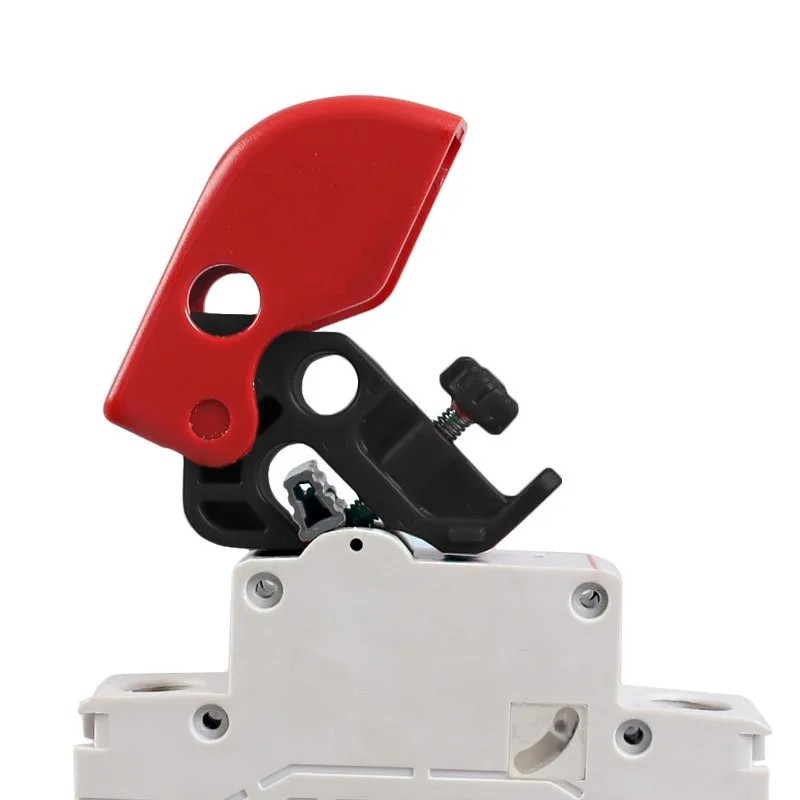

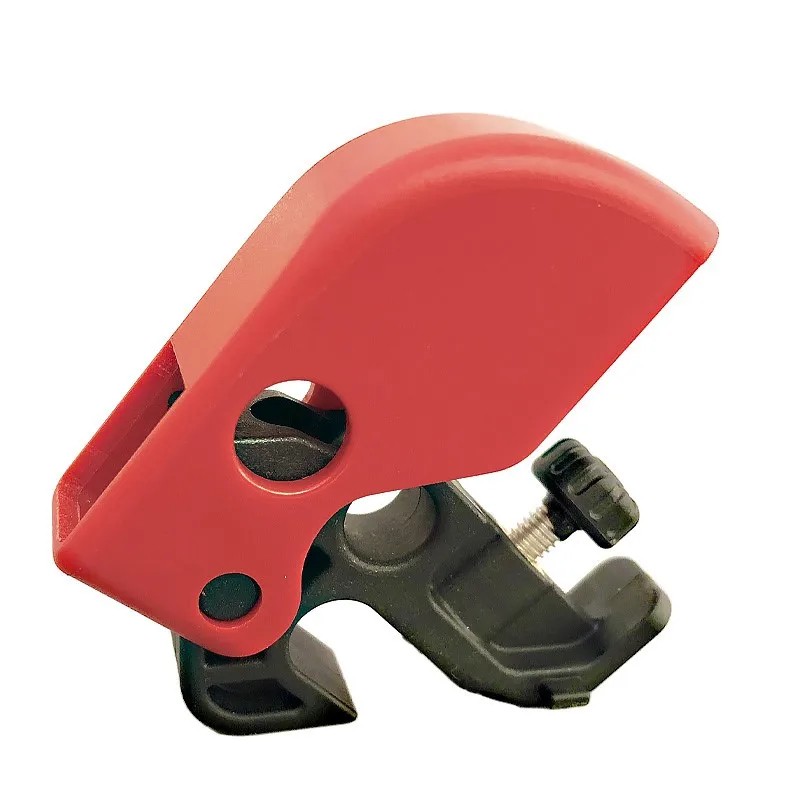

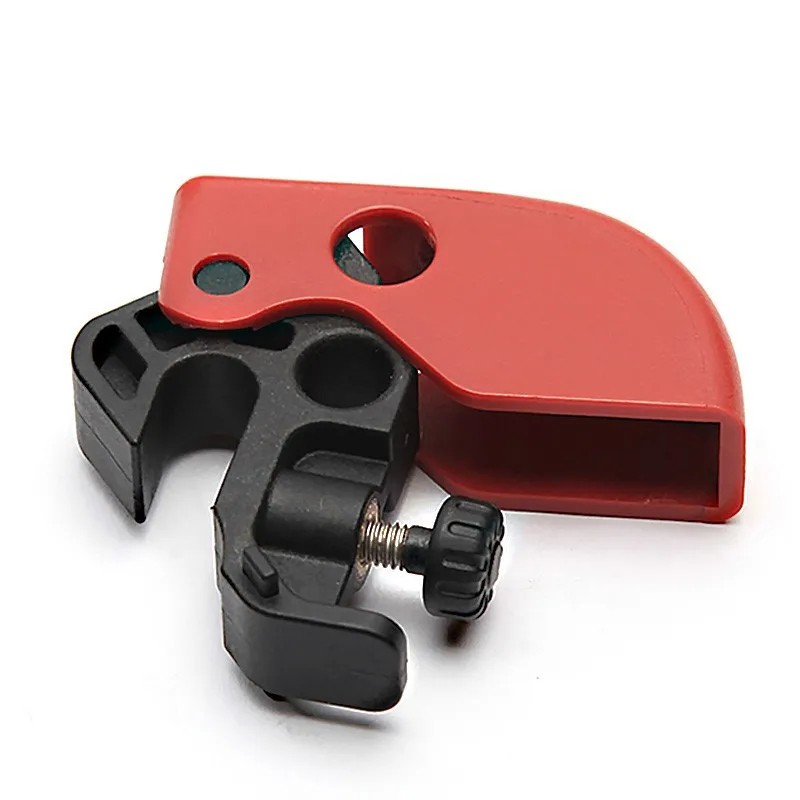

The universal circuit breaker lock is a practical solution for securing electrical circuits against accidental activation. It is primarily used in distribution boards where it is necessary to mechanically block the circuit breaker switch during maintenance or servicing. This type of locking allows for the physical locking of the circuit breaker's lever using a padlock, thereby increasing control over the handling of the connection. The design is intended for the device to be easily fitted directly onto the switch.

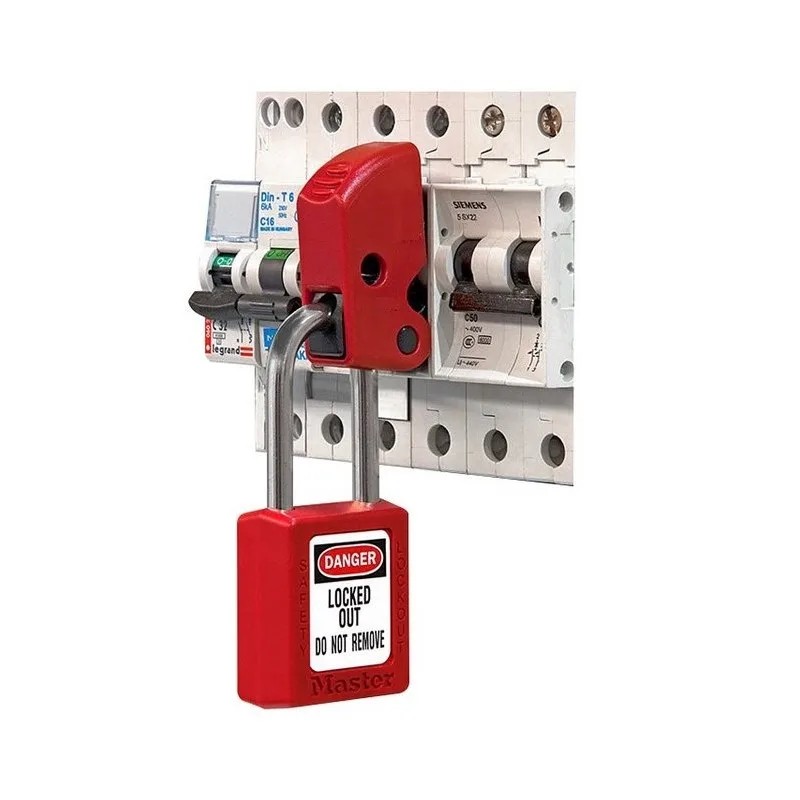

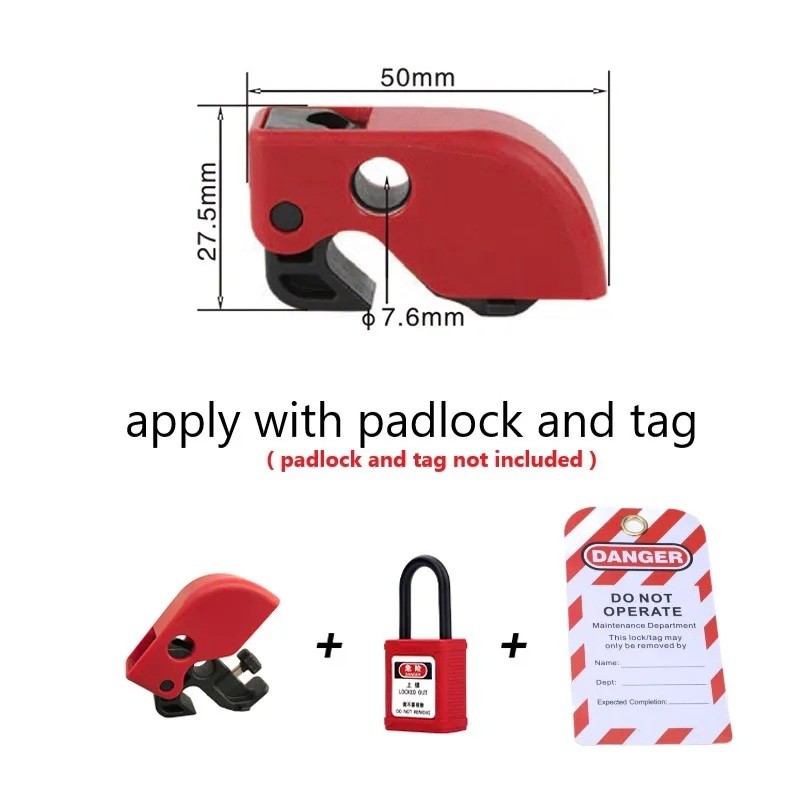

The overall dimensions of the product are 50 × 27.5 mm, which corresponds to a compact design suitable for standard installation distribution boards. The body of the lock features a hole with a diameter of 7.6 mm, which is used for inserting a padlock. This allows the circuit breaker to be securely locked and prevents accidental activation. The design employs a mechanism that firmly holds onto the switch and prevents its movement. The lock is intended for use with a padlock and a warning tag, as indicated in the image.

The device is suitable for both professional and general use, for example, when working on electrical installations, repairs, or inspections of equipment. An advantage is the simple handling without the need for complex assembly. It is sufficient to place the lock on the circuit breaker and secure it with a lock. This ensures clear signalling that the circuit cannot be manipulated. A practical feature is also the option to combine with a padlock and tag, which allows for clear labelling of the workplace.

This safety element helps reduce the risk of accidental activation of equipment during work. Due to its compact dimensions, it does not take up much space in the distribution board and can be easily transported. The design is adapted for standard types of circuit breakers with switches, ensuring universal use. An advantage is also the easy fitting onto the circuit breaker's lever, which requires no tools. The product is suitable for situations where it is necessary to ensure safety when handling electrical devices.

  • Universal Circuit Breaker Lock with Switch
  • Dimensions: 50 × 27.5 mm
  • Hole for padlock: Ø 7.6 mm
  • Mechanical locking of the circuit breaker's lever
  • Suitable for distribution boards and electrical installations
  • Use during maintenance and servicing
  • Option to lock with a padlock
  • Compact design
  • Easy fitting without tools
  • Contents of the package: 1× circuit breaker lock

This circuit breaker lock represents a practical addition for the safe securing of electrical circuits during work. It allows for simple and quick blocking of the switch without the need to interfere with the installation. Thanks to the hole for the padlock, the device can be easily secured against manipulation. The dimensions shown in the image facilitate the selection of an appropriate solution for a specific type of circuit breaker. If you need mechanical locking of the circuit breaker switch, this product offers a simple and clear solution.
