Two-Stage Vacuum Pump 6 CFM 0.2 Pa with Oil Bottle 27.5x22.5x12 cm Orange for Air Conditioning and Refrigeration Systems

Two-Stage Vacuum Pump 6 CFM 0.2 Pa with Oil Bottle 27.5x22.5x12 cm Orange for Air Conditioning and Refrigeration Systems

The two-stage design ensures a deep vacuum of up to 0.2 Pa with a flow rate of 6 CFM. Service equipment for more demanding installations with oil included. Full description
In stock
Delivery €1.59
30-day return policy
€167.64
Safe shopping Safe shopping
Overview
Two-Stage Vacuum Pump 6 CFM 0.2 Pa with Oil Bottle 27.5x22.5x12 cm Orange for Air Conditioning and Refrigeration Systems

The two-stage vacuum pump offers a higher level of evacuation than single-stage models thanks to a pair of series-connected suction chambers. The suction capacity of 6 CFM and final pressure of 0.2 Pa allow for the removal of not only air but also residual moisture and other impurities from refrigeration and air conditioning circuits. The aluminium construction with dimensions of 27.5 x 22.5 x 12 cm is complemented by a distinctive orange handle, making it comfortable to handle the device. The included oil bottle allows the device to be filled and put into operation without additional purchases.

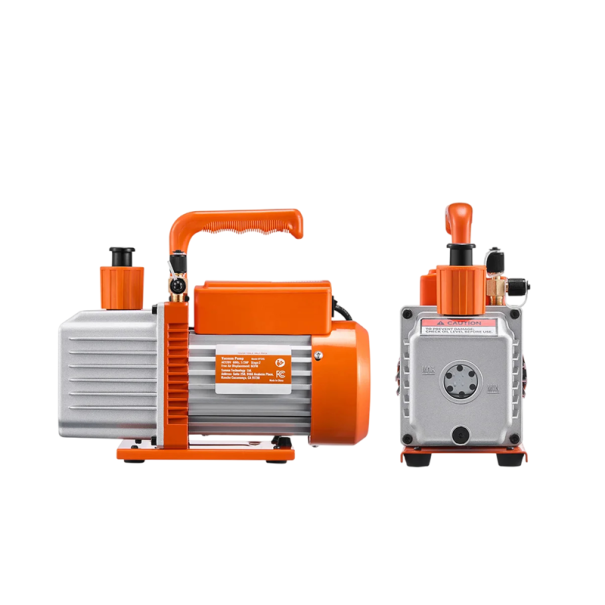

Visible features include the top oil filling port with a valve, suction fitting for hoses, a production label with model identification, and a warning label reminding to check the oil level before starting. The oil sight glass is located on the side of the device, facilitating visual inspection of the level between the MIN and MAX marks. The rear rubber feet stabilise the device during operation and reduce the transfer of vibrations to the substrate.

Main features:

  • Two-stage construction for deeper vacuum
  • Suction capacity of 6 CFM
  • Final pressure of 0.2 Pa for more demanding applications
  • Dimensions 27.5 x 22.5 x 12 cm
  • Aluminium body with orange handle and motor cover
  • Oil filling port with valve and oil sight glass
  • Suction fitting for connecting service hoses
  • Anti-vibration feet for stable positioning
  • Oil bottle included

Package contents: Two-stage vacuum pump, oil bottle.

This pump is suitable for professional servicing of refrigeration and air conditioning technology, installation of heat pumps, and laboratory applications, where a better level of vacuum is required than with single-stage models. It is suitable for evacuating systems containing synthetic refrigerants and for working with automotive air conditioning systems, where low residual moisture extends the life of the compressor. Easy access to the oil section simplifies regular maintenance. The combination of sturdy construction, sufficient power, and practical oil equipment makes the device a reliable assistant in everyday service operations.
