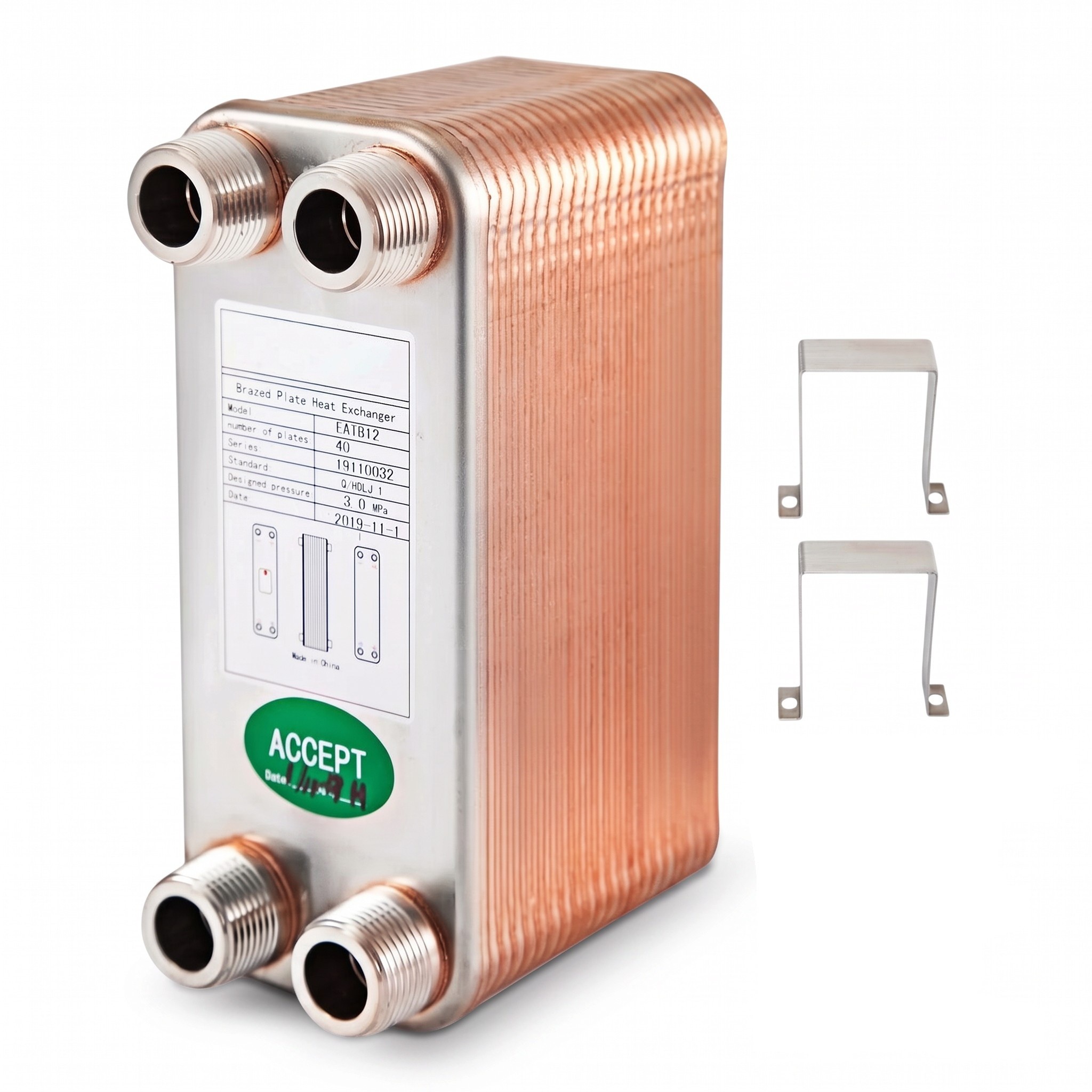

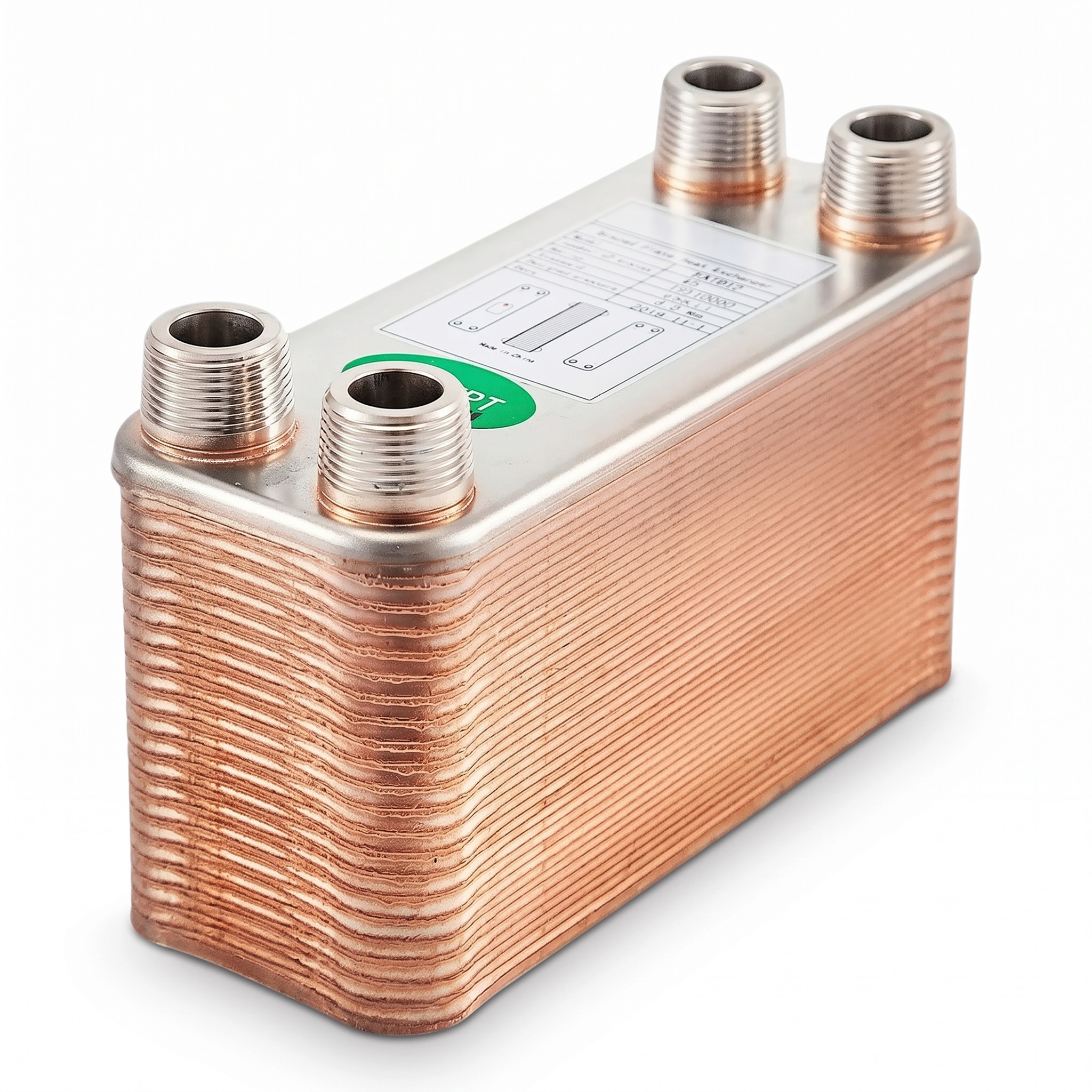

Soldered Plate Heat Exchanger with 40 Plates Stainless Steel Wort and Beer Chiller with 3/4 Inch External Threads for Home Brewing Water Heating
You already have the maximum available quantity in your cart.
The soldered plate heat exchanger facilitates one of the most important steps in brewing for home brewers, the rapid cooling of wort after boiling. Inside, there are 40 stainless steel plates that create a large surface area for heat transfer between the hot wort and cold water. Both liquids flow against each other, making the exchanger work very efficiently. Compared to smaller exchangers, the higher number of plates can cool a larger volume of wort in a shorter time. Connection is ensured by four connections with 3/4 inch external threads.
- Number of Plates – 40 plates for a large heat exchange surface.
- Material – stainless steel, soldered construction.
- Connections – 4x 3/4 inch external thread (MNPT).
- Counterflow Configuration – hot and cold liquids flow in opposite directions, which increases cooling efficiency.
- No Power Supply – the exchanger operates solely due to the flow of liquids, requiring no electricity.
- Compact Design – even with a higher number of plates, the exchanger takes up little space.

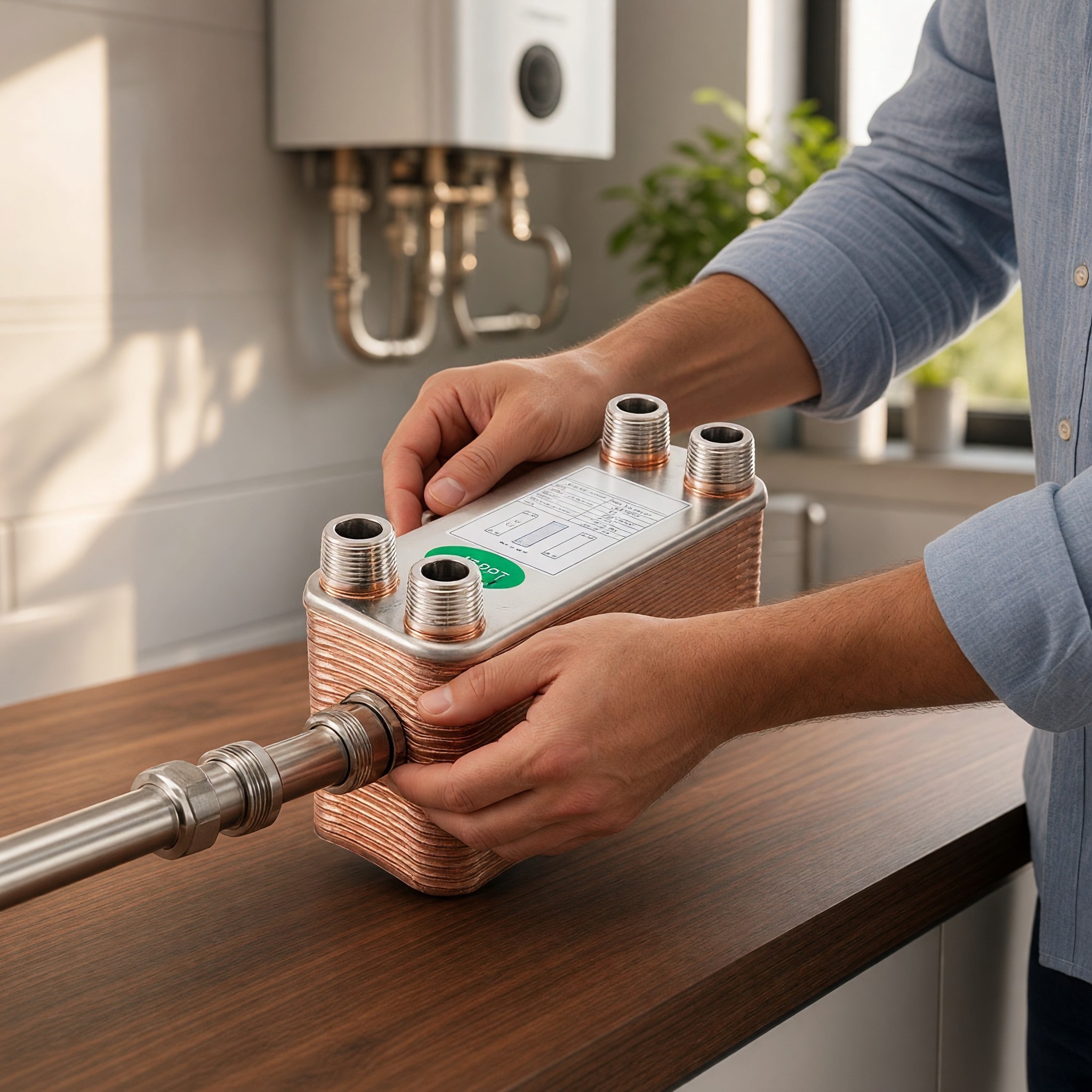

Typical use is in a home brewery: hot wort flows through one circuit of the exchanger and cold tap water through the other. The cooled wort then exits at a temperature suitable for fermentation. You can influence the cooling speed by adjusting the flow rate and the temperature of the cooling water. The colder the water and the slower the wort flows through the exchanger, the lower the output temperature you will achieve. The exchanger is also useful as a beer chiller at the tap, for heating water, or anywhere heat needs to be transferred between two liquids, such as in solar systems or heat recovery.

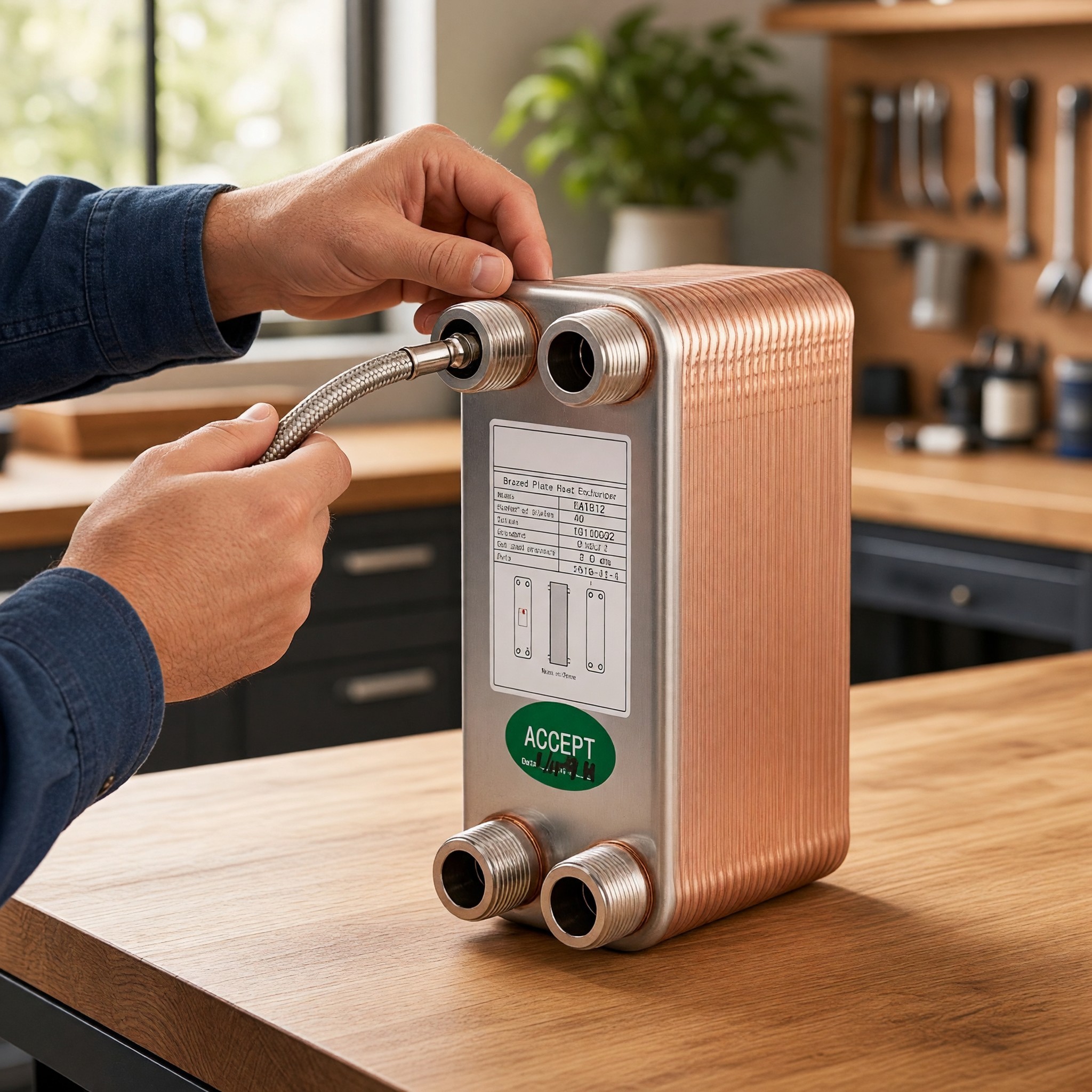

Before first use, thoroughly rinse the exchanger with clean water. After each brewing session, rinse it again to prevent residues of wort from settling in the channels between the plates. Hose fittings for the 3/4 inch threaded connections are not included. When installing them, we recommend sealing the threads with Teflon tape to prevent leaks.
The stainless surface is resistant to corrosion, easy to clean, and suitable for food use. Thanks to the universal threads, the exchanger can easily be integrated into your existing home brewing setup or another circuit. Its compact shape allows you to place the exchanger directly next to the brewing vessel or on a workbench. With proper maintenance and regular rinsing, the exchanger will reliably serve you in every brewing session.
Contents of the Package:
- 1x plate heat exchanger
The heat exchanger with 40 plates is suitable for brewers who brew larger batches and want to cool the wort as quickly as possible. Rapid cooling reduces the risk of contamination and shortens the entire brewing process. Stainless steel ensures long life and easy maintenance. Thanks to the counterflow configuration and large heat exchange surface, the exchanger effectively serves in cooling wort, beer, and heating water.
