Plate Heat Exchanger 60 Plates with Internal Thread 1/2 Inch BSP 19.4 x 7.2 x 16.1 cm Stainless Steel 316L and Copper Wort and Beer Chiller Water
You already have the maximum available quantity in your cart.

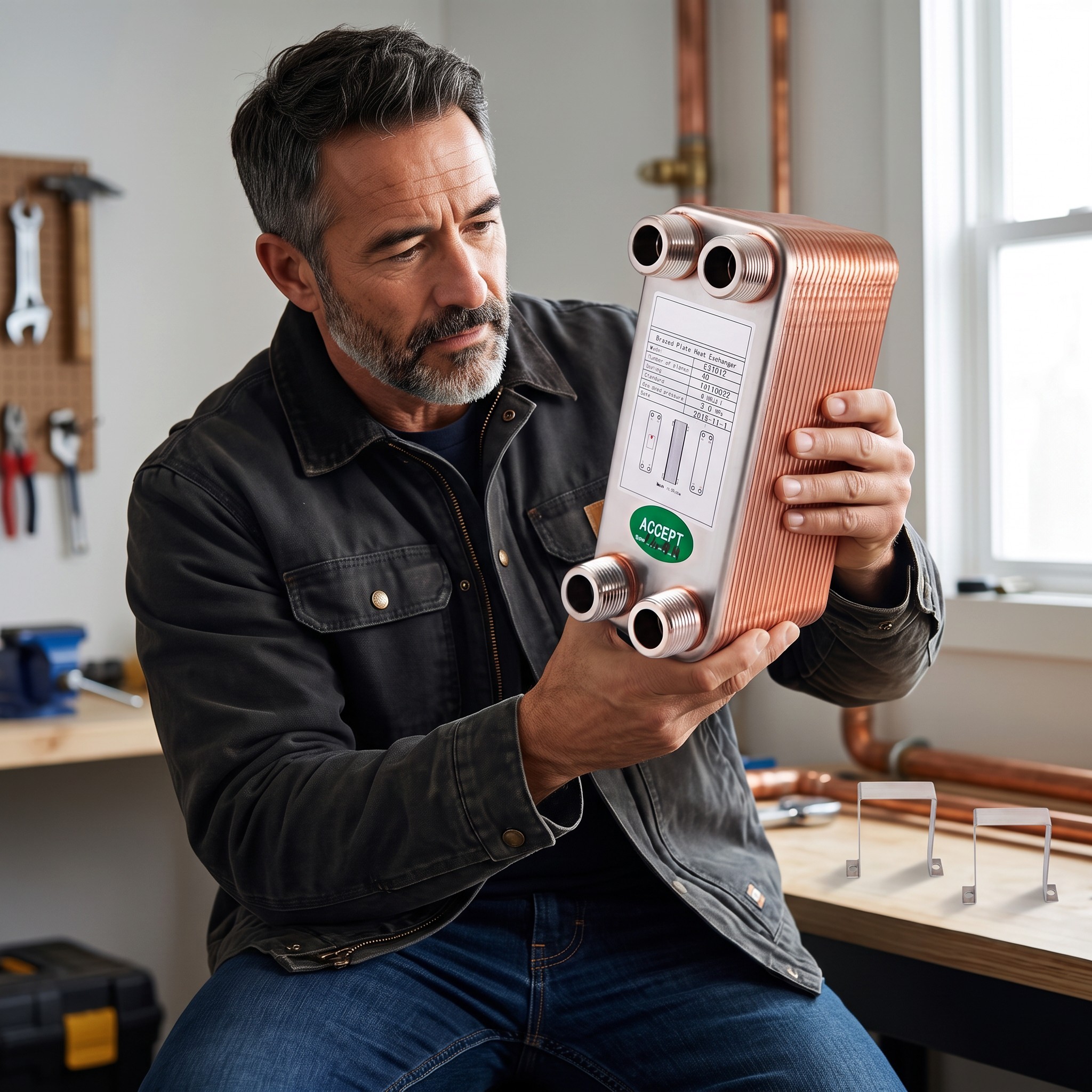

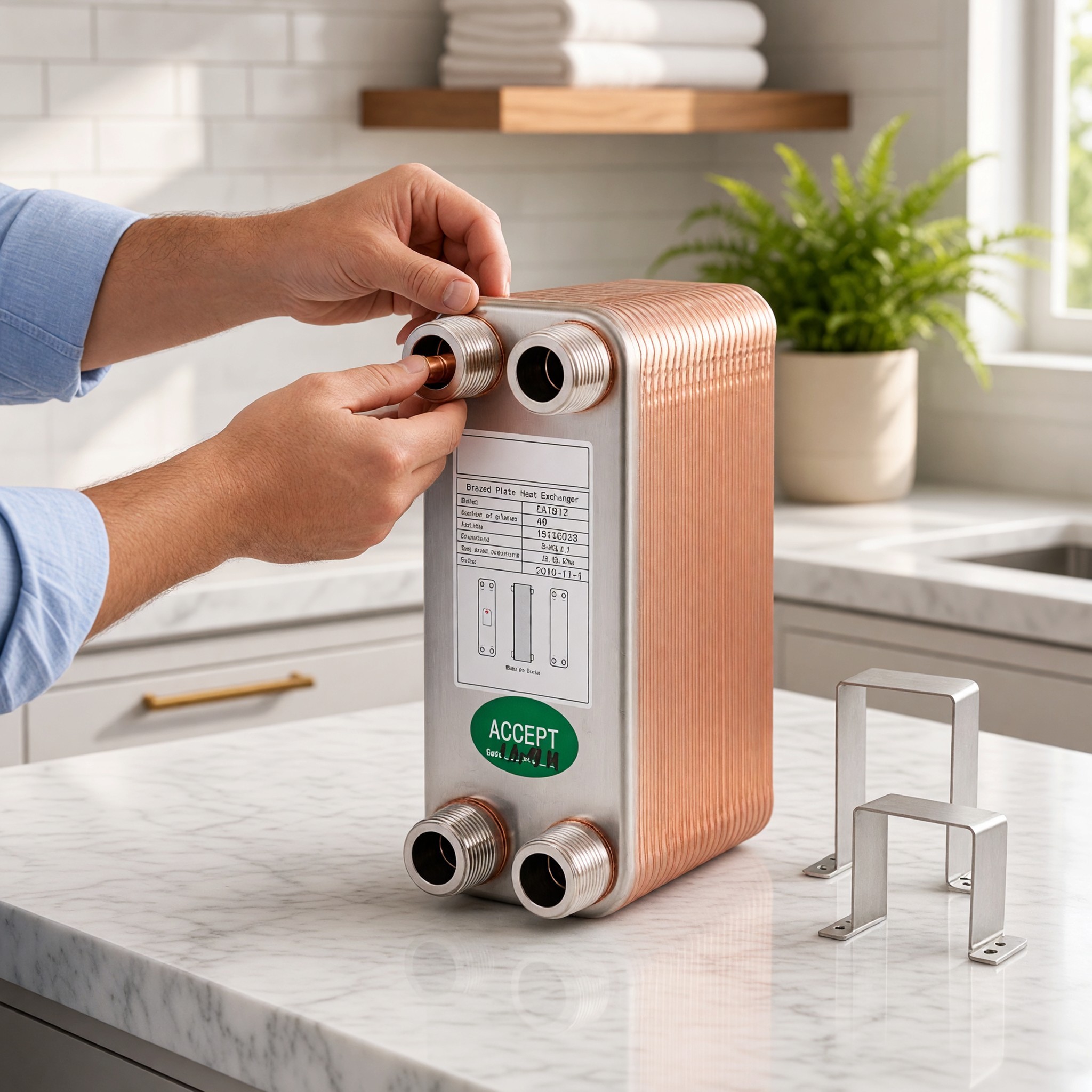

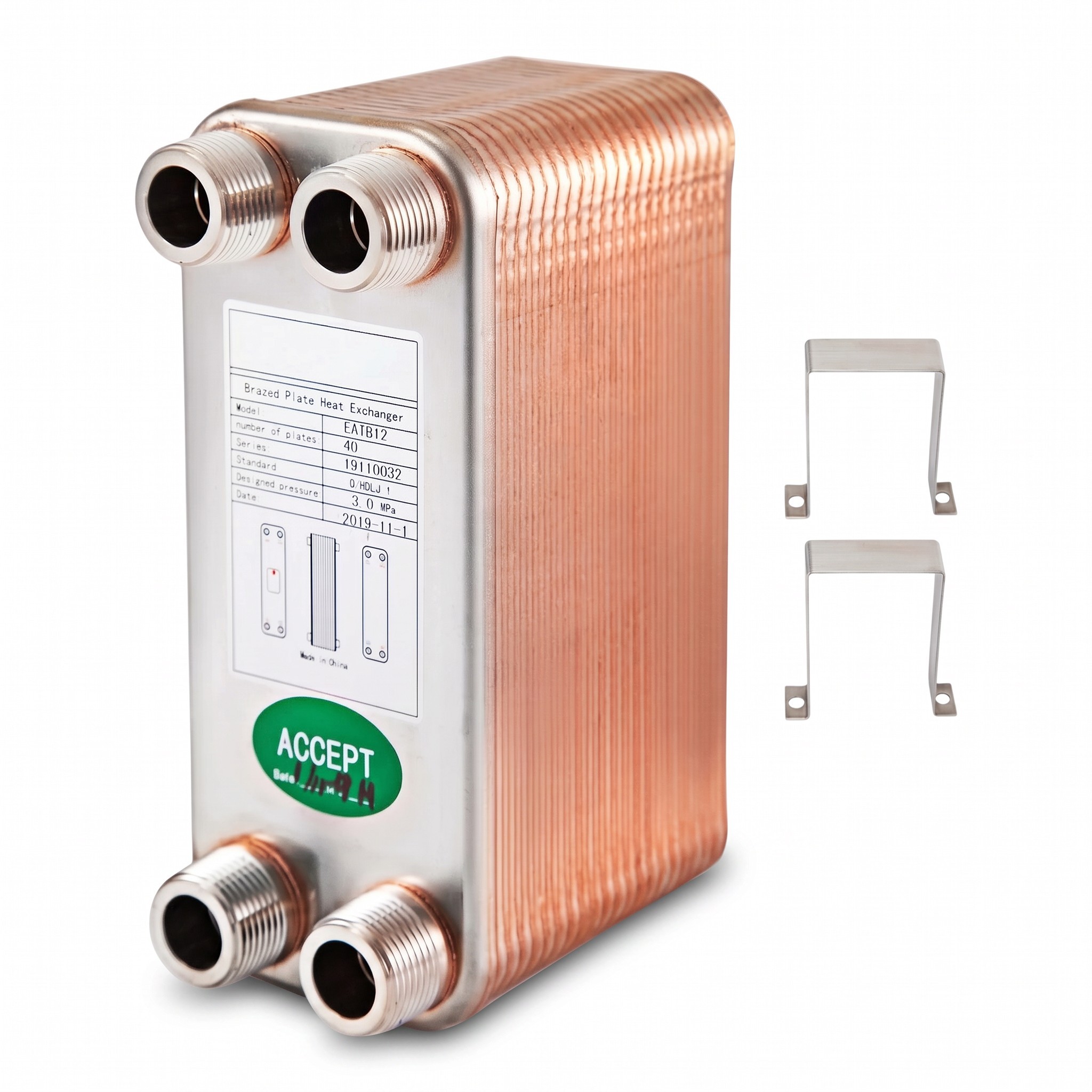

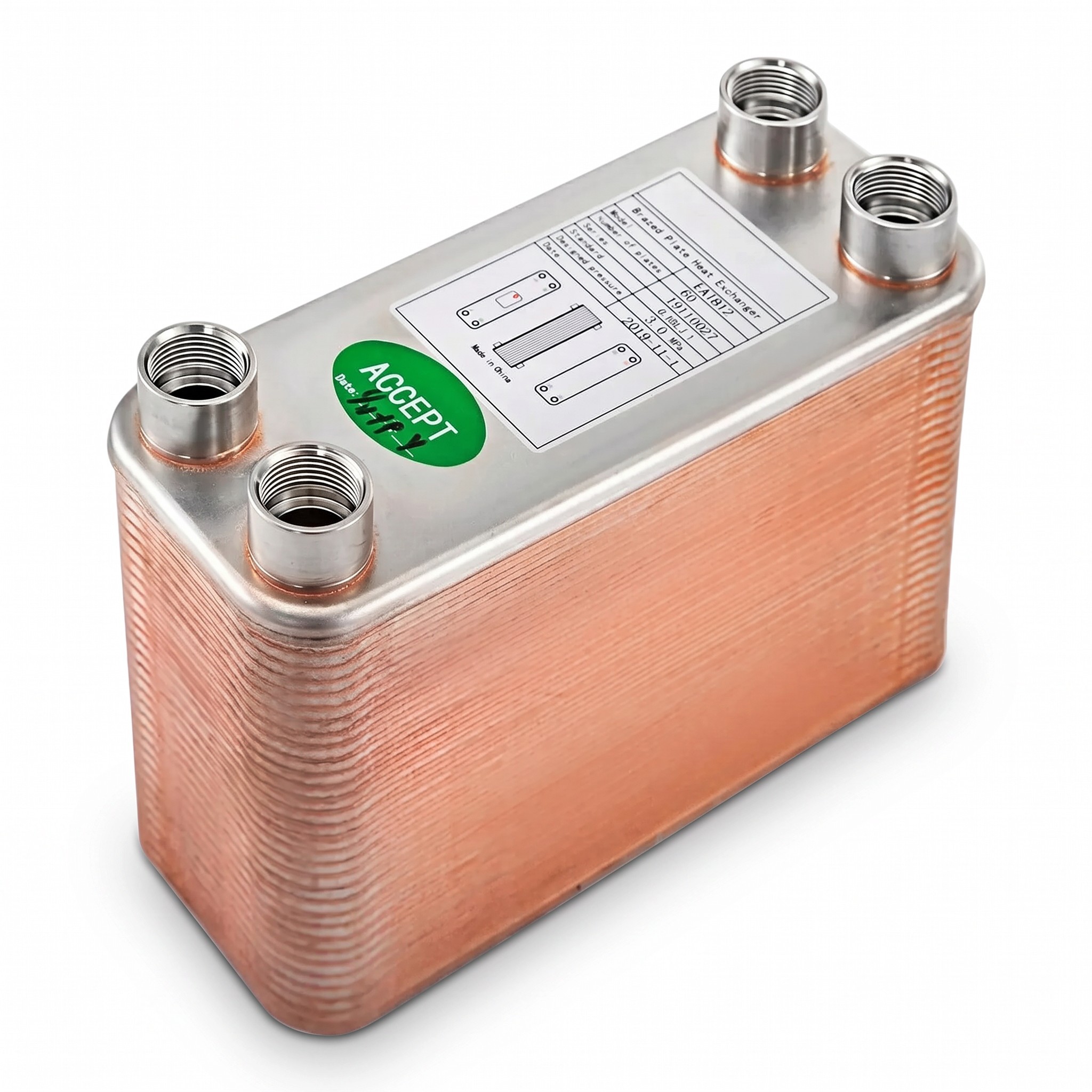

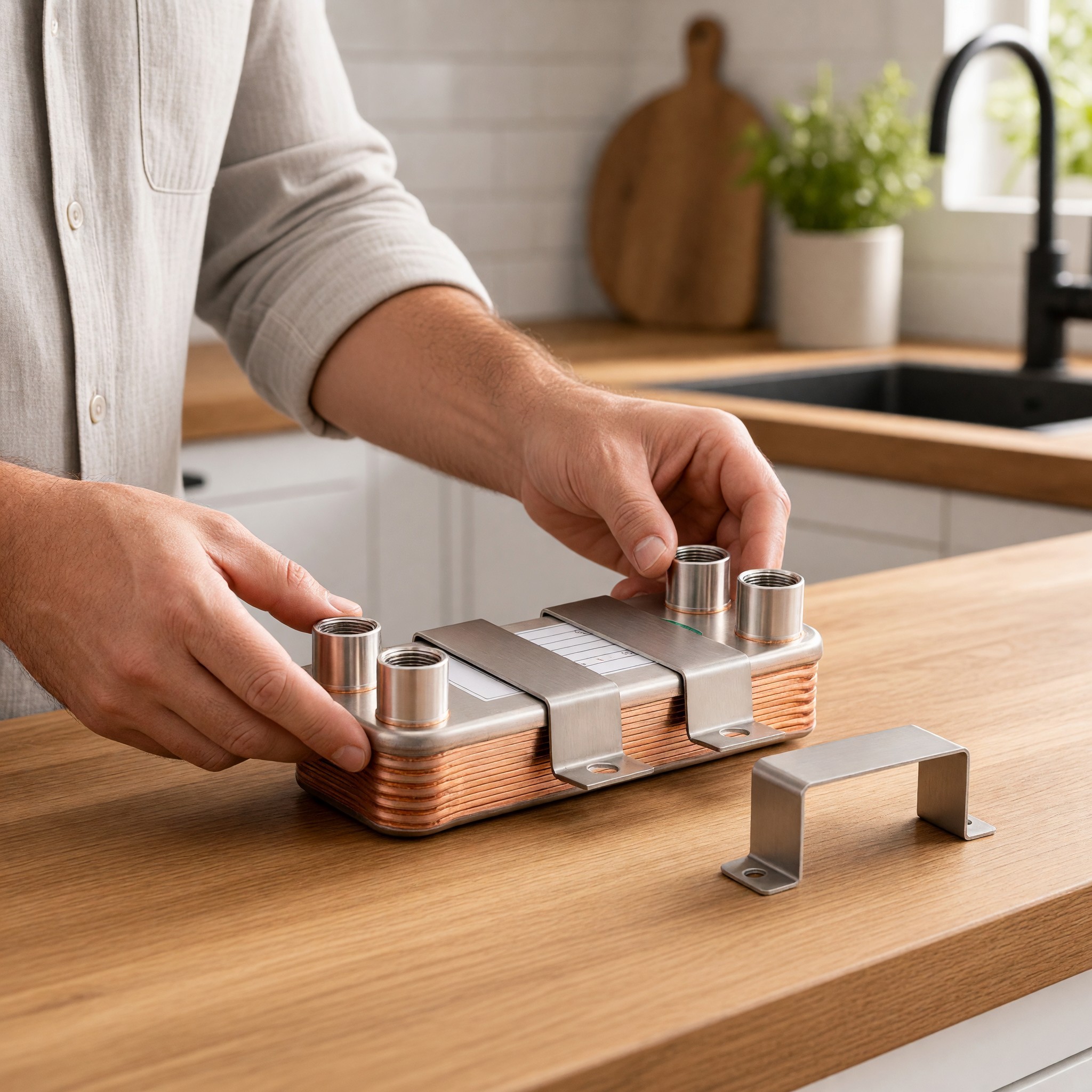

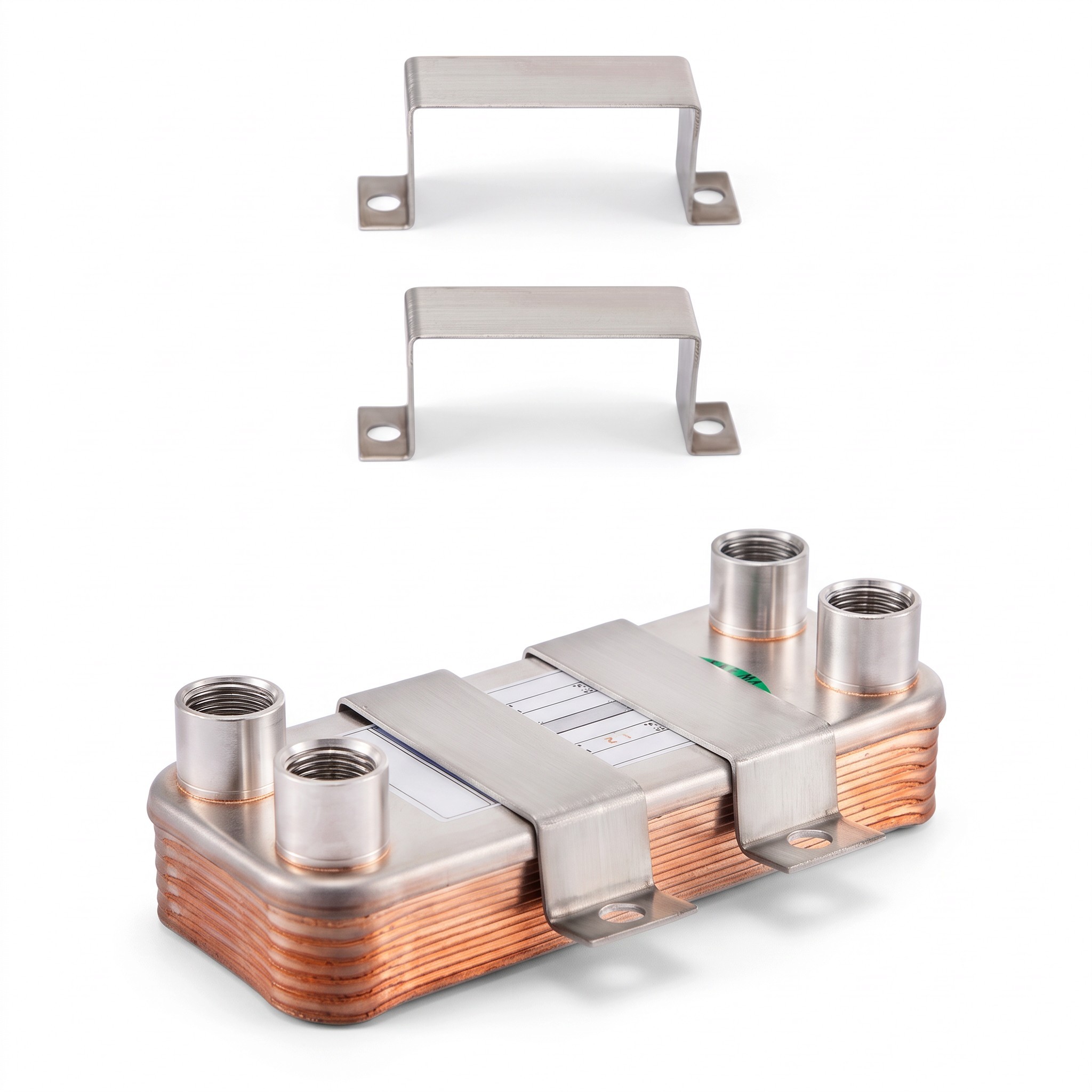

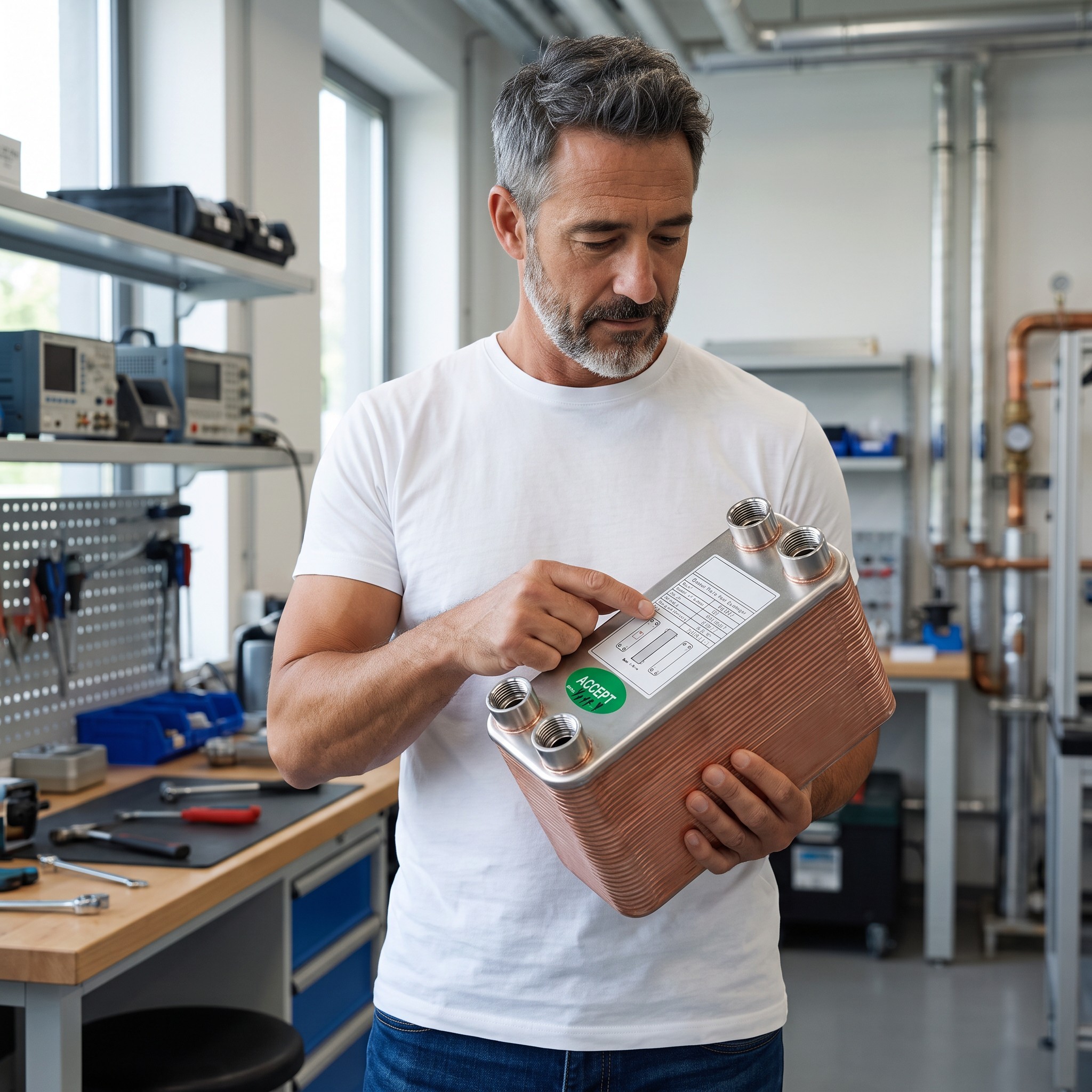

The plate heat exchanger with 60 plates is designed for home brewers who need to cool wort quickly and efficiently even with larger batches. It is made from stainless steel 316L with 99.9% copper soldering, making it highly resistant to corrosion, high temperatures, and pressure. The large number of plates creates an extensive heat transfer surface, allowing heat from the hot wort to be quickly transferred to the cooling water. The fluids flow in opposite directions, and turbulent flow between the plates further increases heat exchange efficiency. The exchanger is equipped with four connections featuring internal thread 1/2 inch BSP.
- Number of Plates – 60 plates for a large heat transfer surface.
- Material – stainless steel 316L and 99.9% copper (soldered joints).
- Connections – 4x internal thread 1/2 inch BSP (FPT).
- Dimensions – 19.4 x 7.2 x 16.1 cm.
- Design Pressure – max. 3.0 MPa, test pressure min. 4.5 MPa.
- Operating Temperature – from -196 °C to +225 °C.
- No Electricity – the exchanger operates solely due to fluid flow.
- Model – B12-60.
When brewing beer at home, the exchanger is connected between the brew kettle and the fermentation vessel. Hot wort flows through one circuit while cold water flows through another, allowing the wort to exit cooled to fermentation temperature. Thanks to the 60 plates, the exchanger can cool larger volumes of wort in a short time. You can regulate the cooling speed by adjusting the wort flow and the temperature of the cooling water. The compact dimensions allow the exchanger to be easily placed even on smaller work surfaces next to the brew kettle.
In addition to brewing beer, the exchanger can also be used as a beer chiller under the bar or for heating water. It is also suitable for solar heating, heat recovery, oil cooling, and other applications where heat needs to be transferred between two liquids.
Before the first use, flush the exchanger with clean water and thoroughly clean it again after each brewing session to prevent residue build-up between the plates. Fittings and hose ends with 1/2 inch BSP threads need to be purchased separately. When installing, we recommend sealing the threads with Teflon tape. After cleaning, allow the exchanger to dry thoroughly before storing.
Contents of the Package:
- 1x plate heat exchanger
The heat exchanger with 60 plates is an excellent choice for brewers who brew larger batches or want the shortest cooling time possible. Rapid cooling of the wort reduces the risk of contamination and speeds up the entire brewing process. Design pressure up to 3.0 MPa and resistance to high temperatures ensure reliable operation. Stainless steel 316L is highly resistant to corrosion and frequent cleaning. Regular flushing and cleaning will maintain the exchanger's high efficiency even with long-term use.
