Network Cable Tester with Optical Power Meter, VFL and PoE Testing, Length Measurement up to 200 m, 1500 mAh, RJ45 Cat5/Cat6, Black-Blue, for LAN

Network Cable Tester with Optical Power Meter, VFL and PoE Testing, Length Measurement up to 200 m, 1500 mAh, RJ45 Cat5/Cat6, Black-Blue, for LAN

Cable tester and cable finder with OPM and VFL functionality. Continuity testing, crimping, PoE, port flashing and NCV detection. Charging via USB Type C. Full description
In stock
Delivery €1.59
30-day return policy
€167.64
Safe shopping Safe shopping
Overview
Network Cable Tester with Optical Power Meter, VFL and PoE Testing, Length Measurement up to 200 m, 1500 mAh, RJ45 Cat5/Cat6, Black-Blue, for LAN

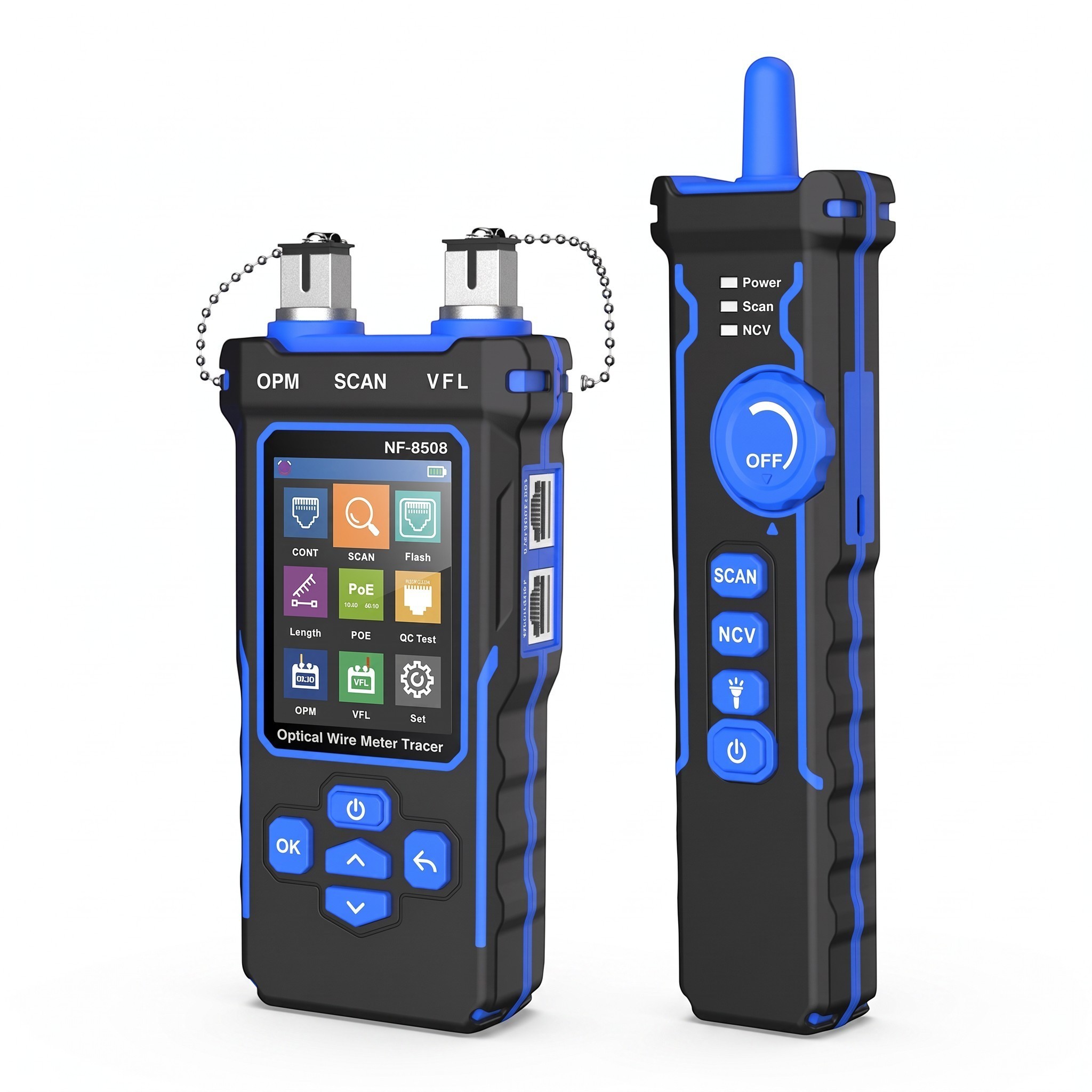

The network cable tester with optical power meter is a multifunctional device for the installation, inspection and maintenance of both metallic and optical networks. The set consists of a transmitter with a colour display and a receiver for cable tracing. With this one set, you can test cable continuity, measure its length, verify PoE, or locate a specific port on a switch. For optical routes, it offers a built-in Optical Power Meter (OPM) and Visual Fault Locator (VFL). The tester supports CAT5 and CAT6 cables with RJ45 connectors and is suitable for network technicians, installers, and data centre managers.

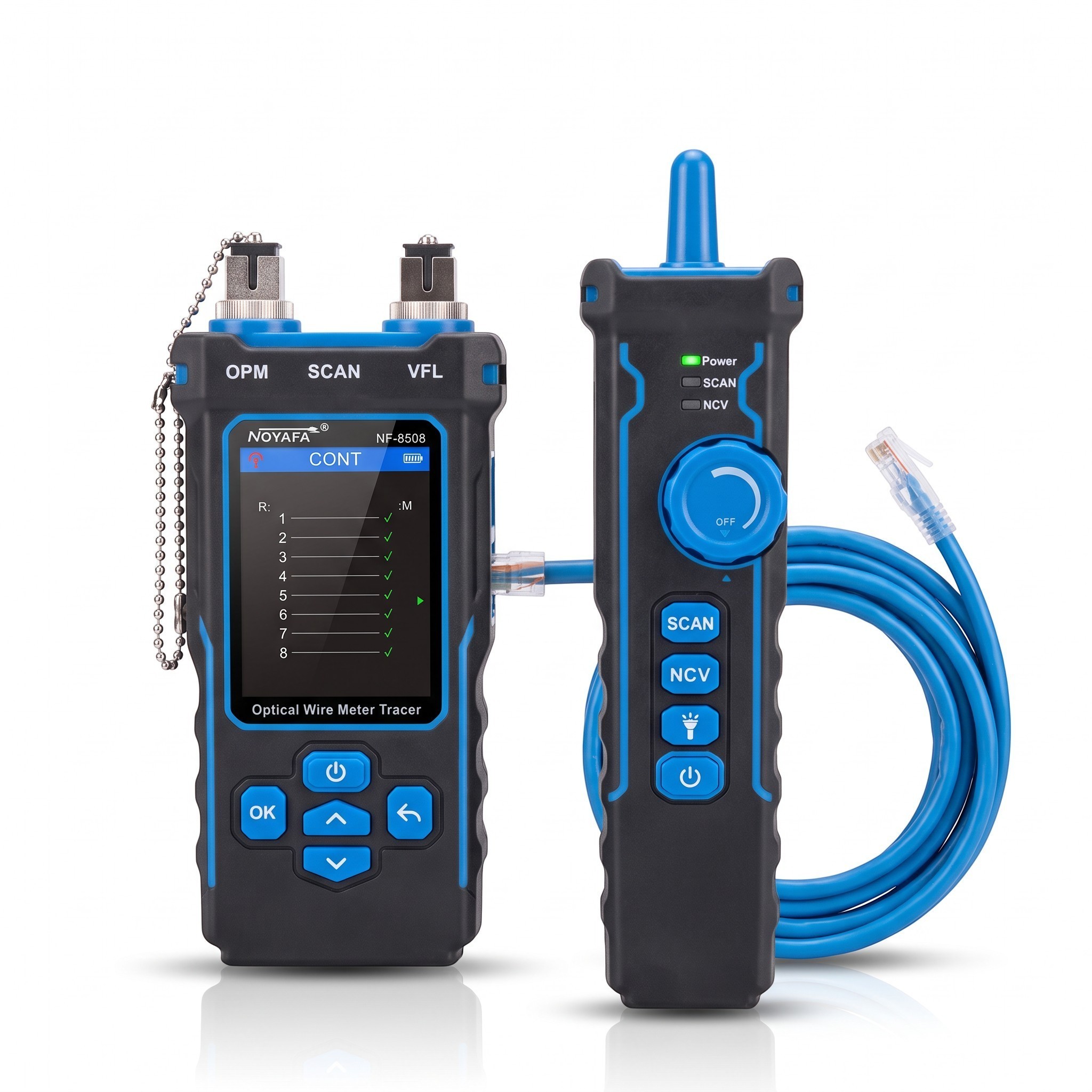

  • Continuity testing: checks the connection of 8 RJ45 wires, detects breaks, shorts and crossed wires, remote continuity testing ≥300 m, supports STP/UTP.
  • Cable tracing (SCAN): digital and analogue mode, frequency 455 kHz, tracing range up to 300 m, adjustable receiver sensitivity, cable tracing in both powered and unpowered states.
  • Port flashing (Flash): identifies the port on a router or switch by the flashing indicator, displays line speed and duplex.
  • Cable length measurement in the range of 2.5–200 m for pairs 1-2, 3-6, 4-5 and 7-8. The cable must be unpowered and disconnected at the other end.
  • PoE test: automatic identification of power midspan or endpoint using 8 wires, recognition of both standard and non-standard PoE.
  • QC crimping test: quality check of the crimped RJ45 connector (8 wires), minimum cable length 10 cm.
  • Optical Power Meter (OPM) for wavelengths 850/1300/1310/1490/1550/1625 nm, units dBm, dB, mW, µW, nW and REF function.
  • Visual Fault Locator (VFL) 10 mW for detecting broken fibres, poor connections, bends and cracks. Modes of fast flashing, slow flashing and continuously on.
  • Non-contact voltage detection (NCV): the receiver alerts to AC voltage in domestic electrical installations.
  • Flashlight in the receiver for illuminating the workspace.
  • Display and settings: backlighting in 3 levels, backlight duration MAX/1 min/30 s/15 s, automatic shutdown 15 min/30 min/1 h/2 h/off.
  • Power: transmitter and receiver with a 3.7 V 1500 mAh Li-poly battery, charging via USB-C, charging and low battery indication.
  • Construction: ABS material, black-blue design, headphone jack on the receiver.
  • Dimensions: transmitter 148 × 70 × 32 mm, receiver 198 × 50 × 28 mm.

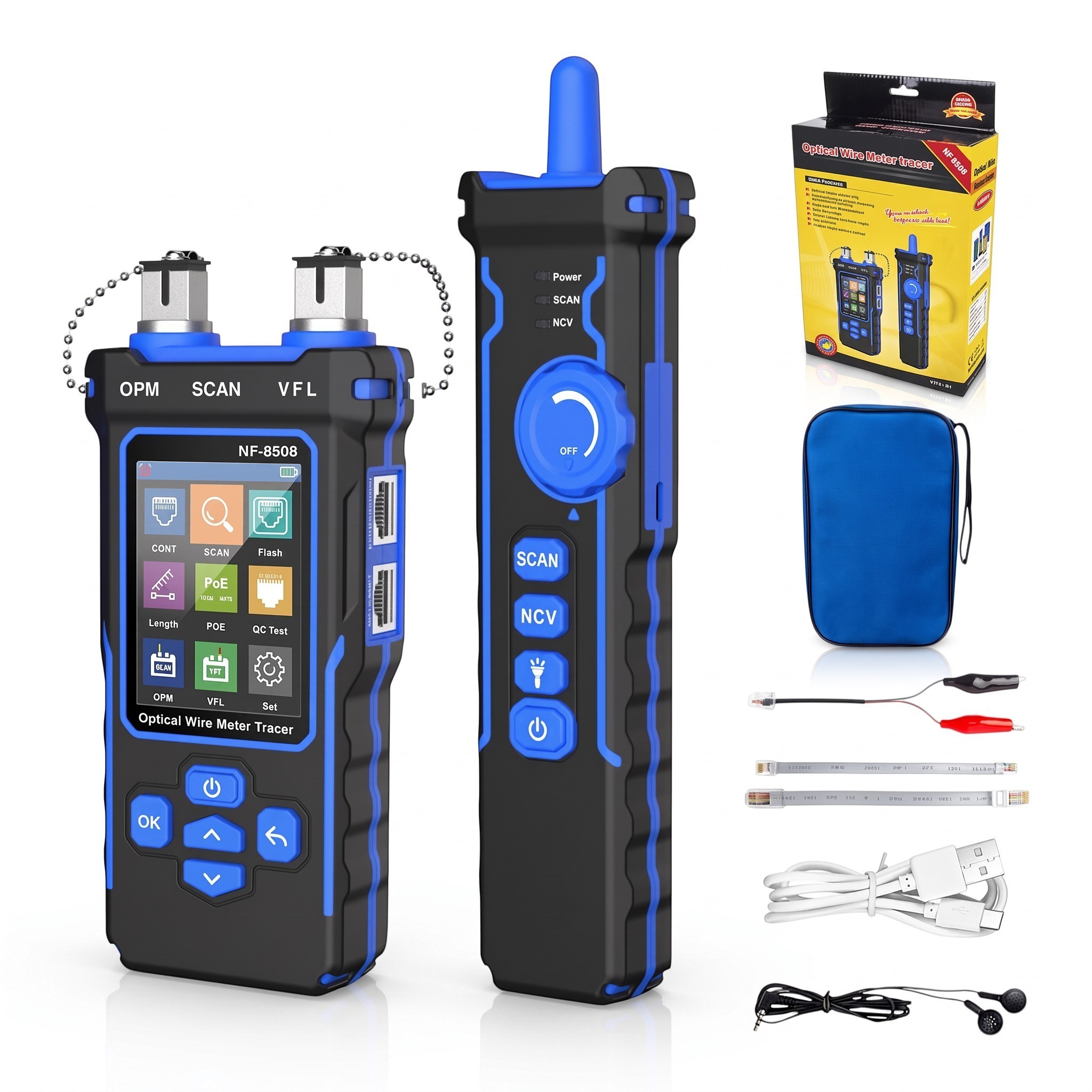

  • Package contents: transmitter, receiver, headphones, USB-C charging cable, 2× RJ45 network patch cables, test cable with crocodile clips, carrying case, user manual.

The kit replaces several separate devices and simplifies work during installations, inspections, and fault finding in networks. With the combination of metallic tester and optical functions, it can be used in structured cabling, in data cabinets, and on optical routes. When measuring length and continuity, it is necessary to work with an unpowered cable, while the Flash and PoE functions are used for working with active network elements. Compact dimensions and a portable case facilitate the transport of the device between jobs. The tester is suitable for network technicians, electricians, and maintenance workers in telecommunications networks.
