Network Cable Tester with LCD Display and Cable Finder, Length Measurement up to 500 m, PoE Test, CAT5/CAT6, Black-Red, for Network Installations

Network Cable Tester with LCD Display and Cable Finder, Length Measurement up to 500 m, PoE Test, CAT5/CAT6, Black-Red, for Network Installations

Length measurement, PoE test, wiring and crimping of RJ45. Network cable finder with interference mode, NCV detection and 1400 mAh battery with USB-C charging. Full description
In stock
Delivery €1.59
30-day return policy
€110.87
Safe shopping Safe shopping
Overview
Network Cable Tester with LCD Display and Cable Finder, Length Measurement up to 500 m, PoE Test, CAT5/CAT6, Black-Red, for Network Installations

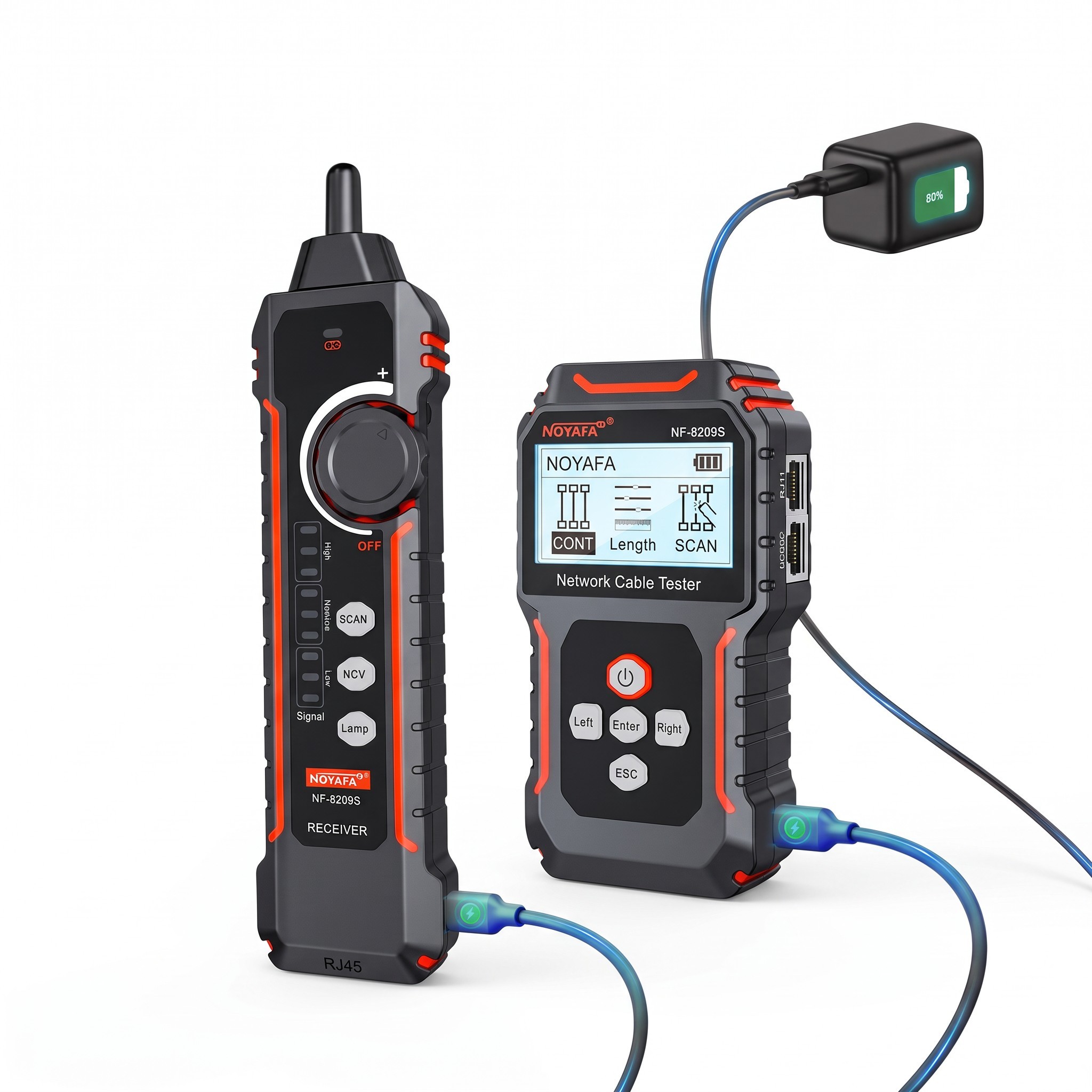

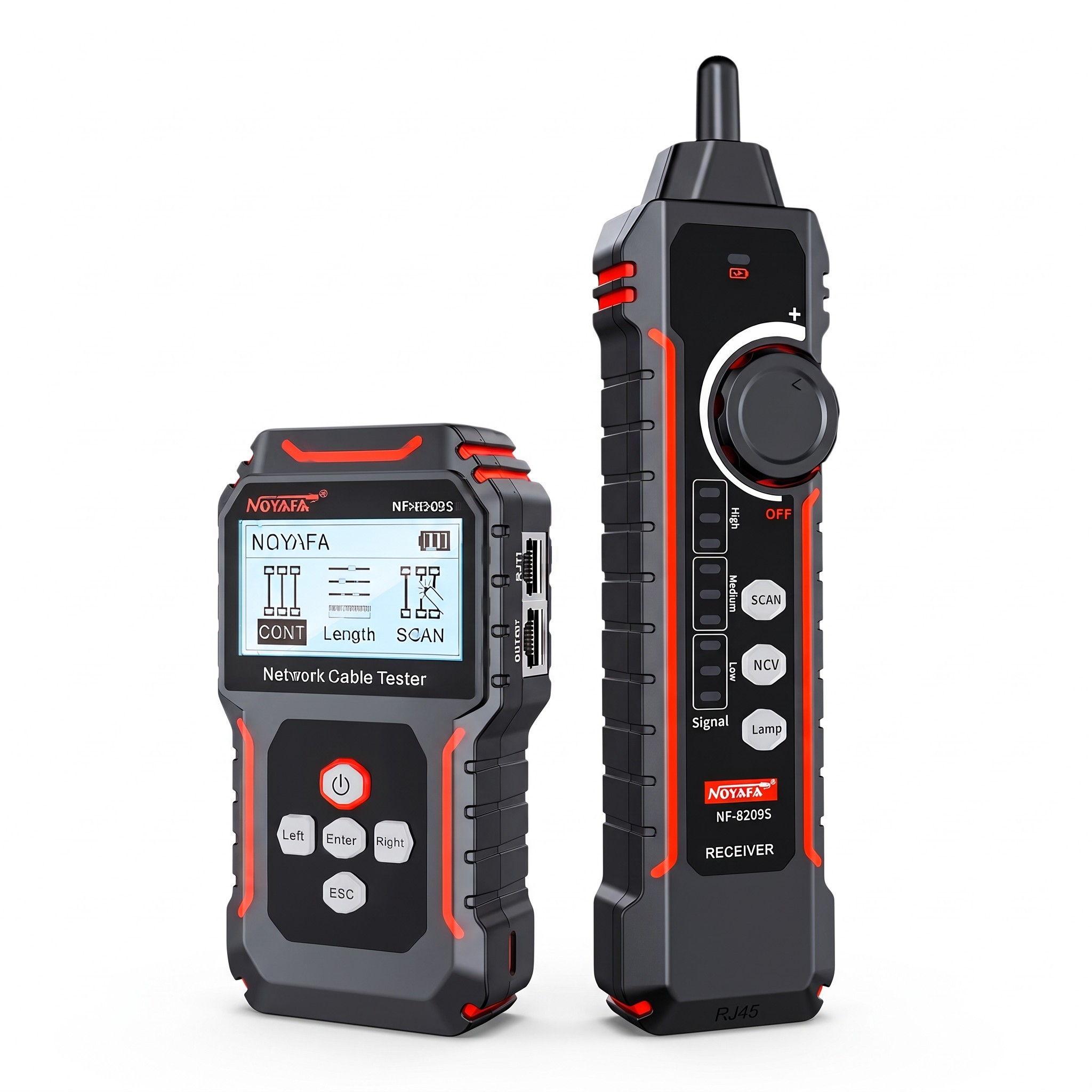

The black-red network cable tester consists of a transmitter and a receiver and is used for diagnosing and tracing CAT5 and CAT6 cables. The transmitter features a 2.8-inch LCD display that clearly shows the results of the wiring test, length measurement of cables up to 500 m, and the status of PoE power. The receiver functions as a cable finder and helps quickly locate specific wiring in a bundle, in a patch panel, or in a cabinet. In addition to network cables with RJ45 connectors, it also handles RJ11 telephone lines. Both units are powered by a built-in lithium battery that can be charged via USB-C.

  • Wiring test (CONT): detects short circuits, interruptions, crossovers, and correct wiring of conductors, distinguishing between shielded and unshielded cables.
  • Cable length measurement: range 2.5–500 m without the need for calibration, most accurate results in the range of 2.5–200 m. The cable must be disconnected from devices during measurement.
  • PoE test with a range of DC 5–60 V: identifies power conductors and power type, distinguishing between IEEE 802.3af/at standards and non-standard PoE.
  • RJ45 connector crimping test: checks all 8 conductors within 1 second, minimum length of tested cable is 10 cm.
  • Port blinking and link test: identifies the port on a switch or router, displays speeds of 10/100/1000 Mb/s, full or half duplex, and auto-negotiation.
  • Cable finder with normal mode and interference mode: signal range up to 600 m for RJ45 and 400 m for RJ11, sensitivity adjustable via a rotary knob, headphone connector.
  • NCV detection: non-contact detection of AC voltage 70–1000 V, 50/60 Hz.
  • LED flashlight on the receiver for working in cabinets and dark spaces.
  • Lithium battery 3.7 V / 1400 mAh with USB-C charging, low battery warning, and automatic shutdown after 15, 30, or 60 minutes.
  • Settings for language, backlight duration, automatic shutdown, and display contrast.
  • Dimensions: transmitter 125 × 70 × 32 mm, receiver 198 × 50 × 30 mm.
  • Operating temperature: 0–50 °C.
  • Package contents: transmitter, receiver, RJ45 connecting cable, RJ11 telephone cable, RJ45 cable with crocodile clips, USB-C charging cable, user manual, protective case.

This network cable tester combines functions that would otherwise require several separate devices into one set. It is suitable for network technicians, IT administrators, electricians, and for installing cabling in homes or offices. It allows verification of newly crimped connectors, tracing unlabelled cables in cabinets, and checking power for devices powered via Ethernet. The compact dimensions of both units facilitate portability, and the case protects the set during transport. With USB-C charging, the device is quickly ready for further work.
