Network Cable Tester and Cable Tracker with Length Measurement 5–350 m, Optical Power Meter and VFL, RJ45 PoE, Yellow-Black, for LAN and Fibre

Network Cable Tester and Cable Tracker with Length Measurement 5–350 m, Optical Power Meter and VFL, RJ45 PoE, Yellow-Black, for LAN and Fibre

Cable tracker for CAT5/CAT6 with continuity testing, PoE and crimping quality check. Optical power meter for 10 wavelengths and red laser up to 10 km. Full description
In stock
Delivery €1.59
30-day return policy
€213.49
Safe shopping Safe shopping
Overview
Network Cable Tester and Cable Tracker with Length Measurement 5–350 m, Optical Power Meter and VFL, RJ45 PoE, Yellow-Black, for LAN and Fibre

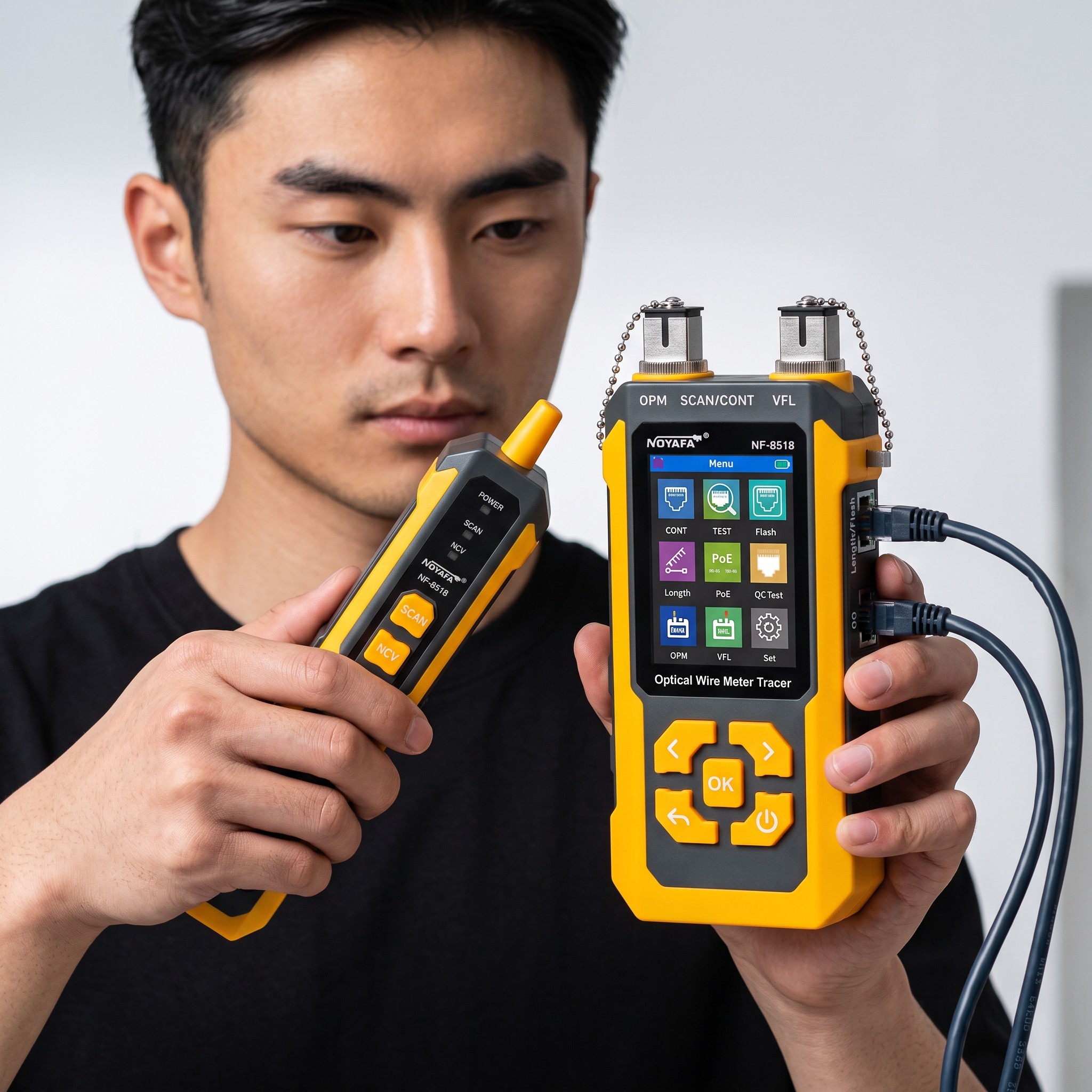

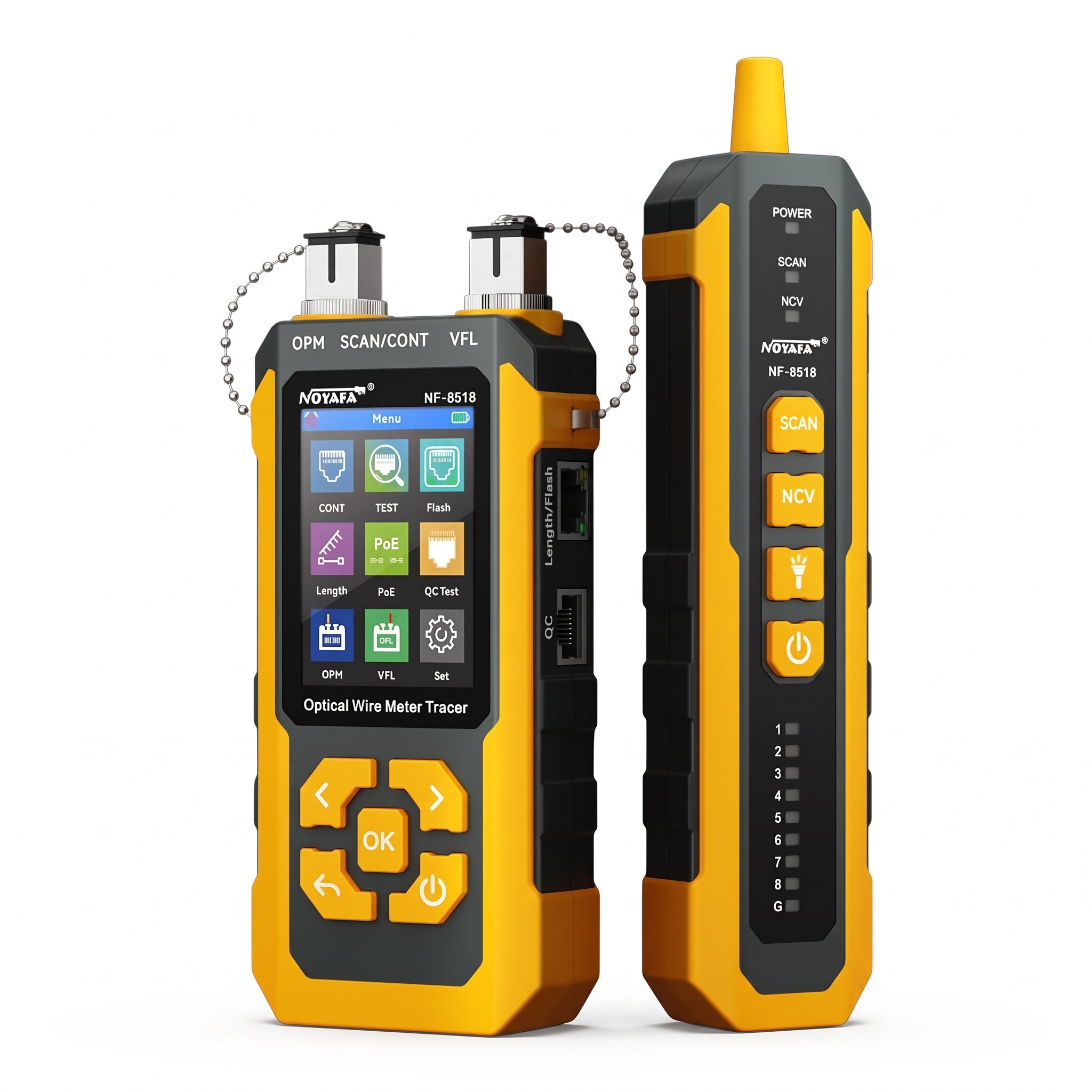

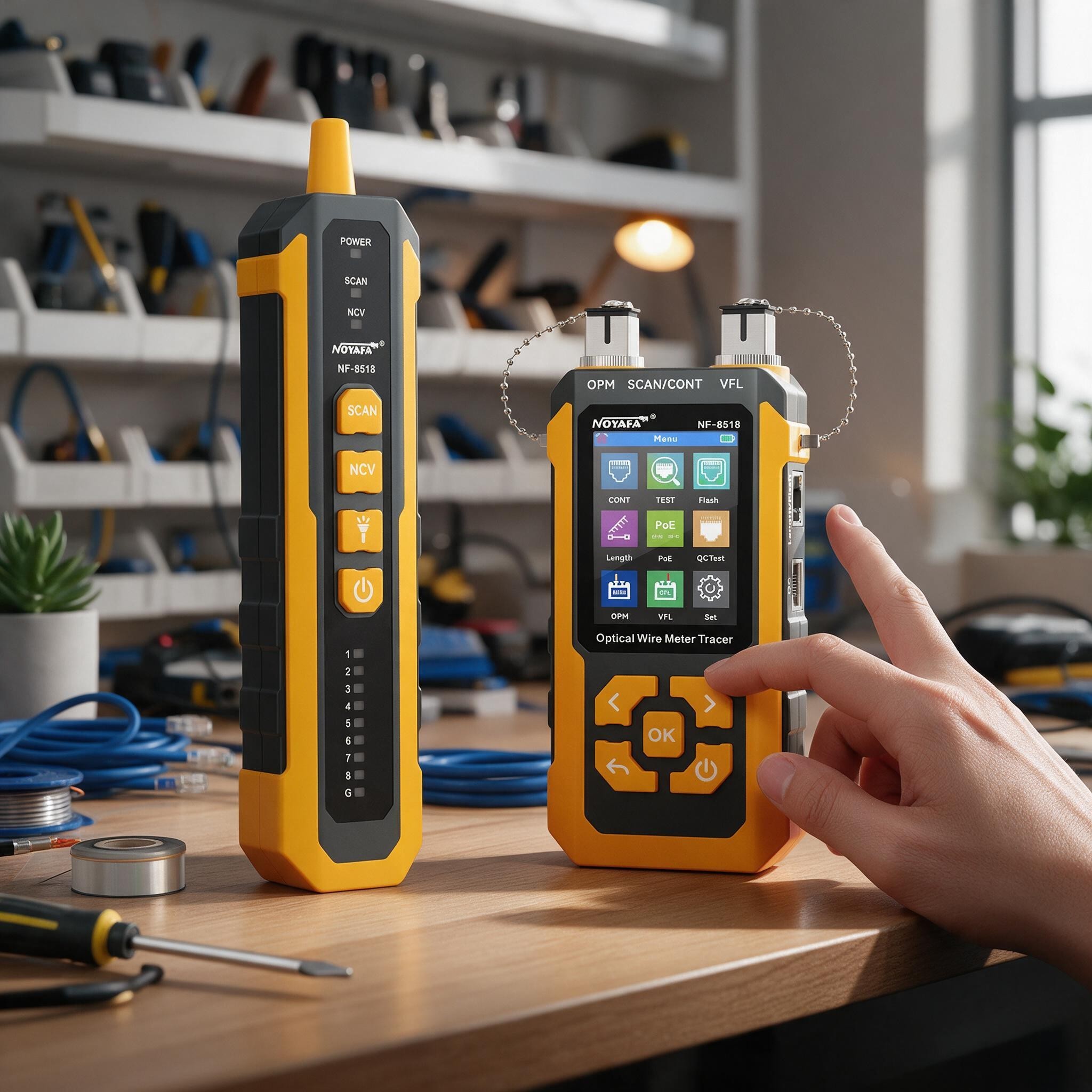

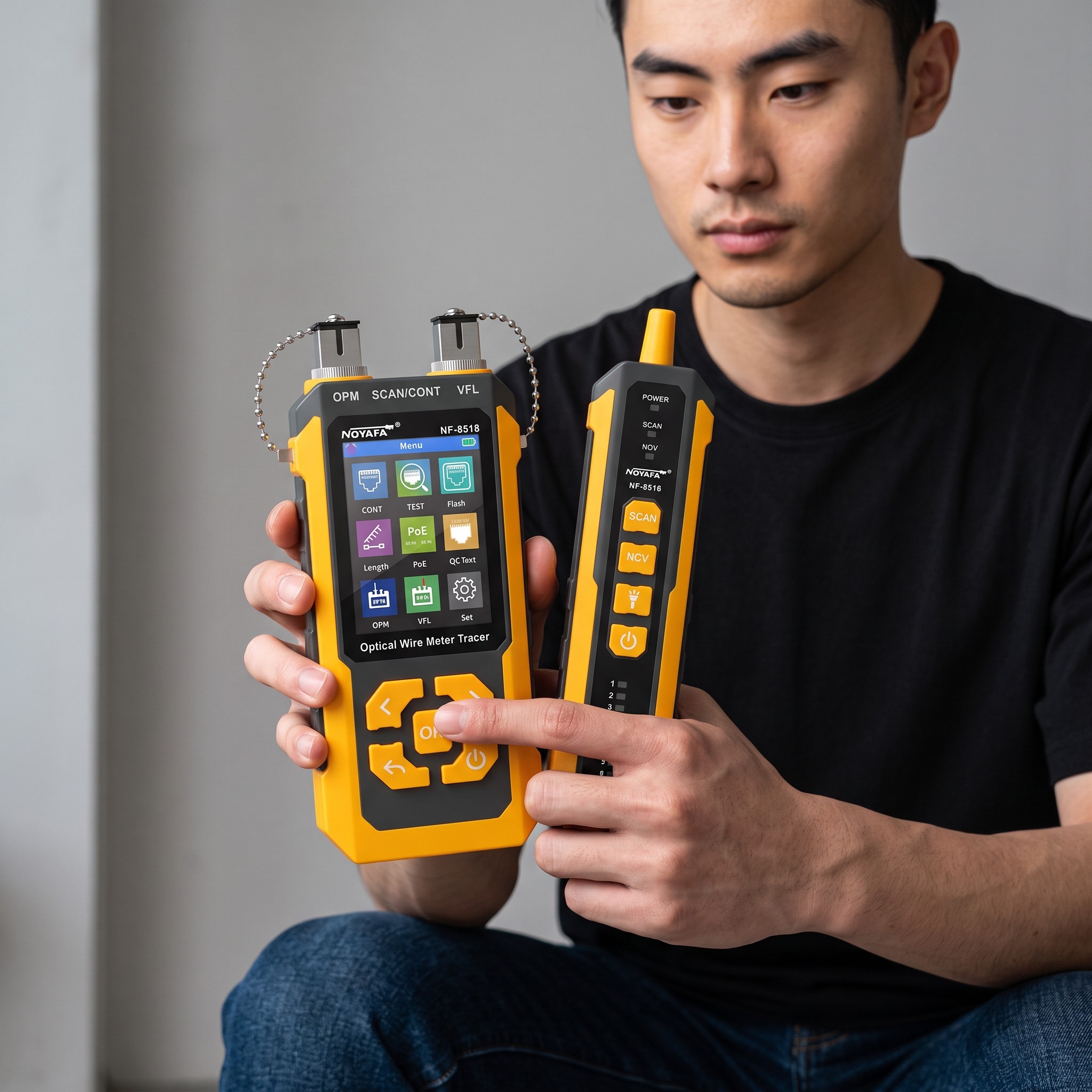

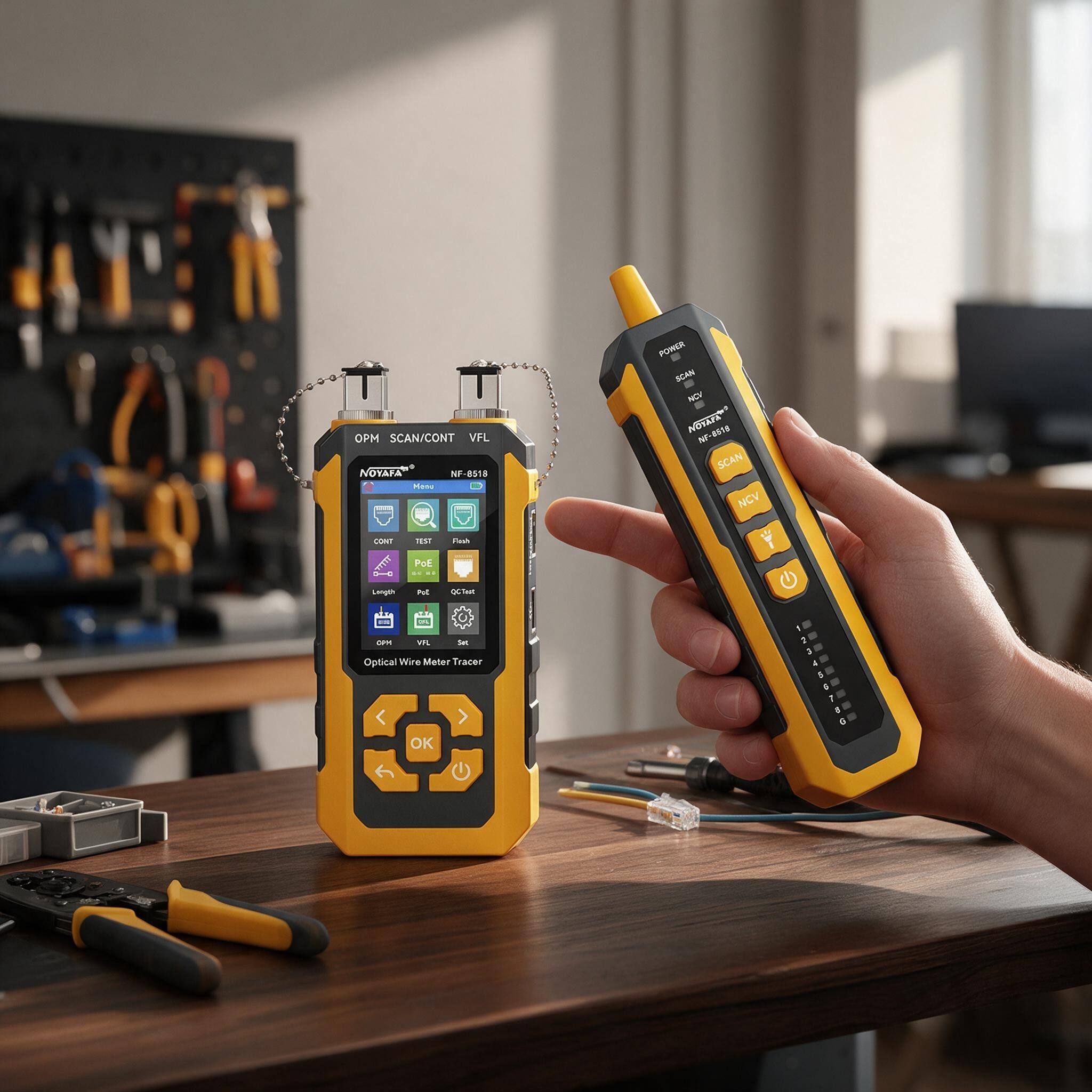

The network cable tester with cable tracker is a combined device for checking both metallic and optical networks. The set consists of a transmitter with a colour display and a receiver with a detection probe, which allows you to quickly locate a specific cable in a bundle or in a patch panel. The tester measures the lengths of CAT5 and CAT6 cables, verifies the wiring, checks PoE power, and assesses the crimping quality of RJ45 connectors. For working with optical fibres, it includes an optical power meter and a visual fault locator with a red laser. The device is in a yellow-black design made of ABS plastic and is powered by a rechargeable lithium battery.

Main Features:

  • Continuity Test: detects short circuits, breaks, wire crossovers, and correct wiring of the network cable.
  • Cable Tracking: the receiver with an interference-resistant probe locates the target cable in both normal and digital modes with adjustable sensitivity, and continuity testing can be performed immediately after locating.
  • Length Measurement: CAT5 and CAT6 cables in the range of 5–350 m.
  • Port Blinking: helps find the port on a switch or hub to which the cable is connected.
  • PoE Test: supports IEEE 802.3af/at standards as well as non-standard PoE, displaying voltage, polarity, and power method (End Span, Mid Span, 8-pin connector).
  • Crimping Check: verifies the connection of RJ45 contacts to the cable wires, with results updated automatically.
  • Optical Power Meter: 10 wavelengths (850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650 nm), range from −70 to +6 dBm, accuracy ±0.5 dB, units dBm, dB, mW, µW and nW.

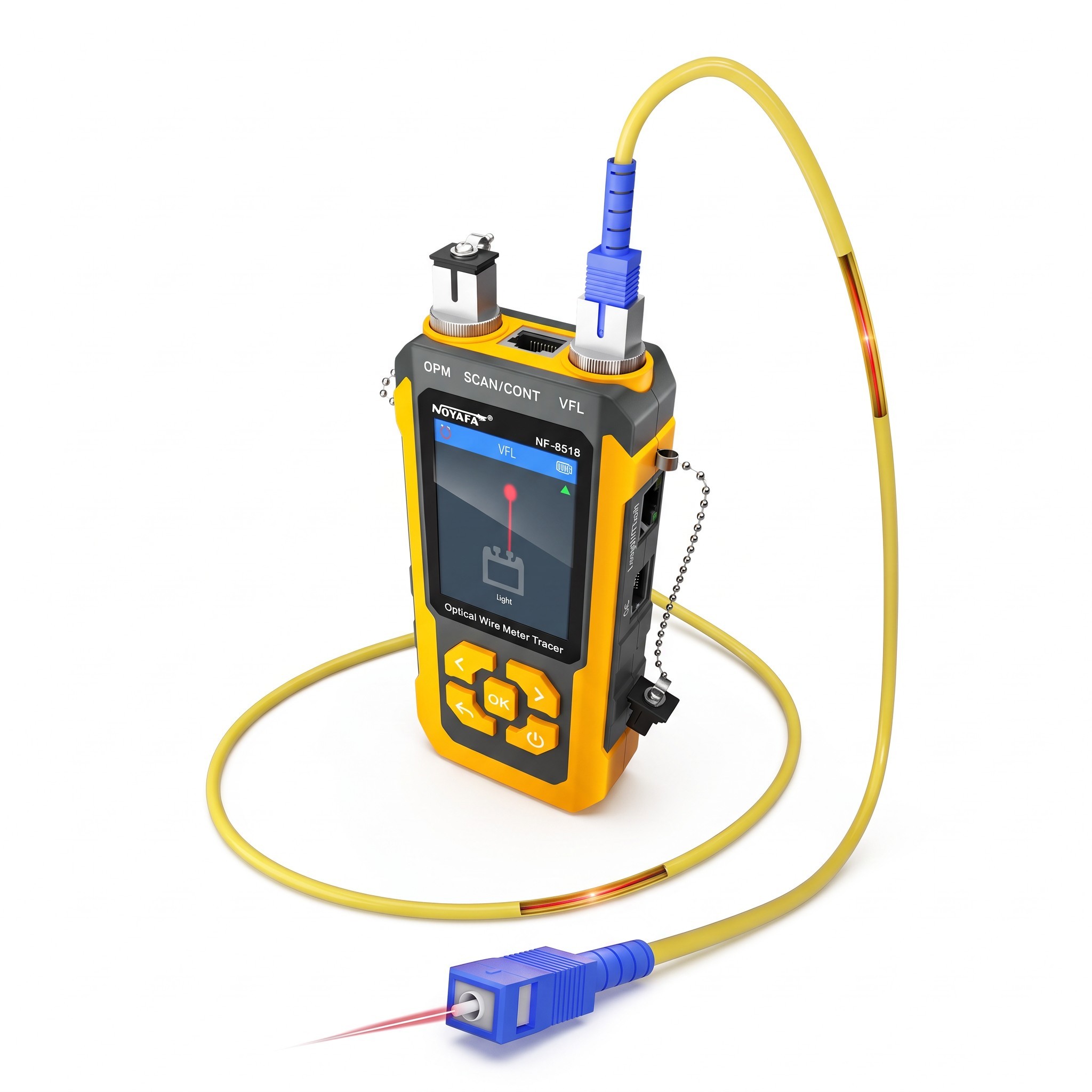

  • Visual Fault Locator (VFL): red laser with a power of 10 mW with a range of up to 10 km, three modes – fast blink, slow blink, and continuous light.
  • Non-Contact Voltage Detector (NCV) in the receiver with an indicator light.
  • LED flashlight on the receiver for working in dark spaces.
  • Protection of RJ45 ports against voltage up to 60 V.
  • Power Supply: Li-Pol battery 3.7 V / 1500 mAh, charging via USB-C.
  • Settings: language, backlight, backlight duration, automatic shutdown, and system information.

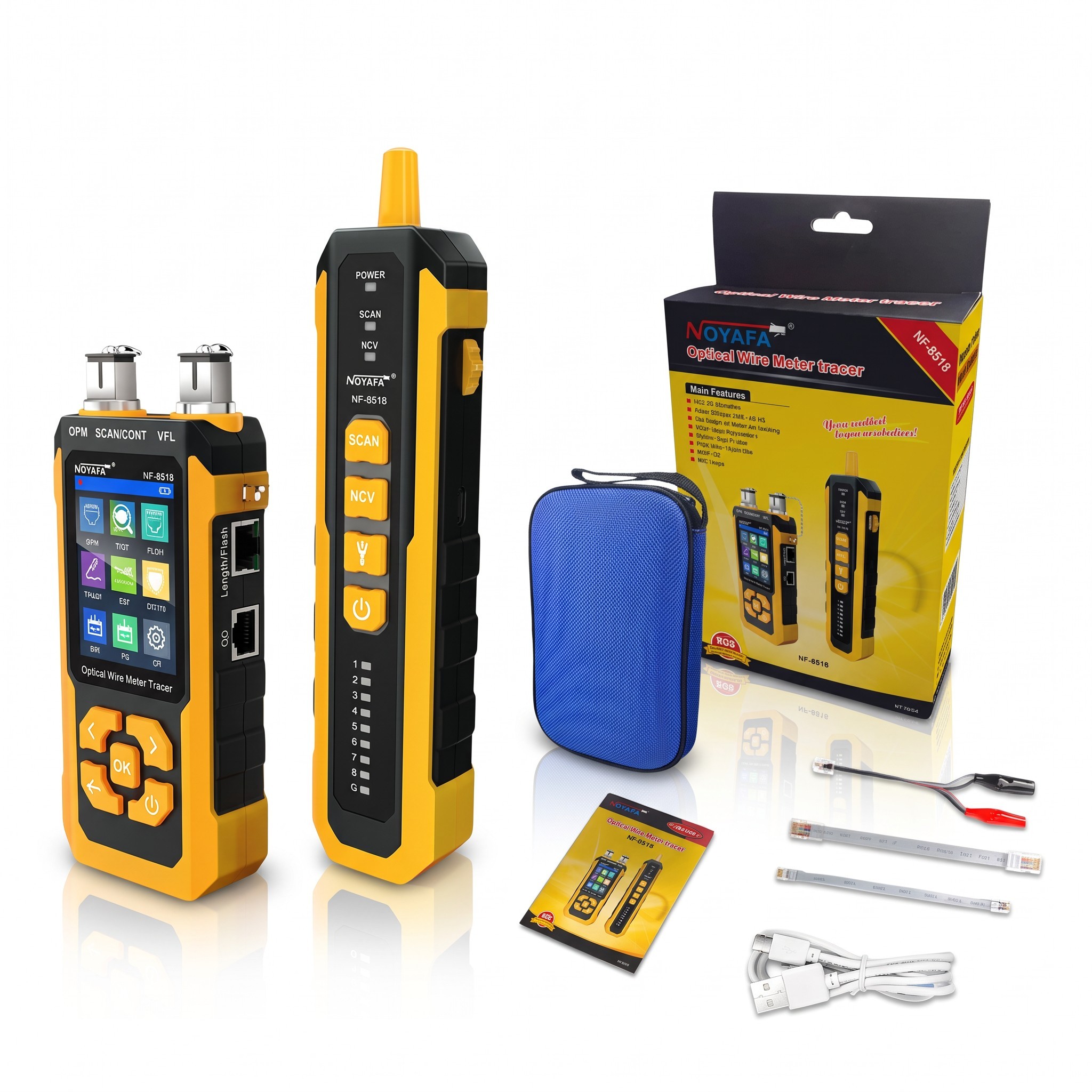

  • Package Contents: transmitter, receiver, user manual, carrying case, box, USB-C data cable.

The device combines in one unit a cable tester, cable tracker, length meter, and basic equipment for checking optical paths. It is suitable for installations and servicing of computer networks, data patch panels, and camera systems powered by PoE. The optical power measurement and red laser facilitate the detection of breaks, cracks, and bends in optical fibres. The receiver with voltage detector and flashlight is also useful when working in poorly lit areas. Charging via USB-C and adjustable automatic shutdown extend the operating time on a single charge.
