Nano VNA-H4 V4.3 Vector Network Analyser 10 kHz–1.5 GHz, 4" Touch Screen, 1950 mAh Battery, Black, Antenna Analyser and Tuner

Nano VNA-H4 V4.3 Vector Network Analyser 10 kHz–1.5 GHz, 4" Touch Screen, 1950 mAh Battery, Black, Antenna Analyser and Tuner

Measurement of SWR, impedance, S11/S21 and Smith chart for antennas, cables, and filters. Touch control, USB-C and calibration kit with cables included. Full description
In stock
Delivery €1.59
30-day return policy
€139.69
Safe shopping Safe shopping
Overview
Nano VNA-H4 V4.3 Vector Network Analyser 10 kHz–1.5 GHz, 4" Touch Screen, 1950 mAh Battery, Black, Antenna Analyser and Tuner

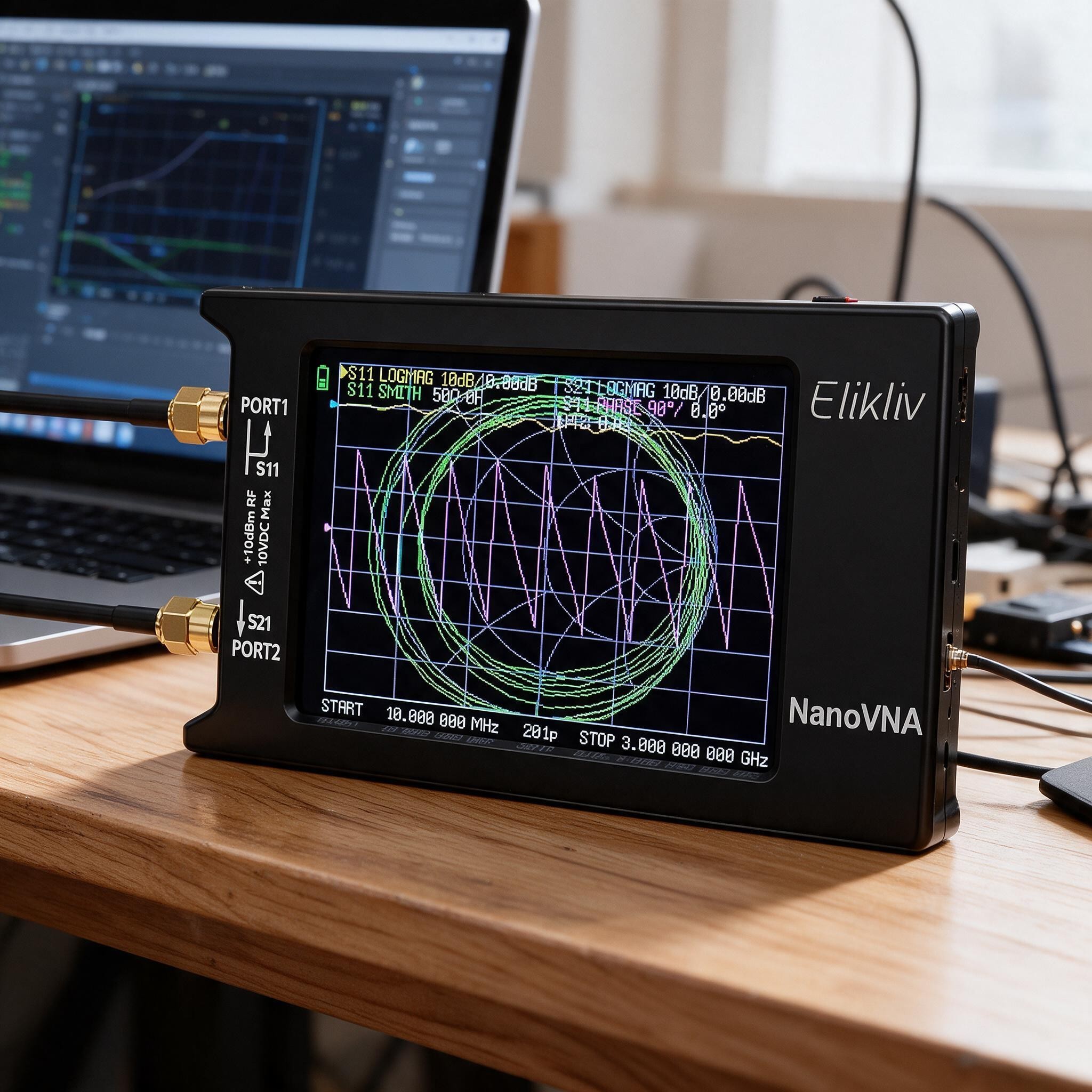

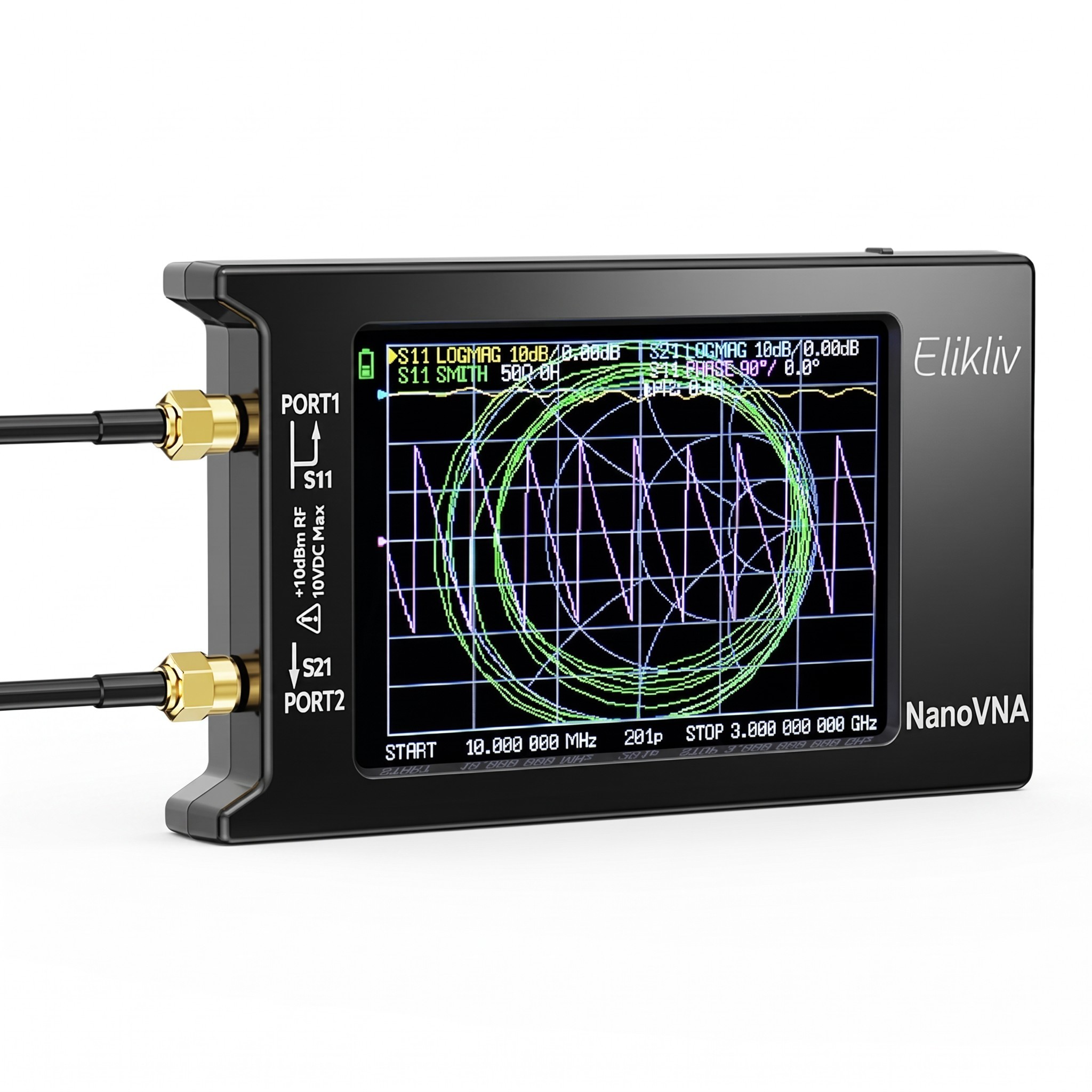

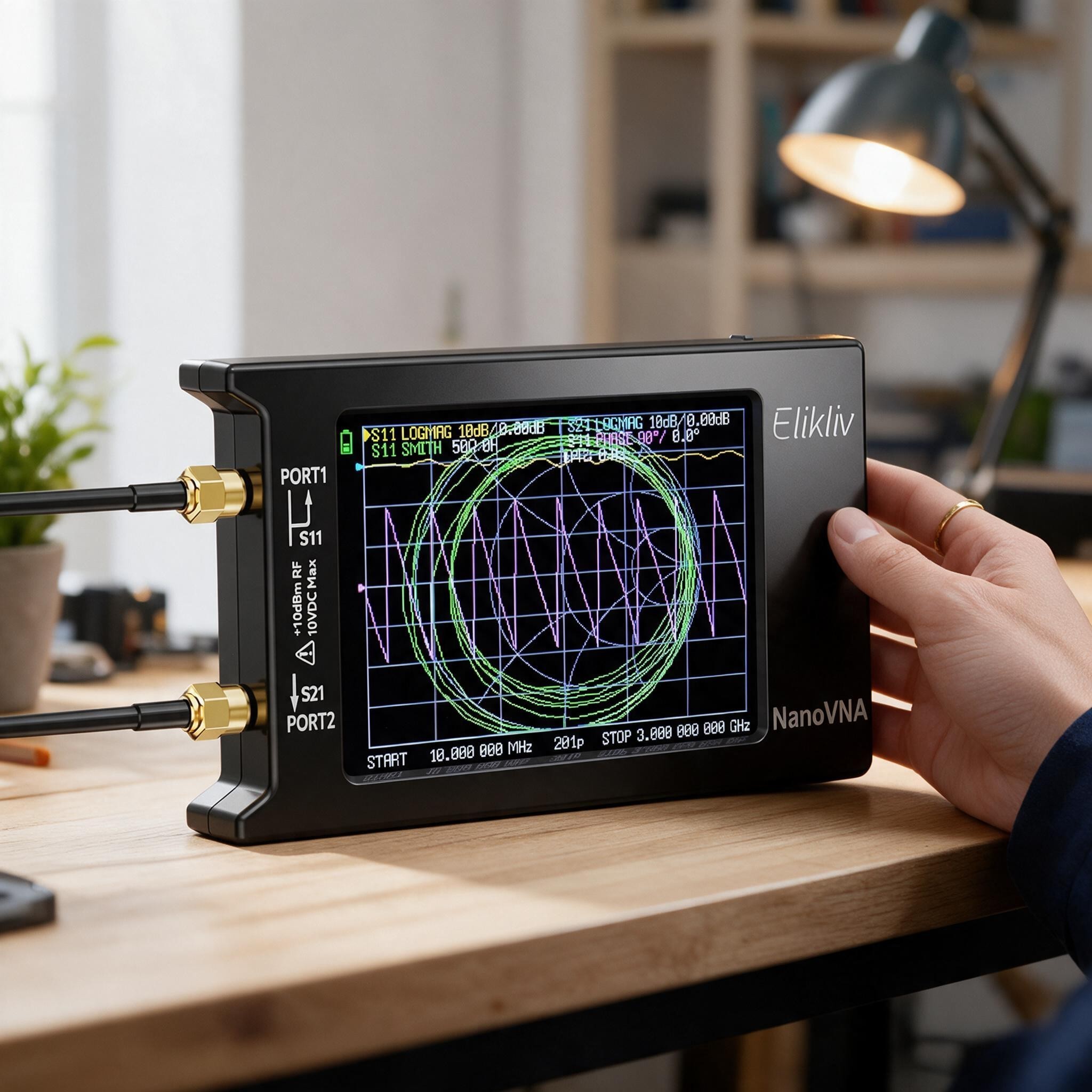

The Nano VNA-H4 V4.3 Vector Network Analyser is a compact device for measuring antennas, cables, filters, and other high-frequency circuits. It operates in the frequency range of 10 kHz to 1.5 GHz and serves as both an antenna analyser and a tool for tuning antenna tuners. It measures S11 and S21 parameters on two SMA ports, allowing it to evaluate both reflection and transmission of signals. Results are displayed on a 4-inch touch screen in the form of graphs, Smith charts, or SWR values. With a built-in battery and a compact black case, it can be used in the workshop or directly at the antenna.

  • Frequency range: 10 kHz – 1.5 GHz
  • Measured quantities: S11 and S21 parameters, standing wave ratio (SWR), impedance, phase, delay, Smith chart
  • Display: 4" touch screen, control via touch, stylus, or rotary knob on the side of the device
  • Ports: PORT1 (S11) and PORT2 (S21) with SMA connectors, maximum input +10 dBm RF and 10 V DC
  • Measurement range: 70 dB (50 kHz – 300 MHz), 50 dB (300 – 600 MHz), 40 dB (600 – 900 MHz)
  • Frequency accuracy: < 0.5 ppm
  • RF output: -13 dBm (maximum -9 dBm)
  • VSWR of port: < 1.1
  • Power supply: built-in rechargeable 1950 mAh battery, charging via USB-C
  • Interface: USB Type-C, CDC communication mode (serial)
  • Colour: black
  • Usage: measuring antennas and cables, SWR and impedance matching, measuring dual-band and tri-band duplexers, port isolation, insertion loss of filters
  • Package contents:
    • 1× vector network analyser with built-in 1950 mAh battery
    • 2× SMA male-to-male RG316 cables, 15 cm
    • 1× USB Type-C data cable
    • 1× USB-C to USB-C cable
    • 1× SMA OPEN, SHORT and LOAD calibration kit
    • 1× SMA female-to-female adapter
    • 1× touch pen
    • 1× touch pad with strap
    • 1× menu structure overview

The Nano VNA-H4 V4.3 is suitable for radio amateurs, technicians, and enthusiasts of high-frequency electronics who need to verify the properties of antennas and transmission lines. The device allows users to determine the resonant frequency of an antenna, the SWR value, and impedance across the full range up to 1.5 GHz. The included calibration components and connecting cables enable calibration and immediate measurement after unpacking. The built-in battery and USB-C charging facilitate work outside the workshop. Due to its compact dimensions, the analyser is easily portable along with other measuring equipment.
