Mini Conveyor Belt 24V with Motor and Power Adapter 460 mm, Stainless Steel Frame, Black PU Belt, for Vending Machines and Automation
You already have the maximum available quantity in your cart.

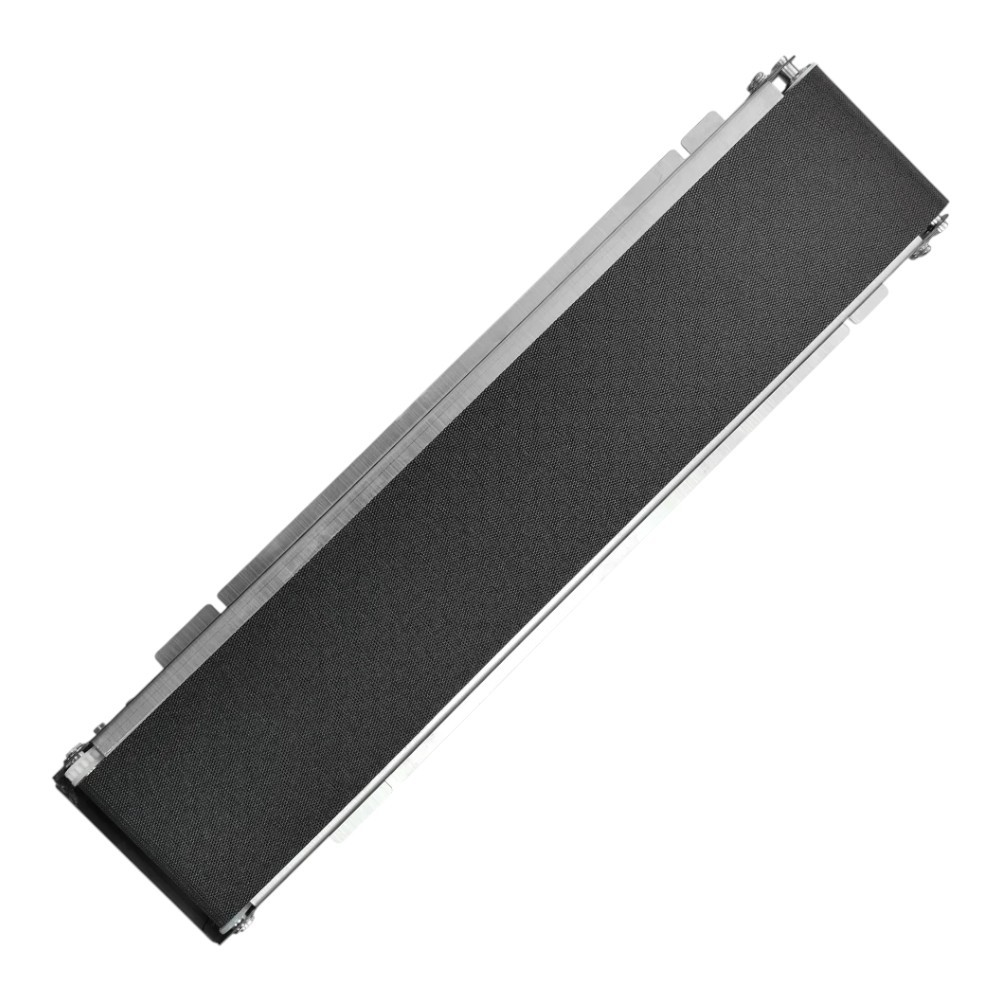

The mini conveyor belt with a length of 460 mm is a compact conveyor designed primarily for vending machines with an automatic dispensing channel and for smaller automation and sorting lines. The frame is made of stainless steel, ensuring a rigid and stable construction even during continuous operation and reliable belt guidance along its entire length. The conveyor surface consists of a black PU belt with increased friction, which prevents transported goods, such as beverage cans or small packaged products, from slipping along the route. The drive is provided by a 24 V DC motor with a gearbox, which smoothly and quietly moves the belt at a speed of 50 mm/s at 30 rpm. The package includes a power adapter, allowing the conveyor to be tested and put into operation immediately after connection.
Main features:
- Length of 460 mm and overall width of 118 mm: compact dimensions suitable for integration into limited spaces within a vending machine or smaller machine.
- Belt width of 85 mm and seating area width of 100 mm: sufficient space for cans, boxes, and other smaller packaged goods.
- Construction height of 22.7 mm on the return side and 55.5 mm on the motor side, ensuring the conveyor takes up minimal vertical space.
- Mounting feet with holes at a pitch of 110 mm across and 300 mm in the direction of the conveyor length for secure attachment with screws.
- Power supply of 24 V DC, standard motor speed of 30 rpm, and belt speed of 50 mm/s for quiet and smooth movement of goods.
- Load capacity of 3.5–5 kg, with the specific value depending on the usage environment.
- Three-pin connector with outputs 24V+, 24V−, and signal for easy connection to the control electronics of the machine.
- Operation with and without power: motor-controlled movement of goods, or passive function of the conveyor belt without connected drive.
- The PU belt with increased friction is waterproof, resistant to high and low temperatures, and has antibacterial and antifungal treatment.

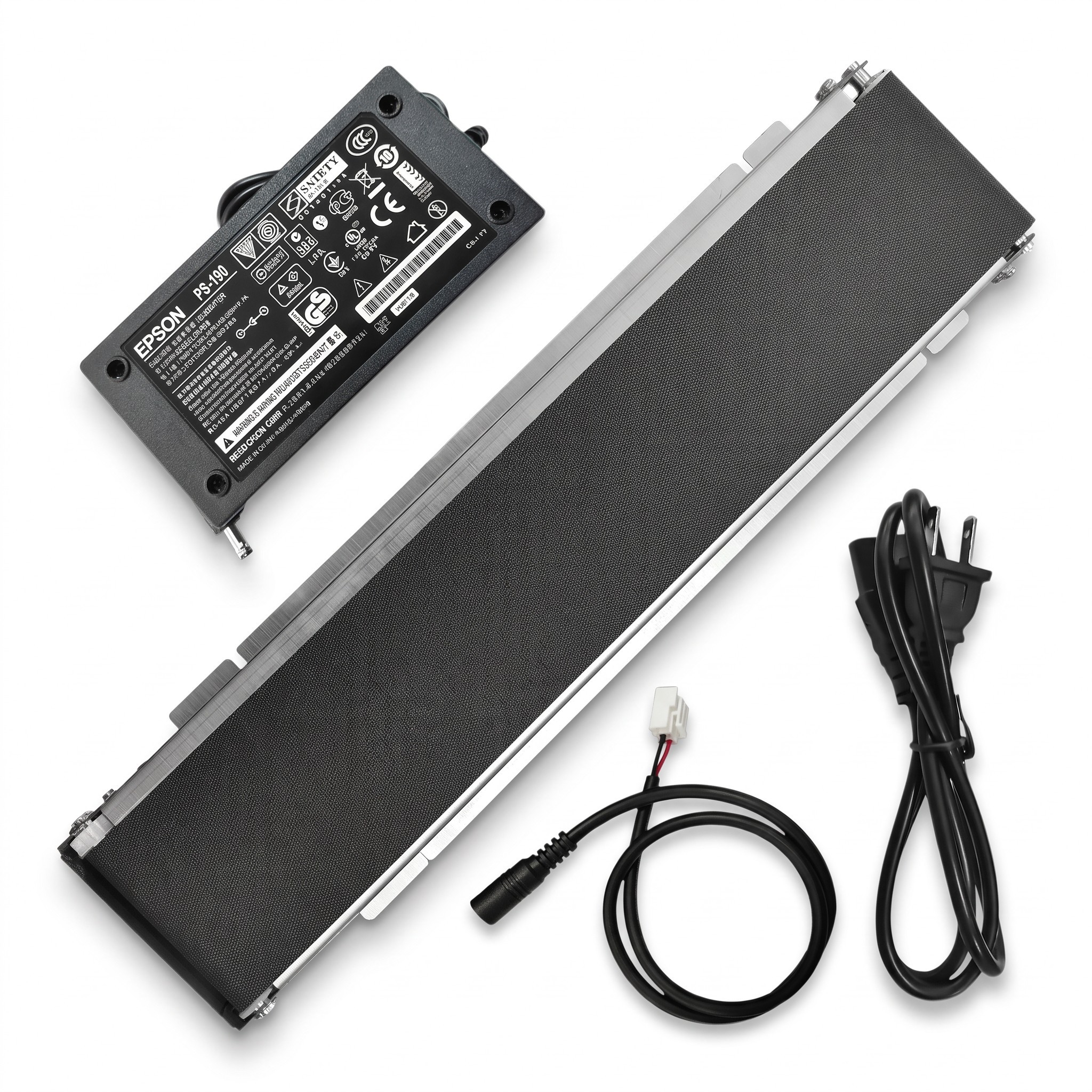

- Package contents: 1× mini conveyor belt with motor, 1× power adapter, 1× connecting cable with connector, 1× mains power cable.

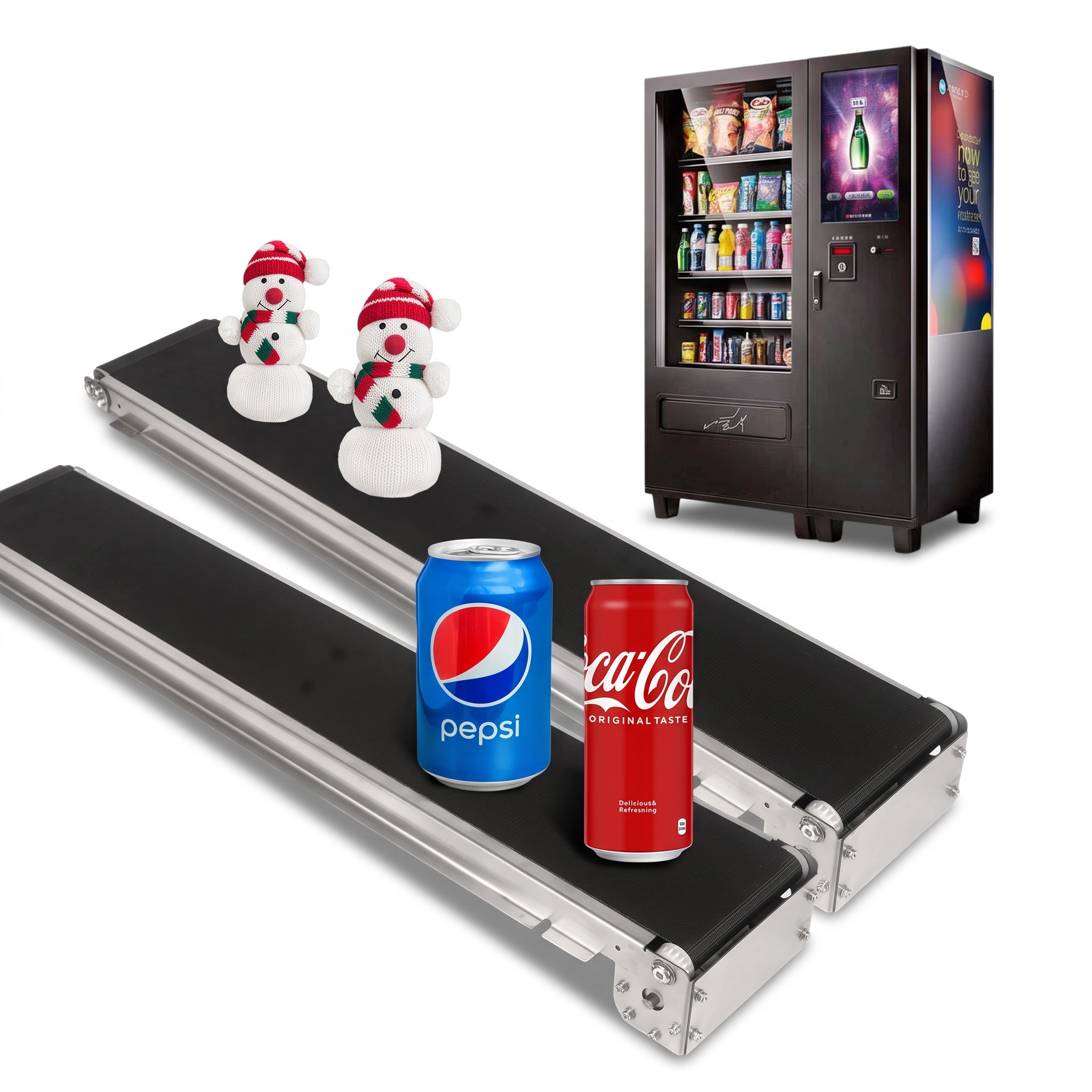

This mini conveyor belt is a practical solution wherever reliable movement of lighter goods over short distances is needed, with low noise and smooth operation. It is typically used in the dispensing channel of vending machines, in sorting devices, and during the construction of prototypes or small-scale automation projects. The mounting holes with a pitch of 110 × 300 mm allow for simple and secure attachment to the device frame or mounting plate without complicated modifications. The 24 V power supply along with the signal wire facilitates integration with the control unit of the vending machine or other devices. The conveyor is sold as a single unit, making it suitable for replacing a single channel or for gradually expanding equipment without unnecessary storage.
