Intelligent Cable Locator and Network Tester RJ45/RJ11 with PoE Testing, 2.4" Colour Display, 1500 mAh, USB-C, Black-Grey, for Repairs and Maintenance

Intelligent Cable Locator and Network Tester RJ45/RJ11 with PoE Testing, 2.4" Colour Display, 1500 mAh, USB-C, Black-Grey, for Repairs and Maintenance

Cable searching with interference protection, crimp testing, network speed testing, and port blinking. Receiver with NCV, flashlight, and headphones. USB-C charging. Full description
In stock
Delivery €1.59
30-day return policy
€112.18
Safe shopping Safe shopping
Overview
Intelligent Cable Locator and Network Tester RJ45/RJ11 with PoE Testing, 2.4" Colour Display, 1500 mAh, USB-C, Black-Grey, for Repairs and Maintenance

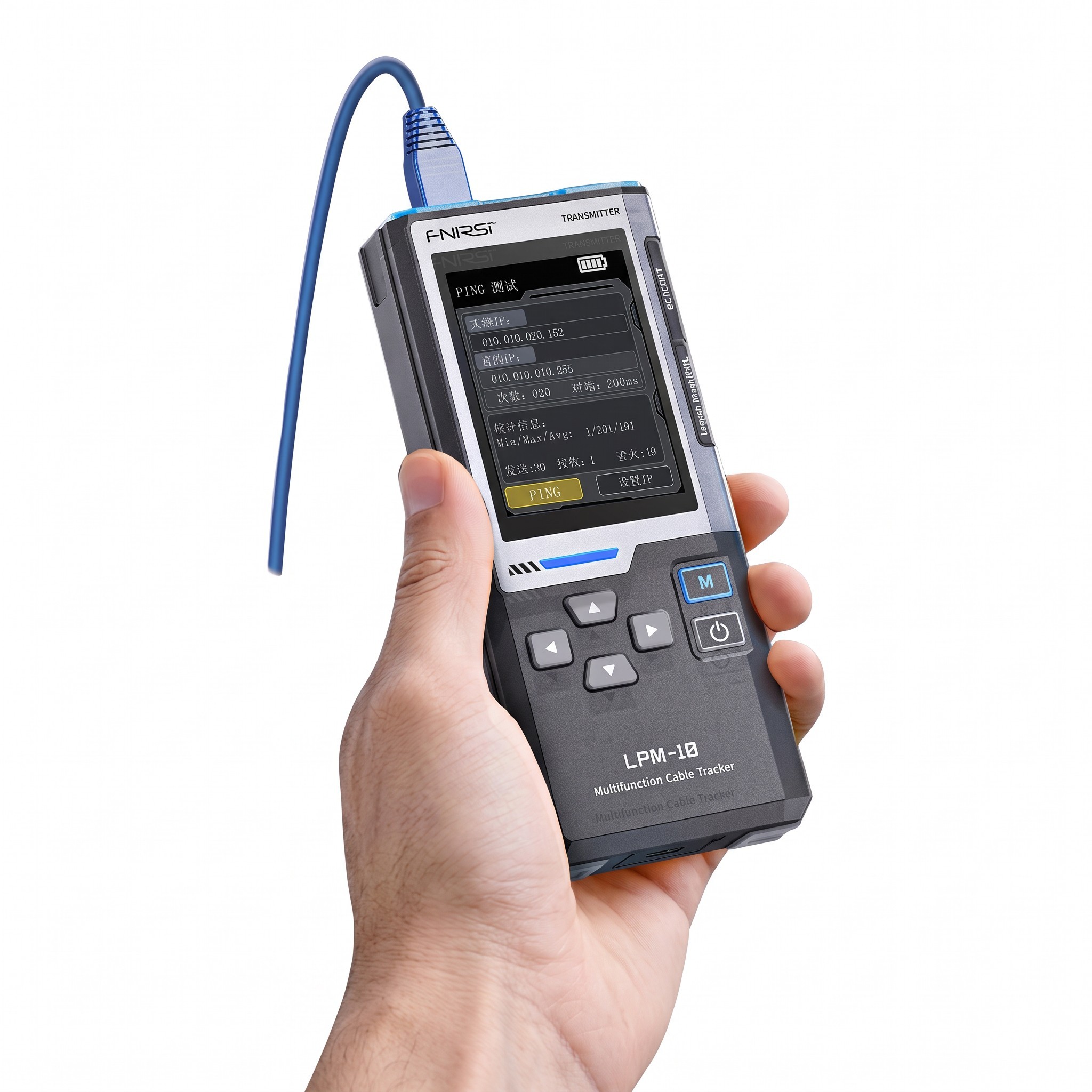

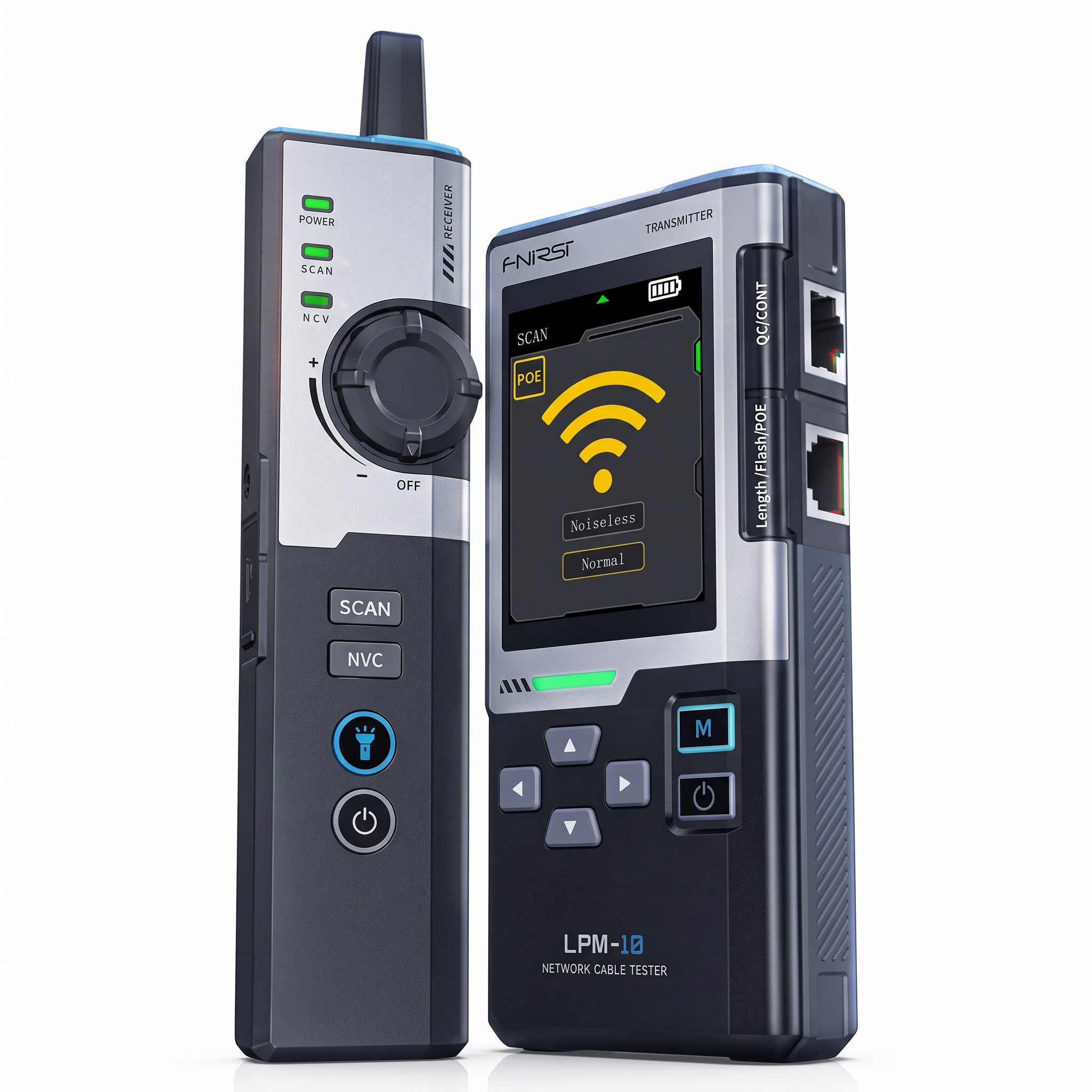

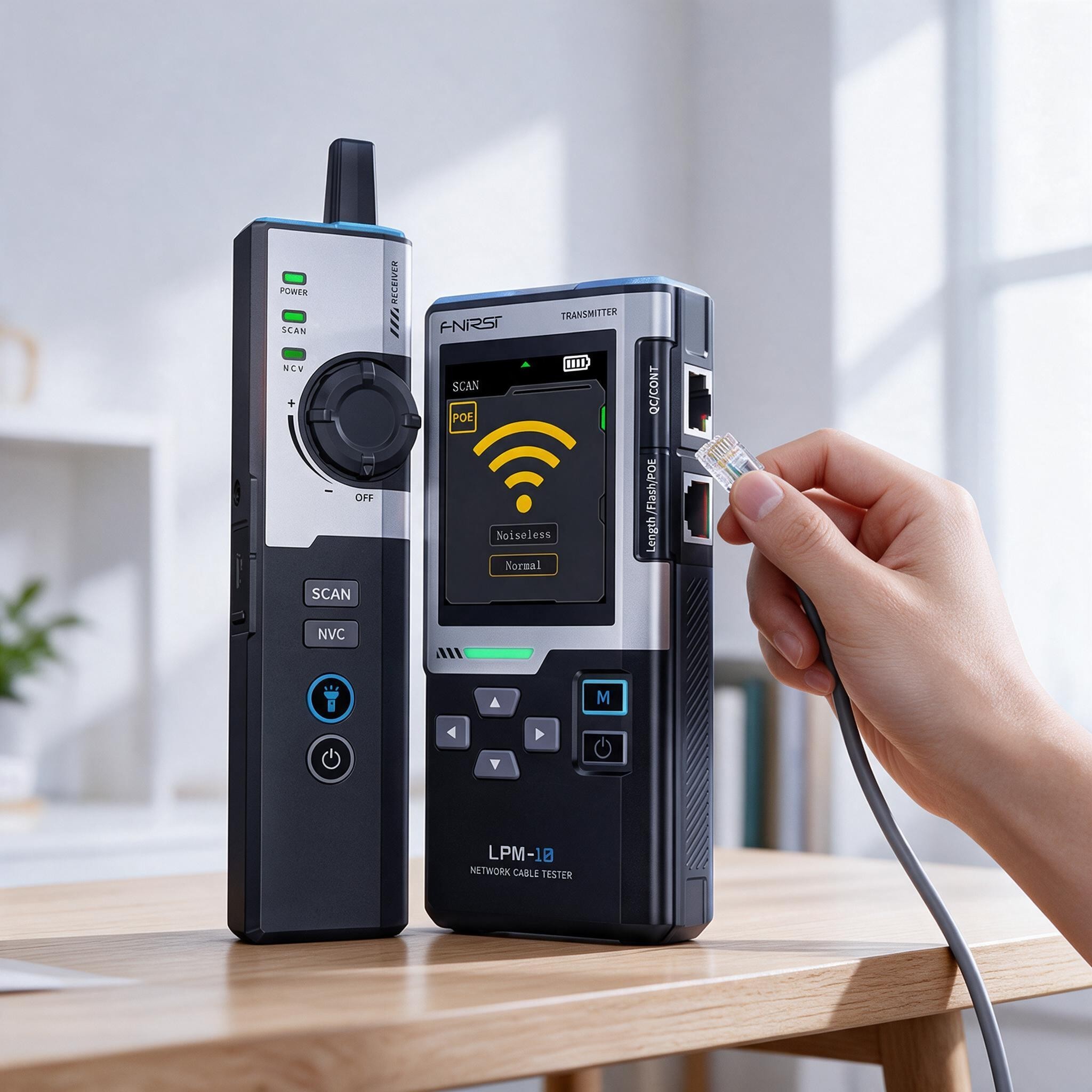

The intelligent cable locator with network tester is a practical tool for the repair and maintenance of both network and telephone lines. The set consists of a transmitter with a 2.4-inch colour display and a receiver, which is used for searching and tracing cables in bundles and distribution frames. The tester verifies the connections and continuity of RJ45 and RJ11 cables, checks the crimping of connectors, and measures the length of the cable as well as the distance to faults. PoE testing, connection speed detection, and port blinking functionality facilitate the identification of connections on switches and the troubleshooting of network issues. The device charges via a USB-C port and is intended for network technicians and administrators.

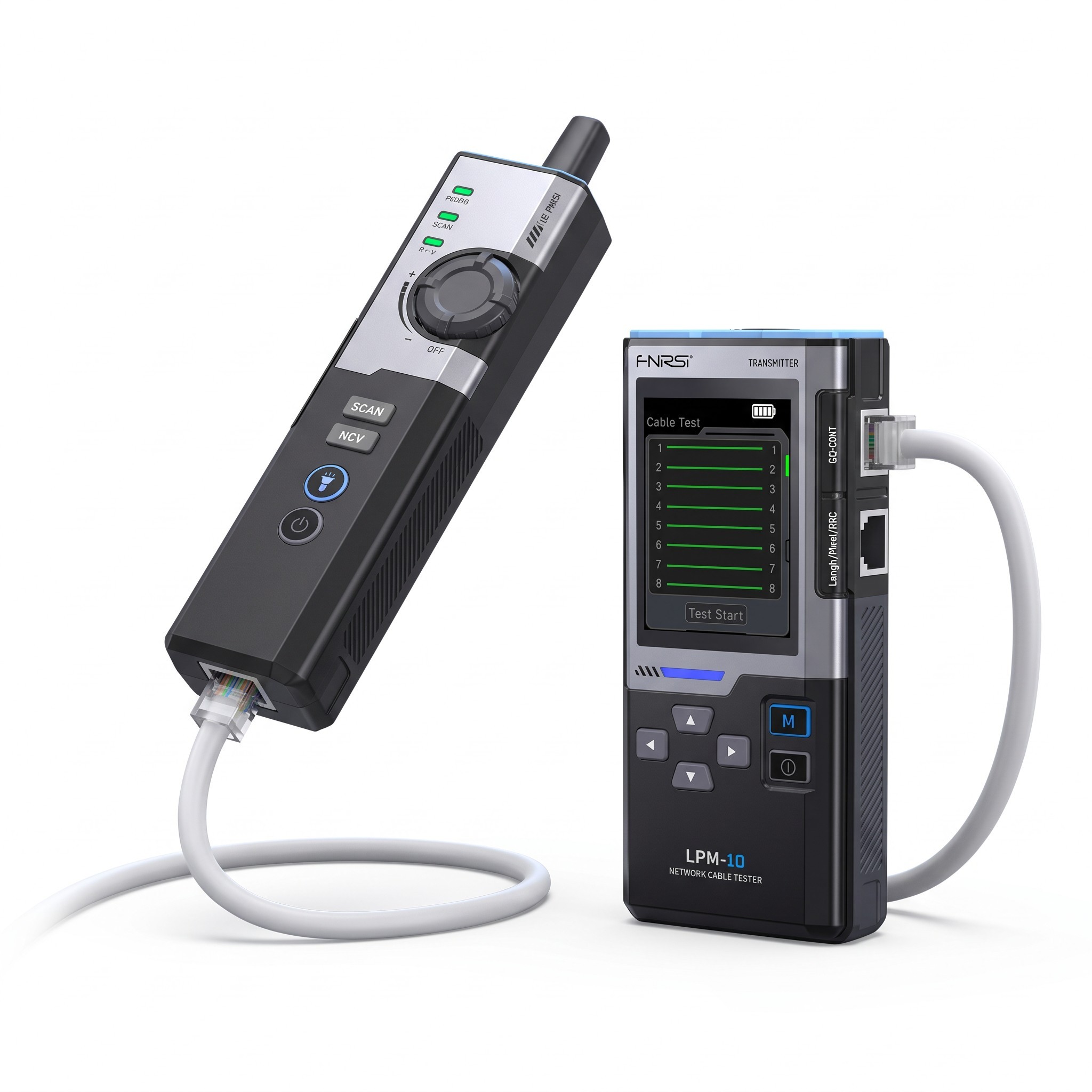

  • Cable connection testing: supports RJ45 interfaces and telephone lines, checks wire order, tests faults, and displays error messages.

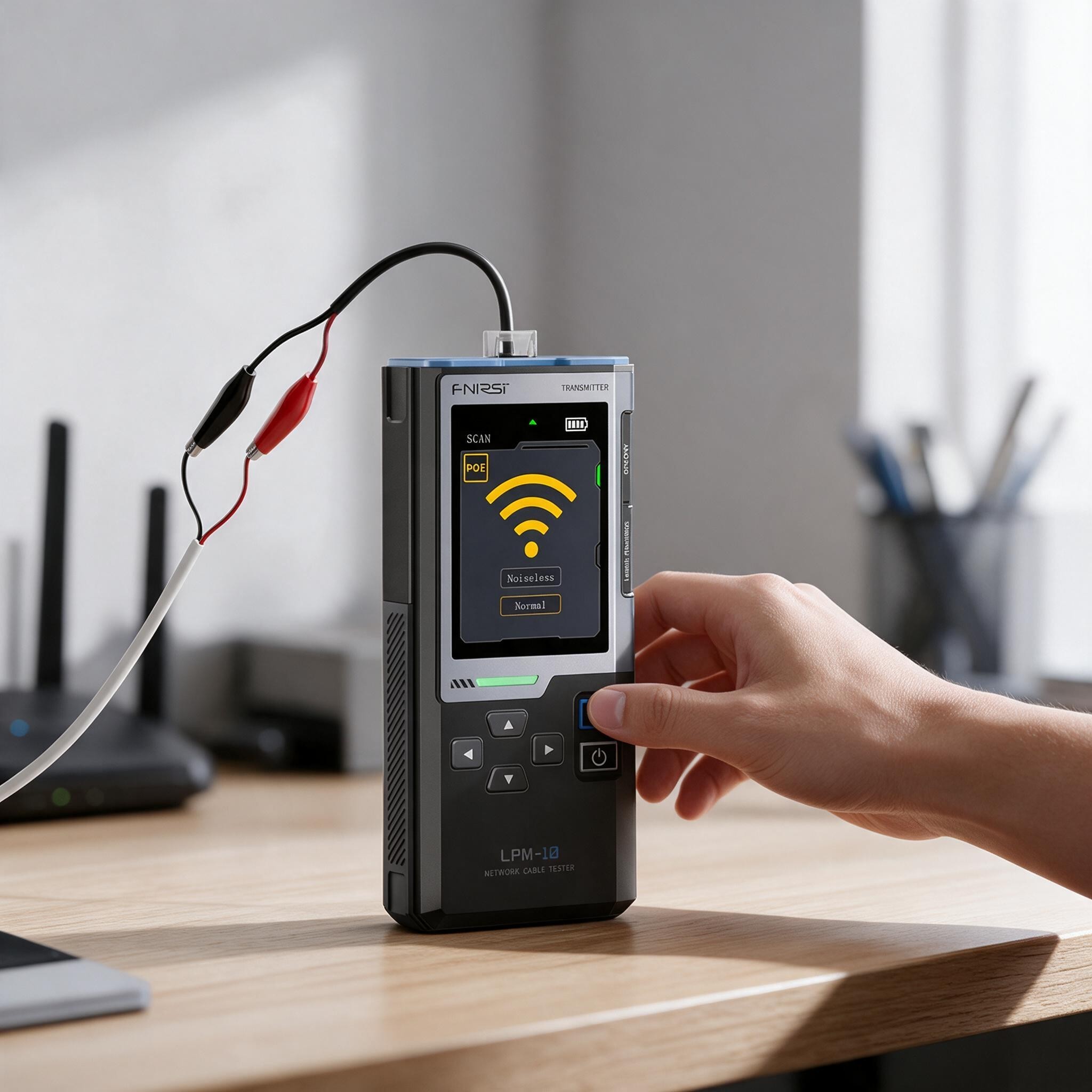

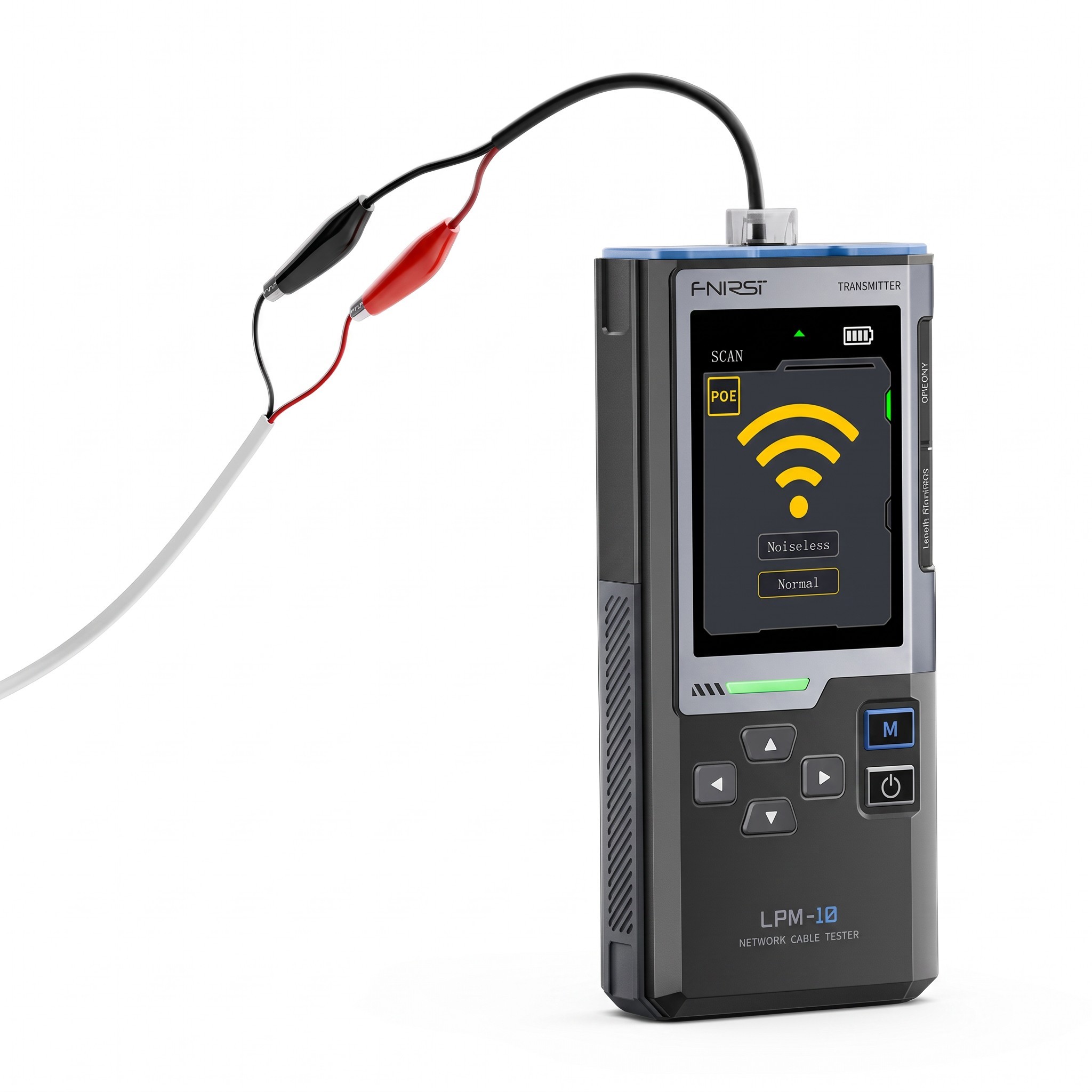

  • Cable searching: normal mode and interference protection mode, which reduces the impact of ambient noise when locating cables.
  • RJ45 crimp testing: clear display of T568B wiring and the status of individual pins, with a green mark indicating a correctly crimped pin.
  • Cable length measurement: determines length and distance to faults with an accuracy of ±1.6 m up to 20 m, ±2.4 m in the range of 20–100 m, and ±3.2 m over 100 m, with units selectable as metres, centimetres, or inches.
  • PoE testing: standard and non-standard PoE, automatic identification of power source (end or mid), power over 4 or 8 wires, detection of power mode, protocol, and power level.
  • Network cable speed: detects speeds of 10M/100M/1000M and duplex mode (full and half duplex).
  • Port blinking: automatic identification in both full duplex and half duplex modes, with and without automatic negotiation, for quick port identification on switches.
  • Receiver: sensitivity adjustment with a rotary dial, line searching mode, line pairing, non-contact voltage detection NCV, flashlight, low voltage indicator, and headphone output.
  • Display and controls: 2.4" colour display with adjustable backlight brightness, directional buttons, language selection (English, Chinese), volume control, and automatic shutdown.
  • Power supply: battery capacity of 1500 mAh, charging via USB-C (5 V / 1 A).
  • Dimensions and weight: approximately 152 × 68 × 31 mm, packaging weight 0.623 kg.
  • Colour: black-grey with blue elements.
  • Package contents: main unit (transmitter and receiver), RJ45 network cable, RJ11 test cable with crocodile clips, RJ45 to RJ11 adapter cable, headphone cable, USB-C charging cable, storage pouch.

This cable locator combines a network cable tester, a cable finder, and PoE checking in one device. It is suitable for installing new wiring, regular network maintenance, and quickly locating faults in cabling. The receiver with adjustable sensitivity helps distinguish the correct cable even in larger bundles, and the transmitter's display clearly shows the results of individual tests. Compact dimensions and the storage pouch facilitate the transport of the tool between work sites. The included cables and adapters allow testing of both network and telephone lines without any additional accessories.
