Handheld Veterinary Ultrasound with 5 MHz Microconvex Probe LED Screen 5.6 Inches B and 4B Display Grey-Blue For Examination of Dogs and Cats
Handheld Veterinary Ultrasound with 5 MHz Microconvex Probe LED Screen 5.6 Inches B and 4B Display Grey-Blue For Examination of Dogs and Cats 1

Handheld Veterinary Ultrasound with 5 MHz Microconvex Probe LED Screen 5.6 Inches B and 4B Display Grey-Blue For Examination of Dogs and Cats

The small probe head fits even under the ribs of a cat or small dog. You view the image on the LED screen and adjust the depth in sixteen steps as needed. Full description
In stock
Delivery €1.59
30-day return policy
€2,198.21
Safe shopping Safe shopping
Overview
Handheld Veterinary Ultrasound with 5 MHz Microconvex Probe LED Screen 5.6 Inches B and 4B Display Grey-Blue For Examination of Dogs and Cats

The microconvex transducer has a significantly smaller contact area than a standard convex probe, which is crucial for small patients. You can place it between the ribs or in the cavity behind the arch, where a larger probe cannot make full contact with the skin. The frequency 5 MHz enhances the image resolution while maintaining a wide detection range, making it suitable for dogs, cats, and other small animals. The measured values and image are displayed on the 5.6-inch LED screen directly on the device. You can control it with one hand using the cross with arrow keys and the OK confirmation button.

Key Features:

  • Small contact area — the rounded head can be applied even in intercostal spaces and under the rib arch.
  • Frequency 5 MHz — a compromise between resolution and depth, suitable for the anatomy of cats and small dogs.
  • Sixteen depth levels — range from 126 to 307 mm can be adjusted according to how deep you need to see.
  • Imaging modes B, B+B and 4B — in four-window mode, you can compare four stored slices on one screen.
  • Greyscale with 256 levels — fine transitions of shades help distinguish the boundaries of soft tissues.
  • Measurement set — distance, circumference, area, volume, and angle plus a separate calculation for pregnancy testing.
  • Freeze and Cine functions — freeze the image with one button and play back a loop of 256 frames.
  • Storage and transfer — 32 GB internal memory complemented by a USB connector for external drives.
  • Three connectors on the body — separate inputs for the probe, USB, and charging are located on the top edge.
  • Loop and strap — the device can be held by the textile loop or hung on the shoulder strap included in the package.

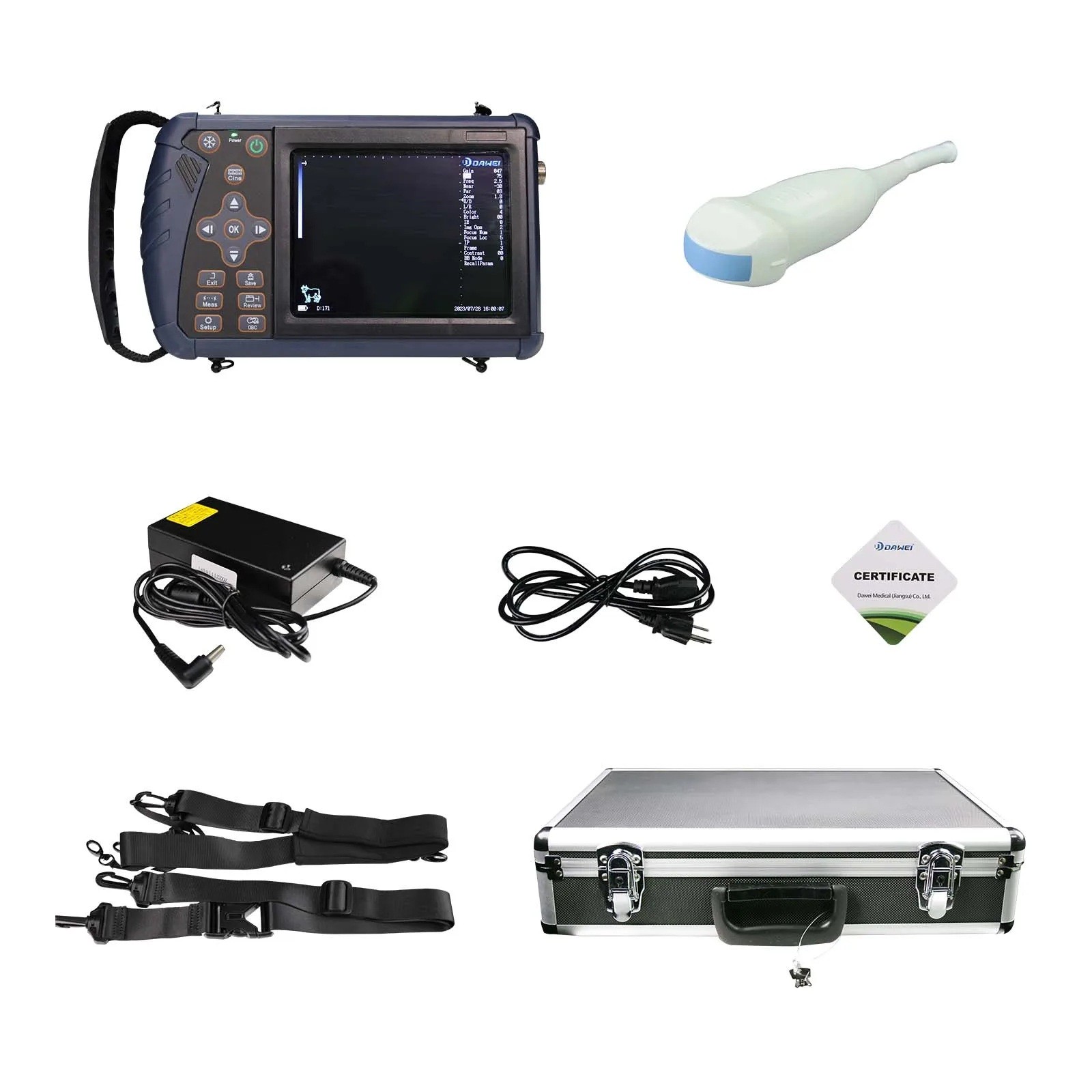

Package Contents:

  • 1x main ultrasound unit
  • 1x 5 MHz microconvex probe
  • 1x power adapter
  • 1x power cable
  • 1x portable case
  • 1x carrying strap
  • 1x user manual

This configuration targets veterinary practices for small animals, where the probe is applied to a limited area and a large head would only be in the way. The examination takes place with the patient on a table or in the owner's arms, and due to the weight of the device, a stand is not required. The combination of 5 MHz frequency and wide detection range provides usable images for both abdominal diagnostics and checking the pregnancy of a bitch or a cat. The case included keeps the unit and probe together, making it easy to transport between the clinic and field visits. Always apply enough gel; otherwise, air will be trapped between the small head and the fur, causing the image to lose sharpness.
