ET693C Infrared Thermal Camera 256x192 Super IR 512x384 1080P Visible Fusion Laser Pointer Black for Electrical and Industrial Measurement

ET693C Infrared Thermal Camera 256x192 Super IR 512x384 1080P Visible Fusion Laser Pointer Black for Electrical and Industrial Measurement

Measure temperatures from -20 to 550 °C with thermal sensitivity of 50 mK. Super IR display 512x384, image fusion and 1080P camera for accurate fault diagnosis. Full description
In stock
Delivery €1.59
30-day return policy
€464.15
Safe shopping Safe shopping
Overview
ET693C Infrared Thermal Camera 256x192 Super IR 512x384 1080P Visible Fusion Laser Pointer Black for Electrical and Industrial Measurement

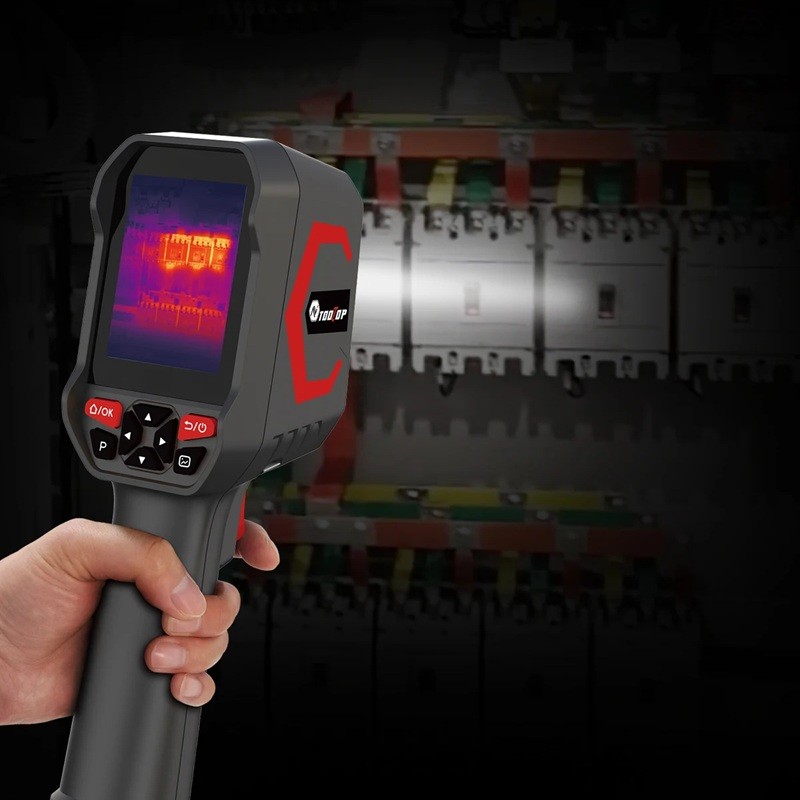

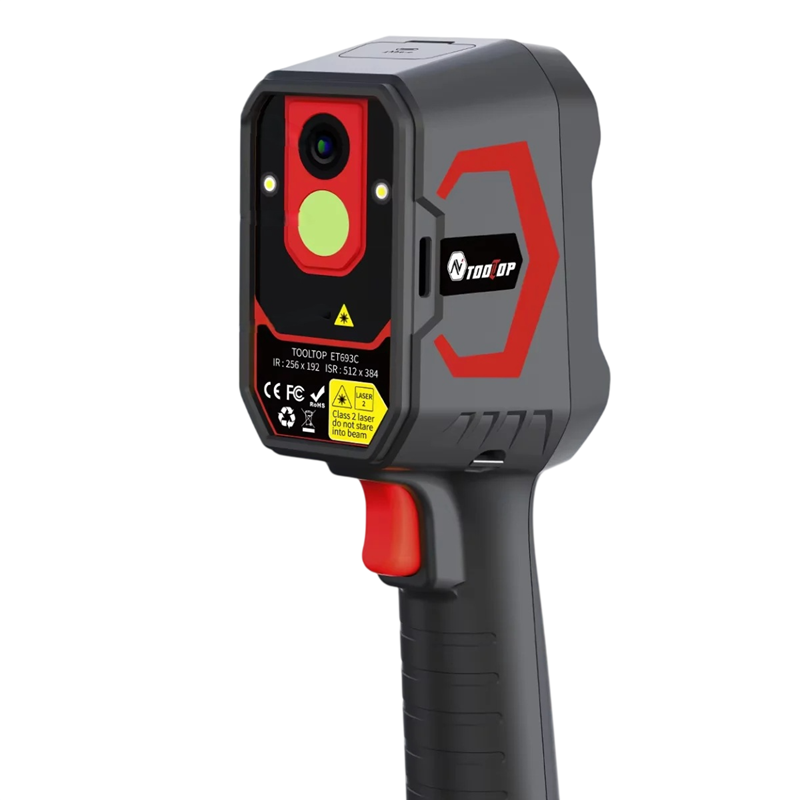

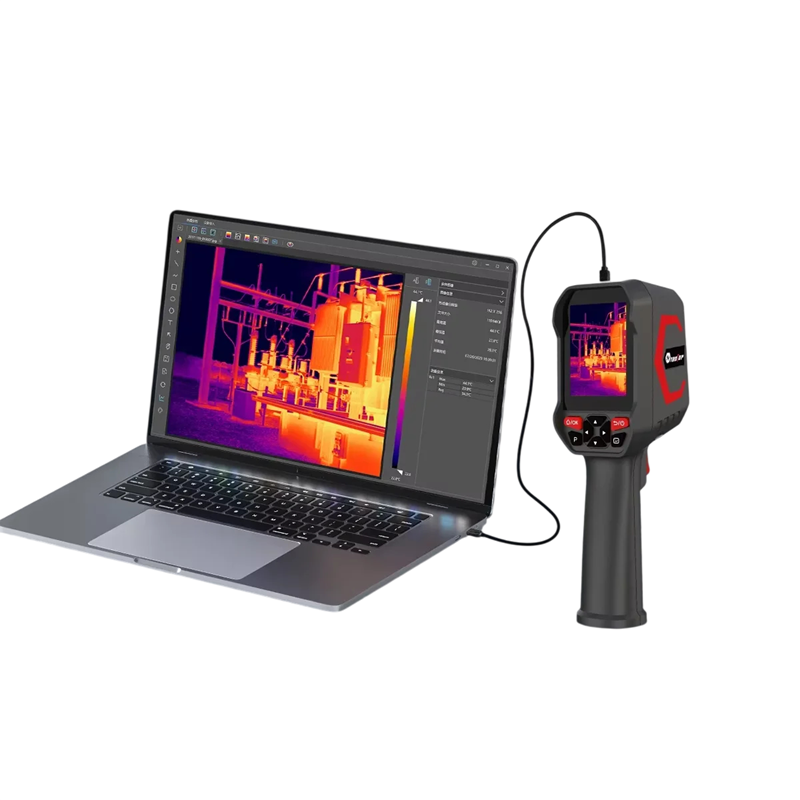

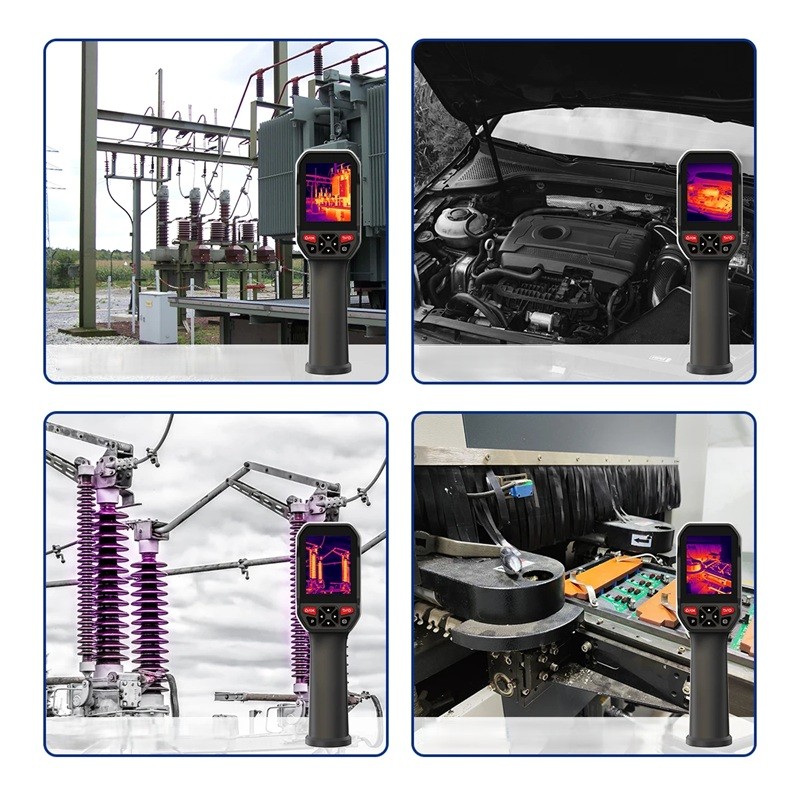

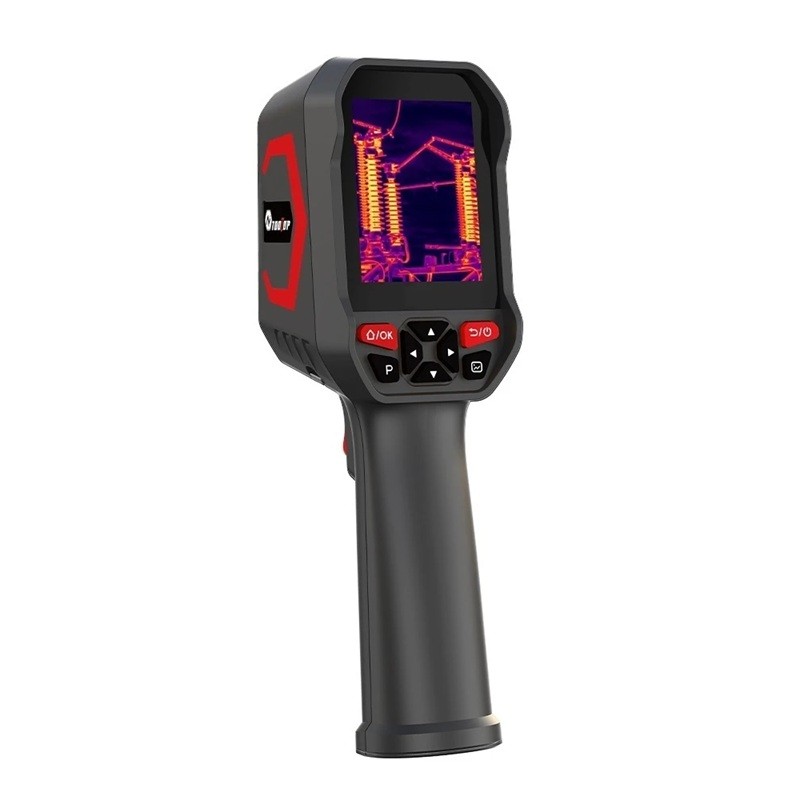

The ET693C thermal camera is a handheld measuring device that combines an infrared sensor with resolution of 256x192 and Super IR technology to enhance the image up to 512x384. The built-in 1080P visible light camera allows for image fusion, so thermal and standard images can be clearly combined into one. The device measures temperature across a wide range and is designed for electrical and industrial testing, panel inspections, motor checks, or detecting thermal losses. The laser pointer helps quickly and accurately target the subject being monitored, while the 2.8" display shows the scene in real-time. Accompanying computer software supports image transfer and analysis of stored data.

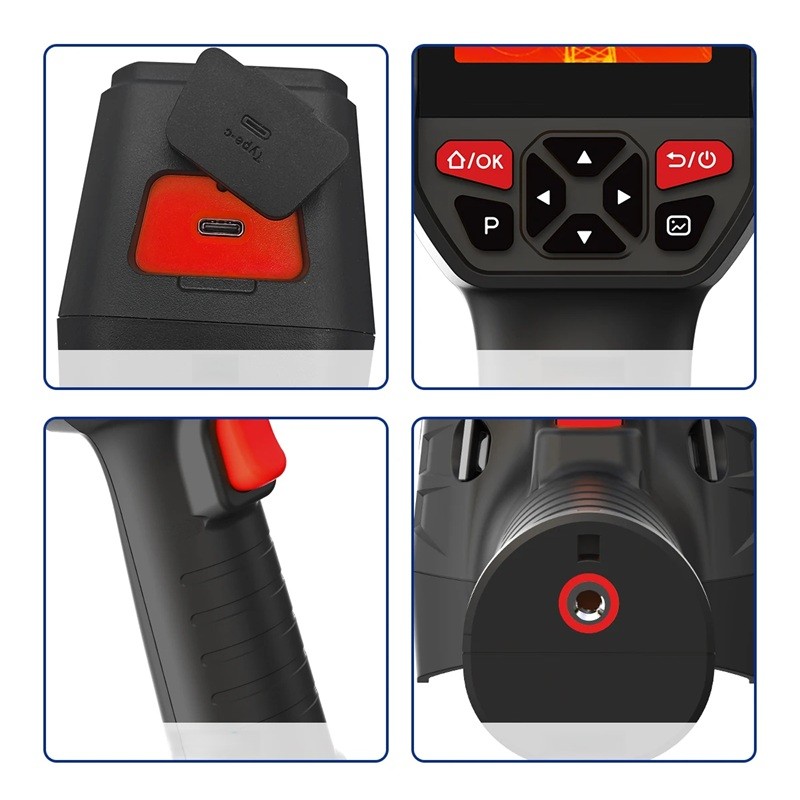

Thanks to its compact body with a comfortable grip, the camera can be easily held in one hand and is suitable for fieldwork. It offers nine colour palettes and several display modes, allowing you to customise the display for specific tasks. Thermal images and videos can be stored directly in the device and later evaluated at your convenience. Control is managed by clear buttons and arrows below the display.

Main features:

  • Sensor resolution — 256x192 with Super IR enhancement to 512x384
  • Temperature measurement — range -20 °C to 550 °C with accuracy ±2 °C or ±2 % of the reading
  • Thermal sensitivity — 50 mK at 25 °C for fine temperature differences
  • Display — 2.8 inches with a frame rate of 25 Hz

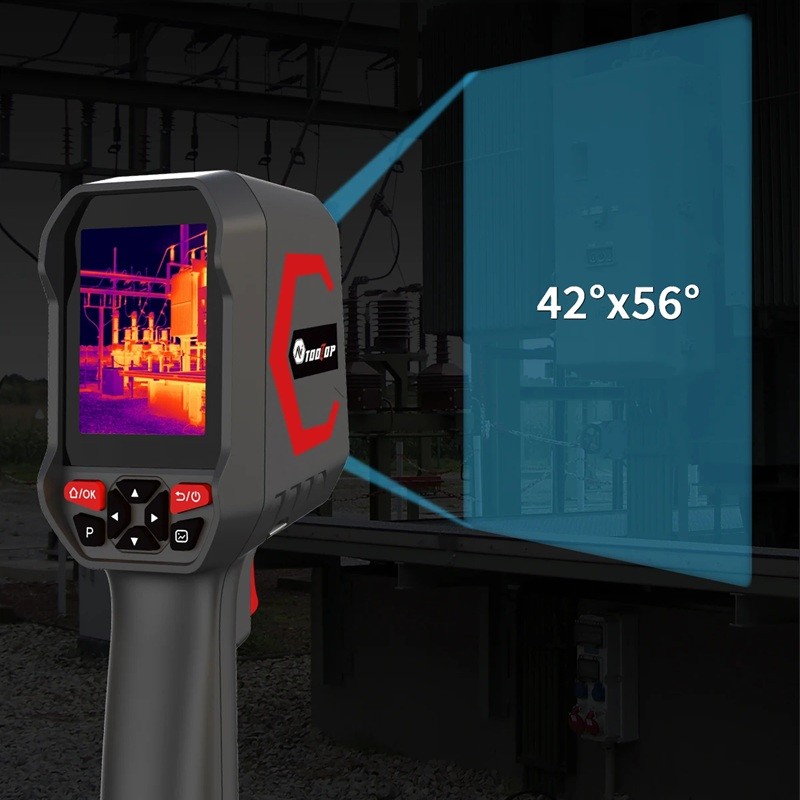

  • Lens — 3.2 mm F1.1 with a field of view of 42°x56°
  • Visible camera — 1080P resolution with a field of view of 55°x83°
  • Image modes — image fusion, outline fusion, picture-in-picture, infrared only or visible light only
  • Colour palettes — 9 modes including iron, hot white, rainbow, lava, and arctic
  • Temperature compensation — distance compensation up to 5 metres
  • Memory — 8 GB built-in memory, usable 6.19 GB for over 20,000 images
  • Battery — lithium 2600 mAh with approximately 4 hours of operation
  • Interface — USB Type C, photos in JPG format and videos in MP4 format
  • Languages — supports 11 languages

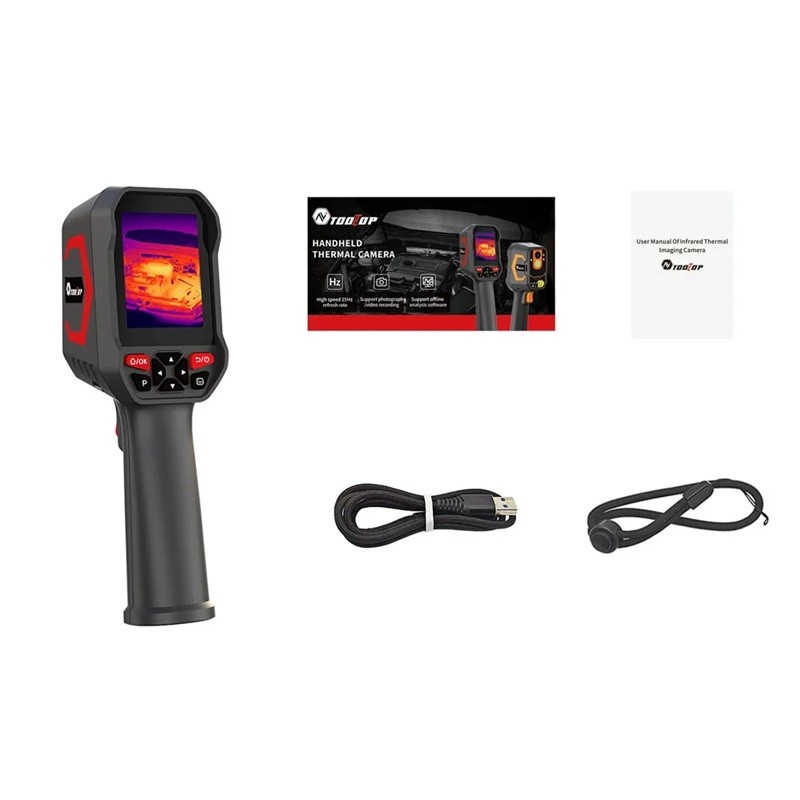

Contents of the package:

  • 1x Thermal Camera
  • 1x User manual in English
  • 1x Type C data cable
  • 1x Packaging box
  • 1x Lanyard

The ET693C thermal camera is a practical assistant for maintenance, inspections, and industrial diagnostics due to its wide measurement range and combination of two cameras. The integration of infrared and visible images accelerates the detection of faults in electrical systems and machinery. The built-in memory stores over 20,000 images and the battery lasts approximately 4 hours of operation. The laser pointer function and distance compensation enhance measurement accuracy directly in the field. Nine colour palettes allow you to highlight temperature differences according to the environment in which you are working. Additionally, the computer software facilitates archiving and detailed analysis of the measured data.
