Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm Analogue Display Memory After Power Failure Class 1
Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm Analogue Display Memory After Power Failure Class 1 1

Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm Analogue Display Memory After Power Failure Class 1

Compact single-phase electric meter for DIN rail, 5(60) A, 50/60 Hz, 18 mm width, analogue display, memory after power failure, non-flammable body. Full description
In stock
€25.72
Overview

Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm Analogue Display Memory After Power Failure Class 1

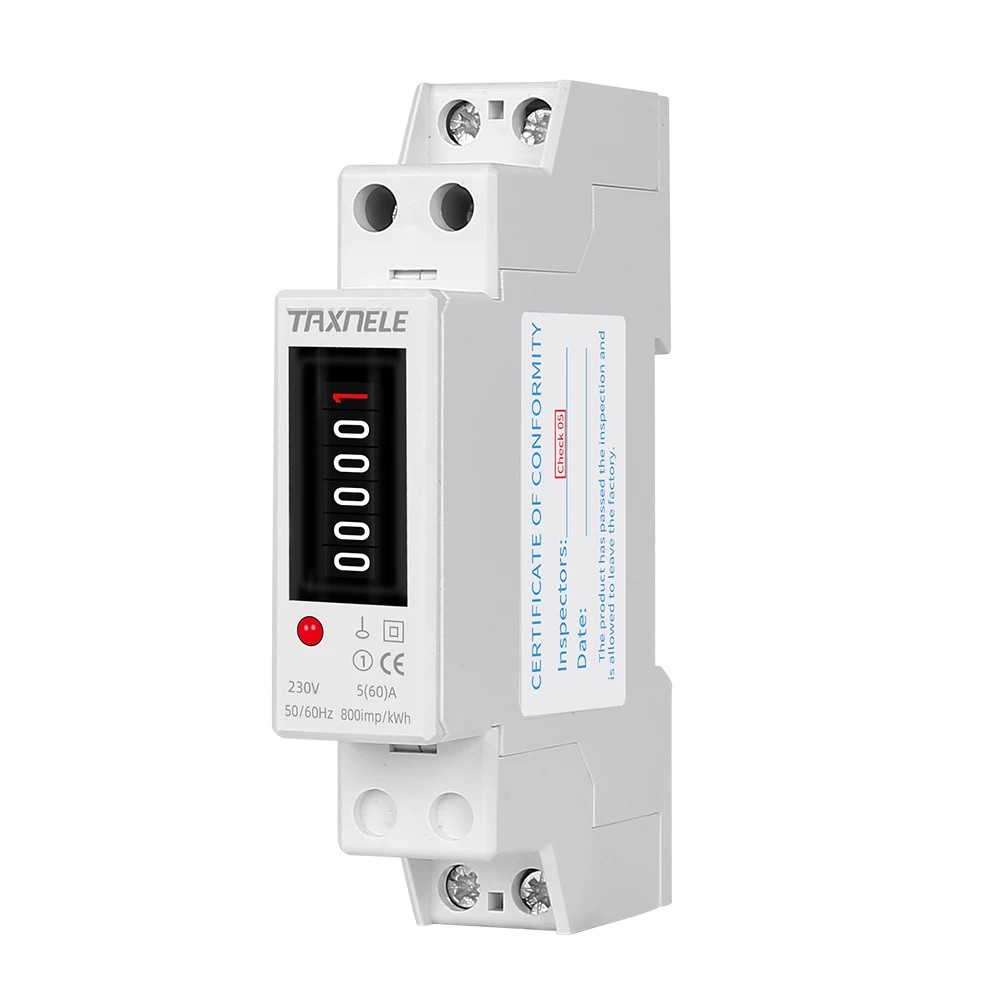

The single-phase electric meter with an analogue display is designed for accurate monitoring of consumption in households, workshops, and small businesses. Thanks to its compact dimensions 91 x 18 x 65 mm, it takes up minimal space in the distribution board and is easily installed on DIN 35 mm. It operates within a range of 230 V / 50–60 Hz and can handle a rated current of 5(60) A, covering most common circuits. Class 1 accuracy ensures reliable readings, while memory after power failure automatically retains accumulated energy so you do not lose data. The body made of non-flammable material is lightweight and durable.

  • Compact Design 18 mm: narrow module for space-saving in the distribution board.
  • Easy Installation: snaps onto DIN 35 mm, terminals marked for 1P/2 Wires (L, N).
  • Measuring Range: 230 V, 5(60) A, 50/60 Hz; indication 800 imp/kWh.
  • Class 1 Accuracy for reliable billing and consumption monitoring.
  • Memory After Power Failure: automatic saving of energy status during power loss.
  • Durable Design: non-flammable casing, low weight, long lifespan.
  • Applications: flats, rental units, sub-metering in workshops, garages, and small businesses.
  • Contents of Package: 1× single-phase electric meter (analogue)

With precise measurement and robust design, you will gain an overview of actual consumption on the selected circuit and can better manage costs. The narrow body allows for measurement even in cramped distribution boards. The analogue display provides clear and quick readings without the need for backlighting. Installation takes just minutes and can be handled by any electrician with basic tools. If you are looking for a reliable electric meter with simple operation, the single-phase analogue variant is a guarantee for everyday use.
