Electric Hydraulic Pump 750 W 10000 PSI 70 MPa Single-Acting with Manual Valve and Foot Pedal 7 L Tank Steel Yellow For Workshop and Service

Electric Hydraulic Pump 750 W 10000 PSI 70 MPa Single-Acting with Manual Valve and Foot Pedal 7 L Tank Steel Yellow For Workshop and Service

Electric hydraulic pump with a pressure of up to 70 MPa and a flow rate of 0.9–5 l/min. Controlled by foot pedal, pressure gauge and sight glass for oil level monitoring. Full description
In stock
Delivery €1.59
30-day return policy
€476.38
Safe shopping Safe shopping
Overview
Electric Hydraulic Pump 750 W 10000 PSI 70 MPa Single-Acting with Manual Valve and Foot Pedal 7 L Tank Steel Yellow For Workshop and Service

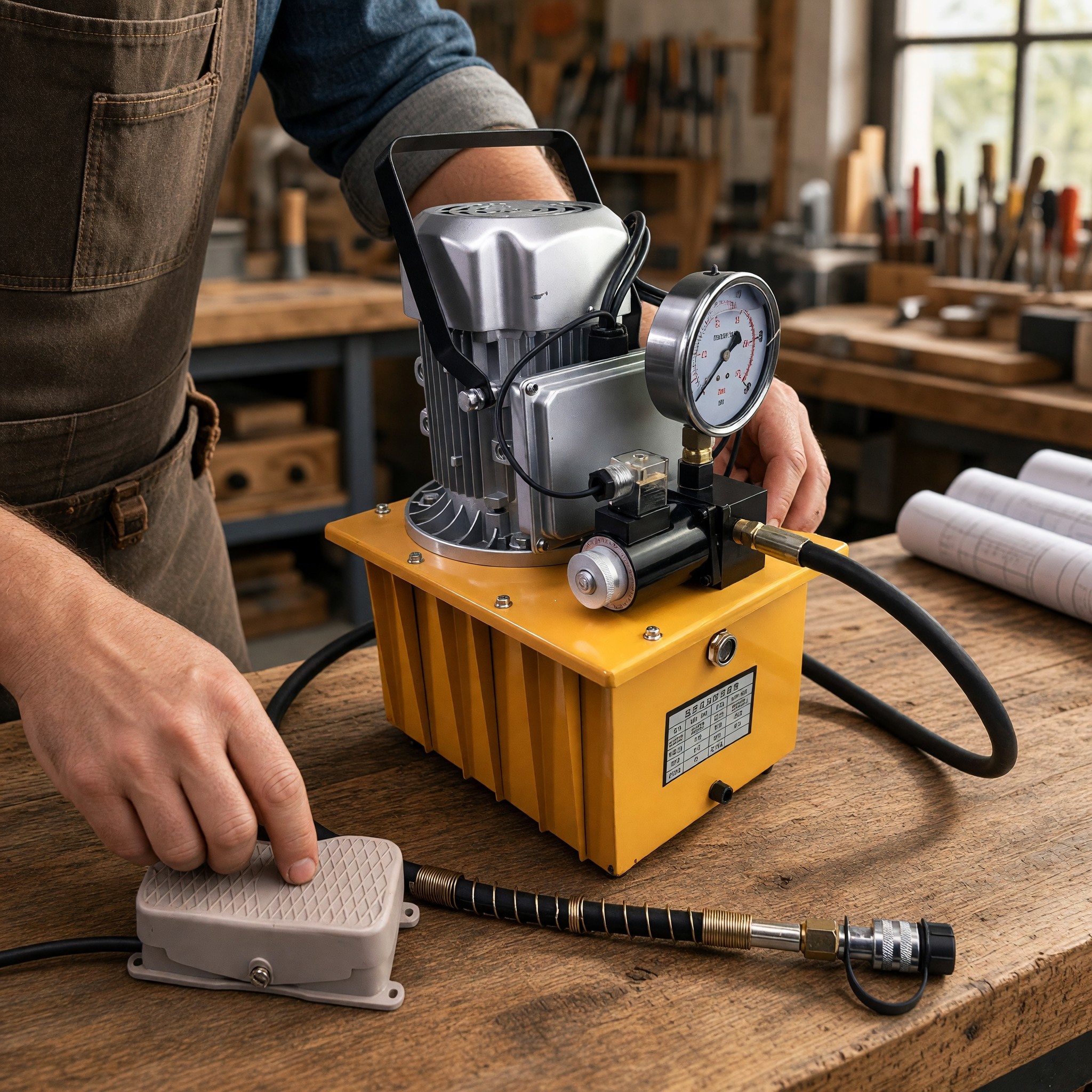

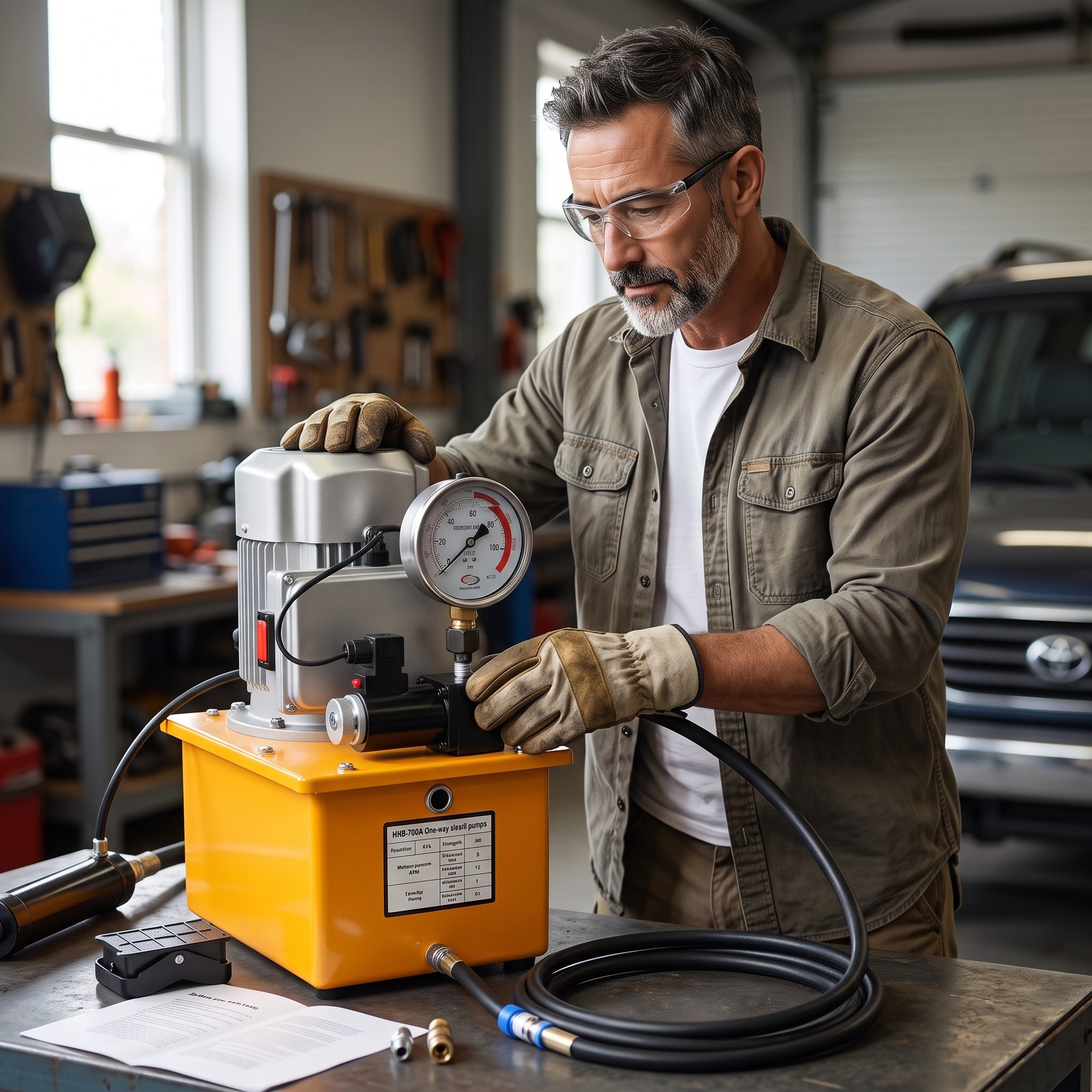

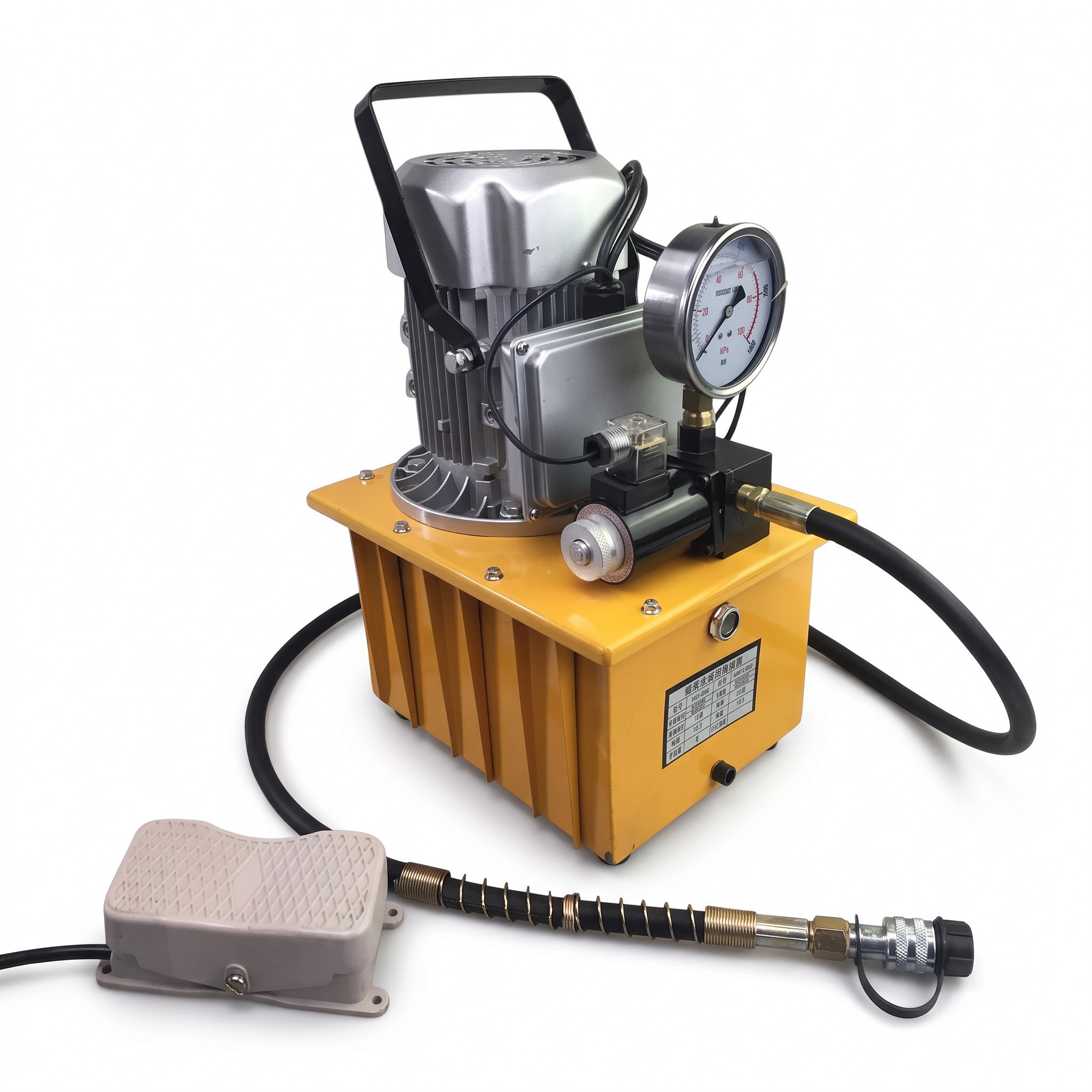

The electric hydraulic pump serves as a pressure source for hydraulic tools in workshops, garages, engineering, and equipment maintenance. It is powered by an electric motor with a power of 750 W and pure copper winding, operating at 1400 rpm and connected to a standard 220 V power supply. The pump generates an operating pressure of 2–70 MPa, which is up to 10 000 PSI. It is a single-acting design with a manual valve and foot pedal control, allowing you to keep both hands free while working. The steel tank with a capacity of 7 L is equipped with a sight glass for easy oil level monitoring.

  • Powerful Motor – power of 750 W, voltage 220 V, speed 1400 rpm, pure copper motor.
  • High Pressure – operating pressure 2–70 MPa (290–10 153 PSI), output hydraulic pressure 725–10 000 PSI.
  • Flow Rate – 0.9–5 l/min.

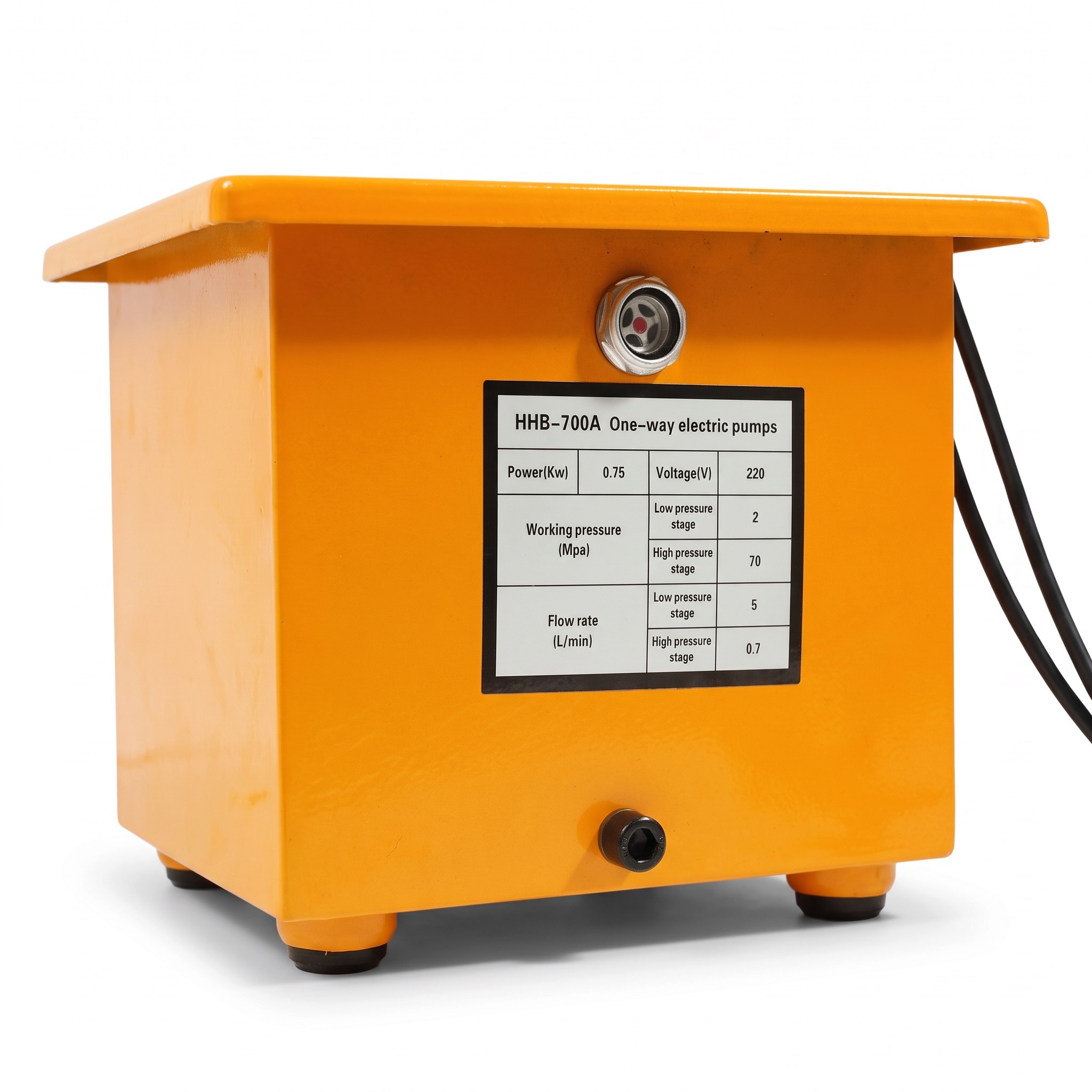

  • Oil Tank – capacity of 7 L, sight glass for monitoring oil level.
  • Control – single-acting pump with manual valve and foot pedal.

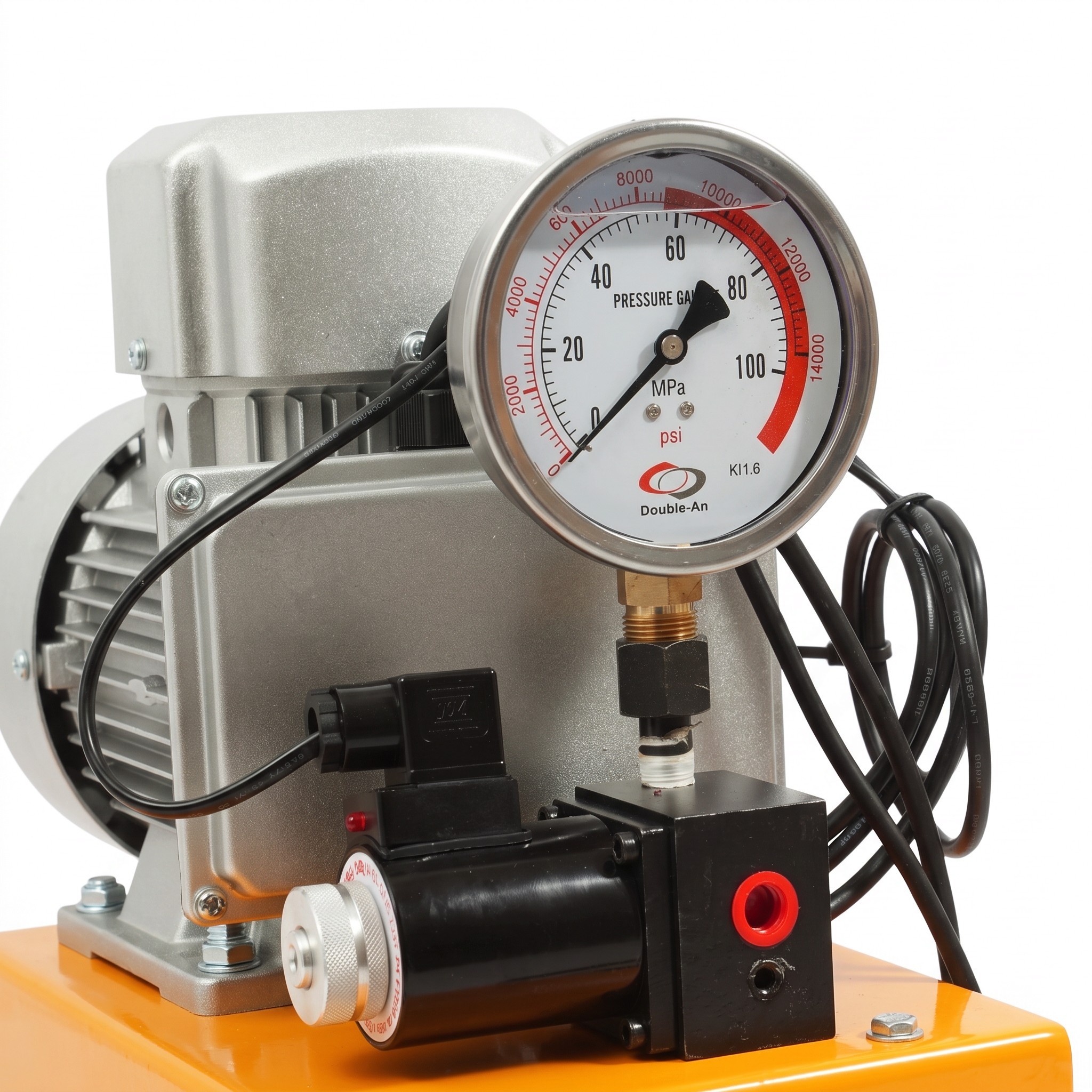

  • Pressure Gauge – pressure gauge directly on the pump for monitoring working pressure.
  • Hydraulic Oil – designed for oil with viscosity 15# (oil not included).
  • Connection – oil outlet thread and air inlet with 24 threads.
  • Material – painted steel.

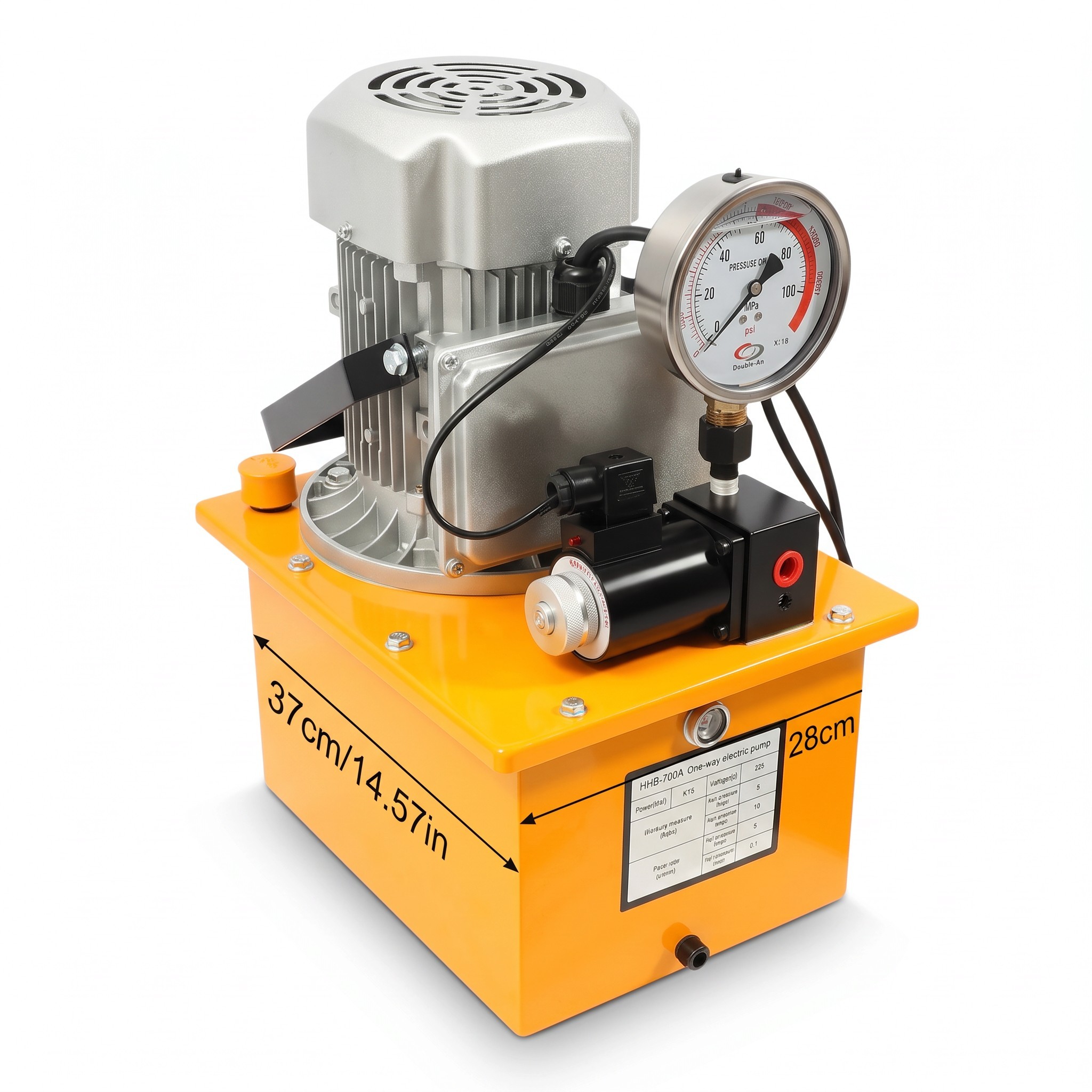

  • Pump Dimensions – 28 x 37 x 48 cm.
  • Weight – 25 kg (with packaging 26.1 kg).
  • Plug – standard EU.
  • Colour – yellow.

The pump can be used with various hydraulic devices and tools. It is suitable for lifting, pressing, bending, straightening, cutting, assembling, and disassembling. Thanks to the foot pedal, you can easily start and stop the pump without having to let go of your tools. The pressure gauge on the pump shows the current working pressure, keeping your work under control.

Before first use, loosen the oil inlet hole and fill the tank with hydraulic oil with a viscosity of 15#. Carefully read the included English manual before starting and follow the safety instructions provided. Dimensions are measured manually, so they may vary by 1–3 cm, and the colour shade may slightly differ due to lighting.

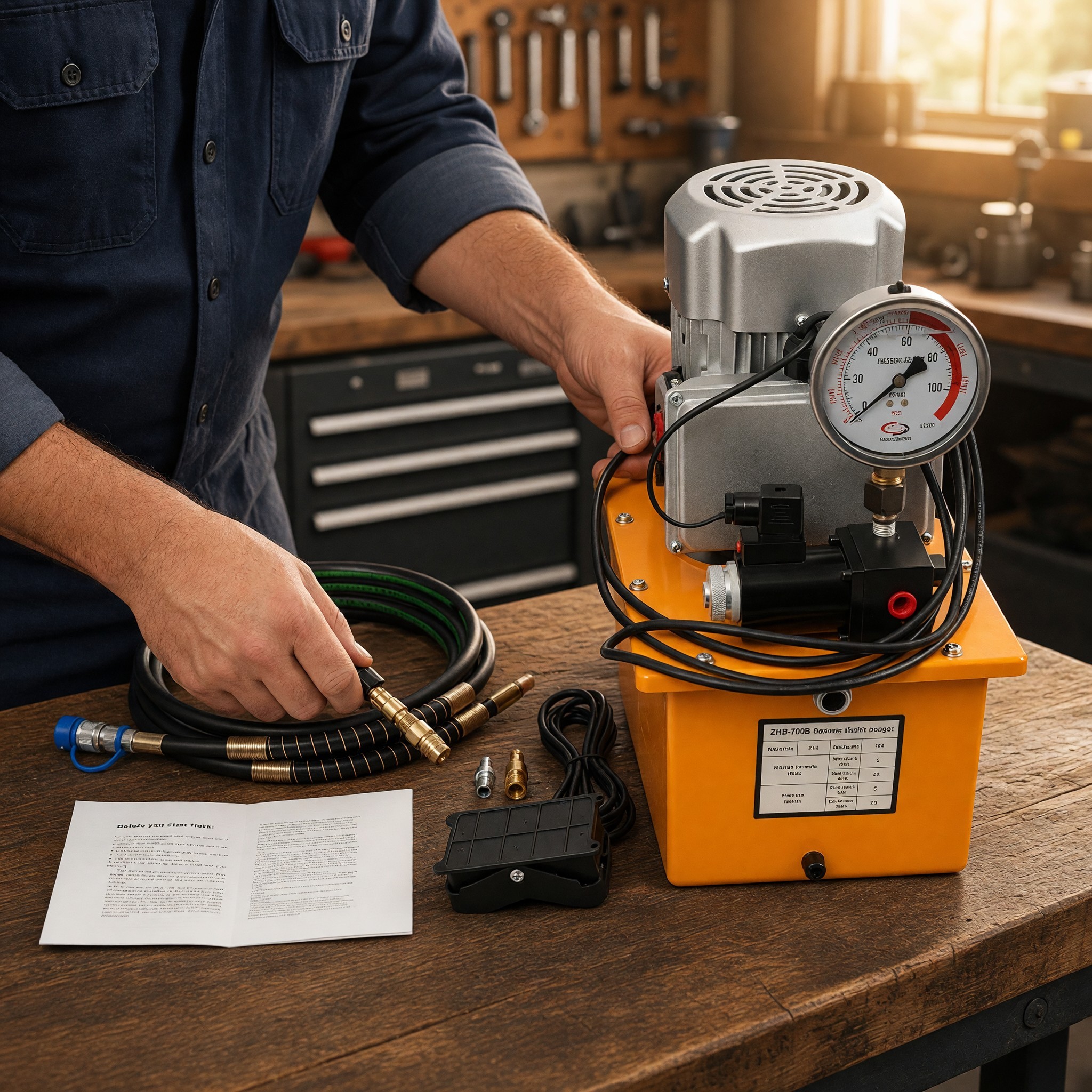

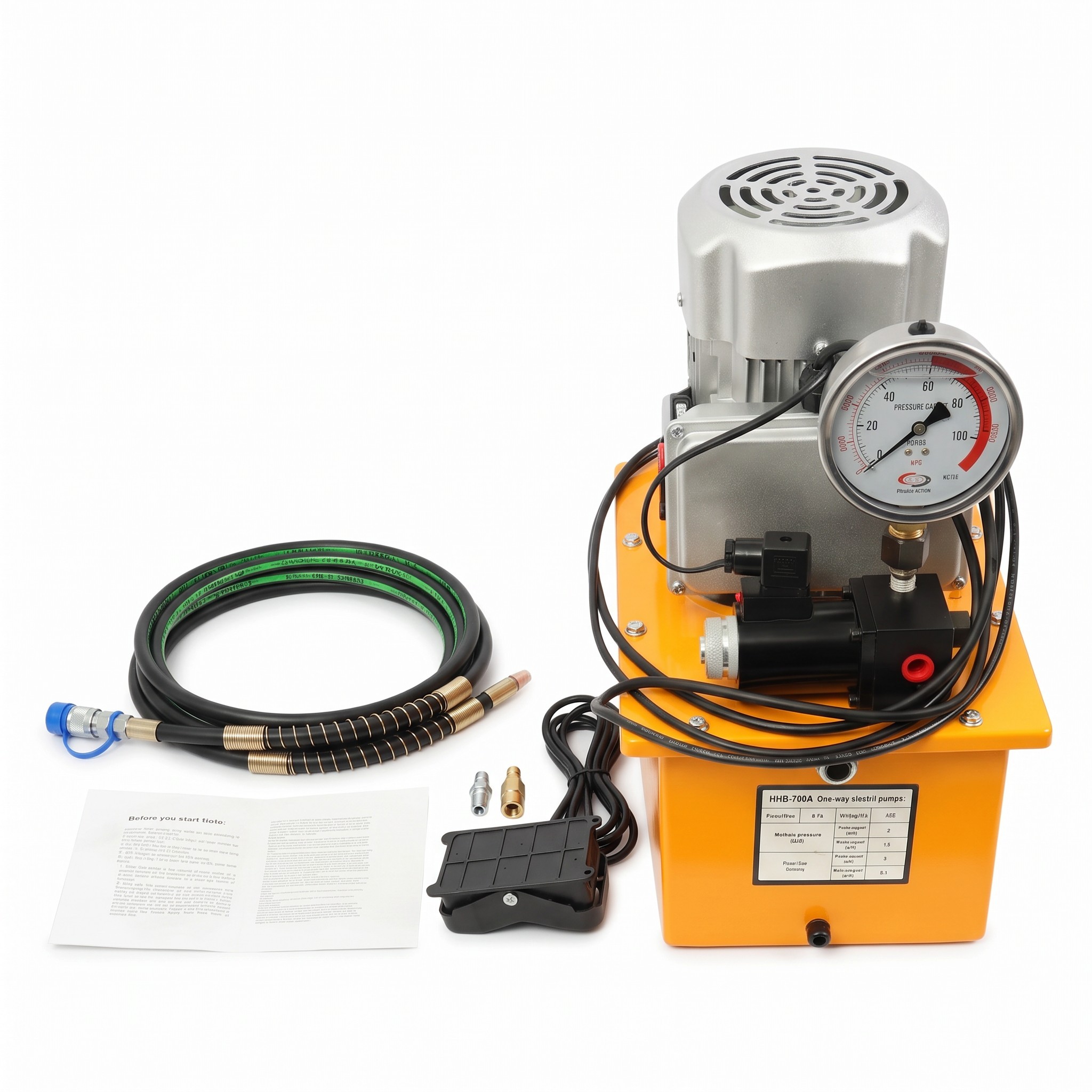

Package Contents:

  • 1x electric hydraulic pump with foot pedal
  • 1x English user manual

The electric hydraulic pump replaces manual pumping and speeds up work with hydraulic tools in the workshop and service. The 750 W motor and pressure of up to 70 MPa are sufficient for demanding tasks from pressing to straightening. The 7 L tank allows for longer operation without frequent oil refills. The steel construction with a painted surface withstands daily use. Hydraulic oil needs to be purchased separately, the pump is designed for oil with viscosity 15#.
