Digital Tweezer LCR Meter 2-in-1 and ESR Tester with Kelvin Clips, 100 kHz, 1.47" Display, USB-C, Black, for SMD and Lead Components

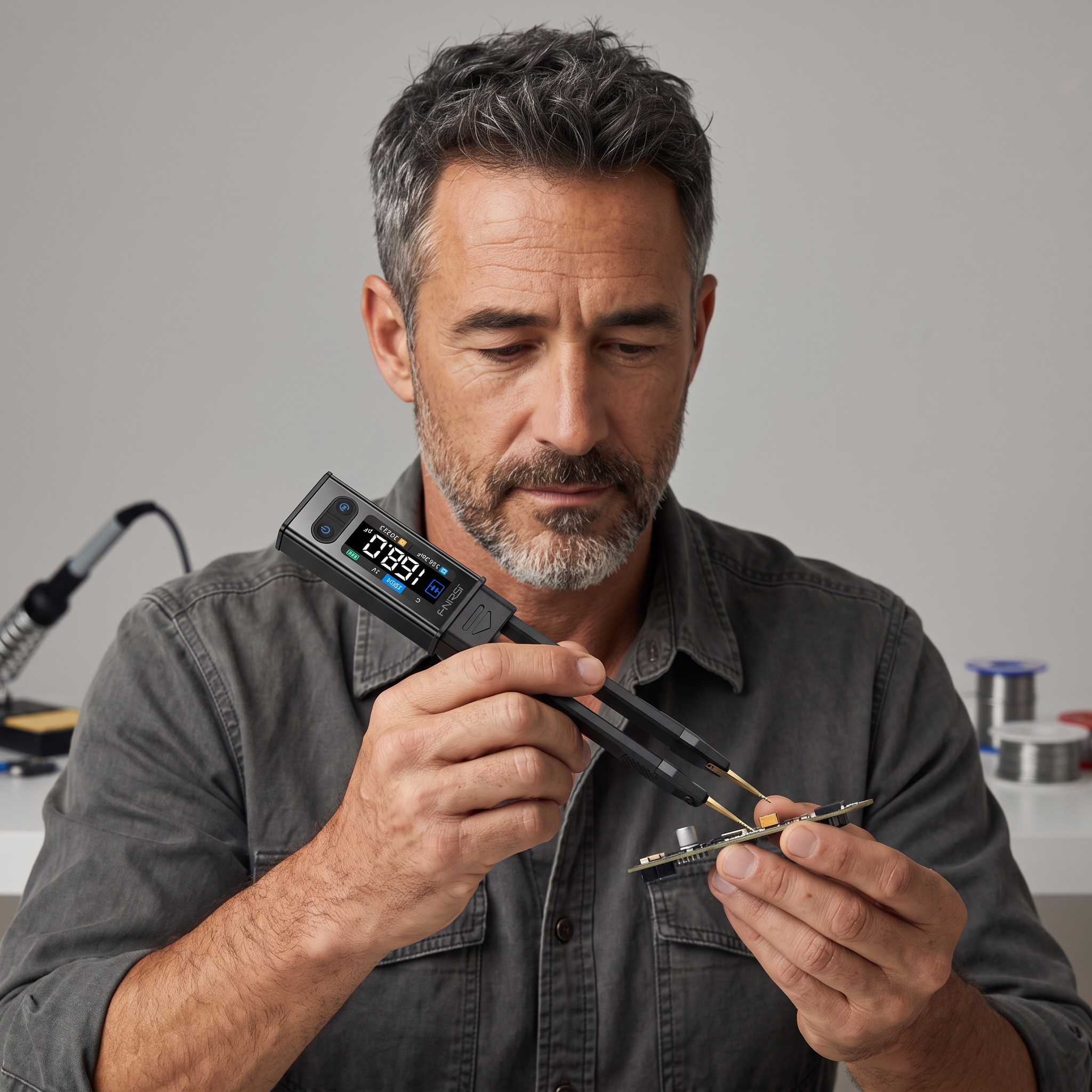

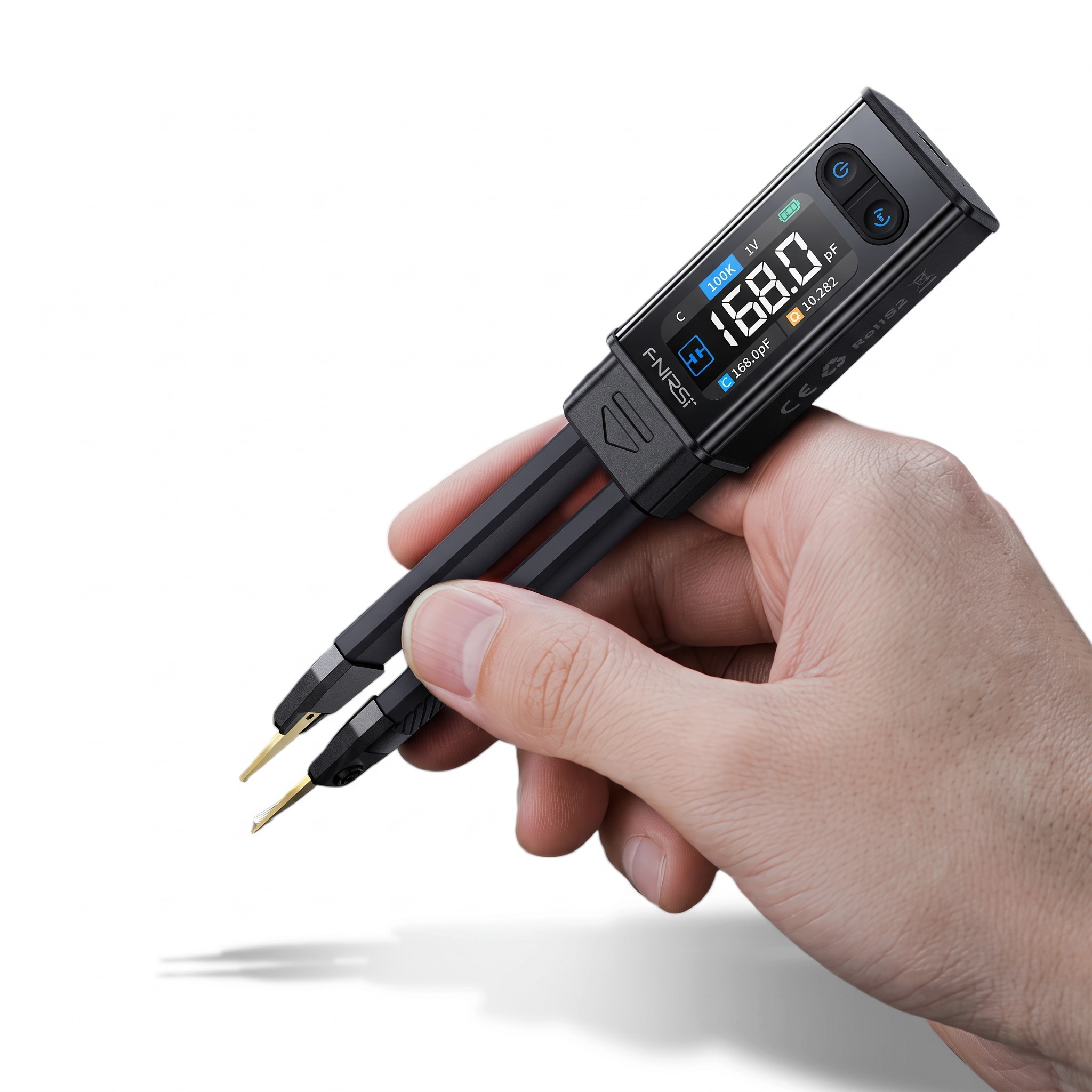

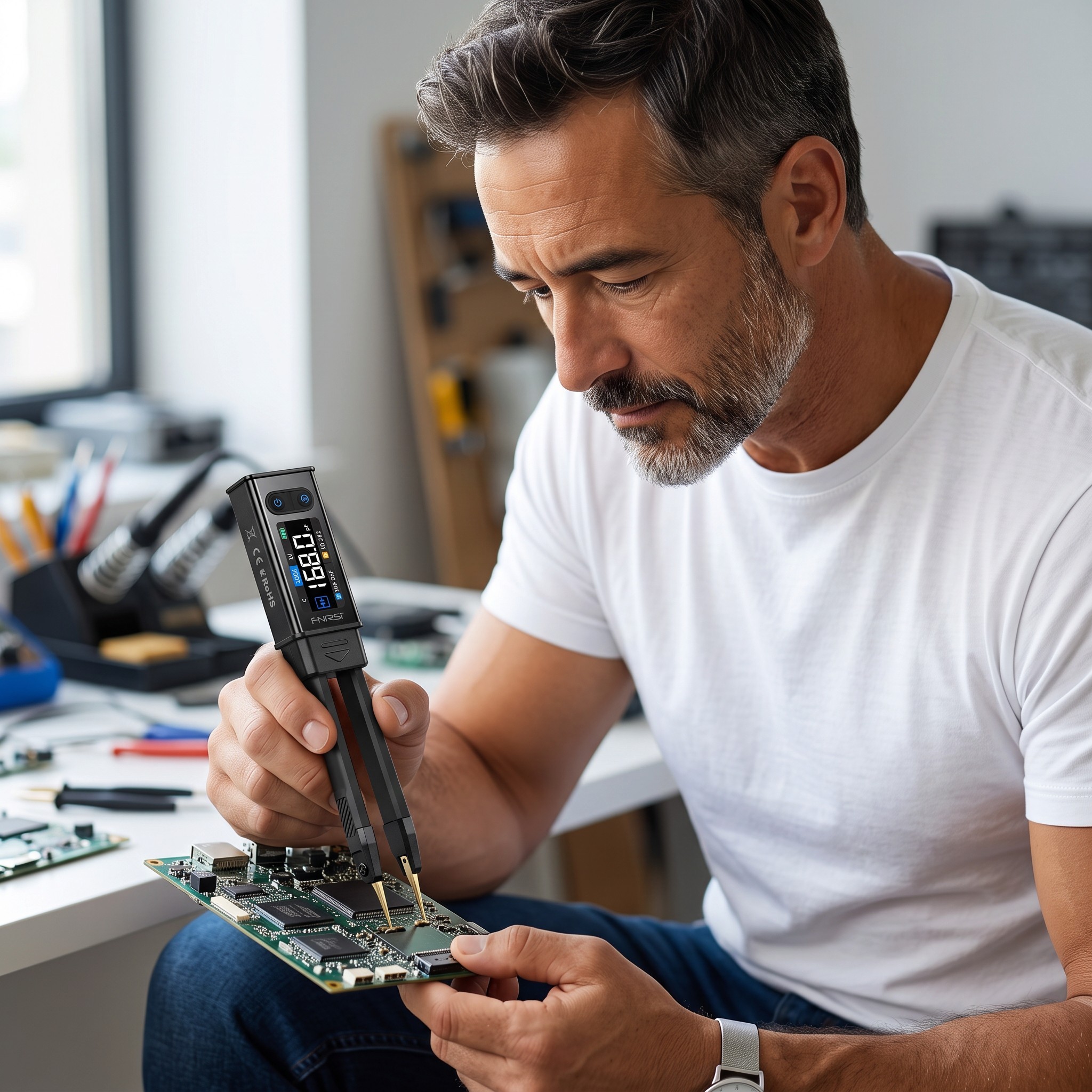

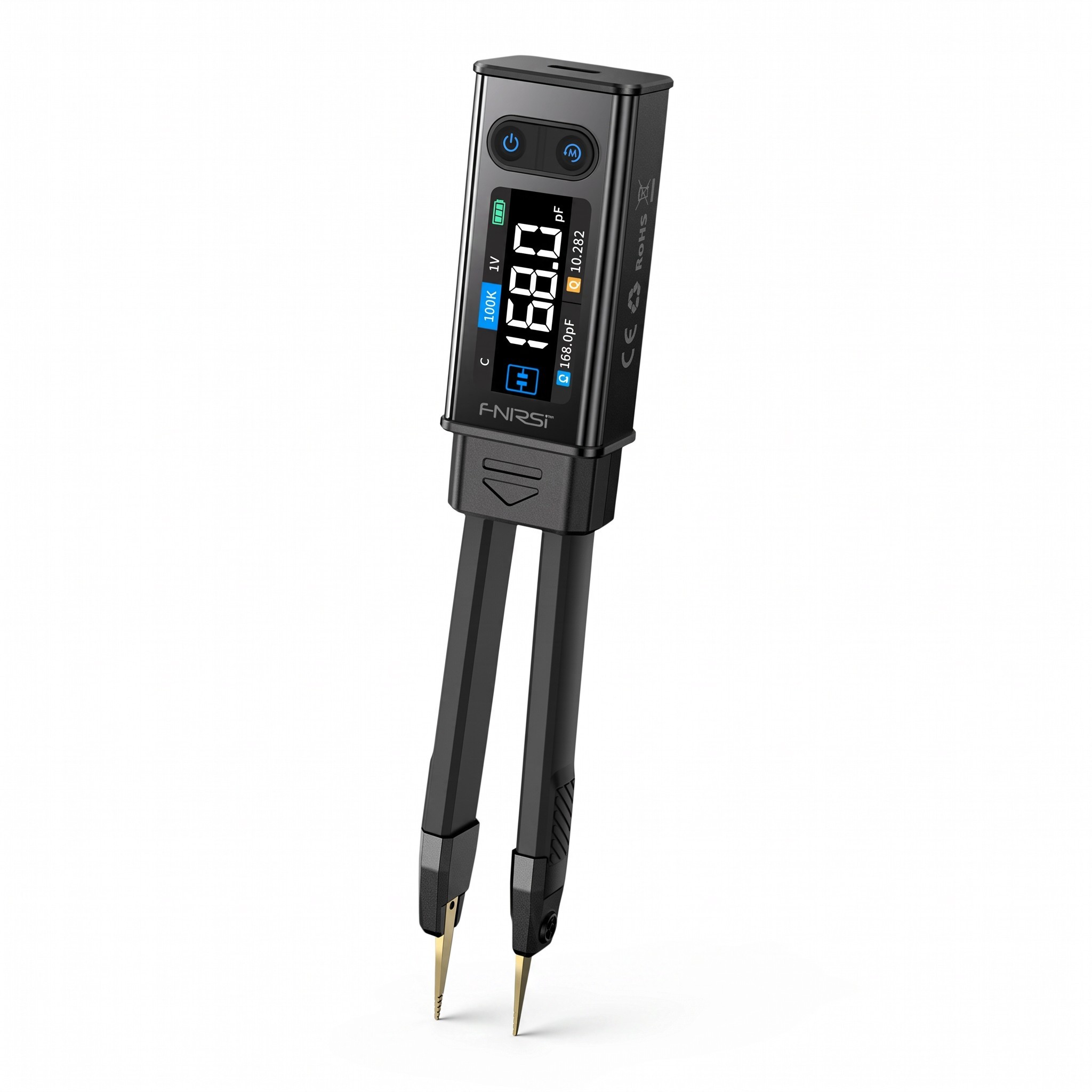

The Digital Tweezer LCR Meter 2-in-1 is designed for quick and accurate measurement of resistance, capacitance, inductance, and ESR of electronic components. The 2-in-1 design with tweezers and Kelvin clips allows for measuring SMD components directly on the board. It can also handle lead components such as electrolytic capacitors, inductors, or resistors. The device offers 5 testing frequencies from 100 Hz to 100 kHz and four levels of test signal 0.1 / 0.3 / 0.6 / 1.0 V RMS. In addition to LCR measurements, it performs diode tests, continuity tests, and measures DC voltage up to ±30 V. The compact black body features a colour display of 1.47" and magnetic attachment, making it suitable for electronics service, development, and home workshops.

  • Automatic recognition of resistor, capacitor, and inductor (R/C/L) as well as manual mode selection
  • Measured parameters: R, C, L, Z, X, D, Q, θ and ESR
  • Ranges: capacitance 1 pF–22 mF, inductance 1 µH–10 H, resistance 10 mΩ–10 MΩ
  • Basic accuracy up to 0.5 % (depending on range and selected frequency)
  • Testing frequencies 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz
  • Frequency sweeping 100 Hz–100 kHz: component parameters across the entire range with one press
  • Intelligent sorting by nominal value and tolerance with PASS/NG evaluation and piece counter
  • Series equivalent model for low impedance and ESR measurement, parallel model for high impedance
  • Simultaneous display of two measurement modes on one screen for direct comparison
  • Diode test (forward voltage up to 0.7 V), continuity test, and measurement of DC voltage ±30 V
  • Calibration open circuit, short circuit and using multiple resistors
  • Colour HD display 1.47" with automatic image rotation based on hand position
  • Data Hold function, adjustable screen brightness and sound

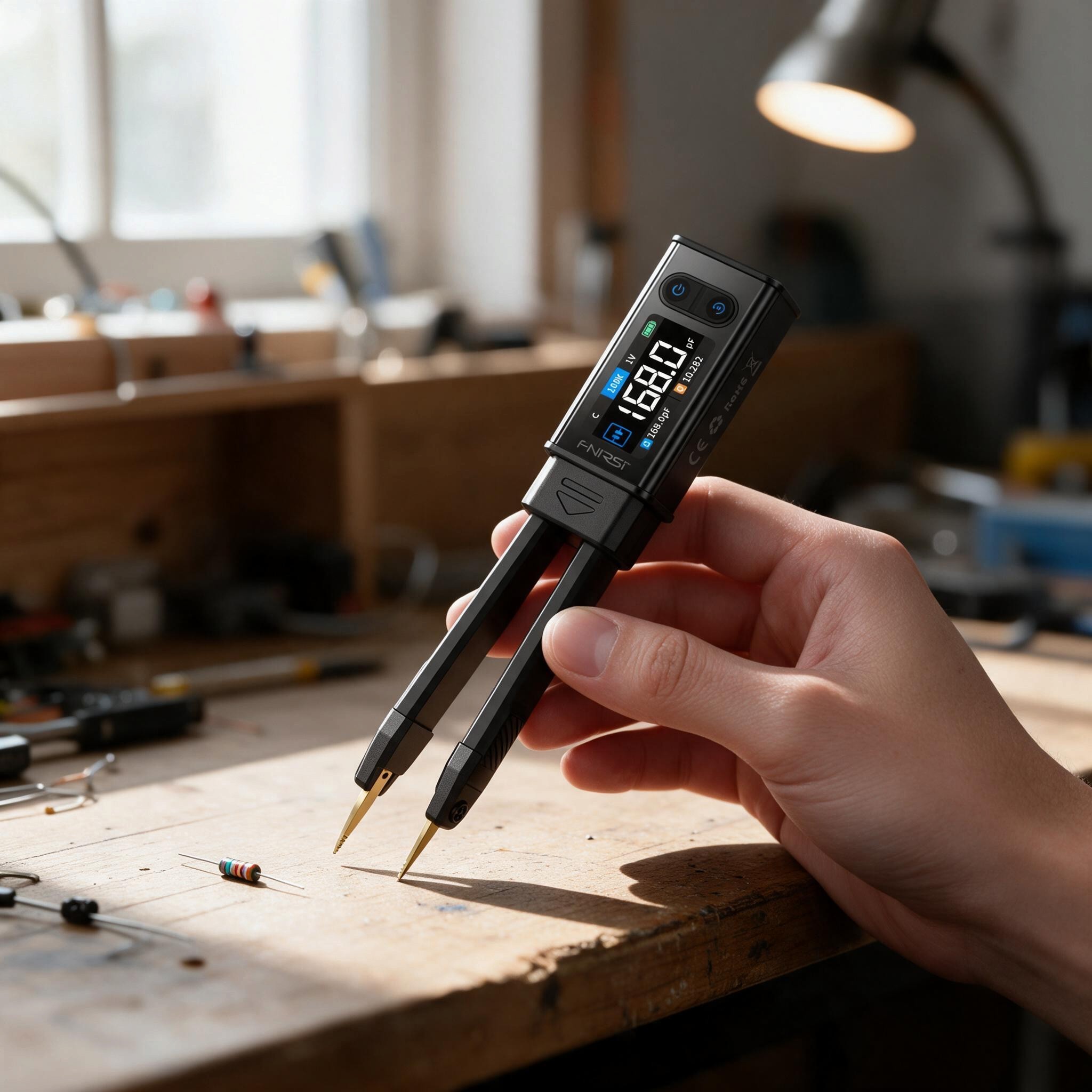

  • Interchangeable gold-plated tips: straight for precise measurement, bent for hard-to-reach places
  • Rechargeable lithium battery 300 mAh with approximately 3 hours of battery life, charging via USB-C
  • Auto power off: never / 5 / 15 / 30 minutes
  • Menu in English and Chinese
  • Dimensions 31 × 170.7 × 20.3 mm, weight approx. 60.8 g
  • Operating temperature 0–50 °C, storage temperature −20 to 60 °C, humidity ≤ 75 %

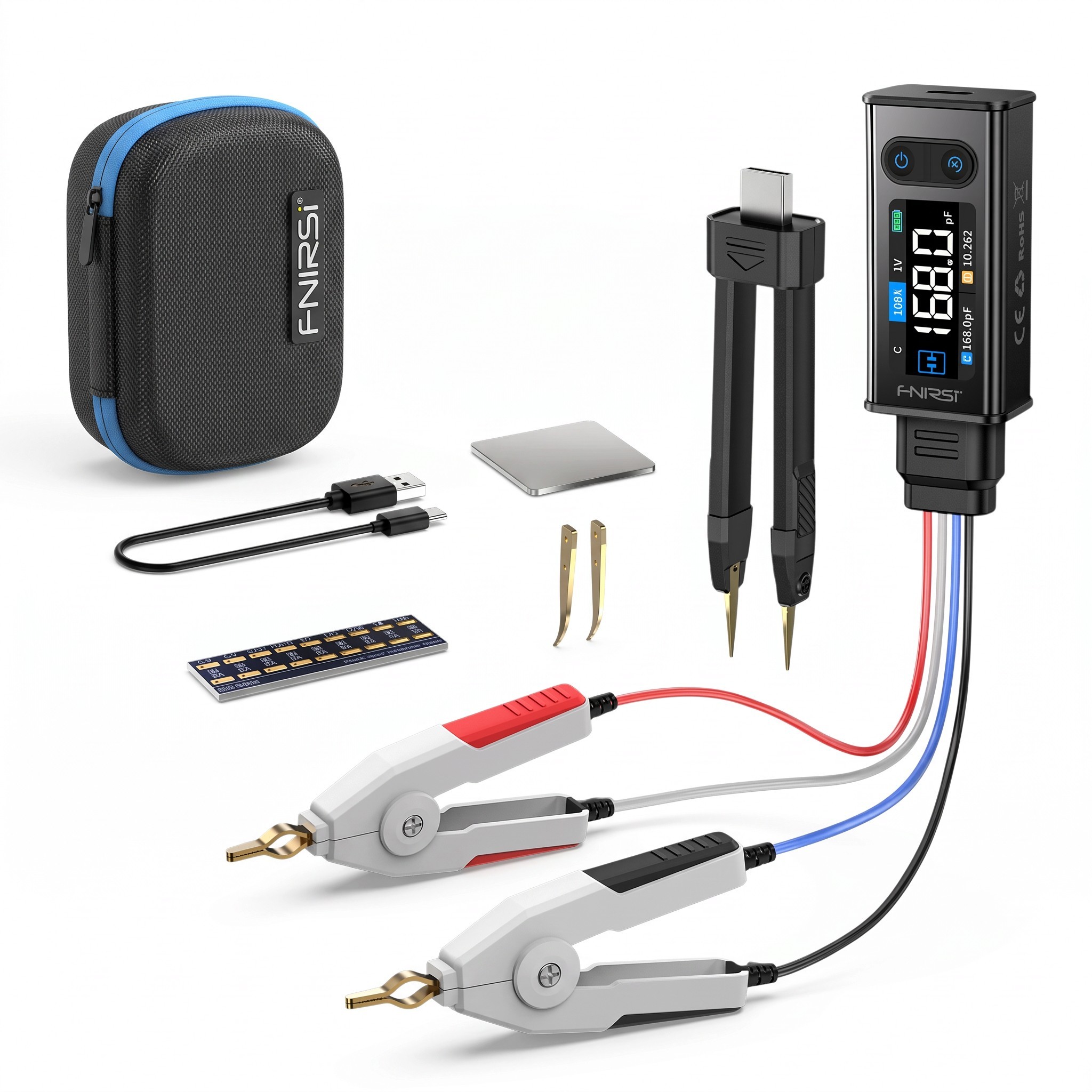

  • Package contents: measuring unit with tweezer attachment, Kelvin test clips, spare bent tips, shorting plate, storage case, data cable USB-A/USB-C

The device combines an SMD component tweezer tester and an LCR meter with Kelvin clips in one unit. You can easily switch from tweezers to clips by simply pulling out and inserting the connector. This allows for quick transitions from measuring on the board to measuring lead components. The sorting function and frequency sweeping expedite the inspection of larger quantities of capacitors, coils, or resistors. Its lightweight, magnetic attachment, and battery power make it easy to work on the desk or away from it. Technicians, developers, engineers, and advanced DIY enthusiasts will appreciate this meter.
